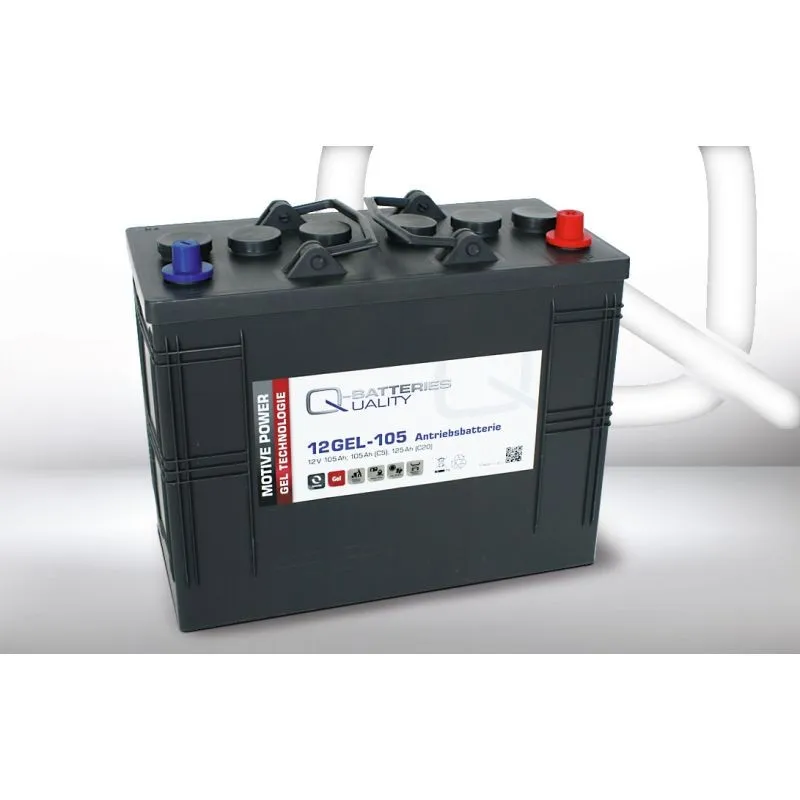

Q-battery 12GEL-105 · Traction battery 12V 105Ah GEL
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12GEL-105 |
| Voltage (V) | 12 |
| Capacity (C20) | 105Ah (c20) |
| Technology | GEL |
| Length | 345.00 cm |
| Width | 170.00 cm |
| Height | 285.00 cm |
| Weight | 41.80 Kgs |
€540.80
VAT included
Q-battery 12GEL-105 12V 105Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time

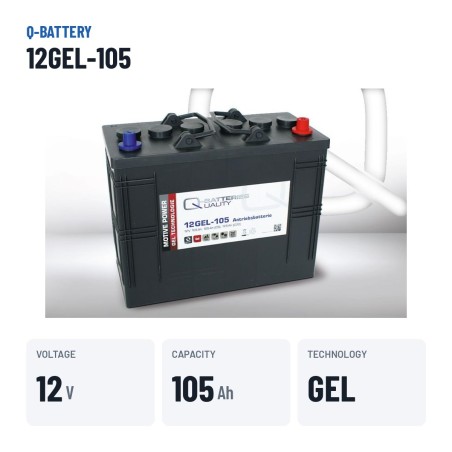

Voltage
12 V
Capacity
105 Ah
Dimensions
345×170×285 mm
Technology
GEL
Polarity
Positive on the right
Weight
41,8 kg
Model
GEL TRACTION BATTERY
Floor cleaning machine battery Q-Battery 12GEL-105 GEL Traction Battery 105Ah 12V
12VVoltage
105AhCapacity
41.80kgWeight
The Q-Battery 12GEL-105 with GEL technology delivers 105 Ah at 12 V, shift after shift, in scrubber-dryers, sweepers and industrial cleaning machines. It measures 345 × 170 × 285 mm and the positive terminal on the right, the format sought by anyone replacing a 105 Ah battery in scrubbers and sweepers.
- Ready for full working shifts.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Long life under intensive cycling.
- Sealed: no leaks in machines that tilt and turn.
What the Q-Battery 12GEL-105 is for
With 105 Ah, the Q-Battery 12GEL-105 powers brushes, vacuum and traction of scrubber-dryers, sweepers and industrial cleaning machines throughout the day. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 41.80 kg, A-Pole terminals and B0 hold-down.
Dimensions, polarity and mounting

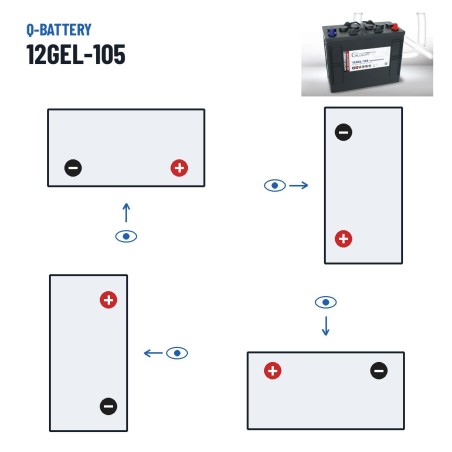

It has external dimensions of 345 × 170 × 285 mm and weighs 41.80 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and A-Pole terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Q-Battery 12GEL-105: GEL Traction Battery range and GEL technology
The 12GEL-105 is part of the Q-Battery GEL Traction Battery range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.
Why choose Q-Battery batteries
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. All the Q-Battery batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Warranty and coverage
The Q-Battery 12GEL-105 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. Check the electrolyte level if the battery allows it and replace the complete set when changing batteries.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-Q-BATTERY-12GEL-105

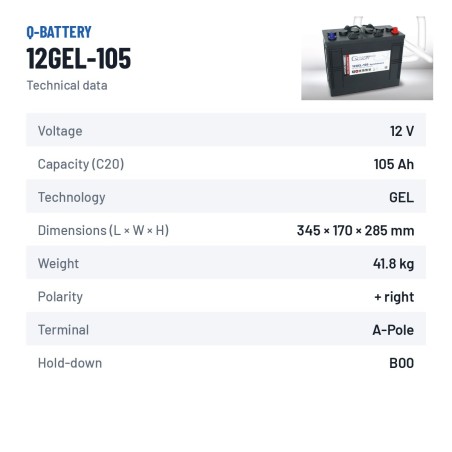

Data sheet
- Brand
- Q-Battery
- Reference
- 12GEL-105
- Model
- GEL TRACTION BATTERY
- Voltage (V)
- 12
- Length
- 345.00 cm
- Width
- 170.00 cm
- Height
- 285.00 cm
- Weight
- 41.80 Kgs
- Technology
- GEL
- Terminal layout
- Positive terminal on the right
- Terminal type
- A-Pole

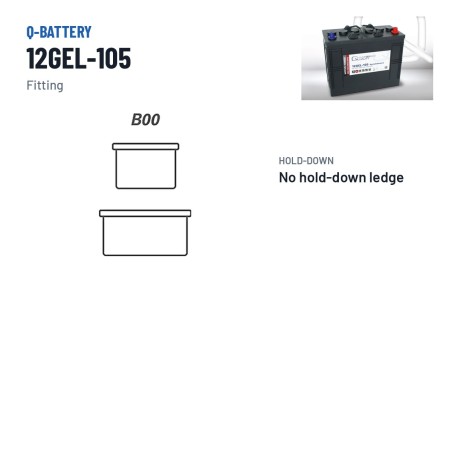

- Hold-down
- B0
- Capacity (C20)
- 105Ah (c20)
Specific References
- EAN13
- 4250889611729
- MPN
- 12GEL-105
Codes and references Q-battery 12GEL-105
| Brand | Q-battery |
|---|---|
| Manufacturer range | GEL TRACTION BATTERY |
| Manufacturer reference (MPN) | 12GEL-105 |
| EAN-13 barcode | 4250889611729 |
| Dimensions (length × width × height) | 345 × 170 × 285 mm (345x170x285) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Q-battery 12GEL-105 a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Q-battery 12GEL-105 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 12GEL-105 model?
Expected lifespan of the Q-battery 12GEL-105 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the 12GEL-105 model?
Dimensions (length × width × height) are 345×170×285 mm — also written as 345x170x285 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the 12GEL-105 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
