Q-battery 12LS-1.2 · Stationary UPS battery 12V 1.2Ah AGM
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12LS-1.2 |
| Voltage (V) | 12 |
| Capacity (C20) | 1.2Ah (c20) |
| Technology | AGM |
| Length | 97.00 cm |
| Width | 43.00 cm |
| Height | 52.00 cm |
| Weight | 0.54 Kgs |
€19.40
VAT included
Q-battery 12LS-1.2 12V 1Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
1 Ah
Dimensions
97×43×52 mm
Technology
AGM
Weight
0,54 kg
Model
AGM STANDARD

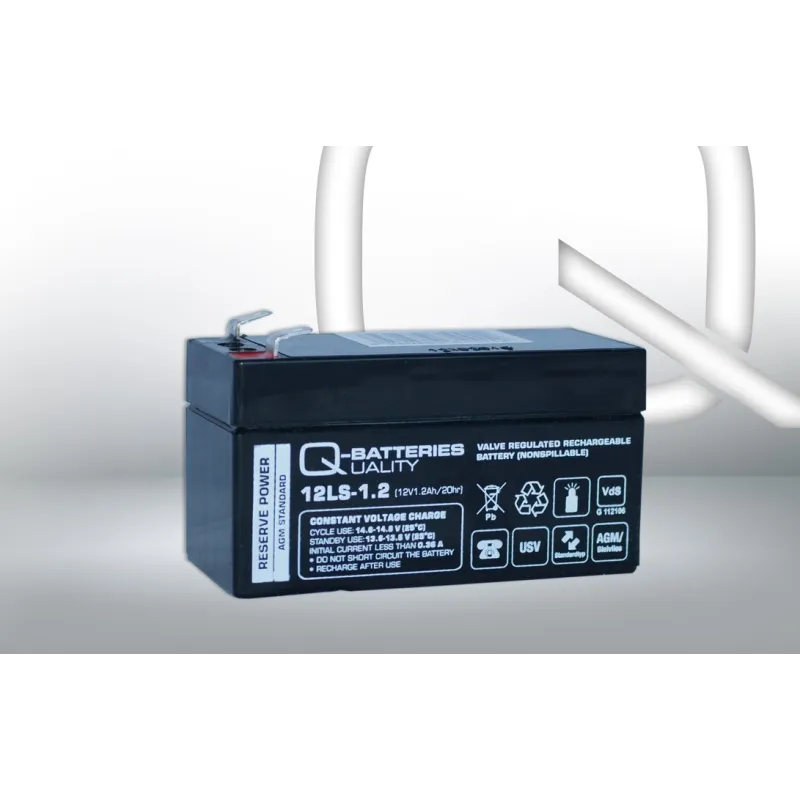

Stationary battery Q-Battery 12LS-1.2 1.2Ah 12V
12VVoltage
1.2AhCapacity
0.54kgWeight
Designed for UPS, alarms, telecoms and emergency lighting, the Q-Battery 12LS-1.2 offers 1.2 Ah with AGM technology on permanent float charge. Its 97 × 43 × 52 mm make it the exact replacement for the 1.2 Ah battery fitted as standard to many UPS, alarm and emergency systems.
- Standard format for UPS and emergency systems.
- Low self-discharge and high reliability.
- Instant response to mains failures.
- AGM: faster recharging and better cycle resistance than a conventional battery.
What the Q-Battery 12LS-1.2 is for
With 1.2 Ah, the Q-Battery 12LS-1.2 gives your UPS or emergency system the autonomy it needs. Replace all the batteries in the set at once. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 0.54 kg, F1 (4 75mm) terminals and G112106 hold-down.
Dimensions, polarity and mounting
In terms of format, the Q-Battery 12LS-1.2 measures 97 × 43 × 52 mm (length × width × height) and weighs 0.54 kg. It uses a G112106 hold-down and F1 (4 75mm) terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Q-Battery batteries
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. We guarantee that every Q-Battery arrives new, charged and with the manufacturer's full warranty.
Technology inside the Q-Battery 12LS-1.2
Q-Battery builds the 12LS-1.2 to the same standards as the rest of its catalogue; what changes between references is capacity, format and terminal position.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
How to make it last longer
Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Manufacturer's warranty
The Q-Battery 12LS-1.2 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-Q-BATTERY-12LS-1.2
Data sheet
- Brand
- Q-Battery
- Reference
- 12LS-1.2
- Model
- AGM STANDARD
- Voltage (V)
- 12
- Length
- 97.00 cm
- Width
- 43.00 cm
- Height
- 52.00 cm
- Weight
- 0.54 Kgs
- Technology
- AGM
- Terminal type
- F1 (4 75mm)
- Hold-down
- G112106
- Capacity (C20)
- 1.2Ah (c20)
Specific References
- EAN13
- 4250889610012
- MPN
- 12LS-1.2
Codes and references Q-battery 12LS-1.2
| Brand | Q-battery |
|---|---|
| Manufacturer range | AGM STANDARD |
| Manufacturer reference (MPN) | 12LS-1.2 |
| EAN-13 barcode | 4250889610012 |
| Dimensions (length × width × height) | 97 × 43 × 52 mm (97x43x52) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Q-battery 12LS-1.2 an AGM battery and what are the benefits of AGM?
Yes. The 12LS-1.2 from Q-battery uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Q-battery 12LS-1.2 battery last?
Expected lifespan of the Q-battery 12LS-1.2 is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Q-battery 12LS-1.2 battery?
Dimensions (length × width × height) are 97×43×52 mm — also written as 97x43x52 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the 12LS-1.2 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
