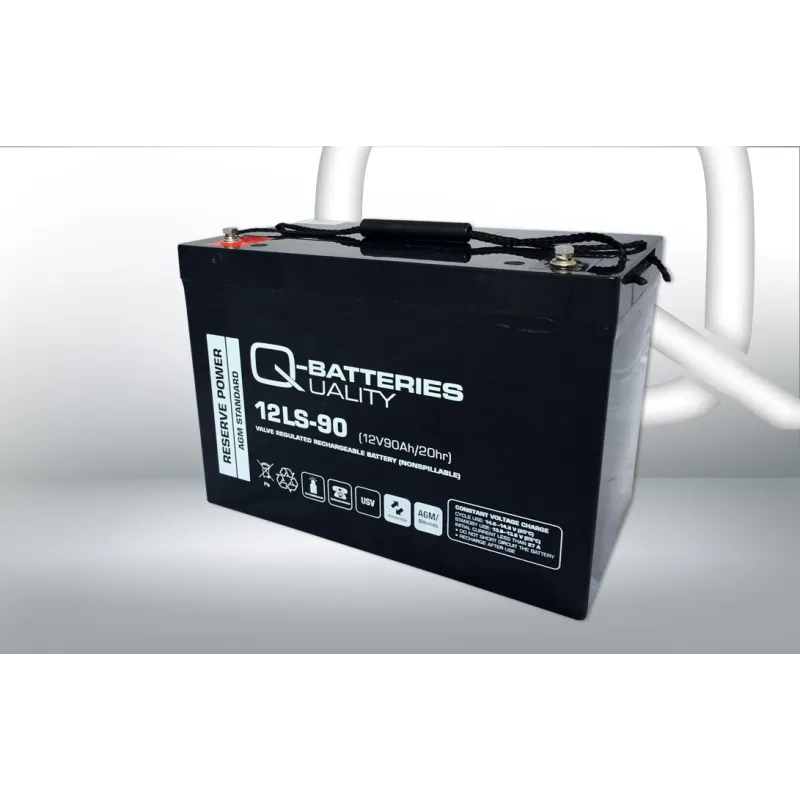

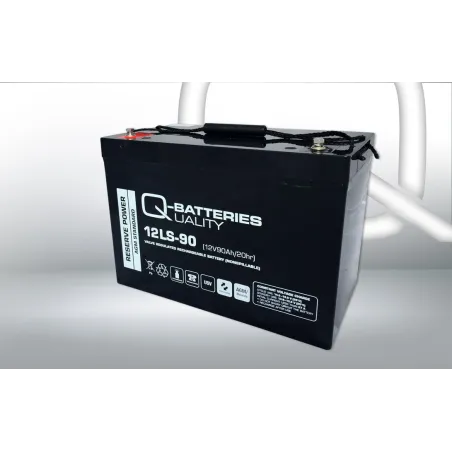

Q-battery 12LS-90 · Stationary UPS battery 12V 90Ah AGM
Stationary UPS battery Q-battery 12LS-90 12V 90Ah AGM images

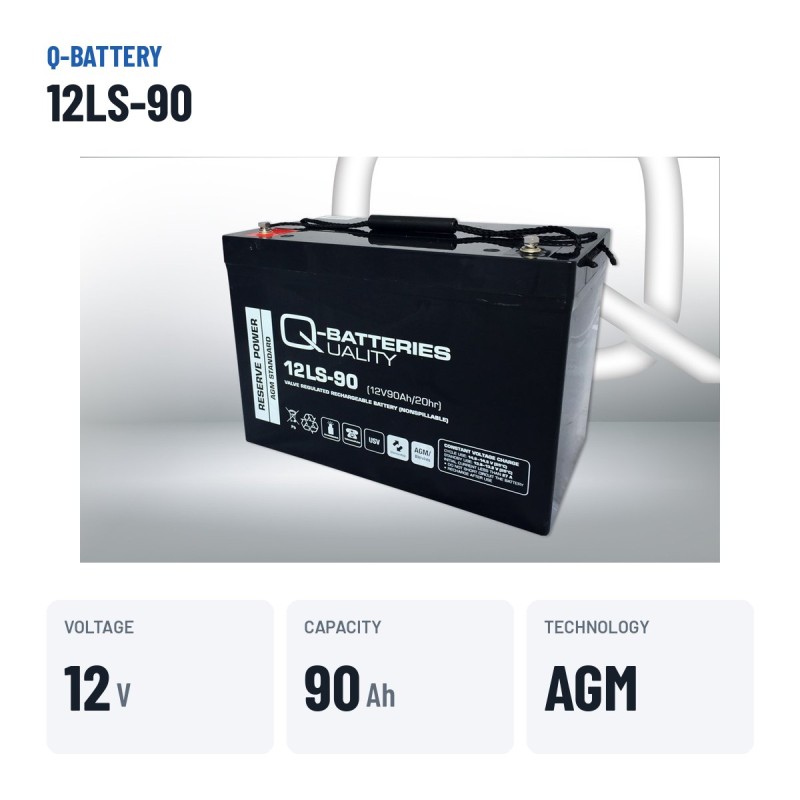

Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12LS-90 |
| Voltage (V) | 12 |
| Capacity (C20) | 90Ah (c20) |
| Technology | AGM |
| Length | 306.00 cm |
| Width | 169.00 cm |
| Height | 211.00 cm |
| Weight | 29.50 Kgs |

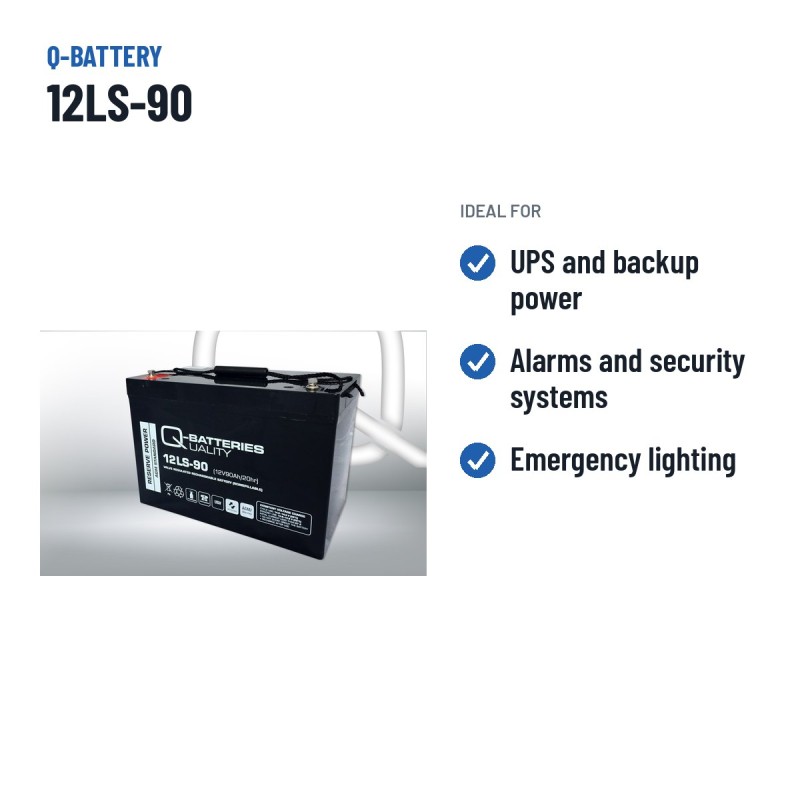

Q-battery 12LS-90 12V 90Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Stationary battery Q-Battery 12LS-90 90Ah 12V

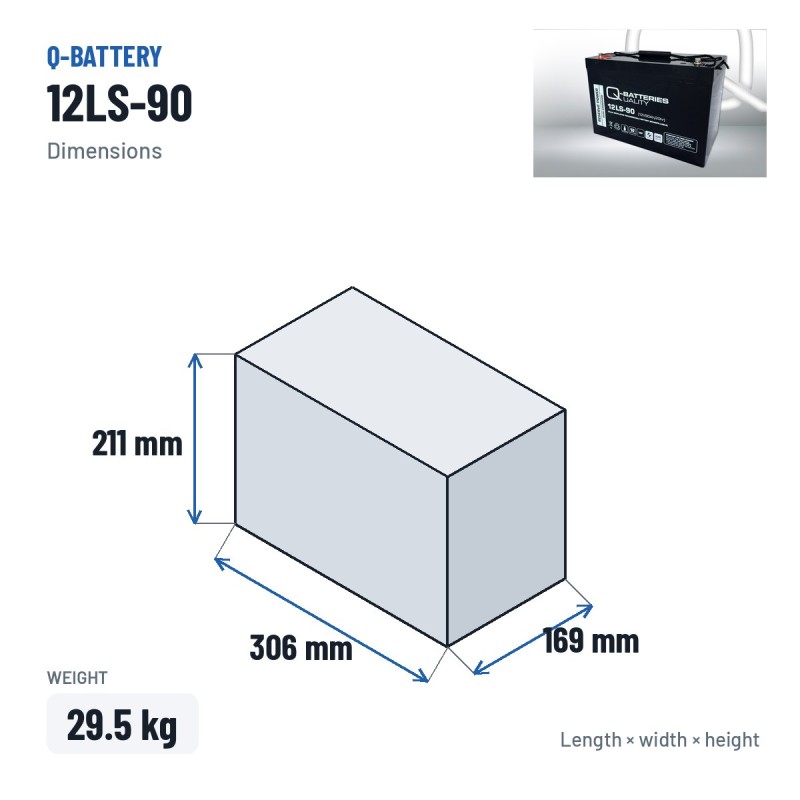

The Q-Battery 12LS-90 with AGM technology is a 90 Ah, 12 V backup battery for UPS, alarms, telecoms and emergency lighting. Measuring 306 × 169 × 211 mm, it is the direct replacement for UPS, alarm and emergency systems fitted from the factory with a 90 Ah battery of this format.
- Low self-discharge and high reliability.
- Standard format for UPS and emergency systems.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Instant response to mains failures.
What the Q-Battery 12LS-90 is for
With 90 Ah, the Q-Battery 12LS-90 gives your UPS or emergency system the autonomy it needs. Replace all the batteries in the set at once. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 29.50 kg and F11 (M6) terminals.
Technology inside the Q-Battery 12LS-90
Q-Battery builds the 12LS-90 to the same standards as the rest of its catalogue; what changes between references is capacity, format and terminal position.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Will it fit your current battery tray?
It has external dimensions of 306 × 169 × 211 mm and weighs 29.50 kg. It uses F11 (M6) terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Why choose Q-Battery batteries
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. All the Q-Battery batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Warranty and coverage
The Q-Battery 12LS-90 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
-
-
ReferenceBCOM-Q-BATTERY-12LS-90

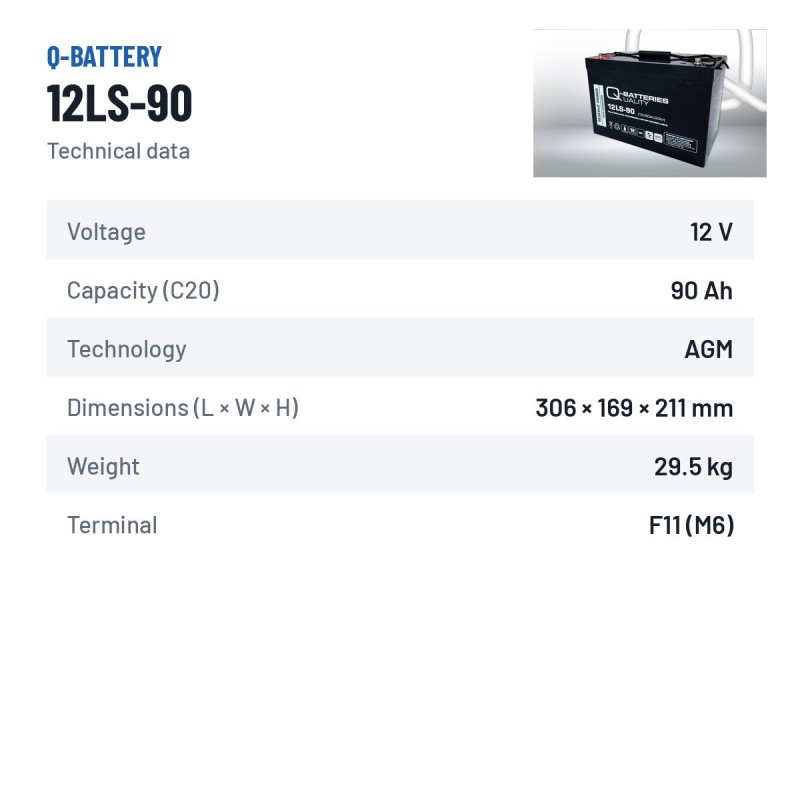

Data sheet
-
BrandQ-Battery
-
Reference12LS-90
-
ModelAGM STANDARD
-
Voltage (V)12
-
Length306.00 cm
-
Width169.00 cm
-
Height211.00 cm
-
Weight29.50 Kgs
-
TechnologyAGM
-
Terminal typeF11 (M6)
-
Capacity (C20)90Ah (c20)
Specific References
-
MPN12LS-90
Recommended accessories
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The 12LS-90 from Q-battery uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Q-battery 12LS-90 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Q-battery 12LS-90 battery last?
Expected lifespan of the Q-battery 12LS-90 is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Q-battery 12LS-90 battery?
Dimensions (length × width × height) are 306×169×211 mm — also written as 306x169x211 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the 12LS-90 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
