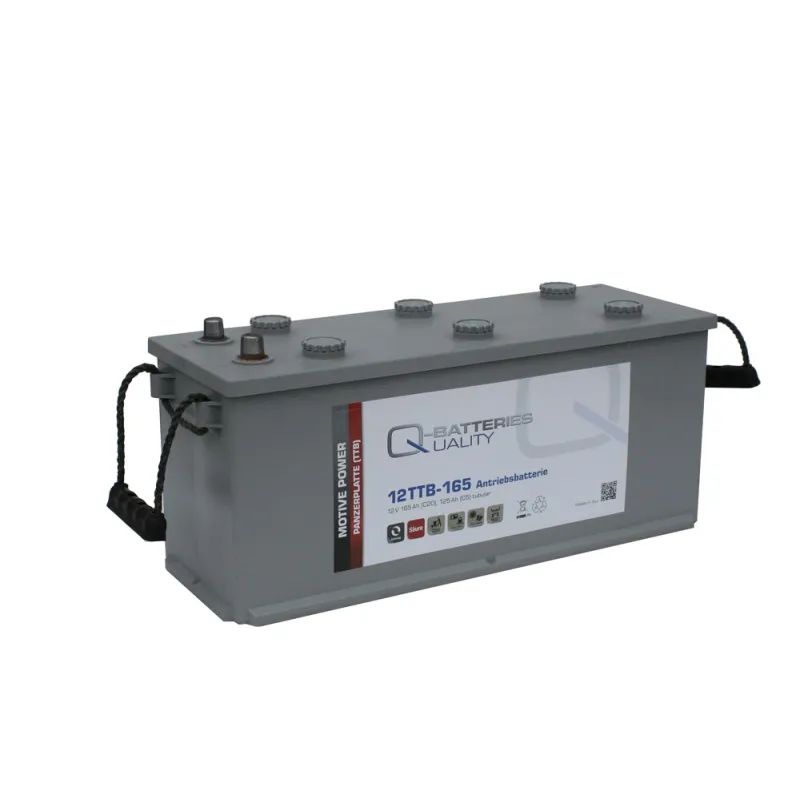

Q-battery 12TTB-165 · Traction battery 12V 165Ah
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12TTB-165 |
| Voltage (V) | 12 |
| Capacity (C20) | 165Ah (c20) |
| Technology | Lead-acid |
| Length | 510.00 cm |
| Width | 175.00 cm |
| Height | 225.00 cm |
| Weight | 40.00 Kgs |
€581.10
VAT included
Q-battery 12TTB-165 12V 165Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
165 Ah
Dimensions
510×175×225 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
40 kg
Model
TUBULAR PLATE BATTERY
Floor cleaning machine battery Q-Battery 12TTB-165 Tubular Plate Battery 165Ah 12V
12VVoltage
165AhCapacity
40kgWeight
The 12 V, 165 Ah Q-Battery 12TTB-165 from the Tubular Plate Battery range with conventional lead-acid technology is built for scrubber-dryers, sweepers and industrial cleaning machines. It replaces the original battery without adaptation in scrubbers and sweepers with a 510 × 175 × 225 mm format: same 165 Ah capacity and the positive terminal on the right.
- Conventional lead-acid: the most proven and economical technology.
- Ready for full working shifts.
- Sealed: no leaks in machines that tilt and turn.
- Long life under intensive cycling.
Size, terminals and hold-down of the Q-Battery 12TTB-165
The Q-Battery 12TTB-165 is made in the 510 × 175 × 225 mm format and weighs 40 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and A-Pole terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What the Q-Battery 12TTB-165 is for
With 165 Ah, the Q-Battery 12TTB-165 powers brushes, vacuum and traction of scrubber-dryers, sweepers and industrial cleaning machines throughout the day. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 40 kg, A-Pole terminals and B13 hold-down.
The Q-Battery 12TTB-165: Tubular Plate Battery range and conventional lead-acid technology
The 12TTB-165 is part of the Q-Battery Tubular Plate Battery range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
What Q-Battery does differently
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. All the Q-Battery batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Q-Battery 12TTB-165 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Check the electrolyte level if the battery allows it and replace the complete set when changing batteries. Recharge the machine at the end of each shift and avoid repeated full discharges.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-Q-BATTERY-12TTB-165
Data sheet
- Brand
- Q-Battery
- Reference
- 12TTB-165
- Model
- TUBULAR PLATE BATTERY
- Voltage (V)
- 12
- Length
- 510.00 cm
- Width
- 175.00 cm
- Height
- 225.00 cm
- Weight
- 40.00 Kgs
- Technology
- Lead-acid
- Terminal layout
- Positive terminal on the right
- Terminal type
- A-Pole
- Hold-down
- B13
- Capacity (C20)
- 165Ah (c20)
Specific References
- EAN13
- 4250889600570
- MPN
- 12TTB-165
Codes and references Q-battery 12TTB-165
| Brand | Q-battery |
|---|---|
| Manufacturer range | TUBULAR PLATE BATTERY |
| Manufacturer reference (MPN) | 12TTB-165 |
| EAN-13 barcode | 4250889600570 |
| Dimensions (length × width × height) | 510 × 175 × 225 mm (510x175x225) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I fit the 12TTB-165 model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 12TTB-165 model?
Expected lifespan of the Q-battery 12TTB-165 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 510×175×225 mm — also written as 510x175x225 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Q-battery 12TTB-165?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
