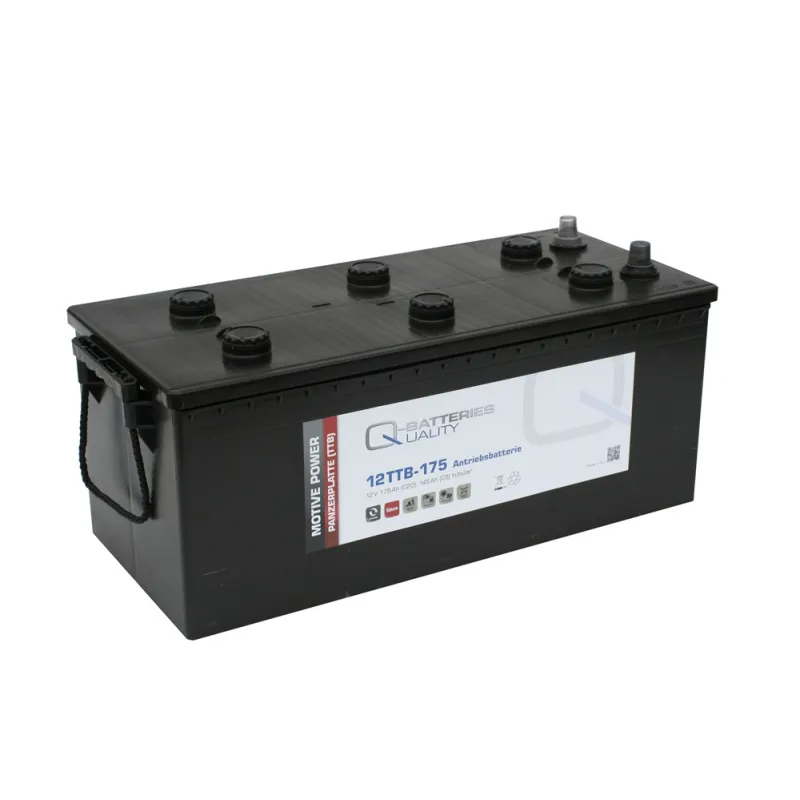

Q-battery 12TTB-175 · Traction battery 12V 175Ah
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12TTB-175 |
| Voltage (V) | 12 |
| Capacity (C20) | 175Ah (c20) |
| Technology | Lead-acid |
| Length | 512.00 cm |
| Width | 223.00 cm |
| Height | 220.00 cm |
| Weight | 46.40 Kgs |
€721.60
VAT included
Q-battery 12TTB-175 12V 175Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
175 Ah
Dimensions
512×223×220 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
46,4 kg
Model
TUBULAR PLATE BATTERY
Floor cleaning machine battery Q-Battery 12TTB-175 Tubular Plate Battery 175Ah 12V
12VVoltage
175AhCapacity
46.40kgWeight
The Q-Battery 12TTB-175 with conventional lead-acid technology delivers 175 Ah at 12 V, shift after shift, in scrubber-dryers, sweepers and industrial cleaning machines. It replaces the original battery without adaptation in scrubbers and sweepers with a 512 × 223 × 220 mm format: same 175 Ah capacity and the positive terminal on the left.
- Sealed: no leaks in machines that tilt and turn.
- Long life under intensive cycling.
- Conventional lead-acid: the most proven and economical technology.
- Ready for full working shifts.
What the Q-Battery 12TTB-175 is for
With 175 Ah, the Q-Battery 12TTB-175 powers brushes, vacuum and traction of scrubber-dryers, sweepers and industrial cleaning machines throughout the day. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 46.40 kg, A-Pole terminals and B0 hold-down.
Dimensions, polarity and mounting
In terms of format, the Q-Battery 12TTB-175 measures 512 × 223 × 220 mm (length × width × height) and weighs 46.40 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and A-Pole terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Q-Battery 12TTB-175: Tubular Plate Battery range and conventional lead-acid technology
The 12TTB-175 is part of the Q-Battery Tubular Plate Battery range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
What Q-Battery does differently
The Q-Battery catalogue runs from small alarm batteries to large traction monoblocs, always with sealed, maintenance-free technology. We guarantee that every Q-Battery arrives new, charged and with the manufacturer's full warranty.
Warranty and coverage
The Q-Battery 12TTB-175 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Check the electrolyte level if the battery allows it and replace the complete set when changing batteries. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-Q-BATTERY-12TTB-175
Data sheet
- Brand
- Q-Battery
- Reference
- 12TTB-175
- Model
- TUBULAR PLATE BATTERY
- Voltage (V)
- 12
- Length
- 512.00 cm
- Width
- 223.00 cm
- Height
- 220.00 cm
- Weight
- 46.40 Kgs
- Technology
- Lead-acid
- Terminal layout
- Positive terminal on the left
- Terminal type
- A-Pole
- Hold-down
- B0
- Capacity (C20)
- 175Ah (c20)
Specific References
- EAN13
- 4250889600587
- MPN
- 12TTB-175
Codes and references Q-battery 12TTB-175
| Brand | Q-battery |
|---|---|
| Manufacturer range | TUBULAR PLATE BATTERY |
| Manufacturer reference (MPN) | 12TTB-175 |
| EAN-13 barcode | 4250889600587 |
| Dimensions (length × width × height) | 512 × 223 × 220 mm (512x223x220) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Q-battery 12TTB-175 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 12TTB-175 model?
Expected lifespan of the Q-battery 12TTB-175 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 512×223×220 mm — also written as 512x223x220 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Q-battery 12TTB-175?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
