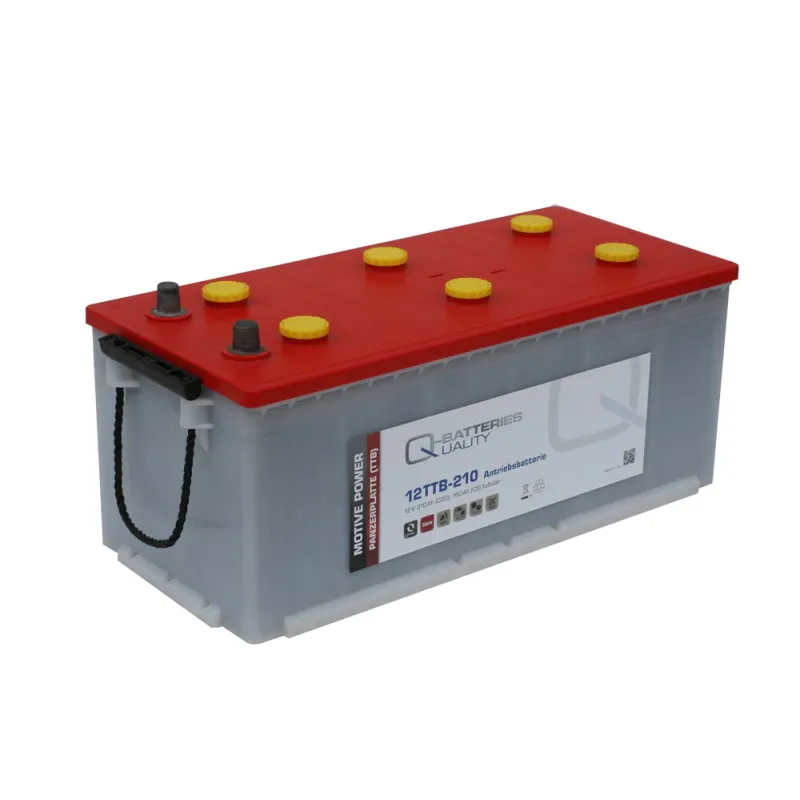

Q-battery 12TTB-210 · Traction battery 12V 210Ah
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12TTB-210 |
| Voltage (V) | 12 |
| Capacity (C20) | 210Ah (c20) |
| Technology | Lead-acid |
| Length | 513.00 cm |
| Width | 218.00 cm |
| Height | 215.00 cm |
| Weight | 46.00 Kgs |
€784.20
VAT included
Q-battery 12TTB-210 12V 210Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
210 Ah
Dimensions
513×218×215 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
46 kg
Model
TUBULAR PLATE BATTERY
Floor cleaning machine battery Q-Battery 12TTB-210 Tubular Plate Battery 210Ah 12V
12VVoltage
210AhCapacity
46kgWeight
Designed for scrubber-dryers, sweepers and industrial cleaning machines, the Q-Battery 12TTB-210 from the Tubular Plate Battery range offers 210 Ah of deep-cycle capacity with conventional lead-acid technology. It replaces the original battery without adaptation in scrubbers and sweepers with a 513 × 218 × 215 mm format: same 210 Ah capacity and the positive terminal on the right.
- Sealed: no leaks in machines that tilt and turn.
- Long life under intensive cycling.
- Conventional lead-acid: the most proven and economical technology.
- Ready for full working shifts.
What the Q-Battery 12TTB-210 is for
Designed for scrubber-dryers, sweepers and industrial cleaning machines, the Q-Battery 12TTB-210 is sealed and safe in machines that tilt and turn. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 46 kg, A-Pole terminals and B13 hold-down.
The Q-Battery 12TTB-210: Tubular Plate Battery range and conventional lead-acid technology
Within the Q-Battery catalogue, the Tubular Plate Battery series groups the references designed for this use. The 12TTB-210 is the 210 Ah model of that family, with the same performance as its siblings in other sizes.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Dimensions, polarity and mounting
The Q-Battery 12TTB-210 is made in the 513 × 218 × 215 mm format and weighs 46 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and A-Pole terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Why choose Q-Battery batteries
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
Check the electrolyte level if the battery allows it and replace the complete set when changing batteries. Recharge the machine at the end of each shift and avoid repeated full discharges.
Warranty and coverage
The Q-Battery 12TTB-210 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-Q-BATTERY-12TTB-210
Data sheet
- Brand
- Q-Battery
- Reference
- 12TTB-210
- Model
- TUBULAR PLATE BATTERY
- Voltage (V)
- 12
- Length
- 513.00 cm
- Width
- 218.00 cm
- Height
- 215.00 cm
- Weight
- 46.00 Kgs
- Technology
- Lead-acid
- Terminal layout
- Positive terminal on the right
- Terminal type
- A-Pole
- Hold-down
- B13
- Capacity (C20)
- 210Ah (c20)
Specific References
- MPN
- 12TTB-210
This product has no reviews yet. If you own it, tell us how it has gone: it will help whoever is looking at it now.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Q-battery 12TTB-210 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Q-battery 12TTB-210 battery last?
Expected lifespan of the Q-battery 12TTB-210 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Q-battery 12TTB-210 battery?
Dimensions (length × width × height) are 513×218×215 mm — also written as 513x218x215 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Q-battery 12TTB-210?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
