Q-battery 12TTB-65 · Traction battery 12V 65Ah

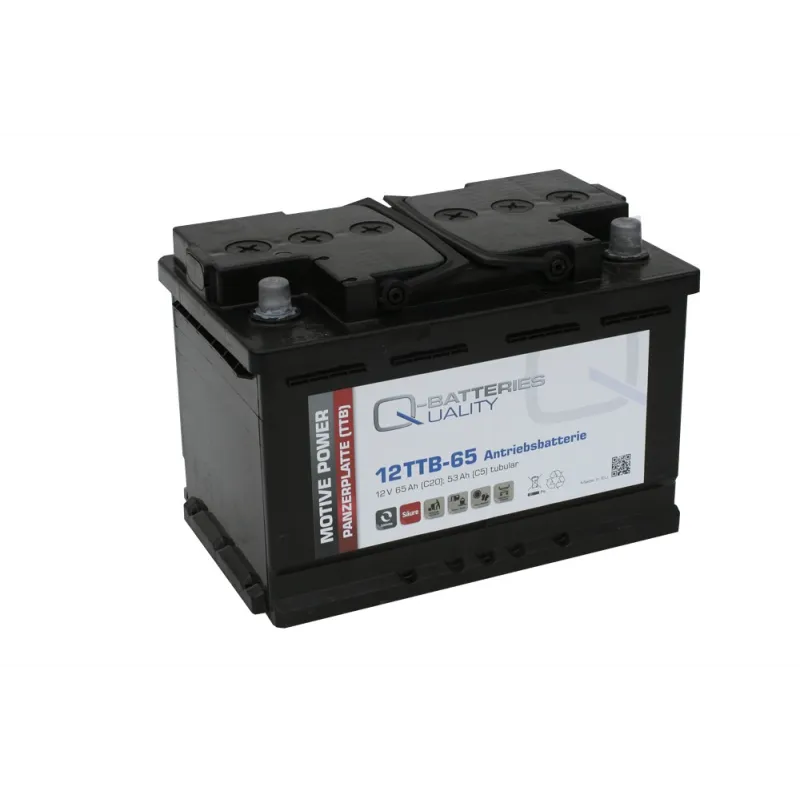

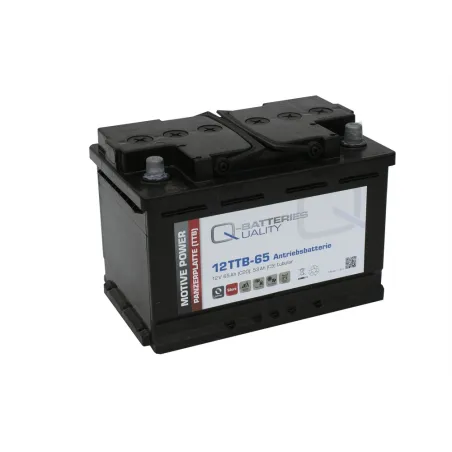

Traction battery Q-battery 12TTB-65 12V 65Ah images
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12TTB-65 |
| Voltage (V) | 12 |
| Capacity (C20) | 65Ah (c20) |
| Technology | Lead-acid |
| Length | 278.00 cm |
| Width | 175.00 cm |
| Height | 190.00 cm |
| Weight | 17.70 Kgs |
Q-battery 12TTB-65 12V 65Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Floor cleaning machine battery Q-Battery 12TTB-65 Tubular Plate Battery 65Ah 12V
Designed for scrubber-dryers, sweepers and industrial cleaning machines, the Q-Battery 12TTB-65 from the Tubular Plate Battery range offers 65 Ah of deep-cycle capacity with conventional lead-acid technology. It measures 278 × 175 × 190 mm and the positive terminal on the right, the format sought by anyone replacing a 65 Ah battery in scrubbers and sweepers.
- Ready for full working shifts.
- Conventional lead-acid: the most proven and economical technology.
- Long life under intensive cycling.
- Sealed: no leaks in machines that tilt and turn.
What the Q-Battery 12TTB-65 is for
The Q-Battery 12TTB-65 is designed for scrubber-dryers, sweepers and industrial cleaning machines: full working shifts with deep discharges and daily recharging. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 17.70 kg, A-Pole terminals and B13 hold-down.
Will it fit your current battery tray?
The Q-Battery 12TTB-65 is made in the 278 × 175 × 190 mm format and weighs 17.70 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and A-Pole terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What Q-Battery does differently
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. We guarantee that every Q-Battery arrives new, charged and with the manufacturer's full warranty.
The Q-Battery 12TTB-65: Tubular Plate Battery range and conventional lead-acid technology
The Tubular Plate Battery is the Q-Battery range the 12TTB-65 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Check the electrolyte level if the battery allows it and replace the complete set when changing batteries.
Warranty and coverage
The Q-Battery 12TTB-65 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
-
-
ReferenceBCOM-Q-BATTERY-12TTB-65
Data sheet
-
BrandQ-Battery
-
Reference12TTB-65
-
ModelTUBULAR PLATE BATTERY
-
Voltage (V)12
-
Length278.00 cm
-
Width175.00 cm
-
Height190.00 cm
-
Weight17.70 Kgs
-
TechnologyLead-acid
-
Terminal layoutPositive terminal on the right
-
Terminal typeA-Pole
-
Hold-downB13
-
Capacity (C20)65Ah (c20)
Specific References
-
EAN134250889600532
-
MPN12TTB-65
Codes and references Q-battery 12TTB-65
| Brand | Q-battery |
|---|---|
| Manufacturer range | TUBULAR PLATE BATTERY |
| Manufacturer part number (MPN) | 12TTB-65 |
| Also known as | 12TTB65 · 12TTB 65 |
| EAN-13 barcode | 4250889600532 |
| European case size (EN 50342-2) | L3 |
| Dimensions (length × width × height) | 278 × 175 × 190 mm (278x175x190) |
Recommended accessories
Frequently asked questions
How is the Q-battery 12TTB-65 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — with positive on the right match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Q-battery 12TTB-65 battery last?
Expected lifespan of the Q-battery 12TTB-65 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Q-battery 12TTB-65 battery?
Dimensions (length × width × height) are 278×175×190 mm — also written as 278x175x190 mm and correspond to the European L3 case size — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
On which side is the positive of the 12TTB-65 model?
Polarity: positive on the right. To identify it, place the battery in front of you with the terminals facing you and check which side the positive (+, marked with a red ring) is on. Before buying, verify the polarity matches your current battery: switching polarity forces longer cables or system reconfiguration, with short-circuit risk.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
