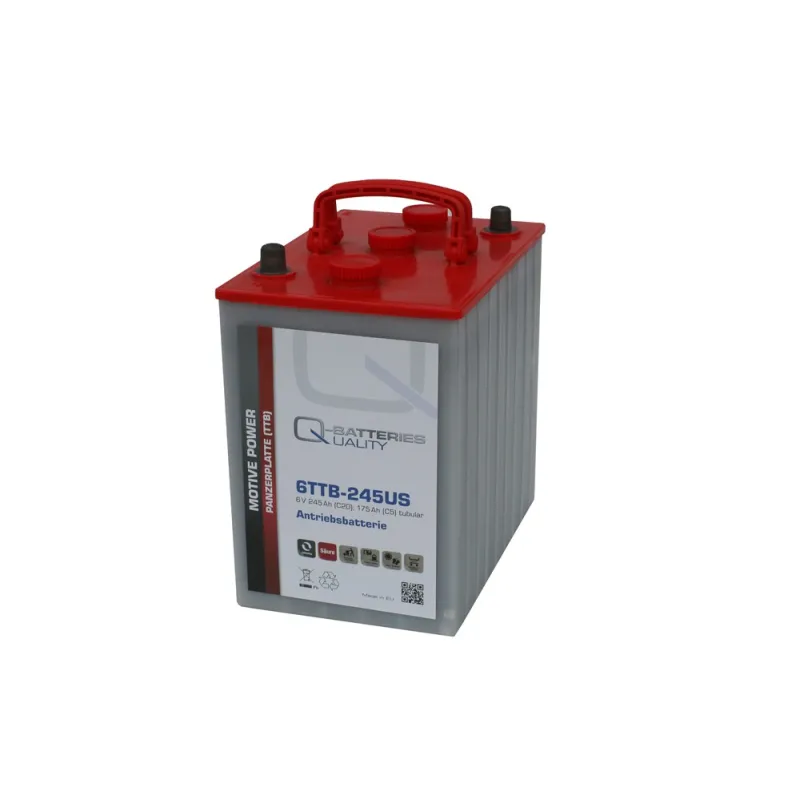

Q-battery 6TTB-245US · Traction battery 6V 245Ah
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 6TTB-245US |
| Voltage (V) | 6 |
| Capacity (C20) | 245Ah (c20) |
| Technology | Lead-acid |
| Length | 260.00 cm |
| Width | 180.00 cm |
| Height | 275.00 cm |
| Weight | 30.60 Kgs |
€463.20
VAT included
Q-battery 6TTB-245US 6V 245Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
245 Ah
Dimensions
260×180×275 mm
Technology
Lead-acid
Weight
30,6 kg
Model
TUBULAR PLATE BATTERY
Floor cleaning machine battery Q-Battery 6TTB-245US Tubular Plate Battery 245Ah 6V
6VVoltage
245AhCapacity
30.60kgWeight
Designed for scrubber-dryers, sweepers and industrial cleaning machines, the Q-Battery 6TTB-245US from the Tubular Plate Battery range offers 245 Ah of deep-cycle capacity with conventional lead-acid technology. Its 260 × 180 × 275 mm make it the exact replacement for the 245 Ah battery fitted as standard to many scrubbers and sweepers.
- Direct replacement for the machine's original battery.
- No maintenance, no water top-ups.
- Resistant to deep discharges and daily recharging.
- Good balance of capacity, cranking power and price.
What the Q-Battery 6TTB-245US is for
The Q-Battery 6TTB-245US is designed for scrubber-dryers, sweepers and industrial cleaning machines: full working shifts with deep discharges and daily recharging. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 30.60 kg, A-Pole terminals and B0 hold-down.
Will it fit your current battery tray?
The Q-Battery 6TTB-245US is made in the 260 × 180 × 275 mm format and weighs 30.60 kg. It uses a B0 hold-down and A-Pole terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Q-Battery: the maker behind the 6TTB-245US
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. We guarantee that every Q-Battery arrives new, charged and with the manufacturer's full warranty.
The Q-Battery 6TTB-245US: Tubular Plate Battery range and conventional lead-acid technology
Within the Q-Battery catalogue, the Tubular Plate Battery series groups the references designed for this use. The 6TTB-245US is the 245 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Check the electrolyte level if the battery allows it and replace the complete set when changing batteries.
Warranty and coverage
The Q-Battery 6TTB-245US comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-Q-BATTERY-6TTB-245US
Data sheet
- Brand
- Q-Battery
- Reference
- 6TTB-245US
- Model
- TUBULAR PLATE BATTERY
- Voltage (V)
- 6
- Length
- 260.00 cm
- Width
- 180.00 cm
- Height
- 275.00 cm
- Weight
- 30.60 Kgs
- Technology
- Lead-acid
- Terminal type
- A-Pole
- Hold-down
- B0
- Capacity (C20)
- 245Ah (c20)
Specific References
- EAN13
- 4250889600488
- MPN
- 6TTB-245US
Codes and references Q-battery 6TTB-245US
| Brand | Q-battery |
|---|---|
| Manufacturer range | TUBULAR PLATE BATTERY |
| Manufacturer reference (MPN) | 6TTB-245US |
| EAN-13 barcode | 4250889600488 |
| Dimensions (length × width × height) | 260 × 180 × 275 mm (260x180x275) |
Comparison: Q-battery BATTERY-6TTB-245US vs equivalents
The Q-battery BATTERY-6TTB-245US is interchangeable with these equivalent references: BATTERY-6TTB-225US (Q-battery).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Q-battery
BATTERY-6TTB-245US
This battery
|
6V 245Ah | Lead-acid | €463.20 |
Q-battery
BATTERY-6TTB-225US
|
6V 225Ah | Lead-acid | €399.10 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Q-battery 6TTB-245US battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Q-battery 6TTB-245US battery last?
Expected lifespan of the Q-battery 6TTB-245US is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Q-battery 6TTB-245US battery?
Dimensions (length × width × height) are 260×180×275 mm — also written as 260x180x275 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Q-battery 6TTB-245US?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
