Ritar FT12-200 · Telecom battery 12V 200Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | FT12-200 |
| Voltage (V) | 12 |
| Capacity (C20) | 200 |
| Capacity (C10) | 200Ah (c10) |
| Technology | AGM |
| Length | 560.00 mm |
| Width | 125.00 mm |
| Height | 316.00 mm |
€674.30
VAT included
4,69/5★★★★★8 reviewsVerified purchases
- ★★★★Alejandro Sanchez:
Resolvieron todas mis dudas
- ★★★★★Oscar Jimenez:
Gracias. Muy buena atención al cliente
- ★★★★Felix Guerrero:
Recibí en plazo. Todo ok
Ritar FT12-200 12V 200Ah is a network backup battery: long float life and stable output during mains outages.
Why this telecom battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
200 Ah
Dimensions
560×125×316 mm
Technology
AGM
Weight
57,7 kg
Model
RITAR FT
Stationary battery Ritar FT12-200 FT 200Ah 12V
12VVoltage
200AhCapacity
57.70kgWeight

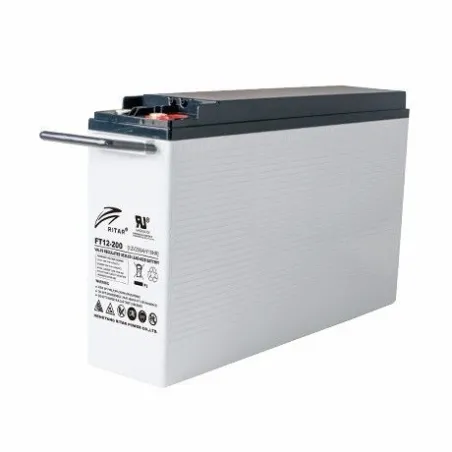

The 12 V, 200 Ah Ritar FT12-200 stationary battery from the FT range with AGM technology is designed for UPS, alarms, telecoms and emergency lighting. It measures 560 × 125 × 316 mm, the format sought by anyone replacing a 200 Ah battery in UPS, alarm and emergency systems.
- Maintenance-free for its whole service life.
- Sealed and gas-free: suitable for cabinets and offices.
- Long float life under permanent charge.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.

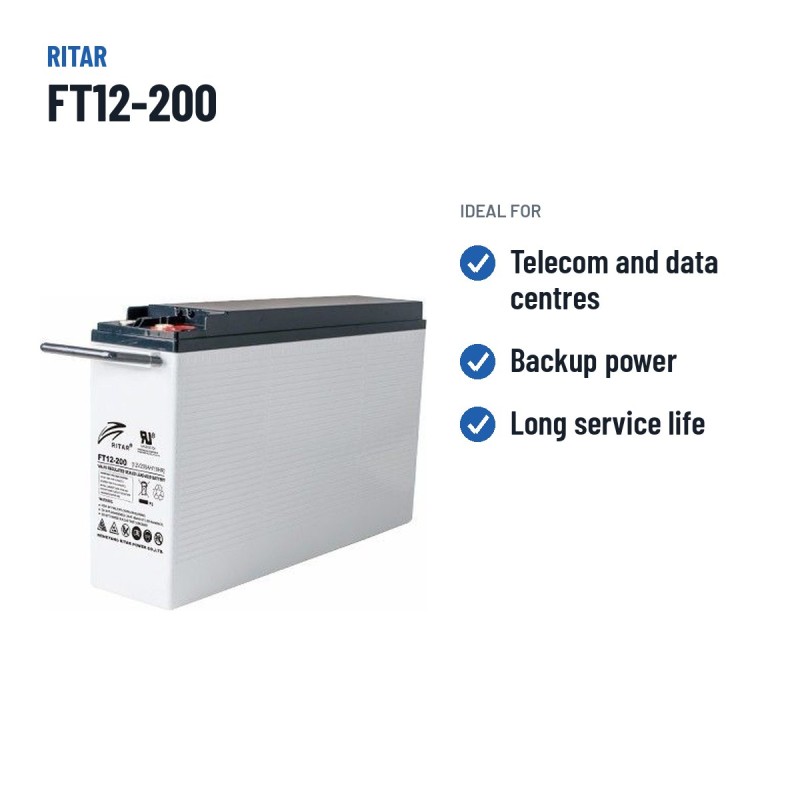

What the Ritar FT12-200 is for
The Ritar FT12-200 is designed for UPS, alarms, telecoms and emergency lighting: it sits on float charge and responds instantly to a mains failure. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 57.70 kg and M8 terminals.
The Ritar FT12-200: FT range and AGM technology
Within the Ritar catalogue, the FT series groups the references designed for this use. The FT12-200 is the 200 Ah model of that family, with the same performance as its siblings in other sizes.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Will it fit your current battery tray?

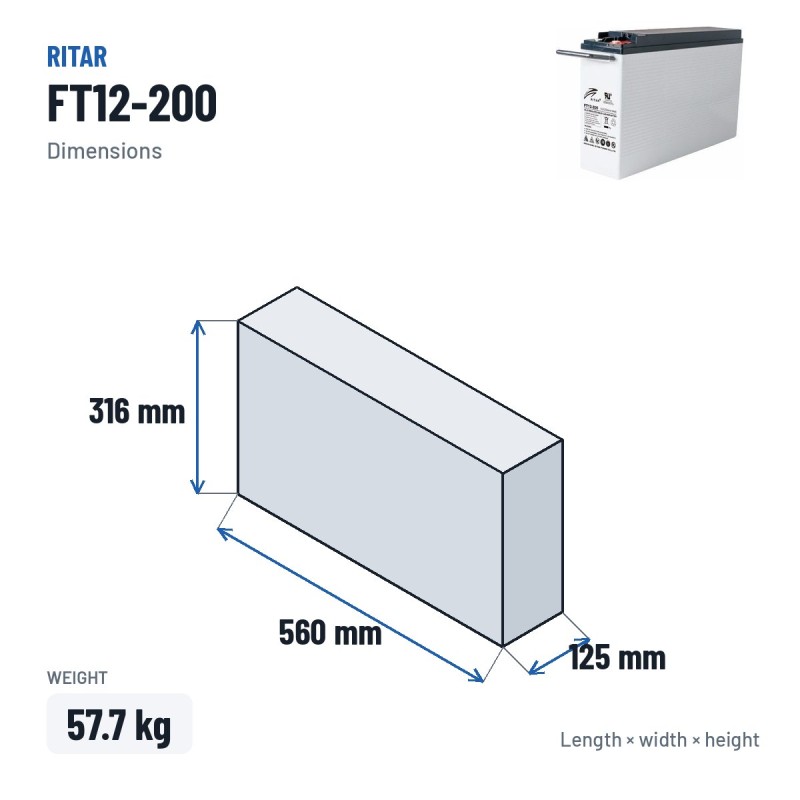

In terms of format, the Ritar FT12-200 measures 560 × 125 × 316 mm (length × width × height) and weighs 57.70 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Ritar: the maker behind the FT12-200
Ritar is one of the world's largest VRLA battery manufacturers. Its RA, RT, RL, HR and FT series equip UPS, telecoms and solar systems worldwide with very consistent quality. All the Ritar batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
How to make it last longer
Replace all the batteries in the set at once and avoid environments continuously above 25 °C. Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery.
Official warranty
The Ritar FT12-200 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-RITAR-FT12-200

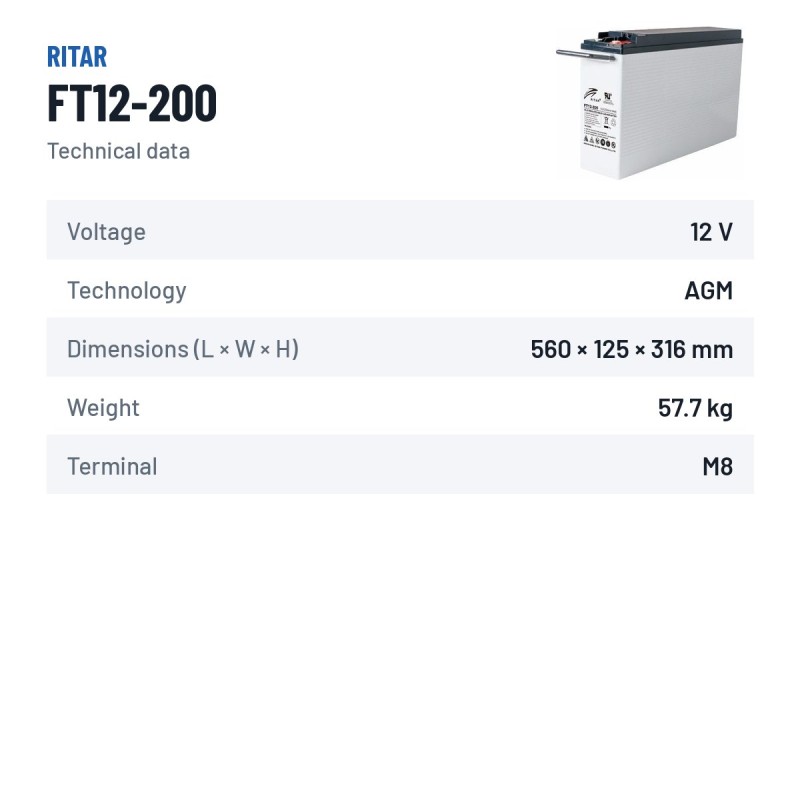

Data sheet
- Brand
- RITAR
- Reference
- FT12-200
- Model
- RITAR FT
- Voltage (V)
- 12
- Length
- 560.00 mm
- Width
- 125.00 mm
- Height
- 316.00 mm
- Weight
- 57.7 Kgs
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 200
- Capacity (C10)
- 200Ah (c10)
Specific References
- MPN
- FT12-200
4,69/5
Verified purchasesLatest verified reviews
★★★★★Alejandro Sanchez
20/01/2026Me atendieron por whatsapp de 10
Resolvieron todas mis dudas
★★★★★Oscar Jimenez
15/01/2026Servicio ideal
Gracias. Muy buena atención al cliente
★★★★★Felix Guerrero
22/12/2025Buen producto
Recibí en plazo. Todo ok
Comparison: Ritar FT12-200 vs equivalents
The Ritar FT12-200 is interchangeable with these equivalent references: FT12-180 (Ritar), FT12-185 (Ritar).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Ritar
FT12-200
This battery
|
12V 200Ah | AGM | €674.30 |
Ritar
FT12-180
|
12V 180Ah | AGM | €547.80 |
Ritar
FT12-185
|
12V 185Ah | AGM | €606.20 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The FT12-200 from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Ritar FT12-200 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Ritar FT12-200 is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Ritar FT12-200 battery?
Dimensions (length × width × height) are 560×125×316 mm — also written as 560x125x316 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the FT12-200 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
