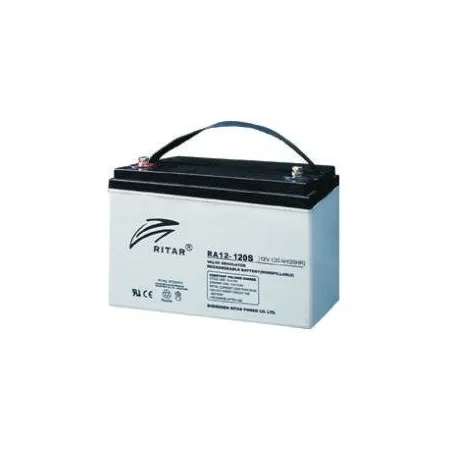

Ritar RA12-120S · Caravan battery 12V 116Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | RA12-120S |
| Voltage (V) | 12 |
| Capacity (C20) | 116Ah (c20) |
| Capacity (C10) | 110Ah (c10) |
| Technology | AGM |
| Length | 328.00 mm |
| Width | 172.00 mm |
| Height | 222.00 mm |
€399.40
VAT included
4,84/5★★★★★15 reviewsVerified purchases
- ★★★★Javier Flores:
Para los que no entendemos de baterías se agradece su ayuda
- ★★★★★Ramon Molina:
Al final fue facil la instalación gracias a su ayuda
- ★★★★★Aitor IbaÑez:
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
Ritar RA12-120S 12V 116Ah is a leisure battery for campers, motorhomes and caravans. Designed to power the entire interior kit (fridge, heater, water pump, USB, LED lighting) for several days off-grid, with no need to plug into a campsite hookup.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
116 Ah
Dimensions
328×172×222 mm
Technology
AGM
Weight
29 kg
Model
RITAR RA
Leisure battery Ritar RA12-120S RA 116Ah 12V
12VVoltage
116AhCapacity
29kgWeight
For motorhomes, caravans and campers that need power off-grid, the Ritar RA12-120S from the RA range provides 116 Ah of energy with AGM technology. Measuring 328 × 172 × 222 mm, it is the direct replacement for motorhomes and caravans fitted from the factory with a 116 Ah battery of this format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Withstands daily discharges throughout the season.
- Recharges from the alternator, a solar panel or a mains charger.
- Direct replacement for the original leisure battery.
What the Ritar RA12-120S is for
The Ritar RA12-120S is designed for motorhomes, caravans and campers that need power off-grid: it powers fridge, lights, pump and chargers for several days off-grid. Its 116 Ah capacity sets the available autonomy. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 29 kg and M8 terminals.

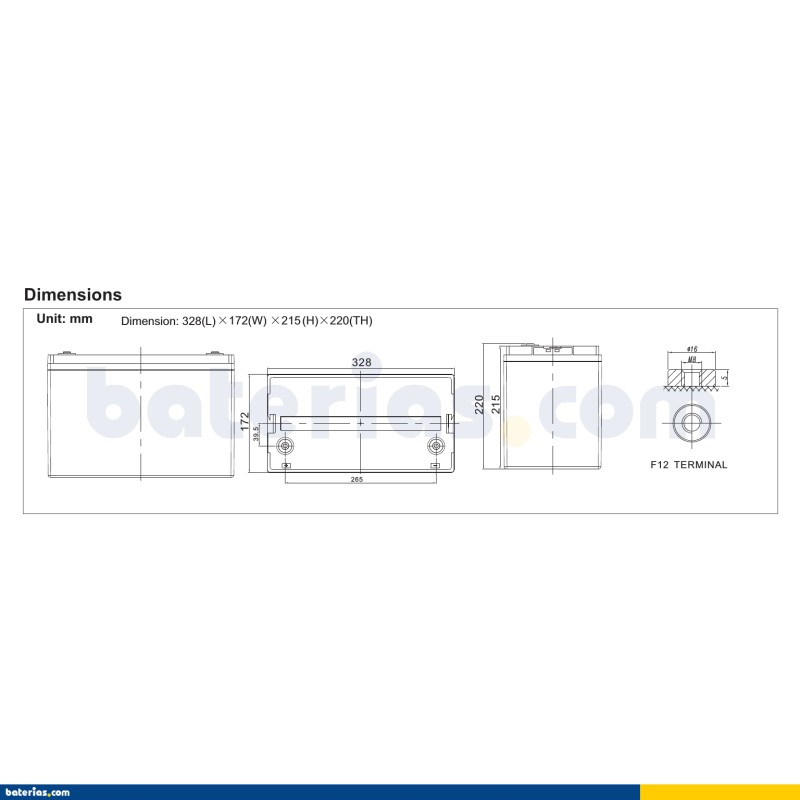

Size, terminals and hold-down of the Ritar RA12-120S
It has external dimensions of 328 × 172 × 222 mm and weighs 29 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Ritar RA12-120S: RA range and AGM technology
Within the Ritar catalogue, the RA series groups the references designed for this use. The RA12-120S is the 116 Ah model of that family, with the same performance as its siblings in other sizes.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Ritar: the maker behind the RA12-120S
Ritar is one of the world's largest VRLA battery manufacturers. Its RA, RT, RL, HR and FT series equip UPS, telecoms and solar systems worldwide with very consistent quality. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Manufacturer's warranty
The Ritar RA12-120S comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Care and maintenance
During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-RITAR-RA12-120S
Data sheet
- Brand
- RITAR
- Reference
- RA12-120S
- Model
- RITAR RA
- Voltage (V)
- 12
- Length
- 328.00 mm
- Width
- 172.00 mm
- Height
- 222.00 mm
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 116Ah (c20)
- Capacity (C10)
- 110Ah (c10)
Specific References
- MPN
- RA12-120S
4,84/5
Verified purchasesLatest verified reviews
★★★★★Javier Flores
22/07/2026Buen asesoramiento
Para los que no entendemos de baterías se agradece su ayuda
★★★★★Ramon Molina
12/02/2026Te indican cómo hacer la instalación
Al final fue facil la instalación gracias a su ayuda
★★★★★Aitor IbaÑez
06/02/2026Gracias
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
★★★★★Aitor Lorenzo
15/11/2025Me asesoraron en la batería
Para los que no entendemos de baterias se agradece su ayuda
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is the Ritar RA12-120S an AGM battery and what are the benefits of AGM?
Yes. The RA12-120S from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Ritar RA12-120S battery installed in the vehicle?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RA12-120S battery last?
Expected lifespan of the Ritar RA12-120S is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the RA12-120S model?
Dimensions (length × width × height) are 328×172×222 mm — also written as 328x172x222 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA12-120S typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Ritar RA12-120S?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
