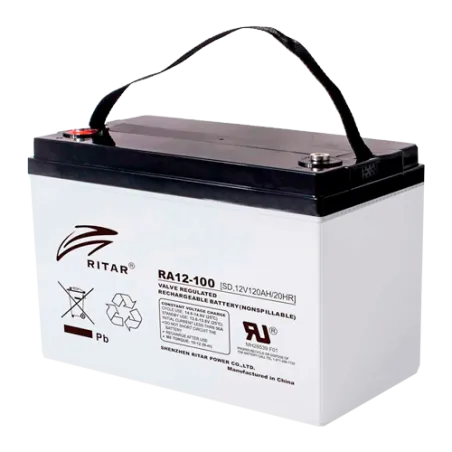

Ritar RA12-100A · Caravan battery 12V 106Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | RA12-100A |
| Voltage (V) | 12 |
| Capacity (C20) | 106Ah (c20) |
| Capacity (C10) | 100Ah (c10) |
| Technology | AGM |
| Length | 328.00 mm |
| Width | 172.00 mm |
| Height | 222.00 mm |
€225.95
VAT included
4,76/5★★★★★31 reviewsVerified purchases
- ★★★★Felipe Cabrera:
Para los que no entendemos de baterías se agradece su ayuda
- ★★★★★Felix Perez:
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
- ★★★★★Jordi Santos:
Al final fue facil la instalación gracias a su ayuda
Ritar RA12-100A 12V 106Ah is a battery for auxiliary services in motorhomes, caravans and campers. Powers the fridge, interior lighting, water pump and sockets while parked, with no need for campsite mains. Withstands daily discharges throughout the season.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
106 Ah
Dimensions
328×172×222 mm
Technology
AGM
Weight
27,5 kg
Model
RITAR RA
Leisure battery Ritar RA12-100A RA 106Ah 100A 12V
12VVoltage
106AhCapacity
100ACold cranking
27.50kgWeight
The Ritar RA12-100A with AGM technology stores 106 Ah at 12 V: autonomy for motorhomes, caravans and campers that need power off-grid. Measuring 328 × 172 × 222 mm, it is the direct replacement for motorhomes and caravans fitted from the factory with a 106 Ah battery of this format.
- Recharges from the alternator, a solar panel or a mains charger.
- Direct replacement for the original leisure battery.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Withstands daily discharges throughout the season.

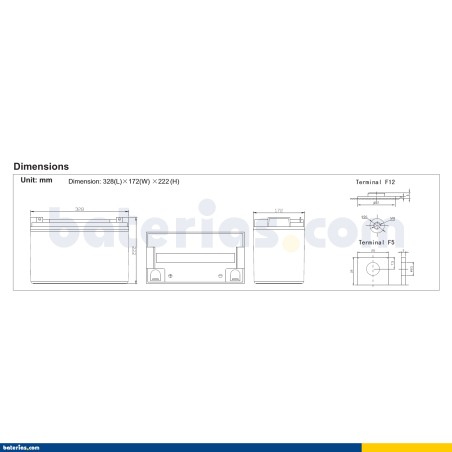

Dimensions, polarity and mounting
The Ritar RA12-100A is made in the 328 × 172 × 222 mm format and weighs 27.50 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What the Ritar RA12-100A is for
The Ritar RA12-100A is designed for motorhomes, caravans and campers that need power off-grid: it powers fridge, lights, pump and chargers for several days off-grid. Its 106 Ah capacity sets the available autonomy. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 27.50 kg and M8 terminals.
The Ritar RA12-100A: RA range and AGM technology
The RA is the Ritar range the RA12-100A belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Ritar: the maker behind the RA12-100A
Ritar is one of the world's largest VRLA battery manufacturers. Its RA, RT, RL, HR and FT series equip UPS, telecoms and solar systems worldwide with very consistent quality. We guarantee that every Ritar arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Ritar RA12-100A comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-RITAR-RA12-100A
Data sheet
- Brand
- RITAR
- Reference
- RA12-100A
- Model
- RITAR RA
- Voltage (V)
- 12
- Length
- 328.00 mm
- Width
- 172.00 mm
- Height
- 222.00 mm
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 106Ah (c20)
- Capacity (C10)
- 100Ah (c10)
Specific References
- MPN
- RA12-100A
4,76/5
Verified purchasesLatest verified reviews
★★★★★Felipe Cabrera
01/06/2026Me ayudaron en la elección de mi batería
Para los que no entendemos de baterías se agradece su ayuda
★★★★★Felix Perez
25/12/2025Excelente tienda de baterías de coches
No tenía ni idea de cómo instalar la batería en mi coche y me ayudaron de principio a fin. Muchas gracias
★★★★★Jordi Santos
23/12/2025Trato y ayuda inmejorable, gracias
Al final fue facil la instalación gracias a su ayuda
★★★★★Alberto Hidalgo
13/12/2025Buen asesoramiento
Para los que no entendemos de baterias se agradece su ayuda
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is the Ritar RA12-100A an AGM battery and what are the benefits of AGM?
Yes. The RA12-100A from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the RA12-100A model in my caravan?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RA12-100A battery last?
Expected lifespan of the Ritar RA12-100A is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the RA12-100A model?
Dimensions (length × width × height) are 328×172×222 mm — also written as 328x172x222 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the RA12-100A valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA12-100A typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Ritar RA12-100A?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
