Ritar RA12-70S · Wheelchair battery 12V 74Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | RA12-70S |
| Voltage (V) | 12 |
| Capacity (C20) | 74Ah (c20) |
| Capacity (C10) | 70Ah (c10) |
| Technology | AGM |
| Length | 260.00 mm |
| Width | 169.00 mm |
| Height | 235.00 mm |
€235.70
VAT included
4,62/5★★★★★10 reviewsVerified purchases
- ★★★★Ismael Nieto:
Me ayudaron a elegir la bateria más adecuada
- ★★★★Emilio Navarro:
Me ayudaron a elegir la batería más adecuada
- ★★★★Pedro Bravo:
Al final fue facil la instalación gracias a su ayuda
Ritar RA12-70S 12V 74Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
74 Ah
Dimensions
260×169×235 mm
Technology
AGM
Weight
21,5 kg
Model
RITAR RA
Leisure battery Ritar RA12-70S RA 74Ah 12V
12VVoltage
74AhCapacity
21.50kgWeight
The 12 V, 74 Ah Ritar RA12-70S battery from the RA range with AGM technology is designed for motorhomes, caravans and campers that need power off-grid. Measuring 260 × 169 × 235 mm, it is the direct replacement for motorhomes and caravans fitted from the factory with a 74 Ah battery of this format.
- Recharges from the alternator, a solar panel or a mains charger.
- Direct replacement for the original leisure battery.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Withstands daily discharges throughout the season.
What the Ritar RA12-70S is for
As a leisure battery, the Ritar RA12-70S is discharged and recharged every travelling day; avoid discharges below 50% to extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 21.50 kg and M6 terminals.

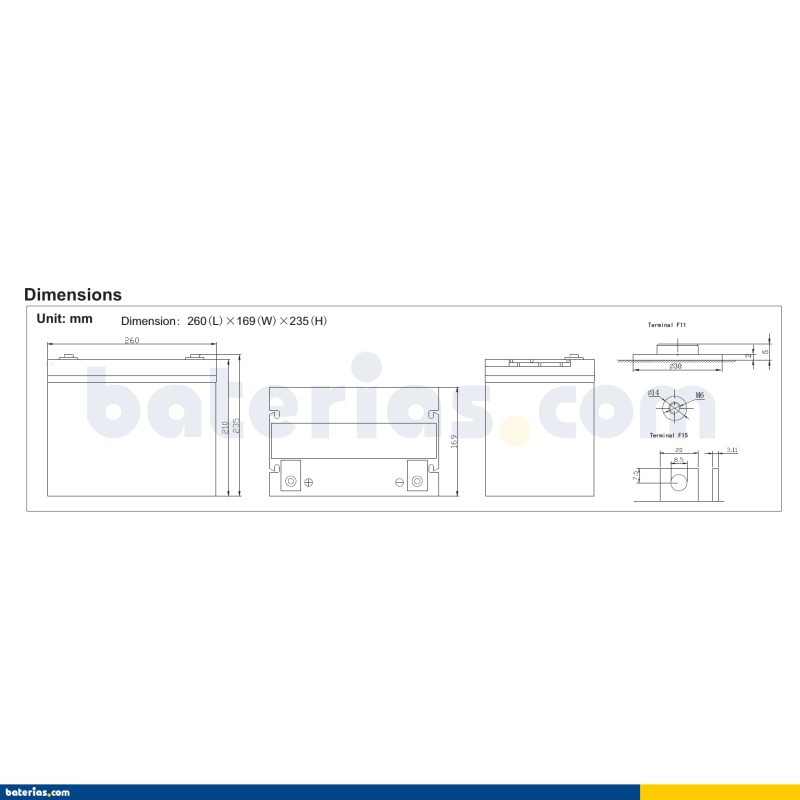

Size, terminals and hold-down of the Ritar RA12-70S
In terms of format, the Ritar RA12-70S measures 260 × 169 × 235 mm (length × width × height) and weighs 21.50 kg. It uses M6 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Ritar batteries
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. We guarantee that every Ritar arrives new, charged and with the manufacturer's full warranty.
The Ritar RA12-70S: RA range and AGM technology
The RA is the Ritar range the RA12-70S belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Care and maintenance
Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip. During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently.
Manufacturer's warranty
The Ritar RA12-70S comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-RITAR-RA12-70S

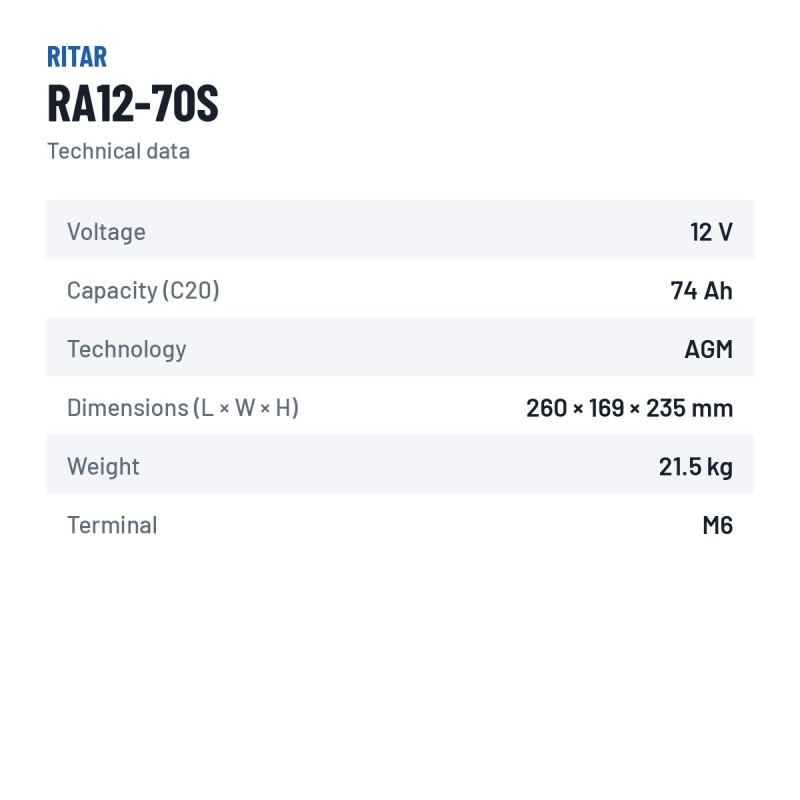

Data sheet
- Brand
- RITAR
- Reference
- RA12-70S
- Model
- RITAR RA
- Voltage (V)
- 12
- Length
- 260.00 mm
- Width
- 169.00 mm
- Height
- 235.00 mm
- Technology
- AGM
- Terminal type
- M6
- Capacity (C20)
- 74Ah (c20)
- Capacity (C10)
- 70Ah (c10)
Specific References
- MPN
- RA12-70S
4,62/5
Verified purchasesLatest verified reviews
★★★★★Ismael Nieto
17/09/2026Me asesoraron en la batería
Me ayudaron a elegir la bateria más adecuada
★★★★★Emilio Navarro
16/07/2026Buen asesoramiento
Me ayudaron a elegir la batería más adecuada
★★★★★Pedro Bravo
13/01/2026Mil gracias por la ayuda
Al final fue facil la instalación gracias a su ayuda
★★★★★Xavier Calvo
06/01/2026Precio. Tiempo de entrega correctos
Necesitaba con urgencia una batería de coche y me llegó al día siguiente de pedirla
Comparison: Ritar RA12-70S vs equivalents
The Ritar RA12-70S is interchangeable with these equivalent references: RA12-60 (Ritar).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Ritar
RA12-70S
This battery
|
12V 74Ah | AGM | €235.70 |
Ritar
RA12-60
|
12V 63Ah | AGM | €231.90 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The RA12-70S from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the RA12-70S model in my caravan?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Ritar RA12-70S is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 260×169×235 mm — also written as 260x169x235 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Ritar RA12-70S battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA12-70S typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Ritar RA12-70S?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
