Ritar RA6-100 · Caravan battery 6V 106Ah AGM

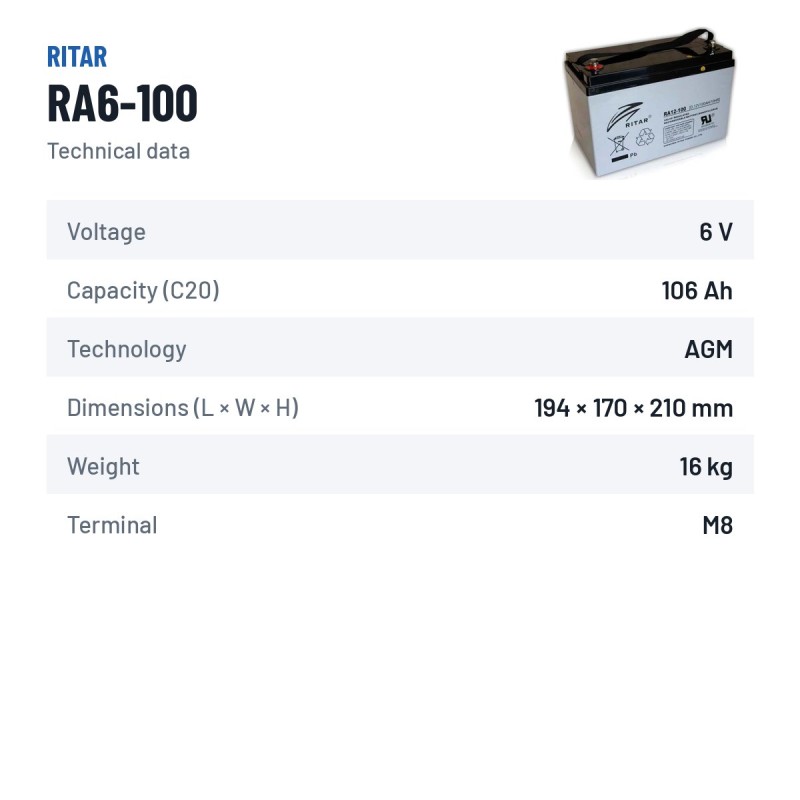

Specifications
| Brand | RITAR |
|---|---|
| Part number | RA6-100 |
| Voltage (V) | 6 |
| Capacity (C20) | 106Ah (c20) |
| Capacity (C10) | 100Ah (c10) |
| Technology | AGM |
| Length | 194.00 mm |
| Width | 170.00 mm |
| Height | 210.00 mm |
€187.30
VAT included
4,69/5★★★★★9 reviewsVerified purchases
- ★★★★★Jose Luis Parra:
Me ayudaron a elegir la batería más adecuada
- ★★★★★Miguel Angel Gomez:
Necesitaba con urgencia una batería de coche y me llegó al día siguiente de pedirla
- ★★★★★David Sanz:
Esta web es la mejor, encontré lo que buscaba, llegó en menos de 24hrs y cuando llamé por una duda que tenía me ayudaron con la instalación

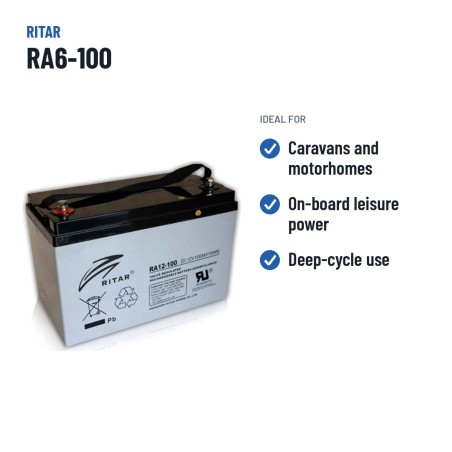

Ritar RA6-100 6V 106Ah is a battery for auxiliary services in motorhomes, caravans and campers. Powers the fridge, interior lighting, water pump and sockets while parked, with no need for campsite mains. Withstands daily discharges throughout the season.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues

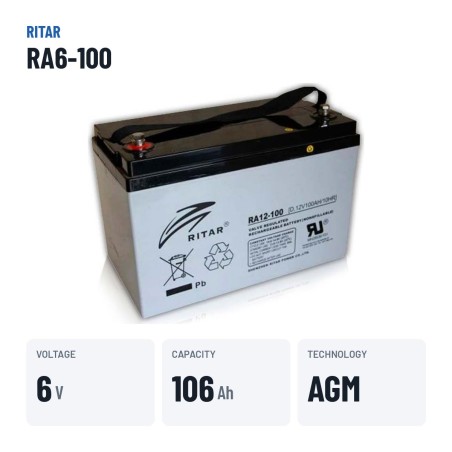

Voltage
6 V
Capacity
106 Ah
Dimensions
194×170×210 mm
Technology
AGM
Weight
16 kg
Model
RITAR RA
Leisure battery Ritar RA6-100 RA 106Ah 6V
6VVoltage
106AhCapacity
16kgWeight
For motorhomes, caravans and campers that need power off-grid, the Ritar RA6-100 from the RA range provides 106 Ah of energy with AGM technology. It replaces the original battery without adaptation in motorhomes and caravans with a 194 × 170 × 210 mm format: same 106 Ah capacity.
- Sealed and gas-free: suitable for installation inside the living area.
- Low self-discharge during months of storage.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Power for fridge, lighting, water pump and USB off-grid.
What the Ritar RA6-100 is for
As a leisure battery, the Ritar RA6-100 is discharged and recharged every travelling day; avoid discharges below 50% to extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 16 kg and M8 terminals.

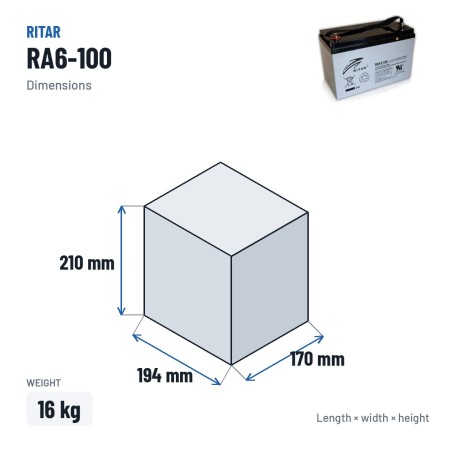

Will it fit your current battery tray?
It has external dimensions of 194 × 170 × 210 mm and weighs 16 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Ritar: the maker behind the RA6-100
Ritar is one of the world's largest VRLA battery manufacturers. Its RA, RT, RL, HR and FT series equip UPS, telecoms and solar systems worldwide with very consistent quality. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Ritar RA6-100: RA range and AGM technology
The RA6-100 is part of the Ritar RA range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently.
Official warranty
The Ritar RA6-100 comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-RITAR-RA6-100
Data sheet
- Brand
- RITAR
- Reference
- RA6-100
- Model
- RITAR RA
- Voltage (V)
- 6
- Length
- 194.00 mm
- Width
- 170.00 mm
- Height
- 210.00 mm
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 106Ah (c20)
- Capacity (C10)
- 100Ah (c10)
Specific References
- MPN
- RA6-100
4,69/5
Verified purchasesLatest verified reviews
★★★★★Jose Luis Parra
28/05/2026Me asesoraron
Me ayudaron a elegir la batería más adecuada
★★★★★Miguel Angel Gomez
23/01/2026Buen sitio
Necesitaba con urgencia una batería de coche y me llegó al día siguiente de pedirla
★★★★★David Sanz
18/01/2026Ayudan con la instalación
Esta web es la mejor, encontré lo que buscaba, llegó en menos de 24hrs y cuando llamé por una duda que tenía me ayudaron con la instalación
★★★★★Jose Ramon Marin
23/11/2025No sabía qué batería elegir y me asesoraron
Me ayudaron a elegir la bateria más adecuada
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is the RA6-100 model AGM? What does this technology offer?
Yes. The RA6-100 from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for caravans with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the RA6-100 model in my caravan?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RA6-100 battery last?
Expected lifespan of the Ritar RA6-100 is 5 to 8 years in mild-climate caravan use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Ritar RA6-100 battery?
Dimensions (length × width × height) are 194×170×210 mm — also written as 194x170x210 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The RA6-100 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
