Ritar RL21200 · Stationary UPS battery 2V 1200Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | RL21200 |
| Voltage (V) | 2 |
| Capacity (C20) | 1200 |
| Capacity (C10) | 1200Ah (c10) |
| Capacity (C5) | 1050Ah (c5) |
| Technology | AGM |
| Length | 471.00 mm |
| Width | 171.00 mm |
€649.95
VAT included
4,93/5★★★★★7 reviewsVerified purchases
- ★★★★★Victor Vicente:
Antes de realizar algun pedido en otra web llamen a los de baterias.com, te atienden estupendamente y te asesoran en todo lo que necesites
- ★★★★★Ruben Bravo:
Gracias. Muy buena atención al cliente
Ritar RL21200 2V 1200Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
2 V
Capacity
1200 Ah
Dimensions
471×171×342 mm
Technology
AGM
Weight
63 kg
Model
RITAR RL
Stationary battery Ritar RL21200 RL 1,200Ah 2V
2VVoltage
1,200AhCapacity
63kgWeight
The Ritar RL21200 with AGM technology is a 1,200 Ah, 2 V backup battery for UPS, alarms, telecoms and emergency lighting. Measuring 471 × 171 × 342 mm, it is the direct replacement for UPS, alarm and emergency systems fitted from the factory with a 1,200 Ah battery of this format.
- Low self-discharge and high reliability.
- Standard format for UPS and emergency systems.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Instant response to mains failures.

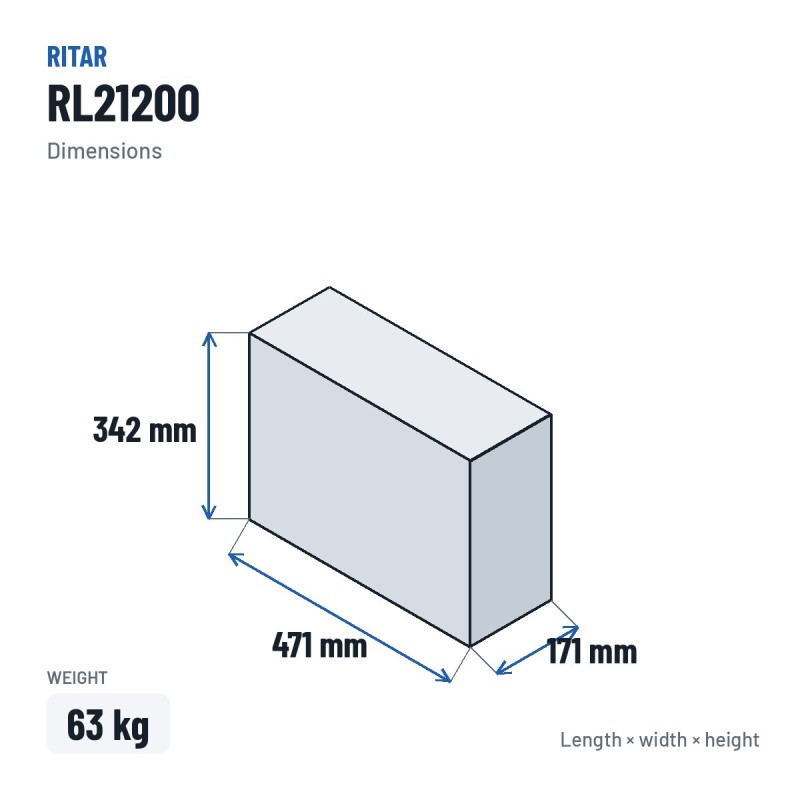

Dimensions, polarity and mounting
It has external dimensions of 471 × 171 × 342 mm and weighs 63 kg. It uses F10(M8) terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What the Ritar RL21200 is for
With 1,200 Ah, the Ritar RL21200 gives your UPS or emergency system the autonomy it needs. Replace all the batteries in the set at once. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 63 kg and F10(M8) terminals.
The Ritar RL21200: RL range and AGM technology
Within the Ritar catalogue, the RL series groups the references designed for this use. The RL21200 is the 1,200 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
What Ritar does differently
Ritar is one of the world's largest VRLA battery manufacturers. Its RA, RT, RL, HR and FT series equip UPS, telecoms and solar systems worldwide with very consistent quality. All the Ritar batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Ritar RL21200 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Replace all the batteries in the set at once and avoid environments continuously above 25 °C.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-RITAR-RL21200

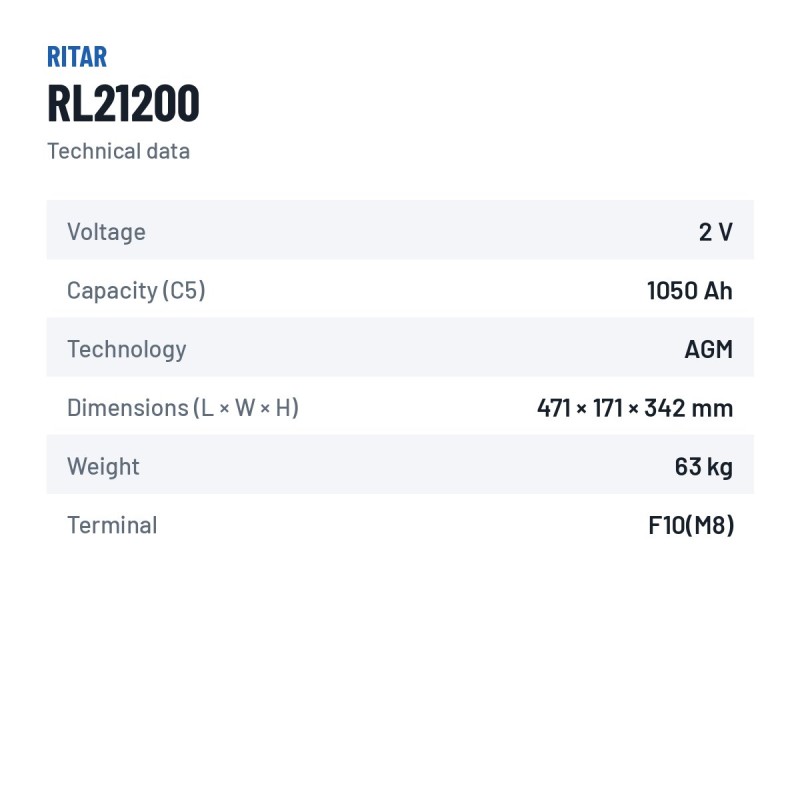

Data sheet
- Brand
- RITAR
- Reference
- RL21200
- Model
- RITAR RL
- Voltage (V)
- 2
- Length
- 471.00 mm
- Width
- 171.00 mm
- Height
- 342.00 mm
- Weight
- 63 Kgs
- Technology
- AGM
- Terminal type
- F10(M8)
- Capacity (C20)
- 1200
- Capacity (C10)
- 1200Ah (c10)
- Capacity (C5)
- 1050Ah (c5)
Specific References
- MPN
- RL21200
4,93/5
Verified purchasesLatest verified reviews
★★★★★Victor Vicente
31/01/2026Gracias por la atención
Antes de realizar algun pedido en otra web llamen a los de baterias.com, te atienden estupendamente y te asesoran en todo lo que necesites
★★★★★Ruben Bravo
12/01/2026Excelente servicio
Gracias. Muy buena atención al cliente
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Ritar RL21200 an AGM battery and what are the benefits of AGM?
Yes. The RL21200 from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the RL21200 model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the RL21200 model?
Expected lifespan of the Ritar RL21200 is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 471×171×342 mm — also written as 471x171x342 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Ritar RL21200?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
