Ritar RL2200S · Stationary UPS battery 2V 200Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | RL2200S |
| Voltage (V) | 2 |
| Capacity (C20) | 200 |
| Capacity (C10) | 200Ah (c10) |
| Capacity (C5) | 175Ah (c5) |
| Technology | AGM |
| Length | 208.00 mm |
| Width | 111.00 mm |
€176.70
VAT included
4,64/5★★★★★16 reviewsVerified purchases
- ★★★★★Tomas Castillo:
Me atendieron muy bien
- ★★★★★David Delgado:
Antes de realizar algun pedido en otra web llamen a los de baterias.com, te atienden estupendamente y te asesoran en todo lo que necesites
Ritar RL2200S 2V 200Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
2 V
Capacity
200 Ah
Dimensions
208×111×246 mm
Technology
AGM
Weight
14 kg
Model
RITAR RL
Stationary battery Ritar RL2200S RL 200Ah 2V
2VVoltage
200AhCapacity
14kgWeight
The 2 V, 200 Ah Ritar RL2200S stationary battery from the RL range with AGM technology is designed for UPS, alarms, telecoms and emergency lighting. It replaces the original battery without adaptation in UPS, alarm and emergency systems with a 208 × 111 × 246 mm format: same 200 Ah capacity.
- Sealed and gas-free: suitable for cabinets and offices.
- Maintenance-free for its whole service life.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Long float life under permanent charge.
Will it fit your current battery tray?

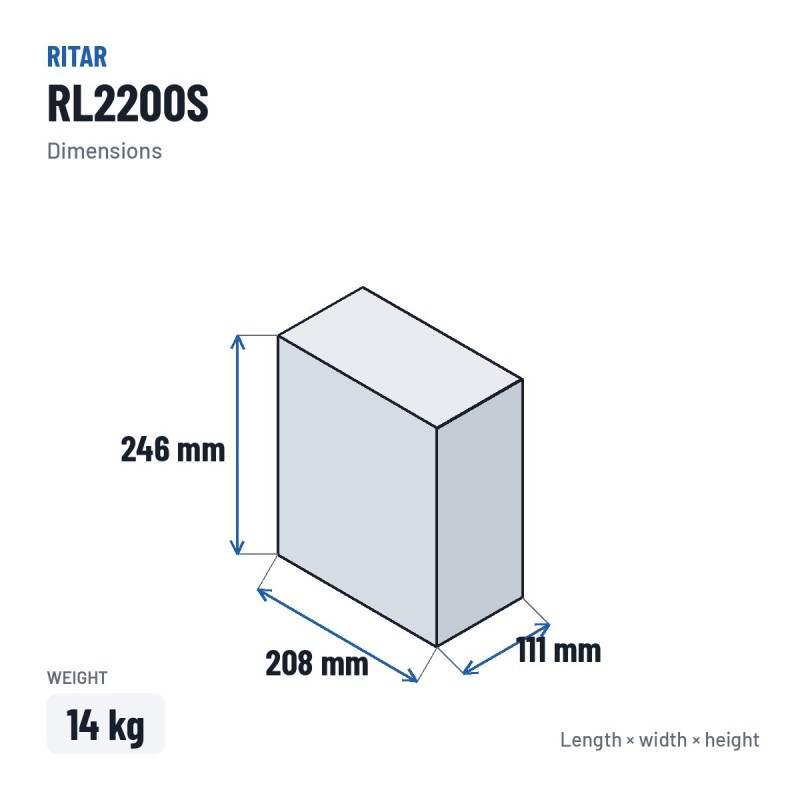

In terms of format, the Ritar RL2200S measures 208 × 111 × 246 mm (length × width × height) and weighs 14 kg. It uses F10(M8) terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Ritar RL2200S is for
The Ritar RL2200S is designed for UPS, alarms, telecoms and emergency lighting: it sits on float charge and responds instantly to a mains failure. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 14 kg and F10(M8) terminals.
The Ritar RL2200S: RL range and AGM technology
Within the Ritar catalogue, the RL series groups the references designed for this use. The RL2200S is the 200 Ah model of that family, with the same performance as its siblings in other sizes.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
What Ritar does differently
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. All the Ritar batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Warranty and coverage
The Ritar RL2200S comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery. Replace all the batteries in the set at once and avoid environments continuously above 25 °C.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-RITAR-RL2200S

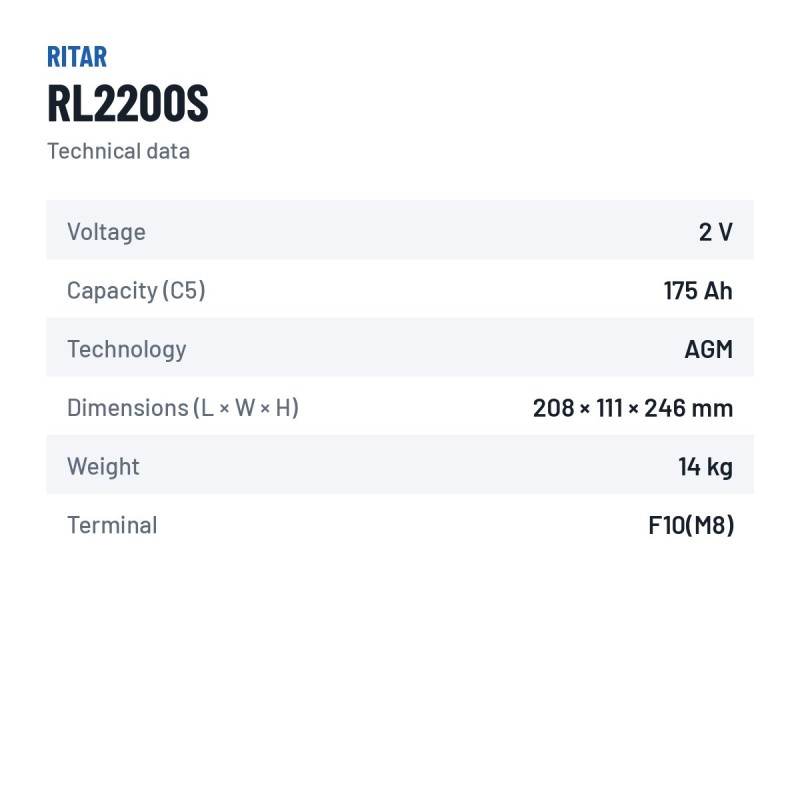

Data sheet
- Brand
- RITAR
- Reference
- RL2200S
- Model
- RITAR RL
- Voltage (V)
- 2
- Length
- 208.00 mm
- Width
- 111.00 mm
- Height
- 246.00 mm
- Weight
- 14 Kgs
- Technology
- AGM
- Terminal type
- F10(M8)
- Capacity (C20)
- 200
- Capacity (C10)
- 200Ah (c10)
- Capacity (C5)
- 175Ah (c5)
Specific References
- MPN
- RL2200S
4,64/5
Verified purchasesLatest verified reviews
★★★★★Tomas Castillo
11/01/2026Servicio increíble
Me atendieron muy bien
★★★★★David Delgado
07/01/2026Excelente trato al cliente
Antes de realizar algun pedido en otra web llamen a los de baterias.com, te atienden estupendamente y te asesoran en todo lo que necesites
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the RL2200S model AGM? What does this technology offer?
Yes. The RL2200S from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Ritar RL2200S battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar RL2200S battery last?
Expected lifespan of the Ritar RL2200S is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the RL2200S model?
Dimensions (length × width × height) are 208×111×246 mm — also written as 208x111x246 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the RL2200S model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
