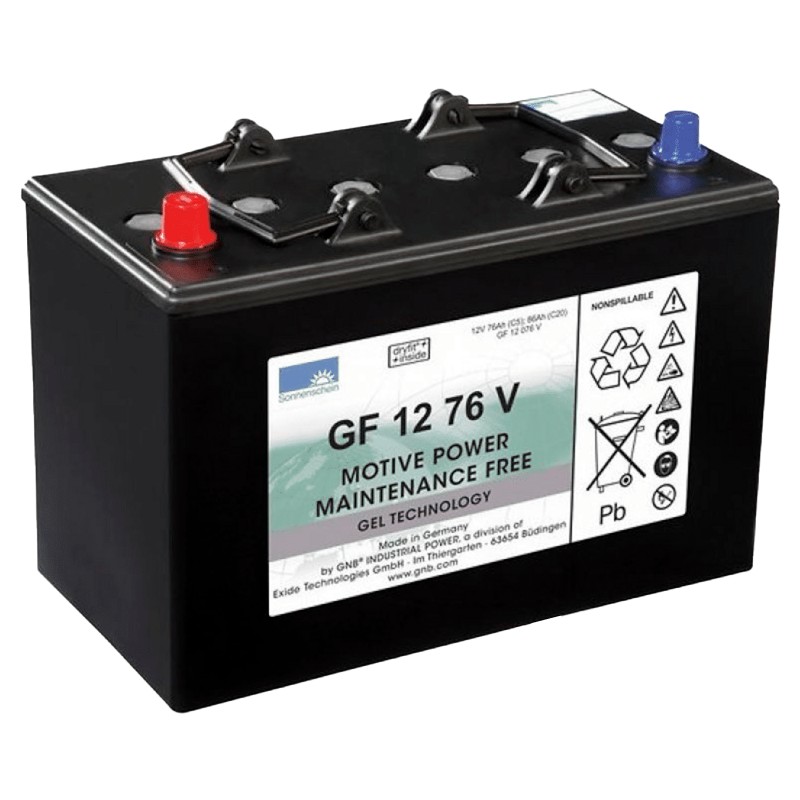

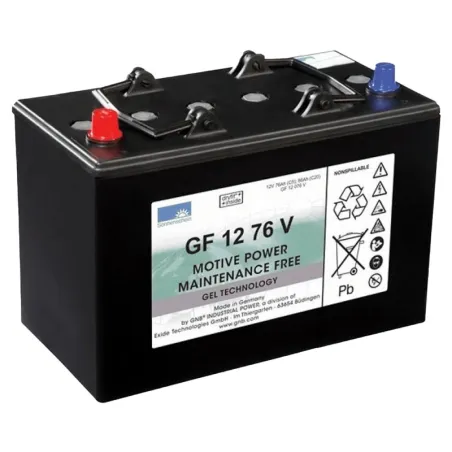

Sonnenschein GF12076V · Traction battery 12V 86Ah GEL
Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF12076V |
| Voltage (V) | 12V |
| Capacity (C20) | 86Ah (c20) |
| Capacity | 86Ah |
| Technology | GEL |
| Weight | 29,00 |
| Terminal type | AP |
| EAN | 3661024500258 |
€388.30
VAT included
Sonnenschein GF12076V 12V 86Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
86 Ah
Dimensions
330×171×235 mm
Technology
Gel
Weight
29 kg
Model
GEL - GF -V Sonnenschein Traction range 700 cycles
Traction battery Sonnenschein GF12076V 86Ah 12V
12VVoltage
86AhCapacity
29kgWeight
The Sonnenschein GF12076V is a 86 Ah, 12 V traction battery for forklifts, pallet trucks, stackers and aerial work platforms. Its 330 × 171 × 235 mm make it the exact replacement for the 86 Ah battery fitted as standard to many forklifts and pallet trucks.
- Direct replacement in size and connections.
- Sealed and safe indoors.
- Reinforced plates for repeated deep discharges.
- GEL: excellent resistance to deep discharge and long cycle life.
What the Sonnenschein GF12076V is for
With 86 Ah, the Sonnenschein GF12076V forms part of the traction sets of forklifts, pallet trucks, stackers and aerial work platforms. Follow the manufacturer's charging regime to extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 29 kg and AP terminals.
Size, terminals and hold-down of the Sonnenschein GF12076V
It has external dimensions of 330 × 171 × 235 mm and weighs 29 kg. It uses AP terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Technology inside the Sonnenschein GF12076V
Within the Sonnenschein catalogue, the GF12076V is the 86 Ah model designed for this application.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
Why choose Sonnenschein batteries
Sonnenschein batteries with dryfit® technology have equipped power wheelchairs, cleaning machines and industrial vehicles for decades thanks to their reliability and cycle life. All the Sonnenschein batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Sonnenschein GF12076V comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Follow the manufacturer's charging regime and do not interrupt full charging cycles. Replace the complete set at once and watch the operating temperature in hot warehouses.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BATERIAS-SONNENSCHEIN-GF12076V
Data sheet
- Weight
- 29,00
- Technology
- GEL
- Terminal type
- AP
- Capacity (C20)
- 86Ah (c20)
- Voltage (V)
- 12V
- Capacity
- 86Ah
Specific References
- EAN13
- 3661024500258
- MPN
- GF12076V
Codes and references Sonnenschein GF12076V
| Brand | Sonnenschein |
|---|---|
| Manufacturer part number (MPN) | GF12076V |
| EAN-13 barcode | 3661024500258 |
| Dimensions (length × width × height) | 330 × 171 × 235 mm (330x171x235) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Sonnenschein GF12076V a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Sonnenschein GF12076V battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Sonnenschein GF12076V battery last?
Expected lifespan of the Sonnenschein GF12076V is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Sonnenschein GF12076V battery?
Dimensions (length × width × height) are 330×171×235 mm — also written as 330x171x235 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Sonnenschein GF12076V?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
