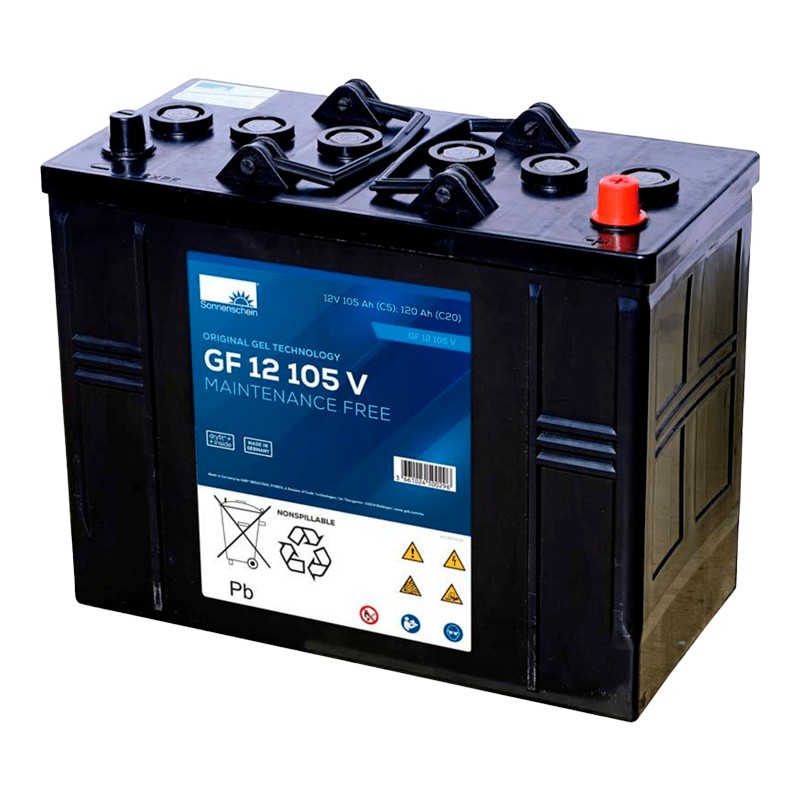

Sonnenschein GF12105V · Traction battery 12V 120Ah GEL

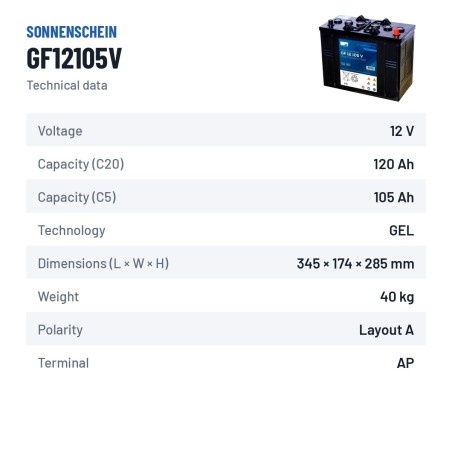

Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF12105V |
| Voltage (V) | 12V |
| Capacity (C20) | 120Ah (c20) |
| Capacity | 120Ah |
| Technology | GEL |
| Weight | 40,00 |
| Terminal type | AP |
| EAN | 3661024500296 |
€517.95
VAT included
Sonnenschein GF12105V 12V 120Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
120 Ah
Dimensions
345×174×285 mm
Technology
Gel
Weight
40 kg
Model
GEL - GF -V Sonnenschein Traction range 700 cycles
Traction battery Sonnenschein GF12105V 120Ah 12V
12VVoltage
120AhCapacity
40kgWeight
The Sonnenschein GF12105V is a 120 Ah, 12 V traction battery for forklifts, pallet trucks, stackers and aerial work platforms. It measures 345 × 174 × 285 mm, the format sought by anyone replacing a 120 Ah battery in forklifts and pallet trucks.
- Long service life in fleets and warehouses.
- High tolerance to vibration and industrial use.
- Built for 8-hour continuous duty cycles.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
What the Sonnenschein GF12105V is for
With 120 Ah, the Sonnenschein GF12105V forms part of the traction sets of forklifts, pallet trucks, stackers and aerial work platforms. Follow the manufacturer's charging regime to extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 40 kg and AP terminals.

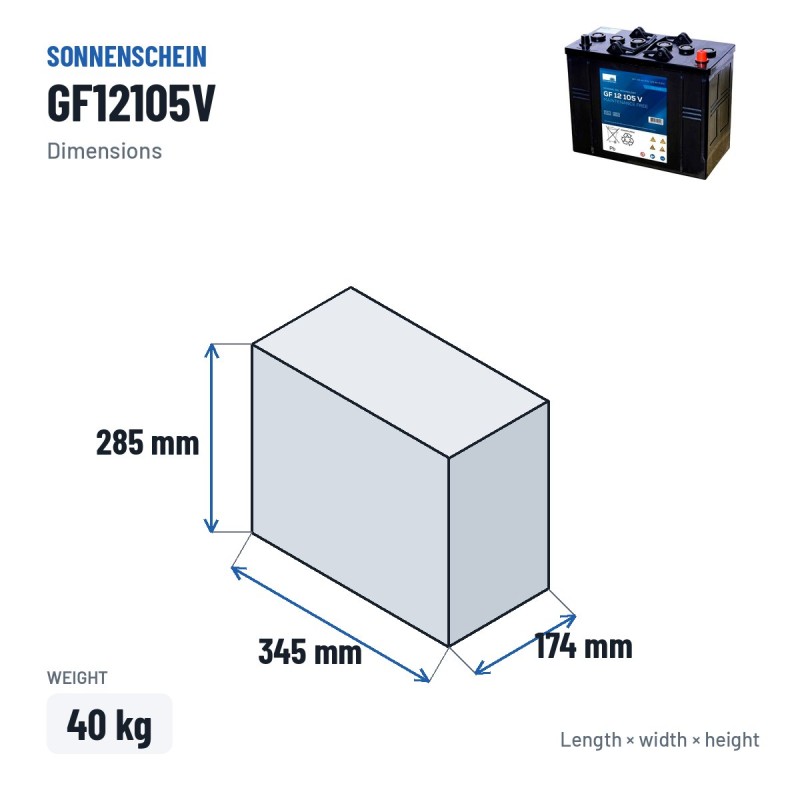

Size, terminals and hold-down of the Sonnenschein GF12105V

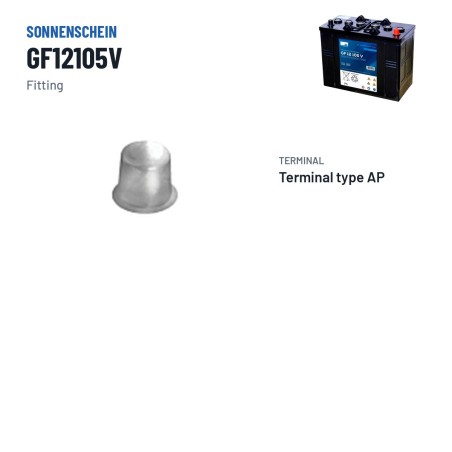

The Sonnenschein GF12105V is made in the 345 × 174 × 285 mm format and weighs 40 kg. It uses AP terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What Sonnenschein does differently
Sonnenschein (EnerSys) invented the dryfit® GEL battery: the world reference in gel batteries for electric mobility, light traction and applications that demand safety and intensive cycling. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Technology inside the Sonnenschein GF12105V
Within the Sonnenschein catalogue, the GF12105V is the 120 Ah model designed for this application.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
How to make it last longer
Replace the complete set at once and watch the operating temperature in hot warehouses. Follow the manufacturer's charging regime and do not interrupt full charging cycles.
Manufacturer's warranty
The Sonnenschein GF12105V comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BATERIAS-SONNENSCHEIN-GF12105V
Data sheet
- Weight
- 40,00
- Technology
- GEL
- Terminal type
- AP
- Capacity (C20)
- 120Ah (c20)
- Voltage (V)
- 12V
- Capacity
- 120Ah
Specific References
- EAN13
- 3661024500296
- MPN
- GF12105V
Codes and references Sonnenschein GF12105V
| Brand | Sonnenschein |
|---|---|
| Manufacturer reference (MPN) | GF12105V |
| EAN-13 barcode | 3661024500296 |
| Dimensions (length × width × height) | 345 × 174 × 285 mm (345x174x285) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the GF12105V model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the GF12105V model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Sonnenschein GF12105V battery last?
Expected lifespan of the Sonnenschein GF12105V is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the GF12105V model?
Dimensions (length × width × height) are 345×174×285 mm — also written as 345x174x285 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the GF12105V model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
