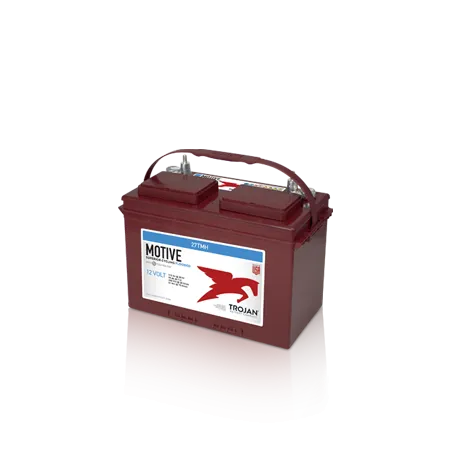

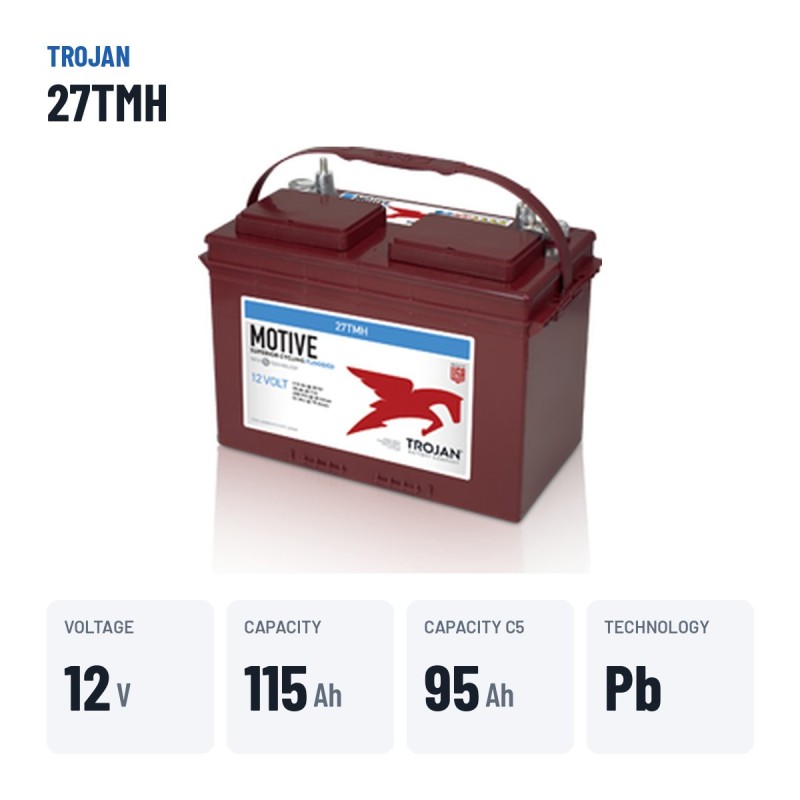

Trojan 27TMH · Golf cart battery 12V 115Ah

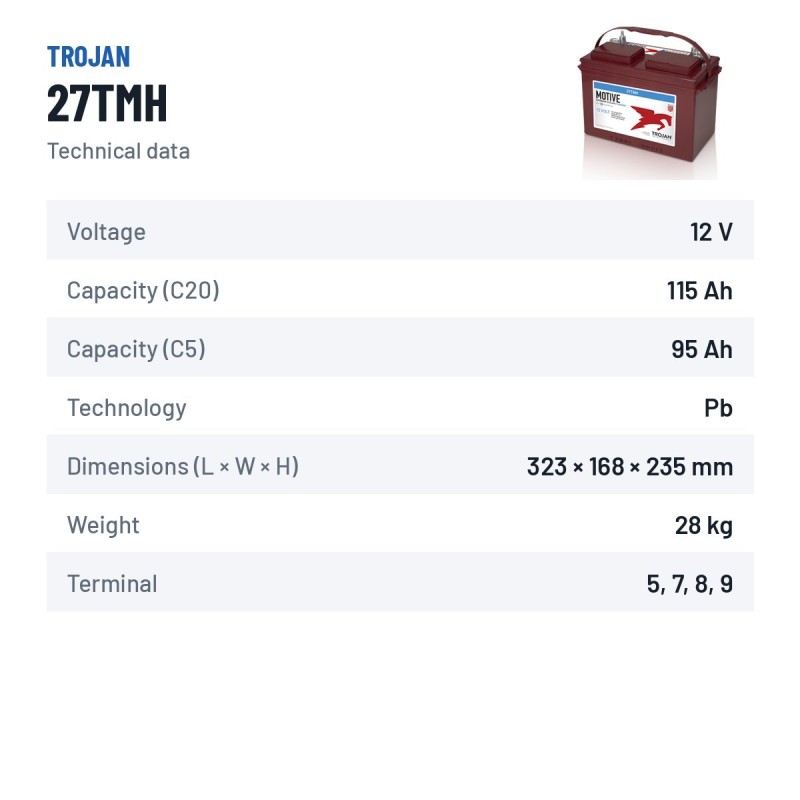

Specifications
| Brand | TROJAN |
|---|---|
| Part number | 27TMH |
| Voltage (V) | 12 |
| Capacity (C20) | 115Ah (c20) |
| Capacity (C5) | 95Ah (c5) |
| Technology | Lead-acid |
| Length | 323.00 mm |
| Width | 168.00 mm |
| Height | 235.00 mm |
€263.60
VAT included
4,77/5★★★★★35 reviewsVerified purchases
- ★★★★★Hugo Vicente:
De todas las webs, aquí encontré la batería más barata
- ★★★★Martin Vega:
Tenía varias opciones en mente y me ayudaron a elegir la más correcta
- ★★★★Santiago Reyes:
Tenía varias opciones en mente y me ayudaron a elegir la más adecuada. Gracias
Trojan 27TMH 12V 115Ah is a deep-cycle battery for golf carts, sized to complete the round and recharge every night.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
115 Ah
Dimensions
323×168×235 mm
Technology
Lead-acid
Weight
28 kg
Model
TROJAN ciclo profundo - T2 Technology
Golf cart battery Trojan 27TMH ciclo profundo - T2 Technology 115Ah 12V
12VVoltage
115AhCapacity
28kgWeight
The Trojan 27TMH is a 115 Ah, 12 V deep-cycle battery for golf carts and electric utility vehicles. It measures 323 × 168 × 235 mm, the format sought by anyone replacing a 115 Ah battery in golf carts.
- Full recharge every night with the vehicle charger.
- Sealed and maintenance-free.
- Daily deep discharges without capacity loss.
- Conventional lead-acid: the most proven and economical technology.

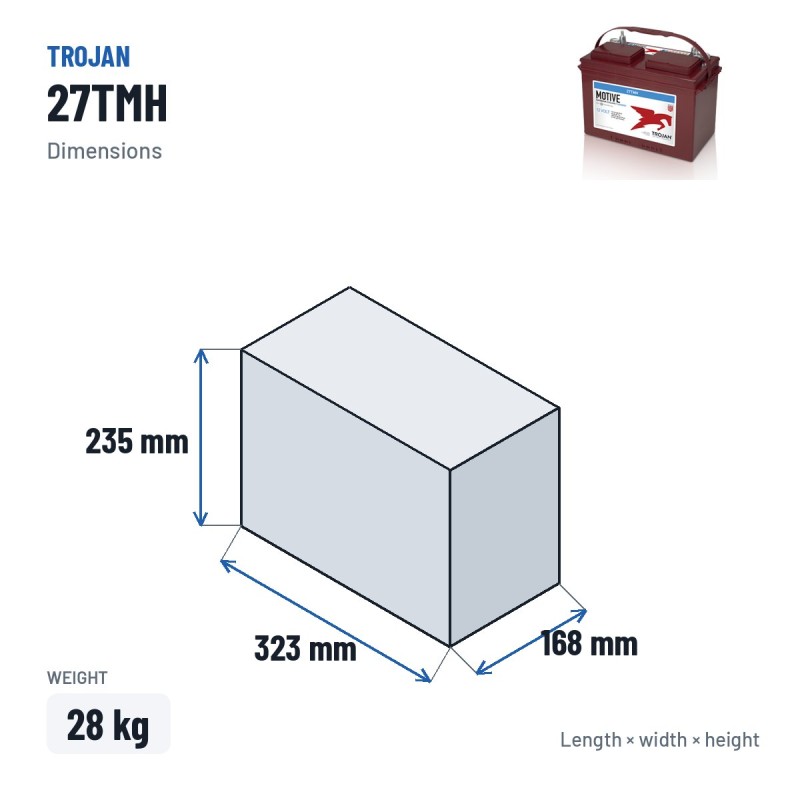

Size, terminals and hold-down of the Trojan 27TMH
The Trojan 27TMH is made in the 323 × 168 × 235 mm format and weighs 28 kg. It uses 5 7 8 9 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

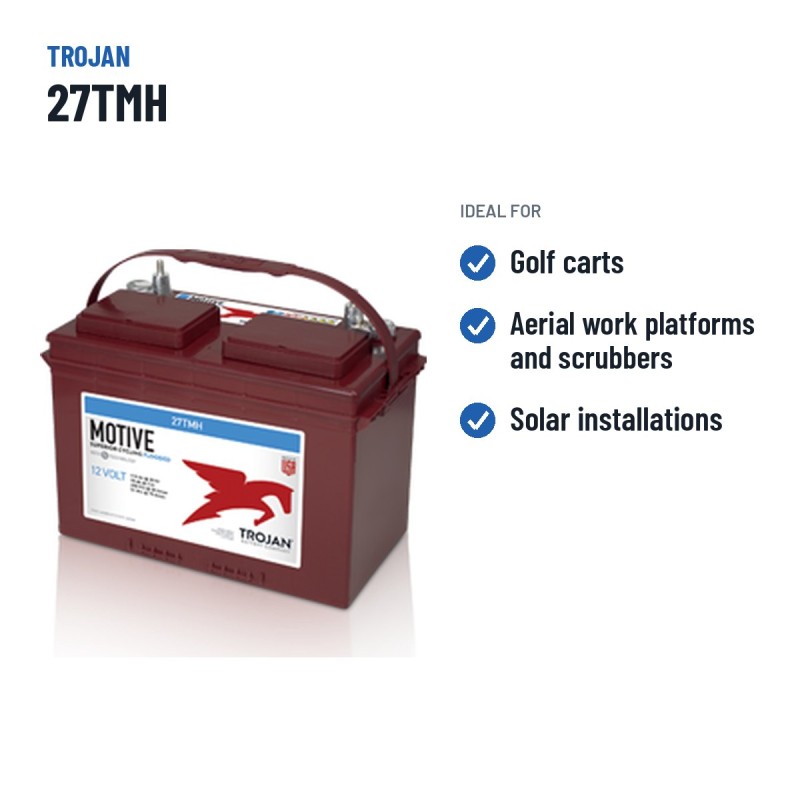

What the Trojan 27TMH is for
The Trojan 27TMH is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 28 kg and 5 7 8 9 terminals.
The Trojan 27TMH: ciclo profundo - T2 Technology range and conventional lead-acid technology
The 27TMH is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Why choose Trojan batteries
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. We guarantee that every Trojan arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Trojan 27TMH comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Recharge the set fully after each round and avoid routine discharges below 20%.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TROJAN-27TMH
Data sheet
- Brand
- TROJAN
- Reference
- 27TMH
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 12
- Length
- 323.00 mm
- Width
- 168.00 mm
- Height
- 235.00 mm
- Weight
- 28 Kgs
- Technology
- Lead-acid
- Terminal type
- 5 7 8 9
- Capacity (C20)
- 115Ah (c20)
- Capacity (C5)
- 95Ah (c5)
Specific References
- EAN13
- 8404653001698
- MPN
- 27TMH
4,77/5
Verified purchasesLatest verified reviews
★★★★★Hugo Vicente
20/06/2026Muy recomendable
De todas las webs, aquí encontré la batería más barata
★★★★★Martin Vega
13/06/2026Me ayudaron a elegir la batería correcta
Tenía varias opciones en mente y me ayudaron a elegir la más correcta
★★★★★Santiago Reyes
08/04/2026Buen asesoramiento
Tenía varias opciones en mente y me ayudaron a elegir la más adecuada. Gracias
★★★★★Enrique Santana
28/01/2026Entregada en tiempo
Cumplen con el tiempo de entrega
★★★★★Sergio Rubio
17/01/2026Excelente tienda de baterías de coches
Me atendieron de manera gratuita para poder instalarla en mi coche, y así no se me hizo tan complicado
★★★★★Julian Dominguez
12/01/2026Trato y ayuda inmejorable, gracias
Tenía muchas dudas sobre la instalación y me guiaron paso a paso. Atención inmejorable.
★★★★★Felix Benitez
09/01/2026Me ayudaron paso a paso
Gracias por asesorarme con la instalación de mi batería
★★★★★Daniel Gallego
22/12/2025En plazo
MRW me entregó en menos de un día. Increíble
★★★★★Ruben Gallego
28/11/2025La recomendaré
De todas las webs, aquí encontré la bateria más barata
★★★★★Felipe Castro
21/11/2025Buen asesoramiento
Gracias a baterias.com pude elegir la bateria más adecudada para mi vehículo
Codes and references Trojan 27TMH
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer reference (MPN) | 27TMH |
| EAN-13 barcode | 8404653001698 |
| Dimensions (length × width × height) | 323 × 168 × 235 mm (323x168x235) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Trojan 27TMH battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 27TMH model?
Expected lifespan of the Trojan 27TMH is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 323×168×235 mm — also written as 323x168x235 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the 27TMH model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
