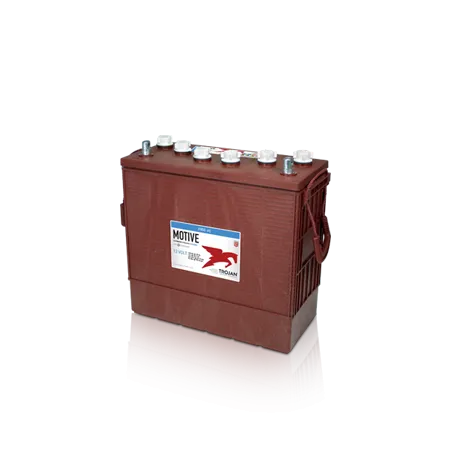

Trojan J185G-AC · Traction battery 12V 185Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | J185G-AC |
| Voltage (V) | 12 |
| Capacity (C20) | 185Ah (c20) |
| Capacity (C5) | 152Ah (c5) |
| Technology | Lead-acid |
| Length | 391.00 mm |
| Width | 175.00 mm |
| Height | 386.00 mm |
€639.70
VAT included
4,54/5★★★★★8 reviewsVerified purchases
- ★★★★Luis Marquez:
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
- ★★★★Jose Francisco Hernandez:
Recomiendo esta web, excelente servicio
- ★★★★★Diego Aguilar:
Gracias por asesorarme con la instalación de mi batería
Trojan J185G-AC 12V 185Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
185 Ah
Dimensions
391×175×386 mm
Technology
Lead-acid
Weight
48 kg
Model
TROJAN ciclo profundo - T2 Technology
Golf cart battery Trojan J185G-AC ciclo profundo - T2 Technology 185Ah 12V
12VVoltage
185AhCapacity
48kgWeight
The 12 V, 185 Ah Trojan J185G-AC from the ciclo profundo - T2 Technology range with conventional lead-acid technology is designed for golf carts and electric utility vehicles. It replaces the original battery without adaptation in golf carts with a 391 × 175 × 386 mm format: same 185 Ah capacity.
- Conventional lead-acid: the most proven and economical technology.
- Daily deep discharges without capacity loss.
- Sealed and maintenance-free.
- Full recharge every night with the vehicle charger.
Size, terminals and hold-down of the Trojan J185G-AC
In terms of format, the Trojan J185G-AC measures 391 × 175 × 386 mm (length × width × height) and weighs 48 kg. It uses 7 9 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Trojan J185G-AC is for
With 185 Ah, the Trojan J185G-AC forms part of the battery banks of golf carts and electric utility vehicles. Always replace the complete set to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 48 kg and 7 9 terminals.
The Trojan J185G-AC: ciclo profundo - T2 Technology range and conventional lead-acid technology
The J185G-AC is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Why choose Trojan batteries
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Trojan J185G-AC comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer. Recharge the set fully after each round and avoid routine discharges below 20%.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TROJAN-J185G-AC
Data sheet
- Brand
- TROJAN
- Reference
- J185G-AC
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 12
- Length
- 391.00 mm
- Width
- 175.00 mm
- Height
- 386.00 mm
- Weight
- 48 Kgs
- Technology
- Lead-acid
- Terminal type
- 7 9
- Capacity (C20)
- 185Ah (c20)
- Capacity (C5)
- 152Ah (c5)
Specific References
- EAN13
- 8404653001742
- MPN
- J185G-AC
4,54/5
Verified purchasesLatest verified reviews
★★★★★Luis Marquez
27/07/2026Me ayudaron a elegir la batería correcta
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
★★★★★Jose Francisco Hernandez
22/01/2026Excelente
Recomiendo esta web, excelente servicio
★★★★★Diego Aguilar
01/01/2026Excelente guía
Gracias por asesorarme con la instalación de mi batería
★★★★★Juan Jose Jimenez
27/12/2025Buena atención y entrega rápida
MRW me entregó en menos de un día. Increíble
★★★★★Sebastian Santiago
17/11/2025Buen asesoramiento
Tenía dudas sobre qué bateria elegir y me ayudaron a elegir la bateria correcta
Codes and references Trojan J185G-AC
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer reference (MPN) | J185G-AC |
| EAN-13 barcode | 8404653001742 |
| Dimensions (length × width × height) | 391 × 175 × 386 mm (391x175x386) |
Comparison: Trojan J185G-AC vs equivalents
The Trojan J185G-AC is interchangeable with these equivalent references: J185E-AC (Trojan).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Trojan
J185G-AC
This battery
|
12V 185Ah | Lead-acid | €639.70 |
Trojan
J185E-AC
|
12V 175Ah | Lead-acid | €631.20 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Trojan J185G-AC battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Trojan J185G-AC battery last?
Expected lifespan of the Trojan J185G-AC is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan J185G-AC battery?
Dimensions (length × width × height) are 391×175×386 mm — also written as 391x175x386 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan J185G-AC?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
