Trojan J185HG-AC · Traction battery 12V 225Ah
Traction battery Trojan J185HG-AC 12V 225Ah images

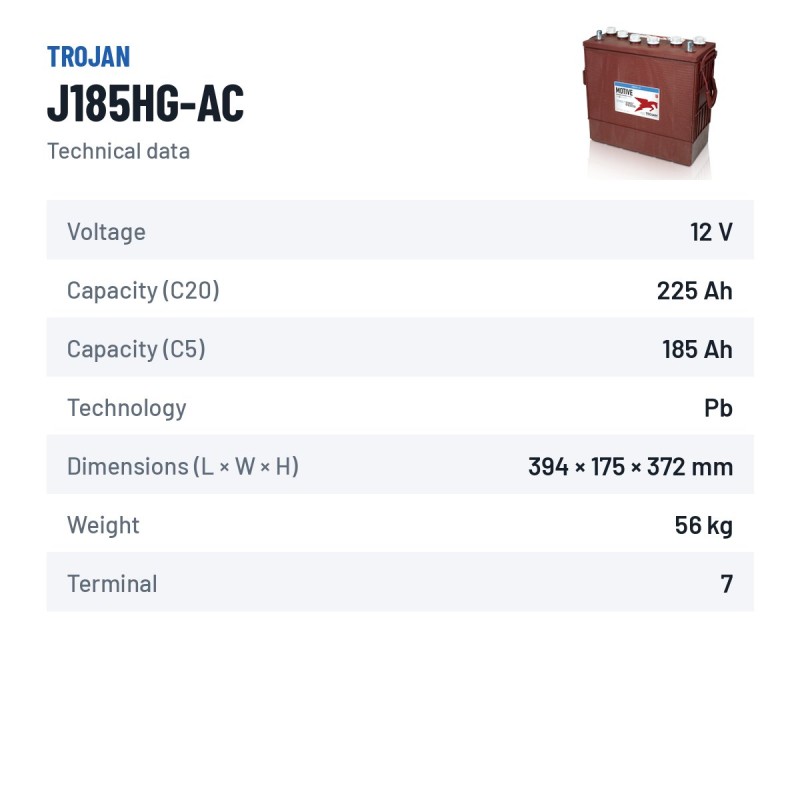

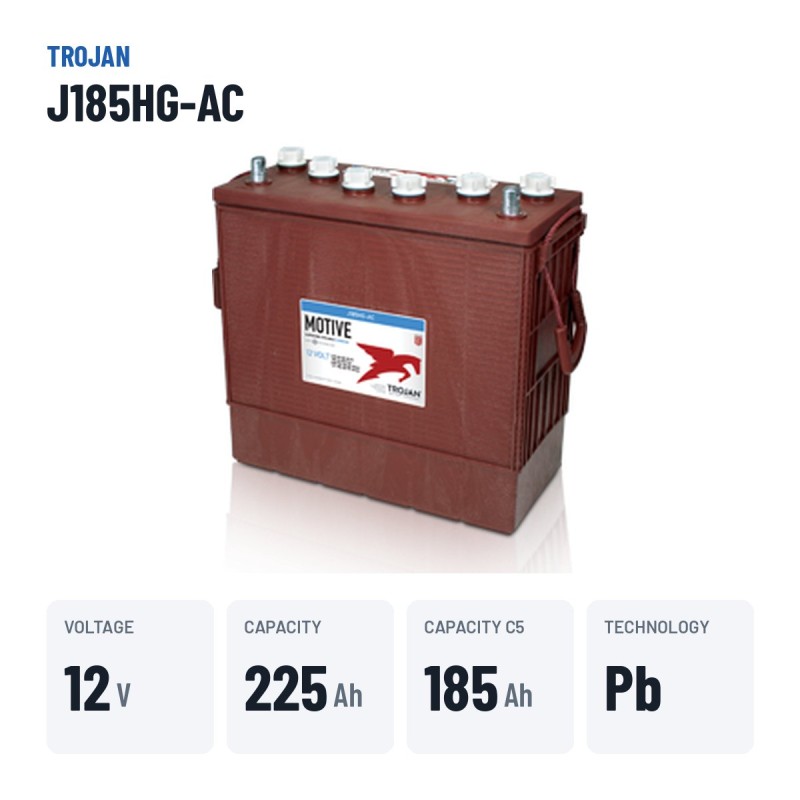

Specifications
| Brand | TROJAN |
|---|---|
| Part number | J185HG-AC |
| Voltage (V) | 12 |
| Capacity (C20) | 225Ah (c20) |
| Capacity (C5) | 185Ah (c5) |
| Technology | Lead-acid |
| Length | 394.00 mm |
| Width | 175.00 mm |
| Height | 372.00 mm |

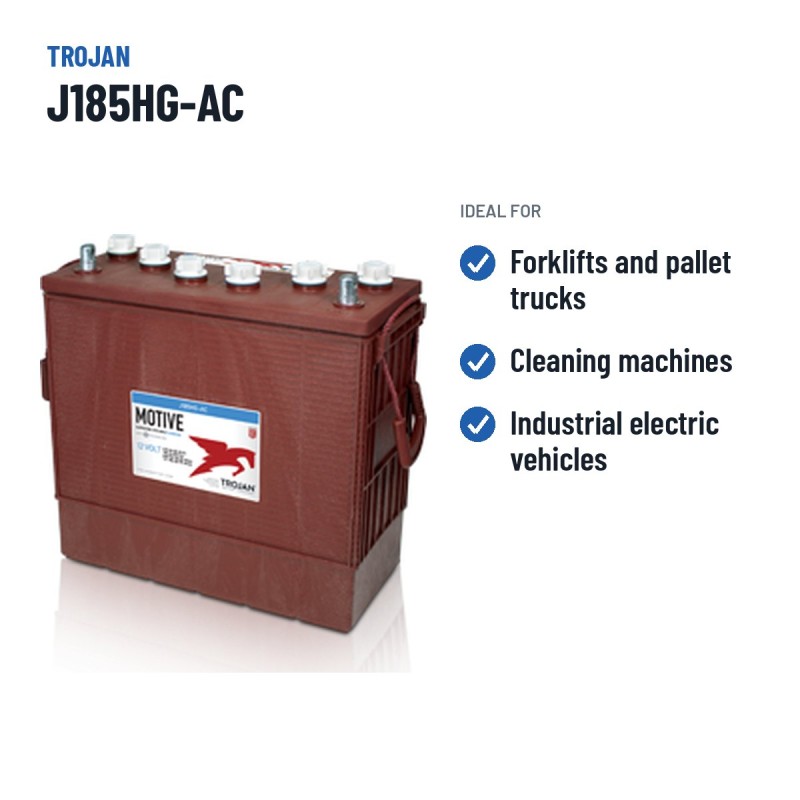

Trojan J185HG-AC 12V 225Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Golf cart battery Trojan J185HG-AC ciclo profundo - T2 Technology 225Ah 12V
The 12 V, 225 Ah Trojan J185HG-AC from the ciclo profundo - T2 Technology range with conventional lead-acid technology is designed for golf carts and electric utility vehicles. Its 394 × 175 × 372 mm make it the exact replacement for the 225 Ah battery fitted as standard to many golf carts.
- Standard format for golf carts and utility vehicles.
- Long service life in daily duty cycles.
- Reinforced plate construction for intensive use.
- Good balance of capacity, cranking power and price.
What the Trojan J185HG-AC is for
The Trojan J185HG-AC is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 56 kg and 7 terminals.
Size, terminals and hold-down of the Trojan J185HG-AC

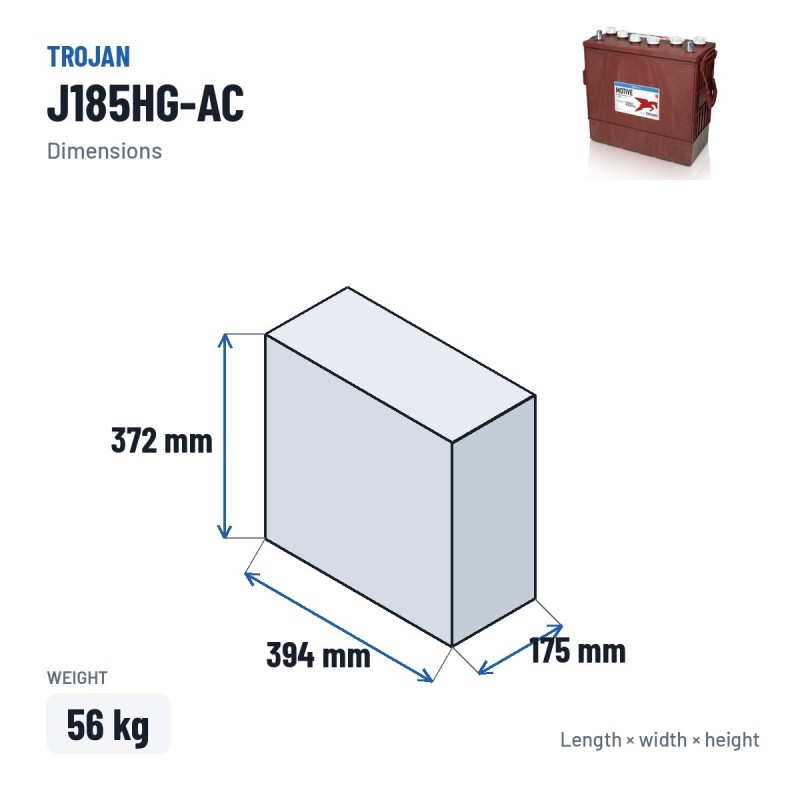

The Trojan J185HG-AC is made in the 394 × 175 × 372 mm format and weighs 56 kg. It uses 7 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Trojan J185HG-AC: ciclo profundo - T2 Technology range and conventional lead-acid technology
The J185HG-AC is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Why choose Trojan batteries
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Warranty and coverage
The Trojan J185HG-AC comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Recharge the set fully after each round and avoid routine discharges below 20%. Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
-
-
ReferenceBCOM-TROJAN-J185HG-AC
Data sheet
-
BrandTROJAN
-
ReferenceJ185HG-AC
-
ModelTROJAN Deep Cycle - T2 Technology
-
Voltage (V)12
-
Length394.00 mm
-
Width175.00 mm
-
Height372.00 mm
-
Weight56 Kgs
-
TechnologyLead-acid
-
Terminal type7
-
Capacity (C20)225Ah (c20)
-
Capacity (C5)185Ah (c5)
Specific References
-
MPNJ185HG-AC
Recommended accessories
Compatible vehicles
The Trojan J185HG-AC fits 18 vehicles. Most searched below:
Frequently asked questions
How is the Trojan J185HG-AC battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the J185HG-AC model?
Expected lifespan of the Trojan J185HG-AC is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan J185HG-AC battery?
Dimensions (length × width × height) are 394×175×372 mm — also written as 394x175x372 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan J185HG-AC?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
