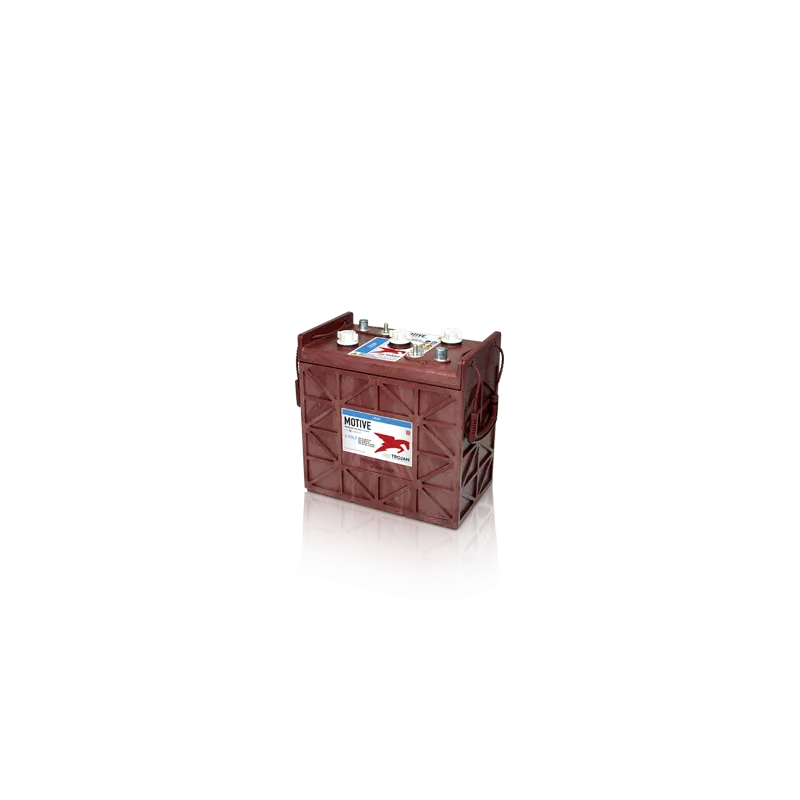

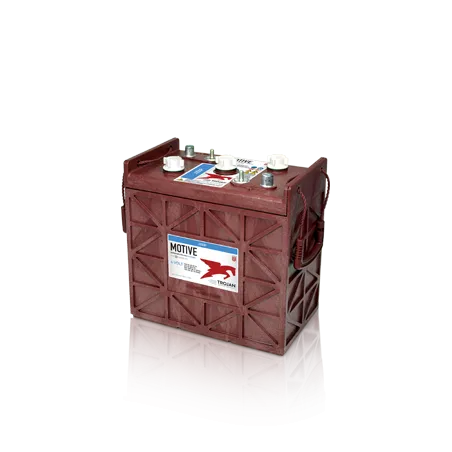

Trojan J250P · Traction battery 6V 250Ah
Traction battery Trojan J250P 6V 250Ah images
Specifications
| Brand | TROJAN |
|---|---|
| Part number | J250P |
| Voltage (V) | 6 |
| Capacity (C20) | 250Ah (c20) |
| Capacity (C5) | 215Ah (c5) |
| Technology | Lead-acid |
| Length | 295.00 mm |
| Width | 178.00 mm |
| Height | 292.00 mm |
Trojan J250P 6V 250Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Golf cart battery Trojan J250P ciclo profundo - T2 Technology 250Ah 6V
The 6 V, 250 Ah Trojan J250P from the ciclo profundo - T2 Technology range with conventional lead-acid technology is designed for golf carts and electric utility vehicles. Its 295 × 178 × 292 mm make it the exact replacement for the 250 Ah battery fitted as standard to many golf carts.
- Reinforced plate construction for intensive use.
- Good balance of capacity, cranking power and price.
- Standard format for golf carts and utility vehicles.
- Long service life in daily duty cycles.
What the Trojan J250P is for
The Trojan J250P is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 33 kg and 6 terminals.
The Trojan J250P: ciclo profundo - T2 Technology range and conventional lead-acid technology
The J250P is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Size, terminals and hold-down of the Trojan J250P
In terms of format, the Trojan J250P measures 295 × 178 × 292 mm (length × width × height) and weighs 33 kg. It uses 6 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Why choose Trojan batteries
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer.
Manufacturer's warranty
The Trojan J250P comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
-
-
ReferenceBCOM-TROJAN-J250P
Data sheet
-
BrandTROJAN
-
ReferenceJ250P
-
ModelTROJAN Deep Cycle - T2 Technology
-
Voltage (V)6
-
Length295.00 mm
-
Width178.00 mm
-
Height292.00 mm
-
Weight33 Kgs
-
TechnologyLead-acid
-
Terminal type6
-
Capacity (C20)250Ah (c20)
-
Capacity (C5)215Ah (c5)
Specific References
-
EAN138404653001575
-
MPNJ250P
Codes and references Trojan J250P
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer part number (MPN) | J250P |
| EAN-13 barcode | 8404653001575 |
| Dimensions (length × width × height) | 295 × 178 × 292 mm (295x178x292) |
Recommended accessories
Frequently asked questions
How do I fit the J250P model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Trojan J250P battery last?
Expected lifespan of the Trojan J250P is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan J250P battery?
Dimensions (length × width × height) are 295×178×292 mm — also written as 295x178x292 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
