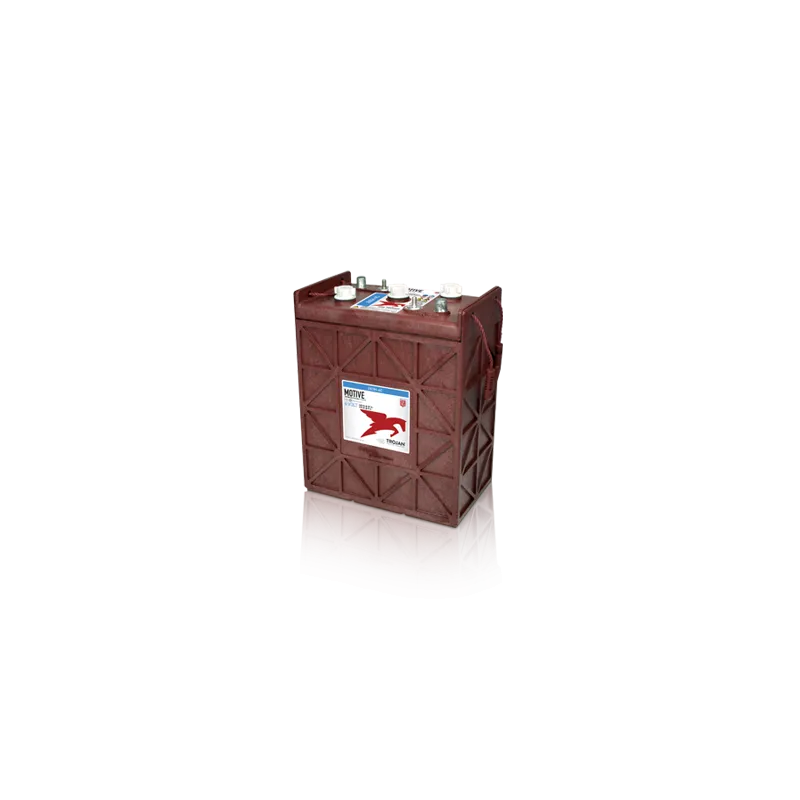

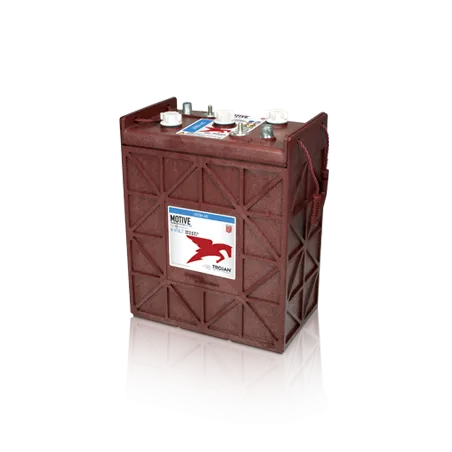

Trojan J305H-AC · Traction battery 6V 360Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | J305H-AC |
| Voltage (V) | 6 |
| Capacity (C20) | 360Ah (c20) |
| Capacity (C5) | 295Ah (c5) |
| Technology | Lead-acid |
| Length | 296.00 mm |
| Width | 178.00 mm |
| Height | 366.00 mm |
€594.95
VAT included
Trojan J305H-AC 6V 360Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
360 Ah
Dimensions
296×178×366 mm
Technology
Lead-acid
Weight
45 kg
Model
TROJAN ciclo profundo - T2 Technology
Tenía dudas sobre qué batería elegir y me ayudaron a elegir la batería correcta
Jose Ignacio AlonsoRecomiendo esta web, excelente servicio
Juan Carlos DominguezPedí la batería un viernes a las 4 y me llegó el lunes a las 11
Samuel Rubio
Reviews originally written in Spanish
Golf cart battery Trojan J305H-AC ciclo profundo - T2 Technology 360Ah 6V
6VVoltage
360AhCapacity
45kgWeight
The 6 V, 360 Ah Trojan J305H-AC from the ciclo profundo - T2 Technology range with conventional lead-acid technology is designed for golf carts and electric utility vehicles. Its 296 × 178 × 366 mm make it the exact replacement for the 360 Ah battery fitted as standard to many golf carts.
- Reinforced plate construction for intensive use.
- Good balance of capacity, cranking power and price.
- Standard format for golf carts and utility vehicles.
- Long service life in daily duty cycles.
What the Trojan J305H-AC is for
The Trojan J305H-AC is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 45 kg and 6 terminals.
Size, terminals and hold-down of the Trojan J305H-AC
In terms of format, the Trojan J305H-AC measures 296 × 178 × 366 mm (length × width × height) and weighs 45 kg. It uses 6 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Trojan: the maker behind the J305H-AC
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Trojan J305H-AC: ciclo profundo - T2 Technology range and conventional lead-acid technology
Within the Trojan catalogue, the ciclo profundo - T2 Technology series groups the references designed for this use. The J305H-AC is the 360 Ah model of that family, with the same performance as its siblings in other sizes.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
How to make it last longer
Recharge the set fully after each round and avoid routine discharges below 20%. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Manufacturer's warranty
The Trojan J305H-AC comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TROJAN-J305H-AC
Data sheet
- Brand
- TROJAN
- Reference
- J305H-AC
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 6
- Length
- 296.00 mm
- Width
- 178.00 mm
- Height
- 366.00 mm
- Weight
- 45 Kgs
- Technology
- Lead-acid
- Terminal type
- 6
- Capacity (C20)
- 360Ah (c20)
- Capacity (C5)
- 295Ah (c5)
Specific References
- EAN13
- 8404653001612
- MPN
- J305H-AC
4,80/5
Latest reviews
Reviews originally written in Spanish
★★★★★Jose Ignacio Alonso
01/07/2026Te asesoran gratis
Tenía dudas sobre qué batería elegir y me ayudaron a elegir la batería correcta
★★★★★Juan Carlos Dominguez
09/02/2026Gracias
Recomiendo esta web, excelente servicio
★★★★★Samuel Rubio
05/02/2026La batería llegó a tiempo
Pedí la batería un viernes a las 4 y me llegó el lunes a las 11
★★★★★Raul PeÑa
15/01/2026Ayudan con la instalación
Compre la TROJAN J305H-AC y llamé para que me ayudaran con la instalación. Muy buena asesoría
★★★★★Jose Manuel Benitez
13/10/2025Buen asesoramiento
Tenía dudas sobre qué bateria elegir y me ayudaron a elegir la bateria correcta
Codes and references Trojan J305H-AC
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer part number (MPN) | J305H-AC |
| Also known as | J305HAC · J305H AC |
| EAN-13 barcode | 8404653001612 |
| Dimensions (length × width × height) | 296 × 178 × 366 mm (296x178x366) |
Comparison: Trojan J305H-AC vs equivalents
The Trojan J305H-AC is interchangeable with these equivalent references: J305P-AC (Trojan).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Trojan
J305H-AC
This battery
|
6V 360Ah | Lead-acid | €594.95 |
Trojan
J305P-AC
|
6V 330Ah | Lead-acid | €618.50 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I fit the J305H-AC model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the J305H-AC model?
Expected lifespan of the Trojan J305H-AC is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the J305H-AC model?
Dimensions (length × width × height) are 296×178×366 mm — also written as 296x178x366 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan J305H-AC?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
