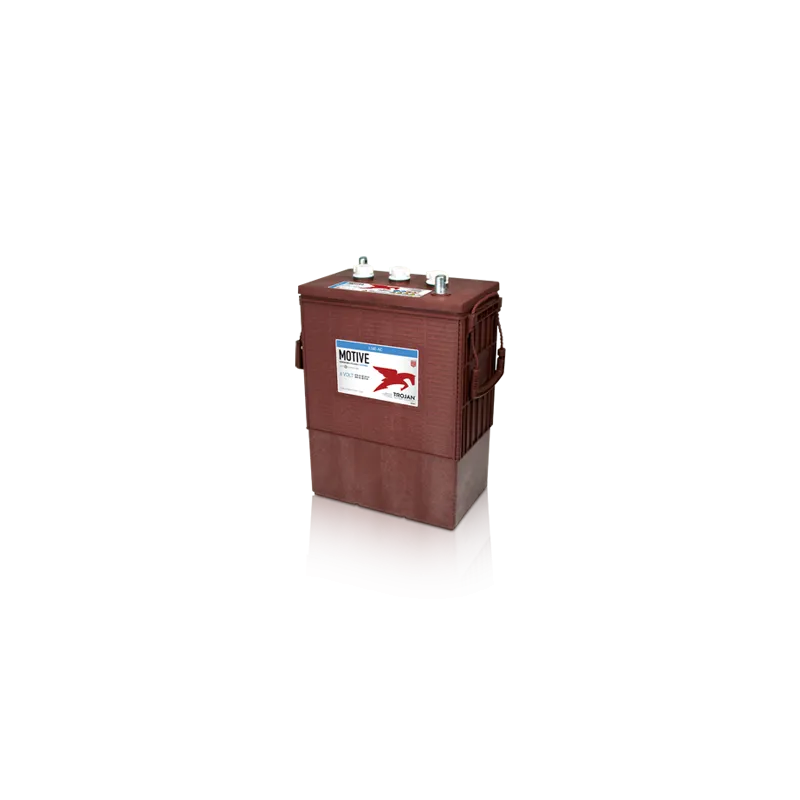

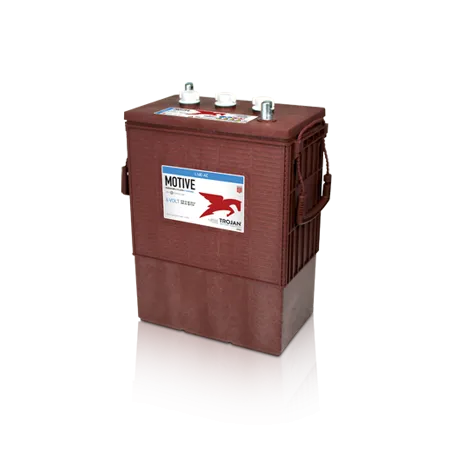

Trojan L16E-AC · Traction battery 6V 370Ah
Traction battery Trojan L16E-AC 6V 370Ah images

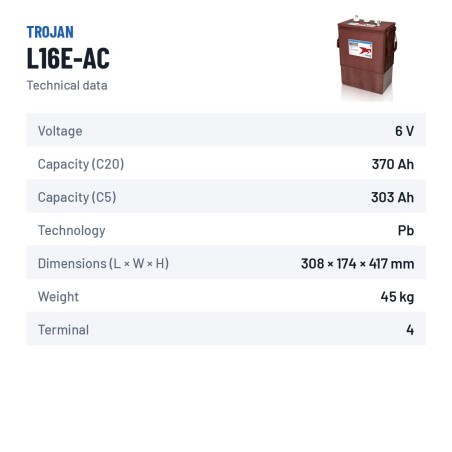

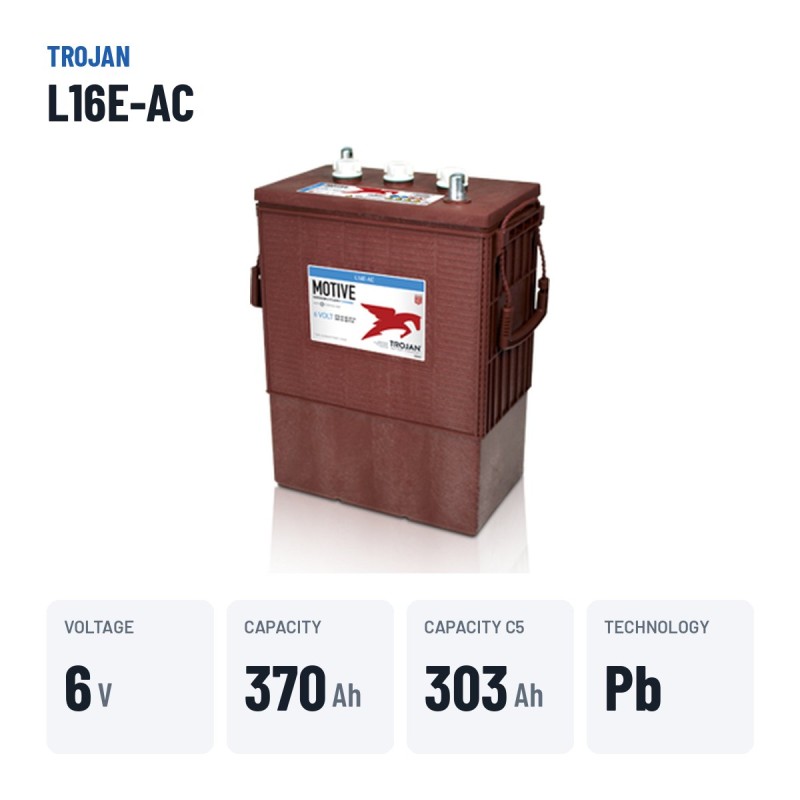

Specifications
| Brand | TROJAN |
|---|---|
| Part number | L16E-AC |
| Voltage (V) | 6 |
| Capacity (C20) | 370Ah (c20) |
| Capacity (C5) | 303Ah (c5) |
| Technology | Lead-acid |
| Length | 308.00 mm |
| Width | 174.00 mm |
| Height | 417.00 mm |

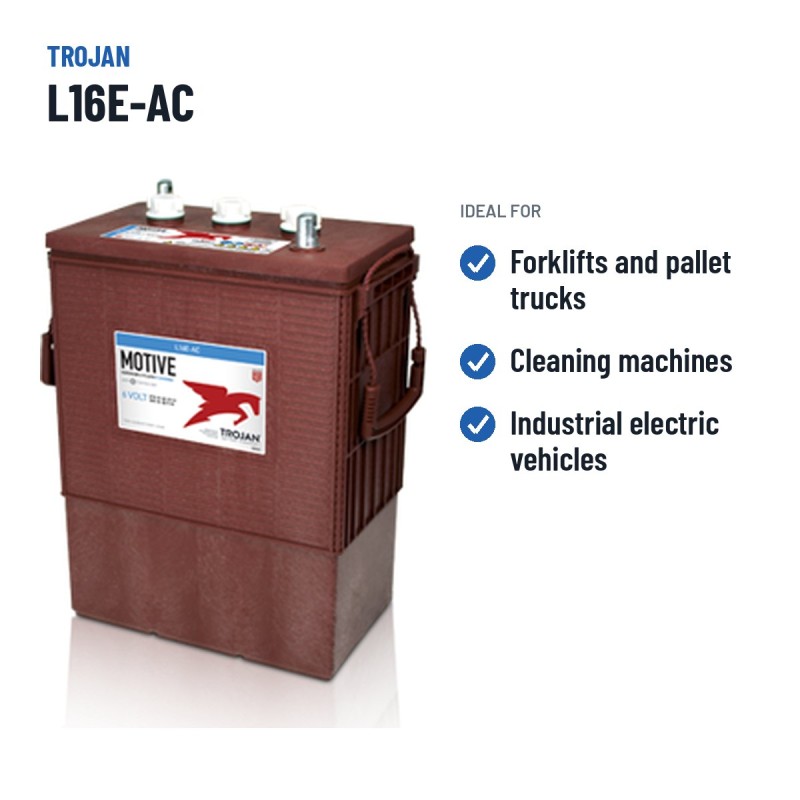

Trojan L16E-AC 6V 370Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Golf cart battery Trojan L16E-AC ciclo profundo - T2 Technology 370Ah 6V
The Trojan L16E-AC is a 370 Ah, 6 V deep-cycle battery for golf carts and electric utility vehicles. Its 308 × 174 × 417 mm make it the exact replacement for the 370 Ah battery fitted as standard to many golf carts.
- Standard format for golf carts and utility vehicles.
- Long service life in daily duty cycles.
- Reinforced plate construction for intensive use.
- Good balance of capacity, cranking power and price.
What the Trojan L16E-AC is for
The Trojan L16E-AC is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 45 kg and 4 terminals.
Will it fit your current battery tray?

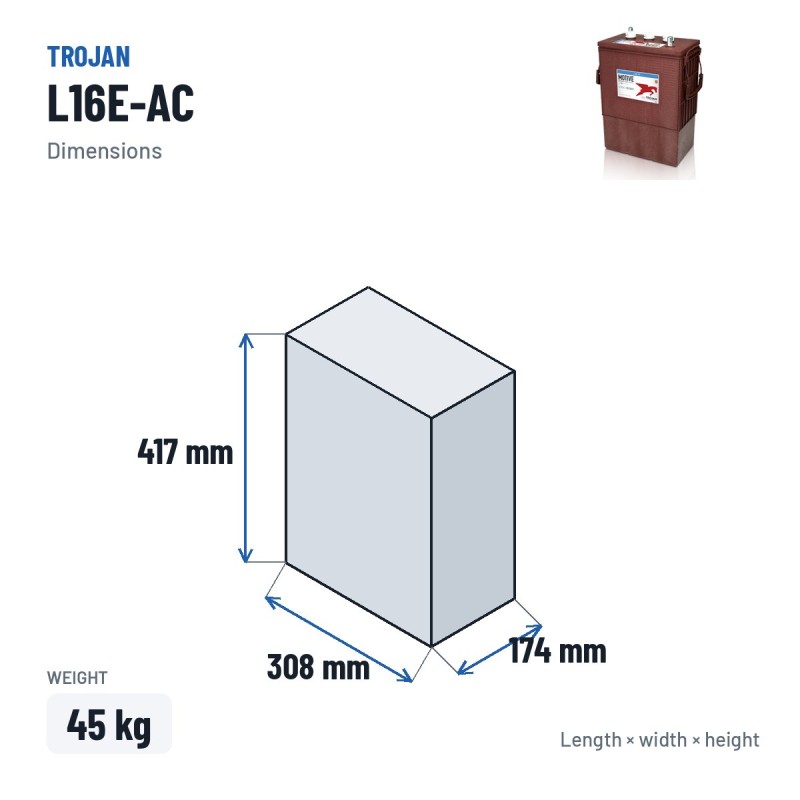

In terms of format, the Trojan L16E-AC measures 308 × 174 × 417 mm (length × width × height) and weighs 45 kg. It uses 4 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Trojan L16E-AC: ciclo profundo - T2 Technology range and conventional lead-acid technology
Within the Trojan catalogue, the ciclo profundo - T2 Technology series groups the references designed for this use. The L16E-AC is the 370 Ah model of that family, with the same performance as its siblings in other sizes.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Trojan: the maker behind the L16E-AC
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. We guarantee that every Trojan arrives new, charged and with the manufacturer's full warranty.
Warranty and coverage
The Trojan L16E-AC comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
-
-
ReferenceBCOM-TROJAN-L16E-AC

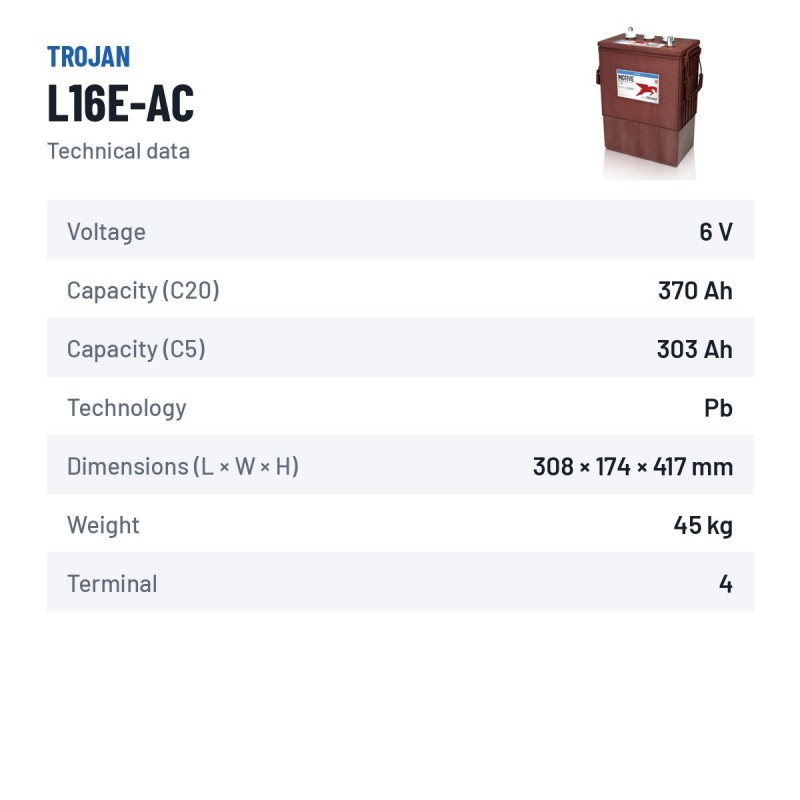

Data sheet
-
BrandTROJAN
-
ReferenceL16E-AC
-
ModelTROJAN Deep Cycle - T2 Technology
-
Voltage (V)6
-
Length308.00 mm
-
Width174.00 mm
-
Height417.00 mm
-
Weight45 Kgs
-
TechnologyLead-acid
-
Terminal type4
-
Capacity (C20)370Ah (c20)
-
Capacity (C5)303Ah (c5)
Specific References
-
EAN138404653001636
-
MPNL16E-AC
Codes and references Trojan L16E-AC
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer part number (MPN) | L16E-AC |
| Also known as | L16EAC · L16E AC |
| EAN-13 barcode | 8404653001636 |
| Dimensions (length × width × height) | 308 × 174 × 417 mm (308x174x417) |
Recommended accessories
Compatible vehicles
The Trojan L16E-AC fits 42 vehicles. Most searched below:
Frequently asked questions
How do I fit the L16E-AC model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Trojan L16E-AC is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan L16E-AC battery?
Dimensions (length × width × height) are 308×174×417 mm — also written as 308x174x417 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan L16E-AC?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
