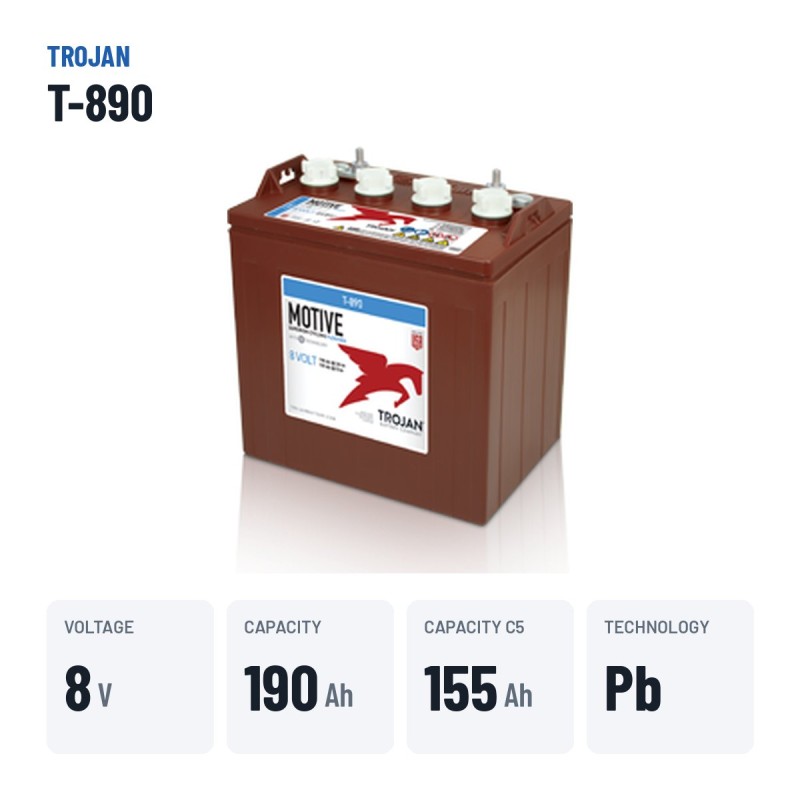

Trojan T-890 · Golf cart battery 8V 190Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | T-890 |
| Voltage (V) | 8 |
| Capacity (C20) | 190Ah (c20) |
| Capacity (C5) | 155Ah (c5) |
| Technology | Lead-acid |
| Length | 259.00 mm |
| Width | 180.00 mm |
| Height | 283.00 mm |
€428.70
VAT included
4,80/5★★★★★7 reviewsVerified purchases
- ★★★★★Juan Jose Ortega:
Buen asesoramiento en la instalación
- ★★★★Francisco Jose Soto:
Anímo a que llameís, la atención es gratuita y muy buena.
- ★★★★★Francisco Jose Herrera:
Pedí la batería un miércoles a las 4 y me llegó el jueves a las 2

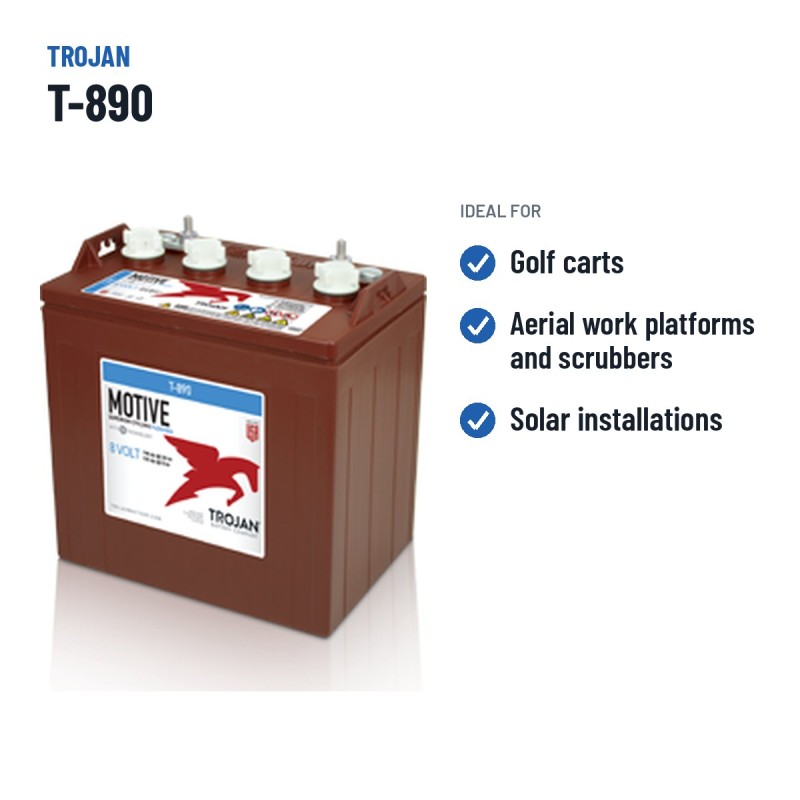

Trojan T-890 8V 190Ah is a golf traction battery: thick plates and a high cycle count for daily course use.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
8 V
Capacity
190 Ah
Dimensions
259×180×283 mm
Technology
Lead-acid
Weight
31 kg
Model
TROJAN ciclo profundo - T2 Technology
Golf cart battery Trojan T-890 ciclo profundo - T2 Technology 190Ah 8V
8VVoltage
190AhCapacity
31kgWeight
With 190 Ah with conventional lead-acid technology, the Trojan T-890 from the ciclo profundo - T2 Technology range withstands the daily deep discharges of golf carts and electric utility vehicles. It replaces the original battery without adaptation in golf carts with a 259 × 180 × 283 mm format: same 190 Ah capacity.
- Sealed and maintenance-free.
- Full recharge every night with the vehicle charger.
- Conventional lead-acid: the most proven and economical technology.
- Daily deep discharges without capacity loss.
What the Trojan T-890 is for
With 190 Ah, the Trojan T-890 forms part of the battery banks of golf carts and electric utility vehicles. Always replace the complete set to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 31 kg and 1 2 terminals.
Will it fit your current battery tray?

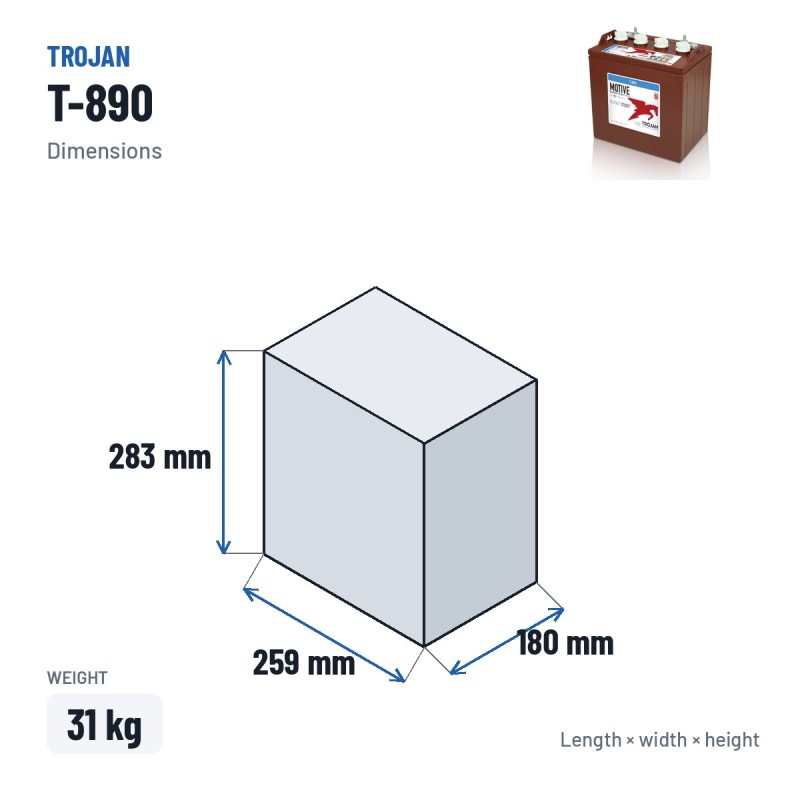

The Trojan T-890 is made in the 259 × 180 × 283 mm format and weighs 31 kg. It uses 1 2 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Trojan T-890: ciclo profundo - T2 Technology range and conventional lead-acid technology
The ciclo profundo - T2 Technology is the Trojan range the T-890 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
What Trojan does differently
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Trojan T-890 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TROJAN-T-890

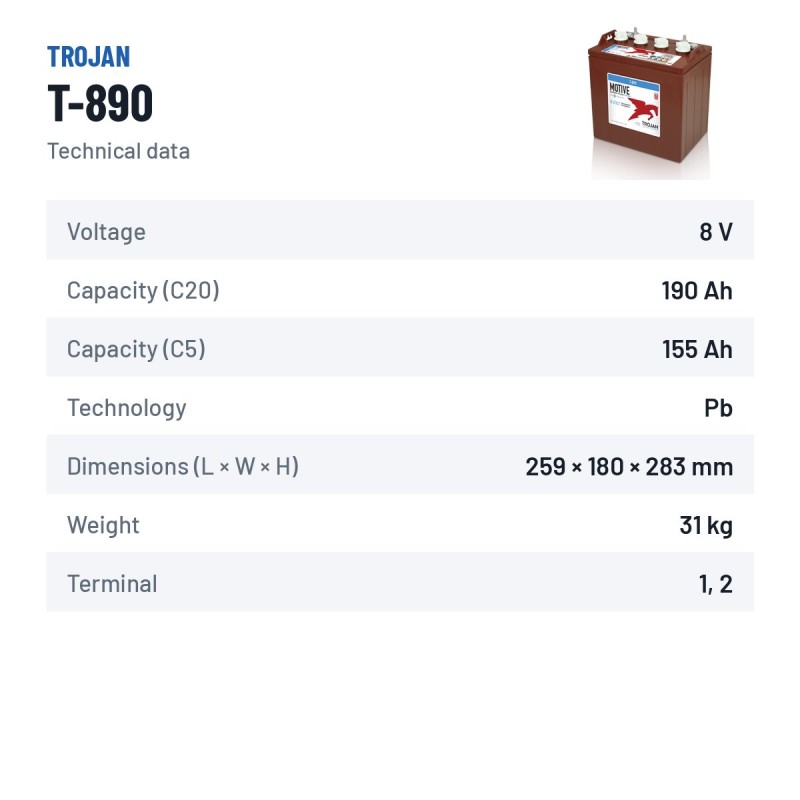

Data sheet
- Brand
- TROJAN
- Reference
- T-890
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 8
- Length
- 259.00 mm
- Width
- 180.00 mm
- Height
- 283.00 mm
- Weight
- 31 Kgs
- Technology
- Lead-acid
- Terminal type
- 1 2
- Capacity (C20)
- 190Ah (c20)
- Capacity (C5)
- 155Ah (c5)
Specific References
- EAN13
- 8717545595831
- MPN
- T-890
4,80/5
Verified purchasesLatest verified reviews
★★★★★Juan Jose Ortega
18/07/2026Me ayudaron
Buen asesoramiento en la instalación
★★★★★Francisco Jose Soto
11/01/2026Asesoramiento increíble
Anímo a que llameís, la atención es gratuita y muy buena.
★★★★★Francisco Jose Herrera
10/01/2026Recibí la batería en 1 día
Pedí la batería un miércoles a las 4 y me llegó el jueves a las 2
Codes and references Trojan T-890
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer reference (MPN) | T-890 |
| EAN-13 barcode | 8717545595831 |
| Dimensions (length × width × height) | 259 × 180 × 283 mm (259x180x283) |
Comparison: Trojan T-890 vs equivalents
The Trojan T-890 is interchangeable with these equivalent references: T-875 (Trojan).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Trojan
T-890
This battery
|
8V 190Ah | Lead-acid | €428.70 |
Trojan
T-875
|
8V 170Ah | Lead-acid | €226.50 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I fit the T-890 model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Trojan T-890 battery last?
Expected lifespan of the Trojan T-890 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan T-890 battery?
Dimensions (length × width × height) are 259×180×283 mm — also written as 259x180x283 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the T-890 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
