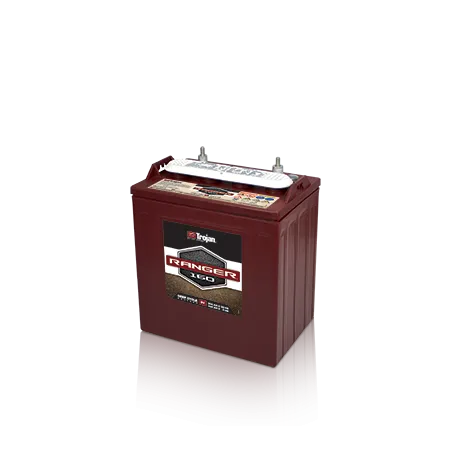

Trojan Ranger 160 · Traction battery 8V 204Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | Ranger 160 |
| Voltage (V) | 8 |
| Capacity (C20) | 204Ah (c20) |
| Capacity (C5) | 169Ah (c5) |
| Technology | Lead-acid |
| Length | 259.00 mm |
| Width | 180.00 mm |
| Height | 302.00 mm |
€491.20
VAT included
4,53/5★★★★★9 reviewsVerified purchases
- ★★★★Mario Vega:
Recomiendo esta web, excelente servicio
- ★★★★★Agustin Vicente:
Compre la TROJAN RANGER 160 y llamé para que me ayudaran con la instalación. Muy buena asesoría
- ★★★★Victor Arias:
Pedí la batería un viernes a las 4 y me llegó el lunes a las 11
Reviews originally written in Spanish
See all 9 reviewsTrojan Ranger 160 8V 204Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
8 V
Capacity
204 Ah
Dimensions
259×180×302 mm
Technology
Lead-acid
Weight
34 kg
Model
TROJAN ciclo profundo - T2 Technology
Golf cart battery Trojan Ranger 160 ciclo profundo - T2 Technology 204Ah 8V
8VVoltage
204AhCapacity
34kgWeight
The Trojan Ranger 160 is a 204 Ah, 8 V deep-cycle battery for golf carts and electric utility vehicles. Measuring 259 × 180 × 302 mm, it is the direct replacement for golf carts fitted from the factory with a 204 Ah battery of this format.
- Long service life in daily duty cycles.
- Standard format for golf carts and utility vehicles.
- Good balance of capacity, cranking power and price.
- Reinforced plate construction for intensive use.
What the Trojan Ranger 160 is for
The Trojan Ranger 160 is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 34 kg and 2 terminals.
The Trojan Ranger 160: ciclo profundo - T2 Technology range and conventional lead-acid technology
The Ranger 160 is part of the Trojan ciclo profundo - T2 Technology range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Will it fit your current battery tray?
It has external dimensions of 259 × 180 × 302 mm and weighs 34 kg. It uses 2 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What Trojan does differently
Founded in 1925 in California, Trojan invented the golf cart battery and remains the standard in deep-discharge applications that demand thousands of cycles. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
Recharge the set fully after each round and avoid routine discharges below 20%. Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer.
Manufacturer's warranty
The Trojan Ranger 160 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TROJAN-RANGER 160
Data sheet
- Brand
- TROJAN
- Reference
- Ranger 160
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 8
- Length
- 259.00 mm
- Width
- 180.00 mm
- Height
- 302.00 mm
- Weight
- 34 Kgs
- Technology
- Lead-acid
- Terminal type
- 2
- Capacity (C20)
- 204Ah (c20)
- Capacity (C5)
- 169Ah (c5)
Specific References
- MPN
- Ranger 160
4,53/5
Verified purchasesLatest verified reviews
Reviews originally written in Spanish
★★★★★Mario Vega
03/02/2026Super bien
Recomiendo esta web, excelente servicio
★★★★★Agustin Vicente
16/01/2026Te indican cómo hacer la instalación
Compre la TROJAN RANGER 160 y llamé para que me ayudaran con la instalación. Muy buena asesoría
★★★★★Victor Arias
04/01/2026Rápido y correcto
Pedí la batería un viernes a las 4 y me llegó el lunes a las 11
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I fit the Ranger 160 model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the Ranger 160 model?
Expected lifespan of the Trojan Ranger 160 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the Ranger 160 model?
Dimensions (length × width × height) are 259×180×302 mm — also written as 259x180x302 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan Ranger 160?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
