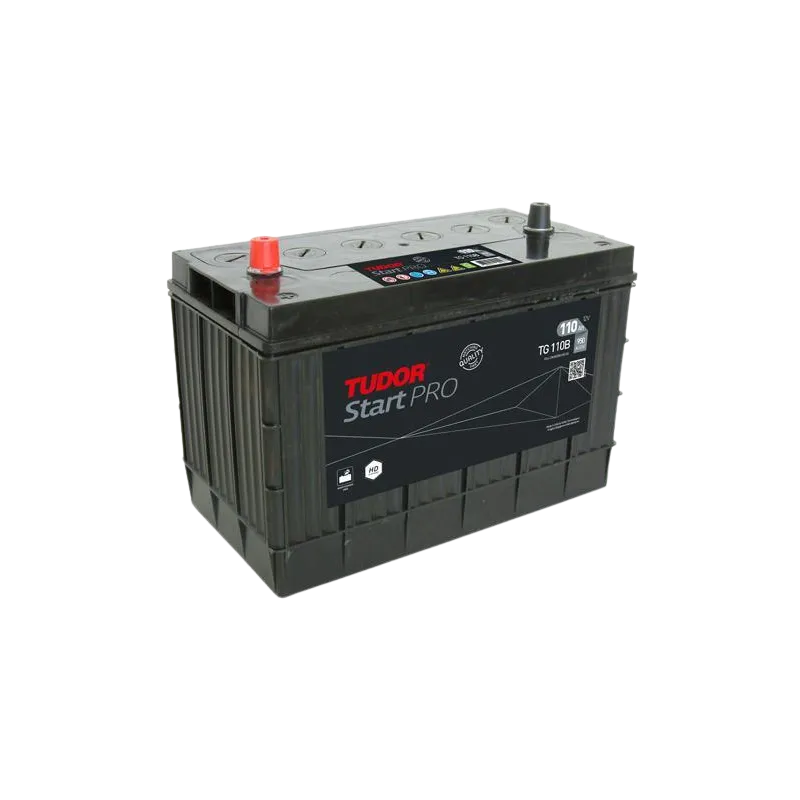

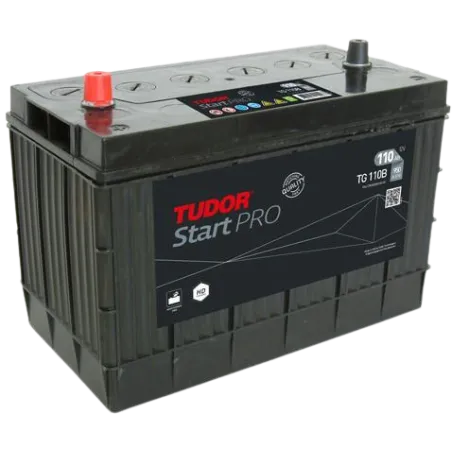

Tudor TG110B · Truck battery 12V 110Ah 950A

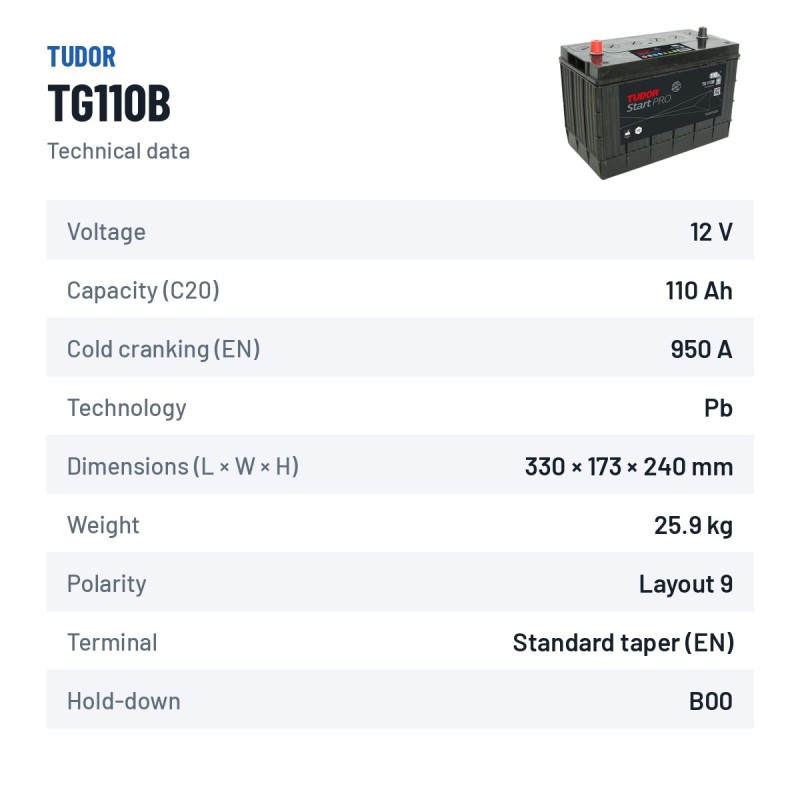

Specifications
| Brand | TUDOR |
|---|---|
| Part number | TG110B |
| Voltage (V) | 12 |
| Capacity (C20) | 110Ah (c20) |
| Cold cranking amps (EN) | 950A |
| Technology | Lead-acid |
| Length | 330.00 mm |
| Width | 173.00 mm |
| Height | 240.00 mm |
€135.60
VAT included
Tudor TG110B 12V 110Ah 950A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
110 Ah
Cold cranking
950 A
Dimensions
330×173×240 mm
Technology
Lead-acid
Weight
25,9 kg
Model
TUDOR StartPRO
Truck battery Tudor EG110B Start PRO (Hd) 110Ah 950A 12V
12VVoltage
110AhCapacity
950ACold cranking
25.90kgWeight
With 110 Ah and 950 A of cold cranking current (EN), the Tudor EG110B from the Start PRO (Hd) range is built for professional use in trucks, buses, tractors and heavy machinery. Measuring 330 × 173 × 240 mm, it is the direct replacement for trucks fitted from the factory with a 110 Ah battery of this format.
- Powers tachograph, fridge and heater during rest stops.
- Better tolerance to deep discharge than a conventional starter battery.
- Good balance of capacity, cranking power and price.
- Resistant to constant chassis vibration.
What the Tudor EG110B is for
With 110 Ah, the Tudor EG110B cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 25.90 kg.
Size, terminals and hold-down of the Tudor EG110B
The Tudor EG110B is made in the 330 × 173 × 240 mm format and weighs 25.90 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Tudor EG110B: Start PRO (Hd) range and conventional lead-acid technology
Within the Tudor catalogue, the Start PRO (Hd) series groups the references designed for this use. The EG110B is the 110 Ah model of that family, with the same performance as its siblings in other sizes.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Why choose Tudor batteries
Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Tudor EG110B comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
How to make it last longer
In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TUDOR-TG110B
Data sheet
- Brand
- TUDOR
- Reference
- EG110B
- Model
- TUDOR START PRO (HD)
- Voltage (V)
- 12
- Length
- 330.00 mm
- Width
- 173.00 mm
- Height
- 240.00 mm
- Technology
- Lead-acid
- EAN
- 3661024055567

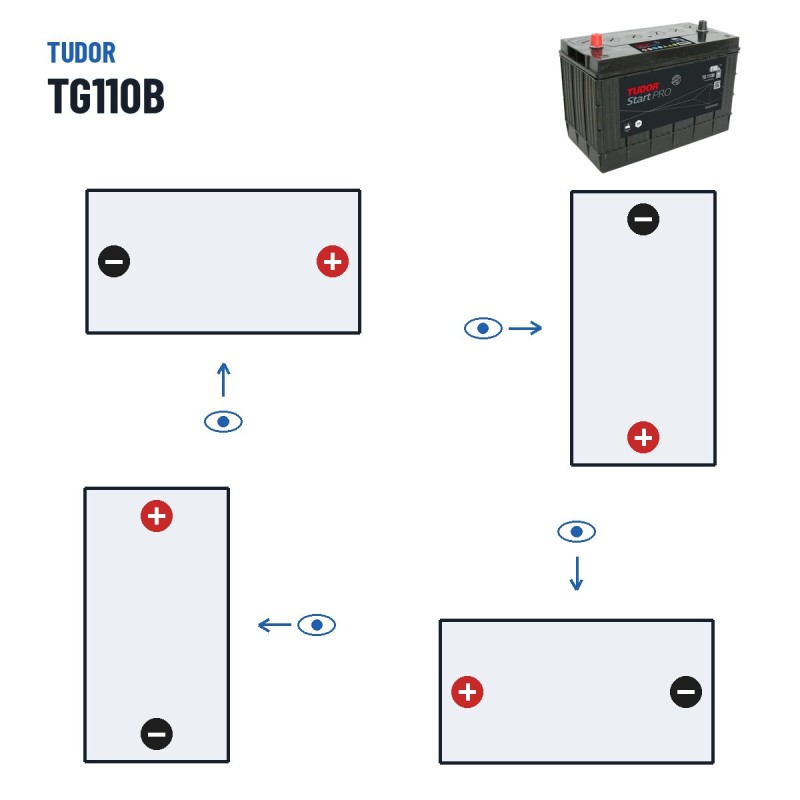

- Terminal layout
- 9
- Cold cranking amps (EN)
- 950A
- Capacity (C20)
- 110Ah (c20)
Specific References
- EAN13
- 3661024055567
- MPN
- TG110B
Codes and references Tudor TG110B
| Brand | Tudor · see all Tudor batteries |
|---|---|
| Manufacturer range | TUDOR START PRO (HD) |
| Manufacturer part number (MPN) | TG110B |
| EAN-13 barcode | 3661024055567 |
| Dimensions (length × width × height) | 330 × 173 × 240 mm (330x173x240) |
Comparison: Tudor TG110B vs equivalents
The Tudor TG110B is interchangeable with these equivalent references: EG110B (Exide), H17 (Varta), H16 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TG110B
This battery
|
12V 110Ah 950A | Lead-acid | €135.60 |
Exide
EG110B
|
12V 110Ah 950A | Lead-acid | €200.40 |
Varta
H17
|
12V 105Ah 800A | Lead-acid | €100.70 |
Varta
H16
|
12V 105Ah 800A | Lead-acid | €167.90 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Tudor TG110B battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the TG110B model?
Expected lifespan of the Tudor TG110B is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 330×173×240 mm — also written as 330x173x240 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TG110B battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TG110B typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Tudor TG110B?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
