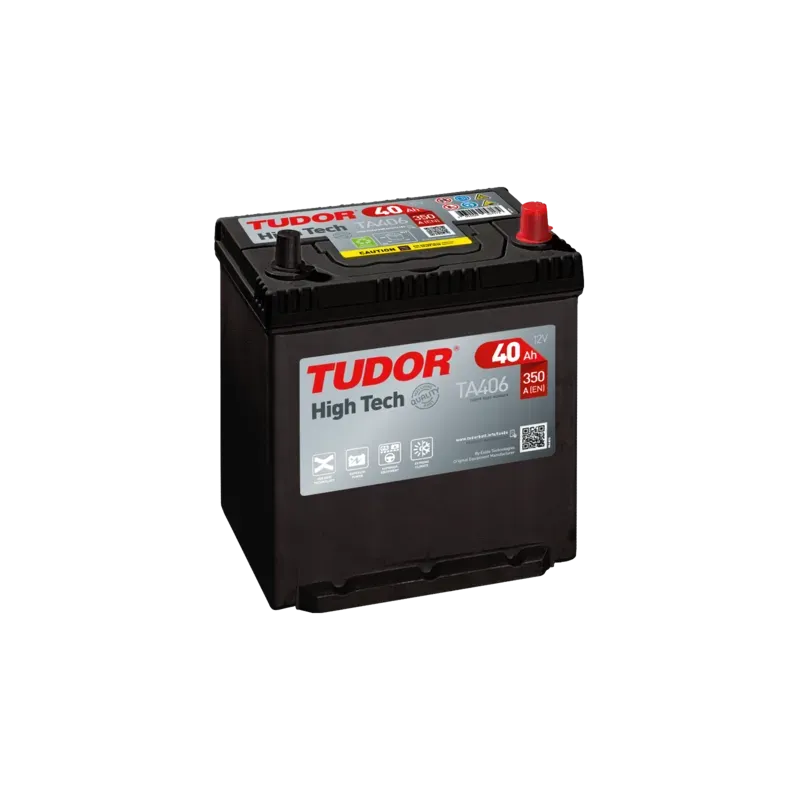

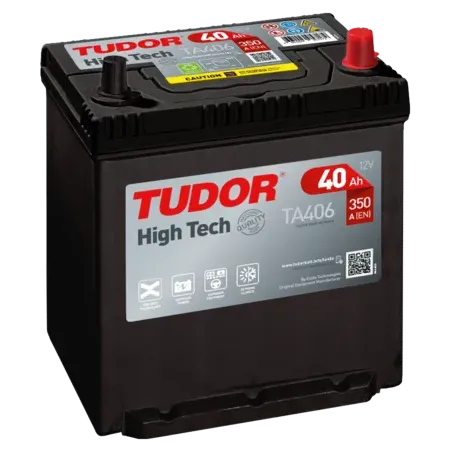

Tudor TA406 · Car battery 12V 40Ah 350A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TA406 |
| Voltage (V) | 12 |
| Capacity (C20) | 40Ah (c20) |
| Technology | Flooded |
| Length | 187.00 mm |
| Width | 127.00 mm |
| Height | 220.00 mm |
| Weight | 9.30 Kgs |
€73.50
VAT included
Tudor TA406 12V 40Ah 350A is a ready-to-use passenger car battery, sealed and maintenance-free. Delivers the cranking amps the engine needs in cold weather and keeps stable voltage for modern car loads (ECU, sensors, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
40 Ah
Cold cranking
350 A
Dimensions
187×127×220 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
9,3 kg
Model
TUDOR HIGH TECH
Car battery Tudor TA406 High Tech 40Ah 350A 12V
12VVoltage
40AhCapacity
350ACold cranking
9.30kgWeight
The Tudor TA406 from the High Tech range delivers 40 Ah and 350 A of cold cranking current (EN) at 12 V: the usual specification for passenger cars with conventional starting, without a Start-Stop system. It replaces the original battery without adaptation in cars with a 187 × 127 × 220 mm format: same 40 Ah capacity and the positive terminal on the right.
- Conventional lead-acid: the most proven and economical technology.
- Reliable cold starts, even after weeks without driving.
- Direct replacement for the original battery in size and terminals.
- Original-equipment build quality without the dealership price.
Vehicles compatible with the Tudor TA406
According to our database, the Tudor TA406 equips more than 31 vehicles from brands such as Hyundai, Honda, Perodua, Kia, Aixam and Daihatsu, among others. If you are looking for a battery for a Hyundai or Honda with these dimensions, the TA406 is one of the usual replacement references. The compatibility list also includes models from Nissan, Piaggio, Haima, Suzuki, Mitsubishi, Daewoo and Toyota. It is checked against 8 original-equipment references from different manufacturers.
Will it fit your current battery tray?
In terms of format, the Tudor TA406 measures 187 × 127 × 220 mm (length × width × height) and weighs 9.30 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B1 hold-down and JIS taper post terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Tudor TA406: High Tech range and conventional lead-acid technology
Within the Tudor catalogue, the High Tech series groups the references designed for this use. The TA406 is the 40 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
What Tudor does differently
Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. All the Tudor batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Tudor TA406 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
Usage and maintenance tips
Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges. In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TUDOR-TA406
Data sheet
- Brand
- TUDOR
- Reference
- TA406
- Model
- TUDOR HIGH TECH
- Voltage (V)
- 12
- Length
- 187.00 mm
- Width
- 127.00 mm
- Height
- 220.00 mm
- Weight
- 9.30 Kgs
- Technology
- Flooded
- EAN
- 3661024057172
- Terminal layout
- Positive terminal on the right
- Terminal type
- JIS taper post
- Hold-down
- B1
- Cold cranking amps (EN)
- 350A
- Capacity (C20)
- 40Ah (c20)
- Case type
- B19
Specific References
- EAN13
- 3661024057172
- MPN
- TA406
Codes and references Tudor TA406
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR HIGH TECH |
| Manufacturer reference (MPN) | TA406 |
| EAN-13 barcode | 3661024057172 |
| Dimensions (length × width × height) | 187 × 127 × 220 mm (187x127x220) |
Comparison: Tudor TA406 vs equivalents
The Tudor TA406 is interchangeable with these equivalent references: EA386 (Exide), EA406 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TA406
This battery
|
12V 40Ah 350A | Lead-acid | €73.50 |
Exide
EA386
|
12V 38Ah 300A | Lead-acid | €73.50 |
Exide
EA406
|
12V 40Ah 350A | Lead-acid | €73.50 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Compatible vehicles
The Tudor TA406 fits 31 vehicles. Most searched below:
HYUNDAIi10 I (PA)2007HYUNDAIATOS (MX)1997HONDAJAZZ III (GE_, GG_, GP_, ZA_)2007KIAPICANTO I (SA)2004KIAPICANTO II (TA)2011NISSANMICRA IV (K13KK)2009PIAGGIOAPE CLASSIC Platform/Chassis2006HONDACR-Z (ZF)2010PERODUAKANCIL1994TOYOTAPRIUS C (NHP10_)2011AIXAM4001996HAIMAAISHANG2012
See all 31 compatible vehicles
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Tudor TA406 battery installed in the vehicle?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TA406 battery last?
Expected lifespan of the Tudor TA406 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 187×127×220 mm — also written as 187x127x220 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the TA406 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TA406 fits 31 verified vehicle versions in our database.
What are the equivalents of the TA406 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
