Tudor TG1109 · Truck battery 12V 110Ah 800A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TG1109 |
| Voltage (V) | 12 |
| Capacity (C20) | 110Ah (c20) |
| Technology | Lead-acid |
| Length | 413.00 mm |
| Width | 175.00 mm |
| Height | 220.00 mm |
| Terminal layout | Positive terminal on the left |
€375.80
VAT included
4,50/5★★★★★8 reviewsVerified purchases
- ★★★★Victor Manuel Rubio:
Recibí la batería en menos de 13 horas. Una pasada
- ★★★★★Cristian Lozano:
Buena atención telefónica, cosa que no se puede decir de muchos otros sitios
- ★★★★Jesus Saez:
Me recomendaron esta web. Buenos precios y buen tiempo de entrega
Tudor TG1109 12V 110Ah 800A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
110 Ah
Cold cranking
800 A
Dimensions
413×175×220 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
29,6 kg
Model
TUDOR START PRO (HD)

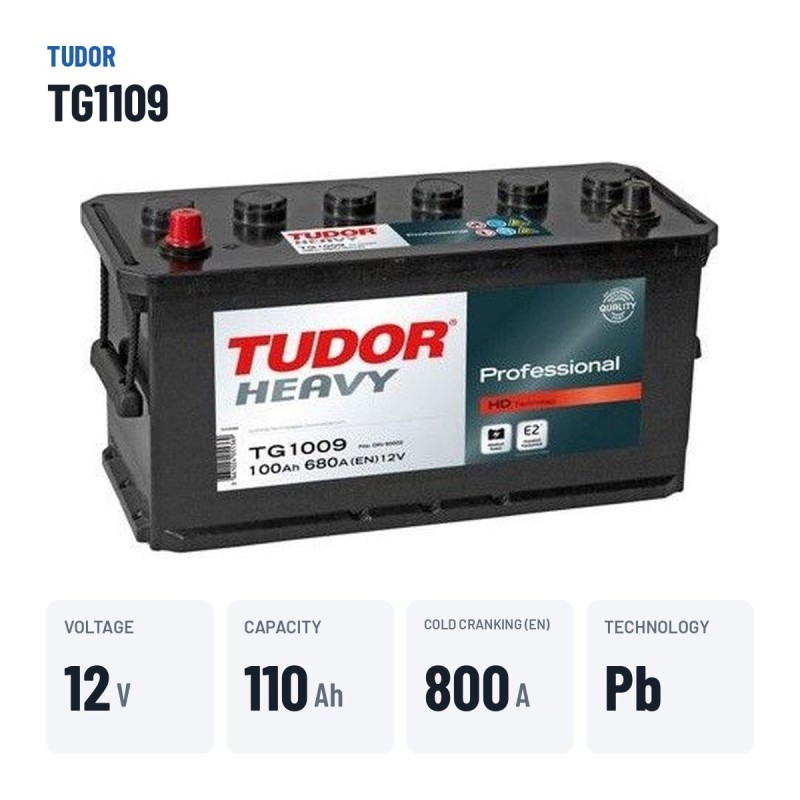

Truck battery Tudor TG1109 Start PRO (Hd) 110Ah 800A 12V
12VVoltage
110AhCapacity
800ACold cranking
29.60kgWeight
The Tudor TG1109 with conventional lead-acid technology delivers 110 Ah at 12 V and 800 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. It replaces the original battery without adaptation in trucks with a 413 × 175 × 220 mm format: same 110 Ah capacity and the positive terminal on the left.
- Powerful cold cranking for large-displacement diesel engines.
- Designed for 24 V installations with two batteries in series.
- Conventional lead-acid: the most proven and economical technology.
- Heavy Duty construction for intensive professional use.

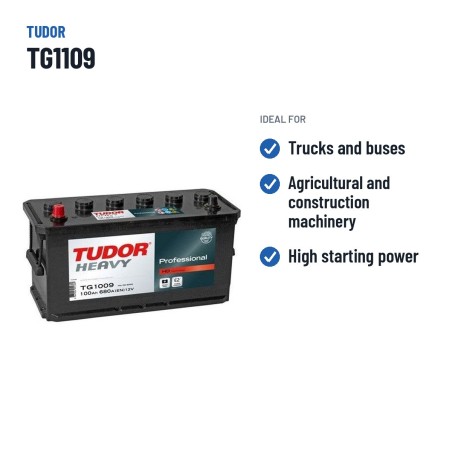

What the Tudor TG1109 is for
Designed for trucks, buses, tractors and heavy machinery, the Tudor TG1109 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 29.60 kg.

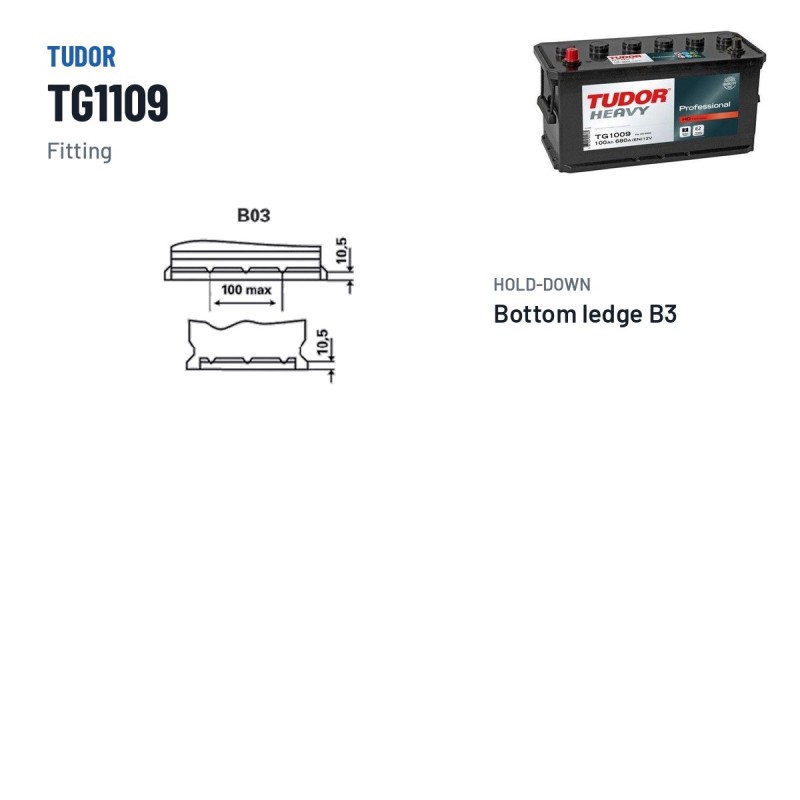

Dimensions, polarity and mounting

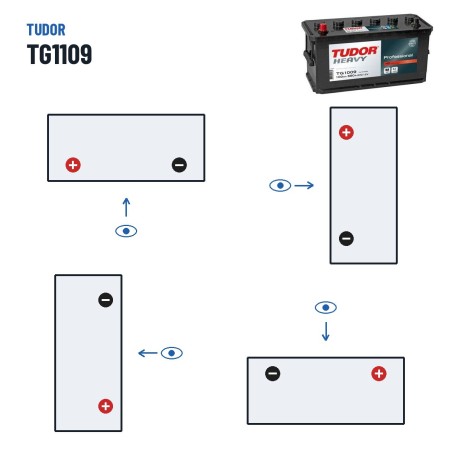

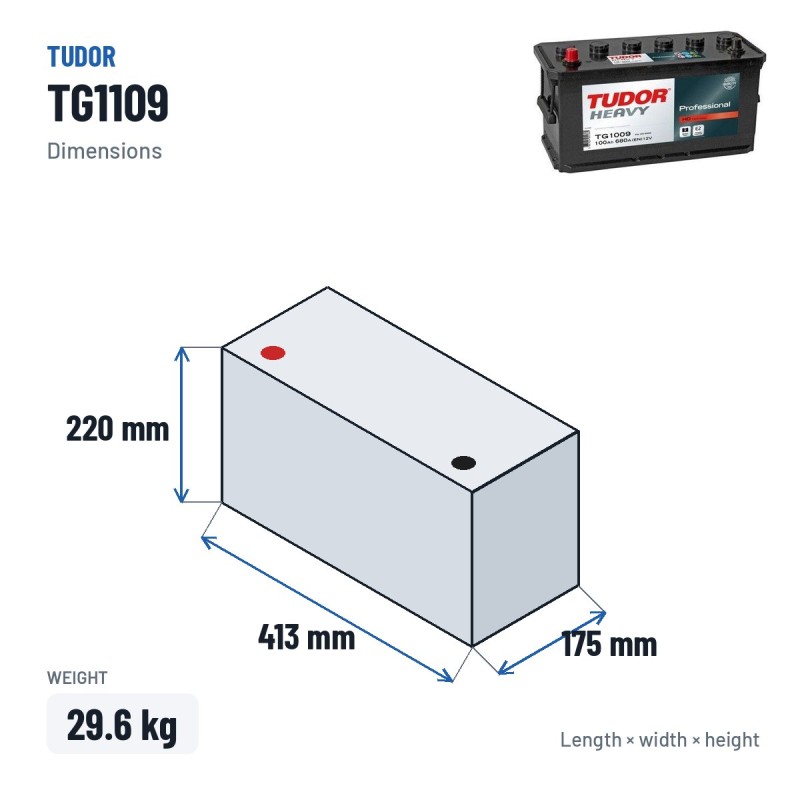

In terms of format, the Tudor TG1109 measures 413 × 175 × 220 mm (length × width × height) and weighs 29.60 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Why choose Tudor batteries
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Tudor TG1109: Start PRO (Hd) range and conventional lead-acid technology
The Start PRO (Hd) is the Tudor range the TG1109 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery.
Warranty and coverage
The Tudor TG1109 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TUDOR-TG1109

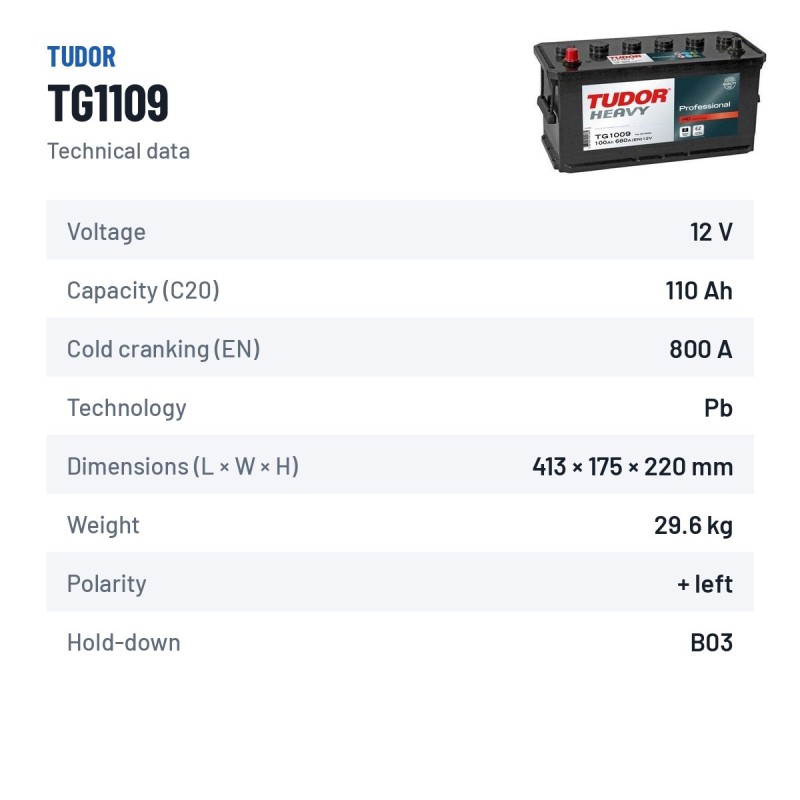

Data sheet
- Brand
- TUDOR
- Reference
- TG1109
- Model
- TUDOR START PRO (HD)
- Voltage (V)
- 12
- Length
- 413.00 mm
- Width
- 175.00 mm
- Height
- 220.00 mm
- Technology
- Lead-acid
- EAN
- 3661024055369
- Terminal layout
- Positive terminal on the left
- Cold cranking amps (EN)
- 800A
- Capacity (C20)
- 110Ah (c20)
Specific References
- EAN13
- 3661024055369
- MPN
- TG1109
4,50/5
Verified purchasesLatest verified reviews
★★★★★Victor Manuel Rubio
01/06/2026La batería llegó al día siguiente
Recibí la batería en menos de 13 horas. Una pasada
★★★★★Cristian Lozano
16/02/2026Se interesan por el cliente
Buena atención telefónica, cosa que no se puede decir de muchos otros sitios
★★★★★Jesus Saez
10/02/2026Increíble
Me recomendaron esta web. Buenos precios y buen tiempo de entrega
★★★★★Daniel Pastor
26/01/2026Un servicio genial
Esta web tiene un gran servicio al cliente.
★★★★★Rodrigo IbaÑez
22/11/2025Me llegó la batería en 24 horas
Recibí la bateria en menos de 13 horas. Una pasada
Codes and references Tudor TG1109
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR START PRO (HD) |
| Manufacturer reference (MPN) | TG1109 |
| EAN-13 barcode | 3661024055369 |
| Dimensions (length × width × height) | 413 × 175 × 220 mm (413x175x220) |
Comparison: Tudor TG1109 vs equivalents
The Tudor TG1109 is interchangeable with these equivalent references: H4 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TG1109
This battery
|
12V 110Ah 800A | Lead-acid | €375.80 |
Varta
H4
|
12V 100Ah 600A | Lead-acid | €159.90 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Tudor TG1109 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TG1109 battery last?
Expected lifespan of the Tudor TG1109 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the TG1109 model?
Dimensions (length × width × height) are 413×175×220 mm — also written as 413x175x220 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the TG1109 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TG1109 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the TG1109 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
