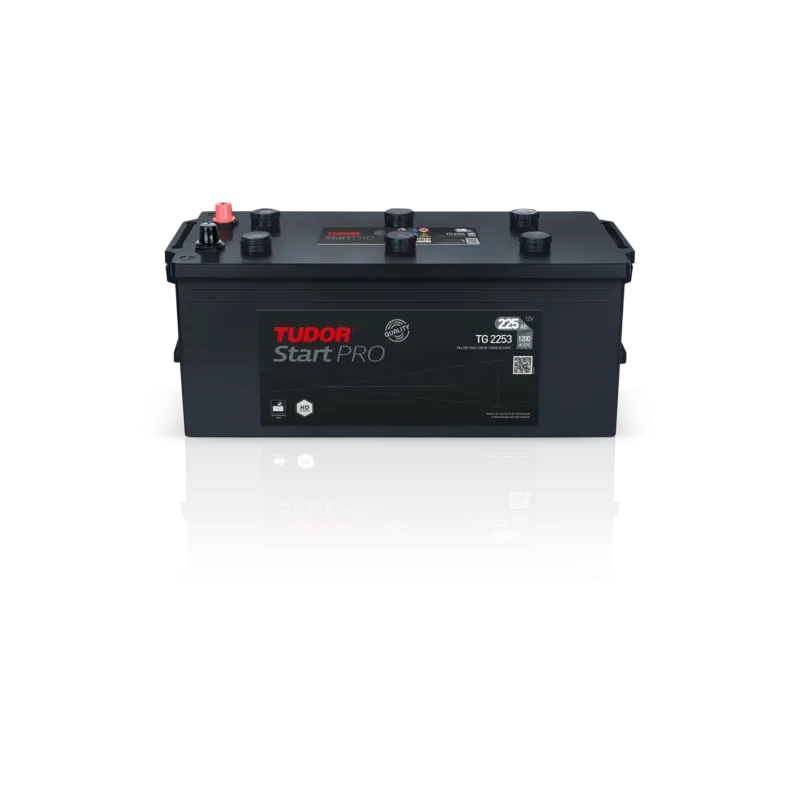

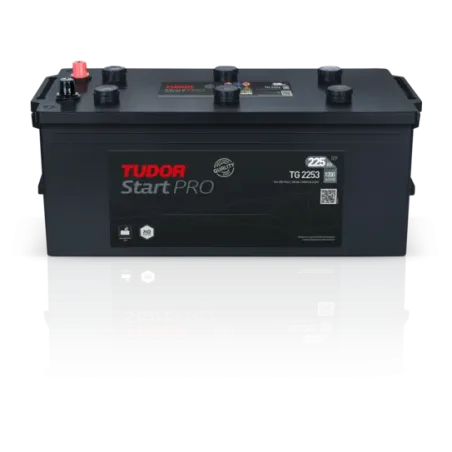

Tudor TG2253 Start Pro · Truck battery 225Ah 1200A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TG2253 |
| Voltage (V) | 12 |
| Capacity (C20) | 225Ah (c20) |
| Cold cranking amps (EN) | 1200A |
| Technology | Flooded |
| Length | 518.00 mm |
| Width | 274.00 mm |
| Height | 240.00 mm |
Tudor TG2253 12V 225Ah 1200A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Where it fits: the Tudor TG2253 is one of our truck batteries, belongs to our Tudor batteries and by capacity it sits among our 225Ah batteries.
The Tudor TG2253 in practice
Which cars do our customers fit it to?
Mostly to Volvo FM and BMW X6 (2 orders with the vehicle identified). That those models use it does not guarantee it fits yours: check the plate, as tray and polarity vary by version.
Truck battery Tudor TG2253 Start PRO (Hd) 225Ah 1,200A 12V
With 225 Ah and 1,200 A of cold cranking current (EN), the Tudor TG2253 from the Start PRO (Hd) range is built for professional use in trucks, buses, tractors and heavy machinery. Its 518 × 274 × 240 mm and the positive terminal on the left make it the exact replacement for the 225 Ah battery fitted as standard to many trucks.
In short: the Tudor TG2253 (225 Ah, 1200 A, 518 × 274 × 240 mm, positive terminal on the left). Verified equivalent alternatives: Varta N9 and Exide EG2253.
- Better tolerance to deep discharge than a conventional starter battery.
- Powers tachograph, fridge and heater during rest stops.
- Resistant to constant chassis vibration.
- Good balance of capacity, cranking power and price.
What the Tudor TG2253 is for
With 225 Ah, the Tudor TG2253 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 54.90 kg, EN taper post terminals and B0 hold-down.
Will it fit your current battery tray?
In terms of format, the Tudor TG2253 measures 518 × 274 × 240 mm (length × width × height) and weighs 54.90 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What Tudor does differently
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Tudor TG2253: Start PRO (Hd) range and conventional lead-acid technology
The TG2253 is part of the Tudor Start PRO (Hd) range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Usage and maintenance tips
During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.
Official warranty
The Tudor TG2253 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
Data sheet
-
BrandTUDOR
-
ReferenceTG2253
-
ModelTUDOR START PRO (HD)
-
Voltage (V)12
-
Length518.00 mm
-
Width274.00 mm
-
Height240.00 mm
-
Weight54.90 Kgs
-
TechnologyFlooded
-
EAN3661024057431
-
Terminal layoutPositive terminal on the left
-
Terminal typeEN taper post
-
Hold-downB0
-
Cold cranking amps (EN)1200A
-
Capacity (C20)225Ah (c20)
-
Case typeD06
Specific References
-
EAN133661024057431
-
MPNTG2253
Codes and references Tudor TG2253
| Brand | Tudor · see all Tudor batteries |
|---|---|
| Manufacturer range | TUDOR START PRO (HD) |
| Manufacturer part number (MPN) | TG2253 |
| EAN-13 barcode | 3661024057431 |
| Dimensions (length × width × height) | 518 × 274 × 240 mm (518x274x240) |
Tudor TG2253: best-selling equivalent or higher-spec batteries
The Tudor TG2253 is interchangeable with these equivalent references: N9 (Varta), EG2253 (Exide), TF2353 (Tudor). Higher-technology alternatives that can replace it: TE2353 (Tudor), TX2253 (Tudor), C40 (Varta), EE2353 (Exide), EX2253 (Exide).
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tudor
TG2253
This battery
|
12V 225Ah 1200A | Lead-acid | €189.95 | |||||||||||||||||||||
Tudor
TE2353
Upgrade: EFB |
12V 235Ah 1200A | EFB Upgrade | €348.30 +€158.35 | |||||||||||||||||||||
| ||||||||||||||||||||||||
| TG2253 | TE2353 | |
|---|---|---|
| Capacity | 225 Ah | 235 Ah |
| Cold cranking (EN) | 1200 A | 1200 A |
| Technology | Lead-acid | EFB |
| Dimensions (mm) | 518 × 274 × 240 | 518 × 274 × 240 |
| Positive terminal | Positive terminal on the left | Positive terminal on the left |
| Price | €189.95 | €348.30 |
Tudor
TF2353
Bigger sister Tudor TG2253 vs Tudor TF2353
Bigger sister · +€103.65
It is the bigger sister of the TG2253 in the same Tudor range. Compared with the TG2253 it has 10 Ah more and 100 A of cold cranking more. It costs €103.65 more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG2253 does the job.
| TG2253 | TF2353 | |
|---|---|---|
| Capacity | 225 Ah | 235 Ah |
| Cold cranking (EN) | 1200 A | 1300 A |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 518 × 274 × 240 | 518 × 274 × 240 |
| Positive terminal | Positive terminal on the left | Positive terminal on the left |
| Price | €189.95 | €293.60 |
Tudor
TX2253
Upgrade: EFB Tudor TG2253 vs Tudor TX2253
Upgrade: EFB · +€136.75
It is the EFB version of the same case: it withstands far more partial discharges than the TG2253. Compared with the TG2253 it has 50 A of cold cranking less. It costs €136.75 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG2253 does the job and EFB only adds service life.
| TG2253 | TX2253 | |
|---|---|---|
| Capacity | 225 Ah | 225 Ah |
| Cold cranking (EN) | 1200 A | 1150 A |
| Technology | Lead-acid | EFB |
| Dimensions (mm) | 518 × 274 × 240 | 518 × 274 × 240 |
| Positive terminal | Positive terminal on the left | Positive terminal on the left |
| Price | €189.95 | €326.70 |
Varta
N9
Varta equivalent Tudor TG2253 vs Varta N9
Varta equivalent · +€42.00
The Varta alternative that fits where the TG2253 goes, with the same polarity. Compared with the TG2253 it has 50 A of cold cranking less. It costs €42.00 more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.
| TG2253 | N9 | |
|---|---|---|
| Capacity | 225 Ah | 225 Ah |
| Cold cranking (EN) | 1200 A | 1150 A |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 518 × 274 × 240 | 518 × 276 × 242 |
| Positive terminal | Positive terminal on the left | Positive terminal on the left |
| Price | €189.95 | €231.95 |
Varta
C40
Upgrade: EFB Tudor TG2253 vs Varta C40
Upgrade: EFB · +€78.04
It is the EFB version of the same case: it withstands far more partial discharges than the TG2253. Compared with the TG2253 it has 15 Ah more. It costs €78.04 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG2253 does the job and EFB only adds service life.
| TG2253 | C40 | |
|---|---|---|
| Capacity | 225 Ah | 240 Ah |
| Cold cranking (EN) | 1200 A | 1200 A |
| Technology | Lead-acid | EFB |
| Dimensions (mm) | 518 × 274 × 240 | 518 × 276 × 242 |
| Positive terminal | Positive terminal on the left | Positive terminal on the left |
| Price | €189.95 | €267.99 |
Exide
EG2253
Exide equivalent
Exide
EE2353
Upgrade: EFB
Exide
EX2253
Upgrade: EFB Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Other 225Ah batteries: We stock 20 models of 225 Ah to compare by price, technology and cold cranking: see all 225Ah batteries. Same size (518 × 274 × 240 mm): batteries of 518 × 274 × 240 mm.
Recommended accessories
Compatible vehicles
The Tudor TG2253 fits 355 vehicles. Most searched below:
Frequently asked questions
Why does my lorry have two batteries?
Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.
What is the service life of the TG2253 model?
As a rough estimate, the Tudor TG2253 typically lasts 4 to 6 years in normal lorry use; it is a guide figure, not a guaranteed period. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of truck and whether it has Start-Stop.
What are the dimensions of the Tudor TG2253 battery?
Before buying, measure the space in your truck: one extra millimetre can stop the hold-down clamp from closing. The Tudor TG2253 takes up 518×274×240 mm (length, width and height, terminals included).
What polarity does the Tudor TG2253 battery have?
Polarity of the Tudor TG2253: positive on the left. Seen from the front, terminals towards you, the positive (+) is the post with the red ring. A change of polarity from the original means longer cables or a reconfigured system and can cause a short circuit: check it before ordering.
Will the Tudor TG2253 battery fit my truck?
Our database holds 355 verified vehicle versions for the Tudor TG2253. For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The truck manufacturer's specifications always take priority over our tables.
What are the equivalents of the TG2253 model?
A battery interchangeable with the Tudor TG2253 must match it on dimensions (518×274×240 mm), polarity (positive on the left), capacity (225 Ah) and cranking current (1200 A). The "Equivalents" section of this page gathers the recommended options with equivalent performance; remember that in Start-Stop trucks an EFB should not be replaced with a conventional battery.
Tudor TG2253 or Tudor TE2353: which one to choose?
It is the EFB version of the same case: it withstands far more partial discharges than the TG2253. Compared with the TG2253 it has 10 Ah more. It costs €158.35 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG2253 does the job and EFB only adds service life.
Tudor TG2253 or Tudor TF2353: which one to choose?
It is the bigger sister of the TG2253 in the same Tudor range. Compared with the TG2253 it has 10 Ah more and 100 A of cold cranking more. It costs €103.65 more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG2253 does the job.
