12,630 customer reviewsThank you for trusting us!Thank you! Excellent 4.5 out of 5

Varta M9 ProMotive · Truck battery 170Ah 1000A

Specifications

BrandVARTA
Part numberM9
Voltage (V)12
Capacity170Ah (c20)
Capacity (C20)170
Cold cranking amps (EN)1000
TechnologyLead-acid
Length513.00 mm
Width223.00 mm
See the full specifications →
Price: €264.60
VAT included
Quantity

Brand: VARTA batteries Part number: M9

Varta M9 12V 170Ah 1000A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
170 Ah C20
Cold cranking
1000 A EN-1
Dimensions
513×223×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
41,11 kg
Model
ProMotive SLI

Where it fits: the Varta M9 is one of our truck batteries, belongs to our Varta batteries and by capacity it sits among our 170Ah batteries.

The Varta M9 in practice

M9 vs Varta M18

The Varta M9 offers 170 Ah and 1000 A cold cranking in a 513 × 223 × 223 mm case. The Varta M18, same brand and technology, goes up to 180 Ah and 1000 A and costs €81.04 less. If the tray takes the size, extra capacity and cranking give winter margin; if not, this one is the fit.

Logo Varta

Varta M9 ProMotive SLI (formerly ProMotive HD) 170Ah 1000A 12V Lorry Battery

12VVoltage
170AhCapacity
1000ACold cranking
45,1kgWeight

The Varta M9 lorry battery is the 12 V, 170 Ah model delivering 1000 A of cold cranking power (EN) from Varta's ProMotive SLI (formerly ProMotive HD) range, designed for lorries, buses, large vans and machinery. Measuring 513 × 223 × 223 mm and with the positive terminal on the left, it is the direct replacement for lorries that leave the factory with a 170 Ah battery in this format.

  • Reliability through repeated starts and when powering cab equipment.
  • Reinforced grids and casing for the severe demands of haulage.
  • Tolerance of the vibration of thousands of kilometres on the road.
  • High cranking current for large-capacity diesel engines.

Vehicles compatible with the Varta M9 battery

According to our database, the Varta M9 is fitted to more than 494 vehicles from brands such as Fiat, Case, Fendt, Carraro, Valmet and Valtra, among others. It is a go-to option when you need a Fiat battery, a Case one or any other model built around this same format. The compatibility list also includes models from Zetor, Same, Case International, Lamborghini, Steyr, Hurlimann, Volvo and Bolinders - Volvo.

Size and fitting of the Varta M9

The Varta M9 is made in the 513 × 223 × 223 mm format and weighs 45,1 kg. The positive terminal on the left determines which side the cables run to: it is the detail that causes the most buying mistakes, so it is worth checking before ordering. It uses a B03 hold-down and a type 1 terminal, the system that anchors it to the vehicle's battery tray. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

The Varta M9 and the ProMotive SLI range

The ProMotive SLI range is Varta's starter line for industrial vehicles — lorries, buses and machinery — which in the new portfolio unifies the former ProMotive HD (Heavy Duty) and SHD (Super Heavy Duty). It offers a high cranking current for large-capacity diesel engines and a reinforced construction.

Its reinforced grids and separators cope with the vibration and cycling of long-distance haulage and of the most severe use, aiming for maximum service life and starting reliability in fleets that work long hours.

Compared with a passenger-car battery, this range is calibrated for severe, continuous use: greater mechanical strength and more tolerance of cycling and of the knocks of the road. It is the correct replacement for a lorry, bus or machine putting in long days. This battery used to belong to Varta's ProMotive HD or ProMotive SHD range; following the brand's commercial renaming (2025), it forms part of the new ProMotive SLI series.

Why choose a Varta battery

Varta is an original equipment (OEM) supplier to a good share of Europe's car manufacturers: many cars leave the factory with a Varta fitted. Buying a replacement means, in most cases, refitting the original battery with the same quality and the brand's official warranty.

Varta batteries are made under the Clarios group with German technology and quality controls that make them one of the best-selling choices in Europe. As a lead battery, it is 100% recyclable through any collection point.

Varta's production combines automated lines with verification of more than 100 parameters per unit; that traceability is what underpins its reputation for reliable starting throughout the battery's life.

Manufacturer's warranty

The Varta M9 battery comes with the official manufacturer warranty. One important warning for industrial vehicles: most lorries carry two batteries wired in series (a 24 V installation). If you replace only one, the new battery ends up working alongside the old one — which has already lost capacity and has higher internal resistance; that imbalance leaves one overcharged and the other short, shortens the life of the new unit, and the manufacturer may treat it as misuse and void the warranty. That is why it is always advisable to change both batteries at the same time.

Care and maintenance

In professional use, checking the state of charge and the battery hold-down regularly prevents breakdowns on the road. Vibration and the high temperatures of the engine bay are the factors that shorten its life the most, so secure mounting is key. Keeping the terminals clean and tight and checking the charging system extends battery life in vehicles that clock up long hours. A well-maintained battery reduces the risk of downtime caused by a no-start.

Technical sheet

Download the official technical sheet for this battery with all the manufacturer data.

Download technical sheet (PDF)

  • Reference
    BCOM-VARTA-M9

Data sheet

  • Brand
    VARTA
  • Reference
    M9
  • Model
    Varta ProMotive SLI
  • Voltage (V)
    12
  • Capacity
    170Ah (c20)
  • Length
    513.00 mm
  • Width
    223.00 mm
  • Height
    223.00 mm
  • Weight
    45.1 Kgs
  • Technology
    Lead-acid
  • EAN
    4016987166307

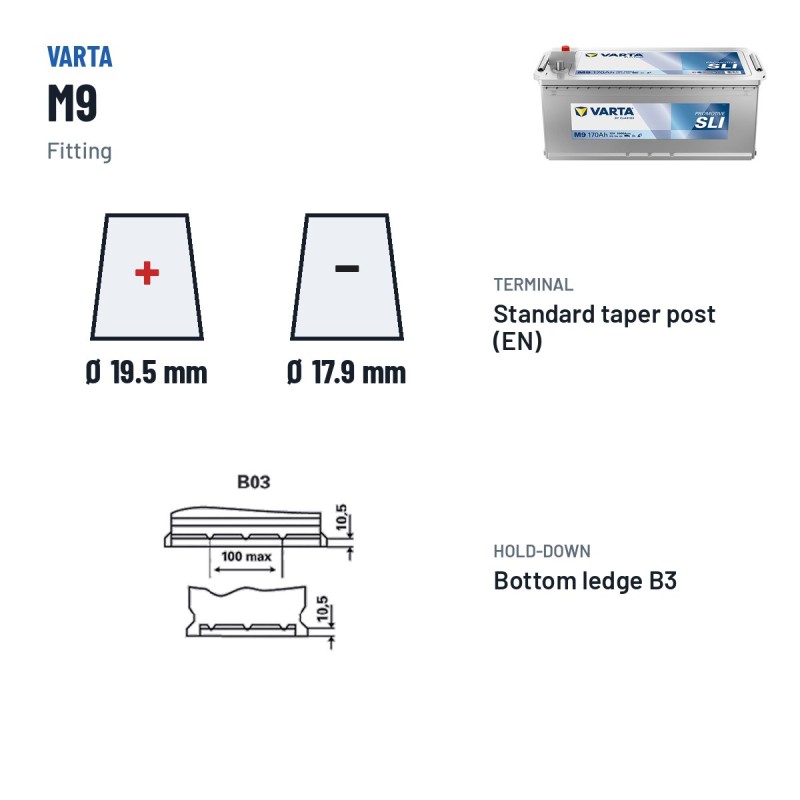

  • Terminal layout
    Positive terminal on the left
  • Terminal type
    1
  • Hold-down
    B03
  • Cold cranking amps (EN)
    1000
  • Capacity (C20)
    170
  • ETN
    670104100A732

Specific References

  • EAN13
    4016987166307
  • MPN
    M9

Download

Datasheet Varta M9 (English)

PDF datasheet of the Varta M9 battery – English

Download (188.74KB)

Codes and references Varta M9

Brand Varta · see all Varta batteries
Manufacturer range ProMotive SLI (formerly ProMotive HD)
Manufacturer part number (MPN) M9
Also known as 670104100 · Varta ProMotive HD M9 · Varta ProMotive SLI M9
ETN code 670104100A732 (short form 670 104 100)
EAN-13 barcode 4016987166307
Dimensions (length × width × height) 513 × 223 × 223 mm (513x223x223)

Varta M9: alternatives with the same dimensions — alternatives with the same dimensions, Ah and CCA

Batteries from our catalogue with the same dimensions, voltage and technology as the Varta M9 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.

Product Specifications Technology Price
Varta M9 Varta M9 This battery 12V 170Ah 1000A Lead-acid €264.60
Varta M12 Varta M12 Same size 12V 180Ah 1400A Lead-acid €179.40 −€85.20

Varta M9 vs Varta M12

Same size · −€85.20

It has the same dimensions, voltage and technology as the M9, although it is not a manufacturer-approved equivalent. Compared with the M9 it has 10 Ah more and 400 A of cold cranking more. It costs €85.20 less. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

M9M12
Capacity170 Ah180 Ah
Cold cranking (EN)1000 A1400 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€264.60€179.40
Varta M18 Varta M18 Same size 12V 180Ah 1000A Lead-acid €182.20 −€82.40

Varta M9 vs Varta M18

Same size · −€82.40

Same case and same technology as the M9: an alternative by size, not an official equivalent. Compared with the M9 it has 10 Ah more. It costs €82.40 less. If the polarity matches and your truck had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

M9M18
Capacity170 Ah180 Ah
Cold cranking (EN)1000 A1000 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€264.60€182.20
Varta L2 Varta L2 Same size 12V 155Ah 900A Lead-acid €214.80 −€49.80

Varta M9 vs Varta L2

Same size · −€49.80

Same case and same technology as the M9: an alternative by size, not an official equivalent. Compared with the M9 it has 15 Ah less and 100 A of cold cranking less. It costs €49.80 less. If the polarity matches and your truck had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

M9L2
Capacity170 Ah155 Ah
Cold cranking (EN)1000 A900 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€264.60€214.80
Tudor TF1853 Tudor TF1853 Same size 12V 185Ah 1150A Lead-acid €177.40 −€87.20

Varta M9 vs Tudor TF1853

Same size · −€87.20

It has the same dimensions, voltage and technology as the M9, although it is not a manufacturer-approved equivalent. Compared with the M9 it has 15 Ah more and 150 A of cold cranking more. It costs €87.20 less. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

M9TF1853
Capacity170 Ah185 Ah
Cold cranking (EN)1000 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€264.60€177.40
Exide EG1803 Exide EG1803 Same size 12V 180Ah 1000A Lead-acid €178.80 −€85.80

Varta M9 vs Exide EG1803

Same size · −€85.80

It has the same dimensions, voltage and technology as the M9, although it is not a manufacturer-approved equivalent. Compared with the M9 it has 10 Ah more. It costs €85.80 less. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

M9EG1803
Capacity170 Ah180 Ah
Cold cranking (EN)1000 A1000 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€264.60€178.80
Exide EF1853 Exide EF1853 Same size 12V 185Ah 1150A Lead-acid €226.60 −€38.00
Kronobat SHD-180.3 Kronobat SHD-180.3 Same size 12V 180Ah 1000A Lead-acid €142.10 −€122.50
Exide EG1553 Exide EG1553 Same size 12V 155Ah 900A Lead-acid €262.60 −€2.00

Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.

Other 170Ah batteries: We stock 5 models of 170 Ah to compare by price, technology and cold cranking: see all 170Ah batteries. Same size (513 × 223 × 223 mm): batteries of 513 × 223 × 223 mm.

Recommended accessories — complement the Varta M9 with a charger or tester

Compatible vehicles

The Varta M9 fits 290 vehicles. Most searched below:

See all 290 compatible vehicles

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

What is the service life of the M9 model?

Estimated lifespan of the Varta M9: 4 to 6 years in normal lorry use. Treat it as an approximate guide, as every case is different. What weighs most: temperature (cold makes starts harder and intense heat evaporates the electrolyte), frequent short trips, the condition of the alternator and charging system, power draw while parked and maintenance, not forgetting the type of truck and Start-Stop.

What are the dimensions of the Varta M9 battery?

Before buying, measure the space in your truck: one extra millimetre can stop the hold-down clamp from closing. The Varta M9 takes up 513×223×223 mm (length, width and height, terminals included), with a B03 hold-down.

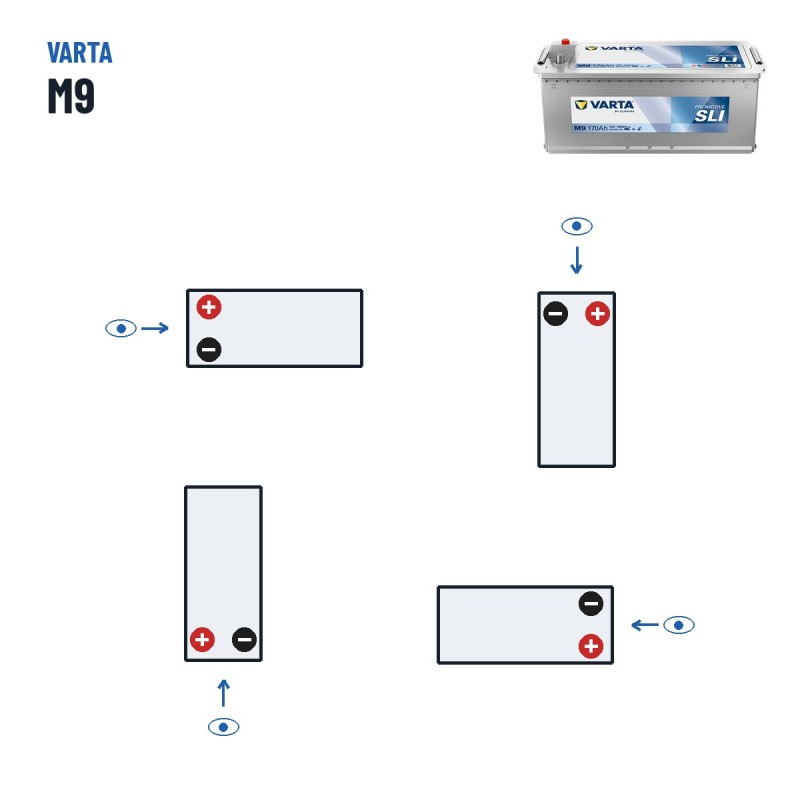

On which side is the positive of the M9 model?

The M9 has the positive on the left: that is its polarity. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on.

Is the M9 valid for my vehicle?

According to our data, 290 verified vehicle versions are compatible with the M9. Three routes: the "Compatible vehicles" tab on this page, with the vehicles verified by our technical team; your number plate in the finder, from which DGT/DVLA/KBA detect model and engine; and WhatsApp, with make, model, engine and year, during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The truck manufacturer's specifications always take priority over our tables.

Which batteries are equivalent to the Varta M9?

The "Equivalents" section of this page gathers the recommended options with equivalent performance; remember that in Start-Stop trucks an EFB should not be replaced with a conventional battery. A battery interchangeable with the Varta M9 must match it on dimensions (513×223×223 mm), polarity (positive on the left), capacity (170 Ah) and cranking current (1000 A).
