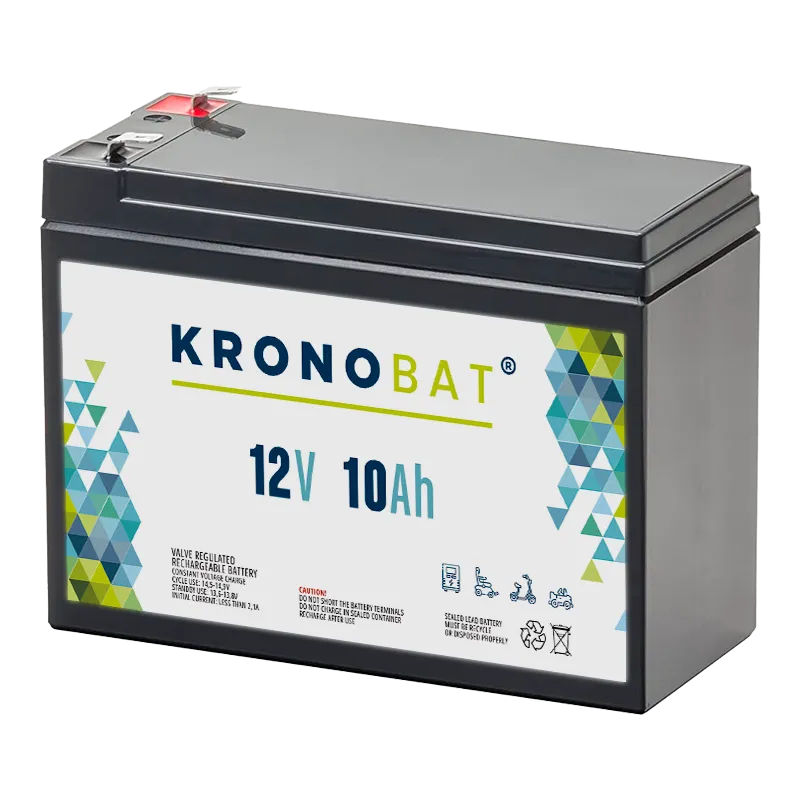

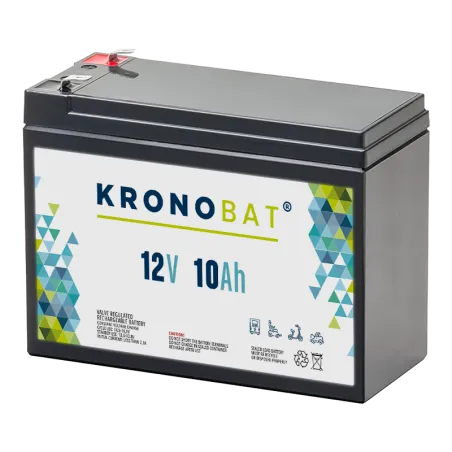

Kronobat ES10-12S · Wheelchair battery 12V 10Ah AGM
Specifications
| Brand | KRONOBAT |
|---|---|
| Part number | ES10-12S |
| Voltage (V) | 12 |
| Capacity (C20) | 10Ah (c20) |
| Technology | AGM |
| Length | 151.00 mm |
| Width | 65.00 mm |
| Height | 114.00 mm |
| Weight | 3.28 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Kronobat ES10-12S 12V 10Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
10 Ah
Dimensions
151×65×114 mm
Technology
AGM
Weight
3,28 kg
Model
AGM DEEP CYCLE
Free quote, no obligation
Request a quote for your Wheelchair battery Kronobat ES10-12S 12V 10Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Mobility battery Kronobat ES10-12S AGM Deep Cycle 10Ah 12V
12VVoltage
10AhCapacity
3.28kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Kronobat ES10-12S from the AGM Deep Cycle range offers 10 Ah of deep-cycle capacity with AGM technology. It measures 151 × 65 × 114 mm, the format sought by anyone replacing a 10 Ah battery in power wheelchairs and mobility scooters.
- Standard replacement format for wheelchairs and scooters.
- Thousands of useful cycles over its lifetime.
- Designed to be discharged and recharged daily without losing capacity.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
Will it fit your current battery tray?
It has external dimensions of 151 × 65 × 114 mm and weighs 3.28 kg. It uses F2 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Kronobat ES10-12S is for
The Kronobat ES10-12S is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 3.28 kg and F2 terminals.
The Kronobat ES10-12S: AGM Deep Cycle range and AGM technology
Within the Kronobat catalogue, the AGM Deep Cycle series groups the references designed for this use. The ES10-12S is the 10 Ah model of that family, with the same performance as its siblings in other sizes.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
What Kronobat does differently
Kronobat is the exclusive brand of baterias.com: batteries made to the same production standards as the leading brands, with a value for money that is hard to match and an official warranty. All the Kronobat batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Kronobat ES10-12S comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-KRONOBAT-ES10-12S
Data sheet
- Brand
- Reference
- ES10-12S
- Model
- AGM DEEP CYCLE
- Voltage (V)
- 12
- Length
- 151.00 mm
- Width
- 65.00 mm
- Height
- 114.00 mm
- Weight
- 3.28 Kgs
- Technology
- AGM
- Terminal type
- F2
- Capacity (C20)
- 10Ah (c20)
Specific References
- MPN
- ES10-12S
Comparison: Kronobat ES10-12S vs equivalents
The Kronobat ES10-12S is interchangeable with these equivalent references: ES10-12S (MK Powered).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Kronobat
ES10-12S
This battery
|
12V 10Ah | AGM | |
MK Powered
ES10-12S
|
12V 10Ah | AGM | €62.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the ES10-12S model AGM? What does this technology offer?
Yes. The ES10-12S from Kronobat uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Kronobat ES10-12S battery last?
Expected lifespan of the Kronobat ES10-12S is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Kronobat ES10-12S battery?
Dimensions (length × width × height) are 151×65×114 mm — also written as 151x65x114 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Kronobat ES10-12S?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
