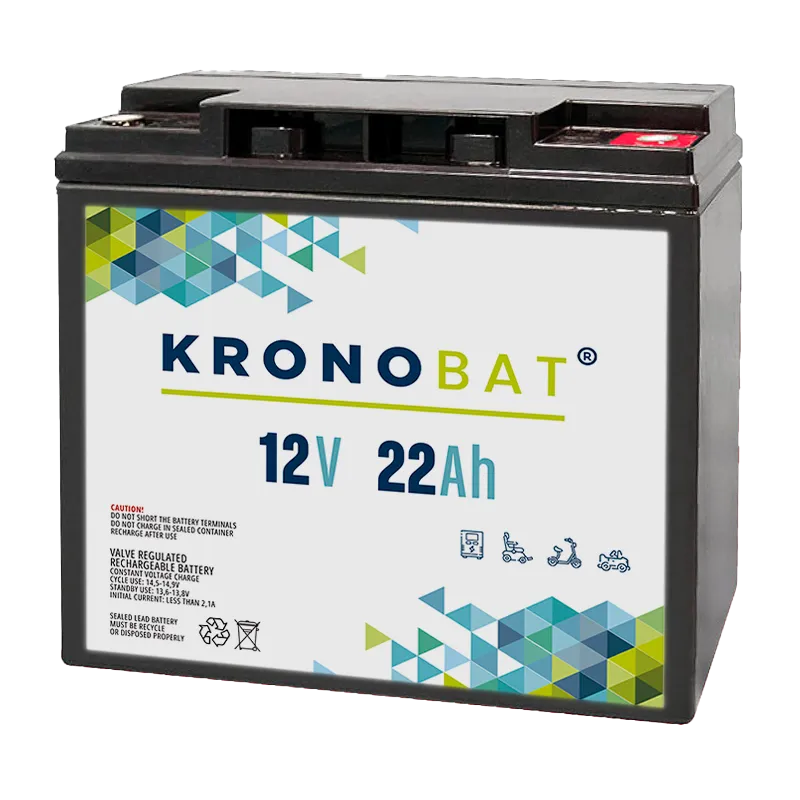

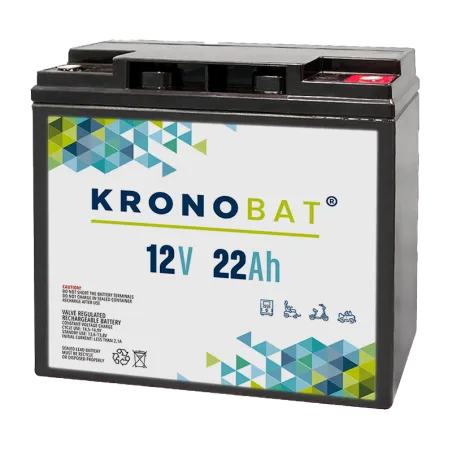

Kronobat ES22-12 · Wheelchair battery 12V 22Ah AGM
Specifications
| Brand | KRONOBAT |
|---|---|
| Part number | ES22-12 |
| Voltage (V) | 12 |
| Capacity (C20) | 22Ah (c20) |
| Technology | AGM |
| Length | 181.00 mm |
| Width | 76.00 mm |
| Height | 167.00 mm |
| Weight | 6.89 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Kronobat ES22-12 12V 22Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
22 Ah
Dimensions
181×76×167 mm
Technology
AGM
Polarity
Positive on the right
Weight
6,89 kg
Model
AGM DEEP CYCLE
Free quote, no obligation
Request a quote for your Wheelchair battery Kronobat ES22-12 12V 22Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Mobility battery Kronobat ES22-12 AGM Deep Cycle 22Ah 12V
12VVoltage
22AhCapacity
6.89kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Kronobat ES22-12 from the AGM Deep Cycle range offers 22 Ah of deep-cycle capacity with AGM technology. It replaces the original battery without adaptation in power wheelchairs and mobility scooters with a 181 × 76 × 167 mm format: same 22 Ah capacity and the positive terminal on the right.
- Thousands of useful cycles over its lifetime.
- Standard replacement format for wheelchairs and scooters.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Designed to be discharged and recharged daily without losing capacity.
What the Kronobat ES22-12 is for
With 22 Ah, the Kronobat ES22-12 offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 6.89 kg and F8 / F6 terminals.
The Kronobat ES22-12: AGM Deep Cycle range and AGM technology
Within the Kronobat catalogue, the AGM Deep Cycle series groups the references designed for this use. The ES22-12 is the 22 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Size, terminals and hold-down of the Kronobat ES22-12
It has external dimensions of 181 × 76 × 167 mm and weighs 6.89 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses F8 / F6 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Why choose Kronobat batteries
With Kronobat we offer an own-brand alternative without compromising on quality: European manufacturing, original-equipment controls and the direct backing of baterias.com for warranty and advice. We guarantee that every Kronobat arrives new, charged and with the manufacturer's full warranty.
How to make it last longer
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.
Manufacturer's warranty
The Kronobat ES22-12 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-KRONOBAT-ES22-12
Data sheet
- Brand
- Reference
- ES22-12
- Model
- AGM DEEP CYCLE
- Voltage (V)
- 12
- Length
- 181.00 mm
- Width
- 76.00 mm
- Height
- 167.00 mm
- Weight
- 6.89 Kgs
- Technology
- AGM
- Terminal layout
- Positive terminal on the right
- Terminal type
- F8 / F6
- Capacity (C20)
- 22Ah (c20)
Specific References
- MPN
- ES22-12
Comparison: Kronobat ES22-12 vs equivalents
The Kronobat ES22-12 is interchangeable with these equivalent references: ES22-12 (MK Powered).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Kronobat
ES22-12
This battery
|
12V 22Ah | AGM | |
MK Powered
ES22-12
|
12V 22Ah | AGM | €54.10 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Kronobat ES22-12 an AGM battery and what are the benefits of AGM?
Yes. The ES22-12 from Kronobat uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Kronobat ES22-12 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Kronobat ES22-12 battery last?
Expected lifespan of the Kronobat ES22-12 is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 181×76×167 mm — also written as 181x76x167 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Kronobat ES22-12?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
