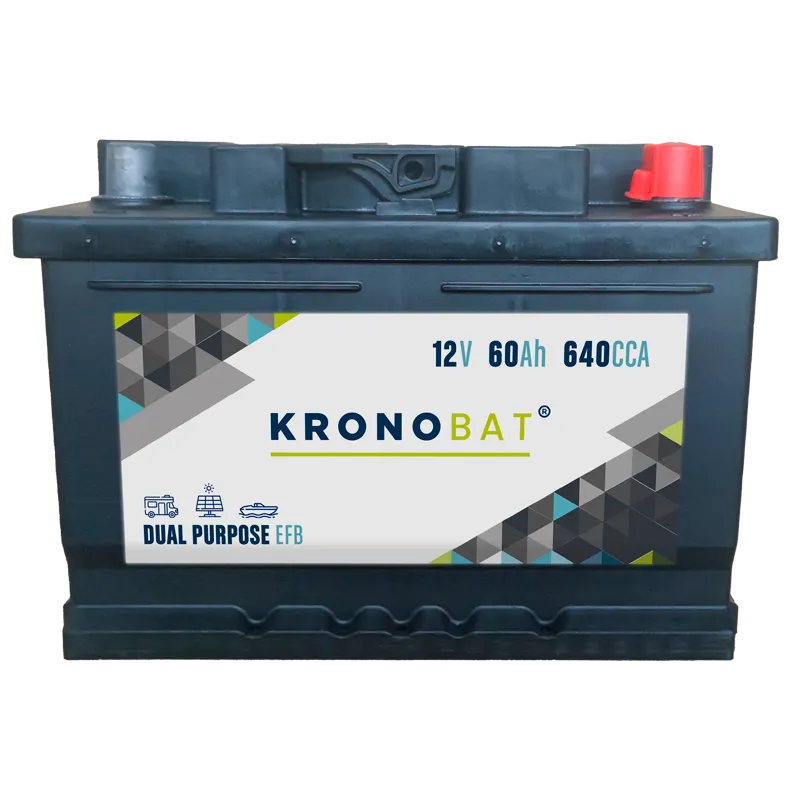

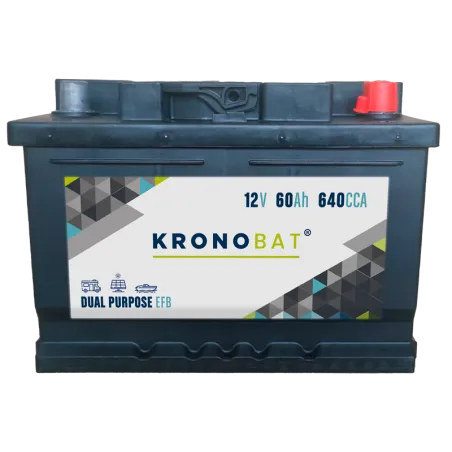

Kronobat DP-60-EFB · Caravan battery 12V 60Ah 640A EFB
Specifications
| Brand | KRONOBAT |
|---|---|
| Part number | DP-60-EFB |
| Voltage (V) | 12 |
| Capacity (C20) | 60Ah (c20) |
| Technology | EFB |
| Length | 242.00 mm |
| Width | 175.00 mm |
| Height | 190.00 mm |
| Weight | 16.84 Kgs |
€82.80
VAT included
Kronobat DP-60-EFB 12V 60Ah 640A is a leisure battery for campers, motorhomes and caravans. Designed to power the entire interior kit (fridge, heater, water pump, USB, LED lighting) for several days off-grid, with no need to plug into a campsite hookup.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
60 Ah
Cold cranking
640 A
Dimensions
242×175×190 mm
Technology
EFB
Polarity
Positive on the right
Weight
16,84 kg
Model
DUAL PURPOSE EFB

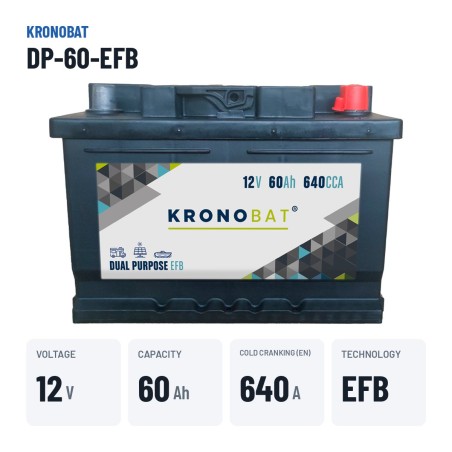

Leisure battery Kronobat DP-60-EFB Dual Purpose EFB 60Ah 640A 12V
12VVoltage
60AhCapacity
640ACold cranking
16.84kgWeight
The Kronobat DP-60-EFB with EFB technology stores 60 Ah at 12 V: autonomy for motorhomes, caravans and campers that need power off-grid. It measures 242 × 175 × 190 mm and the positive terminal on the right, the format sought by anyone replacing a 60 Ah battery in motorhomes and caravans.
- Power for fridge, lighting, water pump and USB off-grid.
- EFB technology: reinforced electrolyte for many more start cycles.
- Low self-discharge during months of storage.
- Sealed and gas-free: suitable for installation inside the living area.
What the Kronobat DP-60-EFB is for
As a leisure battery, the Kronobat DP-60-EFB is discharged and recharged every travelling day; avoid discharges below 50% to extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 16.84 kg and 1.0 terminals.
The Kronobat DP-60-EFB: Dual Purpose EFB range and EFB technology
The DP-60-EFB is part of the Kronobat Dual Purpose EFB range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
EFB combines the robustness of the flooded battery with improved plates and separators. The result is a clearly longer service life in vehicles that start and stop constantly.

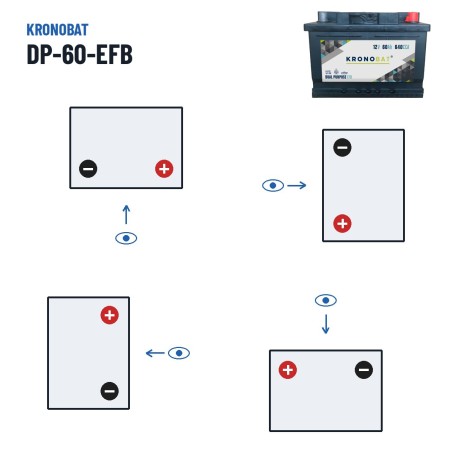

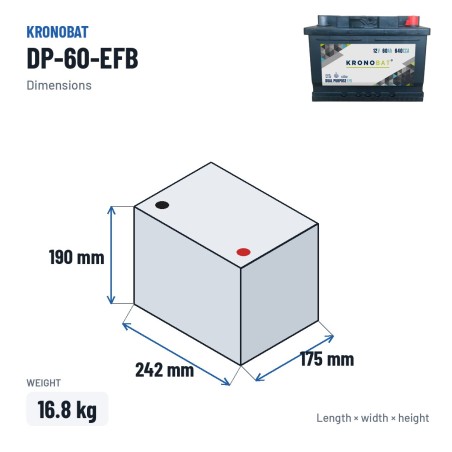

Dimensions, polarity and mounting

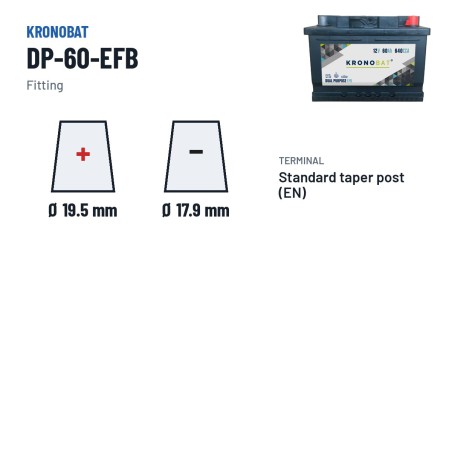

The Kronobat DP-60-EFB is made in the 242 × 175 × 190 mm format and weighs 16.84 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses 1.0 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Kronobat: the maker behind the DP-60-EFB
With Kronobat we offer an own-brand alternative without compromising on quality: European manufacturing, original-equipment controls and the direct backing of baterias.com for warranty and advice. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
A charger with an EFB or smart conventional mode is enough; avoid the high-voltage modes intended for AGM. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
Warranty and coverage
The Kronobat DP-60-EFB comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-KRONOBAT-DP-60-EFB

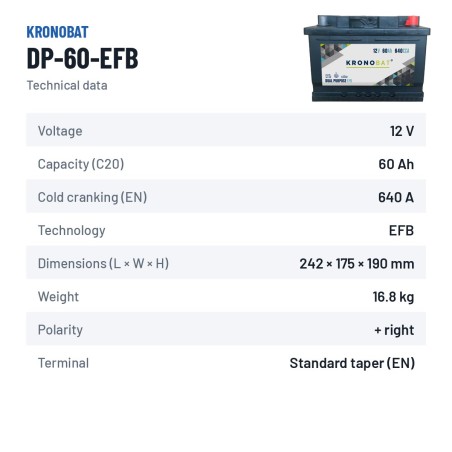

Data sheet
- Reference
- DP-60-EFB
- Model
- DUAL PURPOSE EFB
- Voltage (V)
- 12
- Length
- 242.00 mm
- Width
- 175.00 mm
- Height
- 190.00 mm
- Weight
- 16.84 Kgs
- Technology
- EFB
- Terminal layout
- Positive terminal on the right
- Terminal type
- 1.0
- Cold cranking amps (EN)
- 640A
- Capacity (C20)
- 60Ah (c20)
Specific References
- MPN
- DP-60-EFB
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
Is the DP-60-EFB model EFB? Which caravans need it?
Yes. The DP-60-EFB is an EFB (Enhanced Flooded Battery): flooded lead-acid reinforced with plate additives. Withstands more cycles than a conventional but fewer than an AGM. Fitted to caravans with basic Start-Stop (no regenerative braking). More affordable than an equivalent AGM, lifespan 4-6 years.
How do I fit the DP-60-EFB model in my caravan?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Kronobat DP-60-EFB battery last?
Expected lifespan of the Kronobat DP-60-EFB is 4 to 6 years in basic Start-Stop caravan use. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Kronobat DP-60-EFB battery?
Dimensions (length × width × height) are 242×175×190 mm — also written as 242x175x190 mm and correspond to the European L2 case size — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the DP-60-EFB valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DP-60-EFB typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Kronobat DP-60-EFB?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
