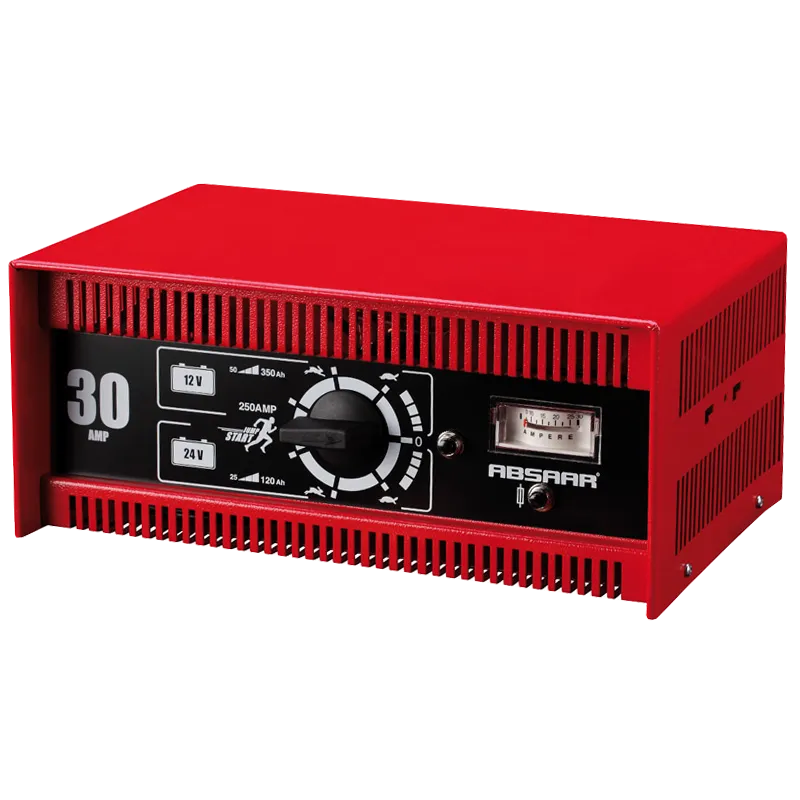

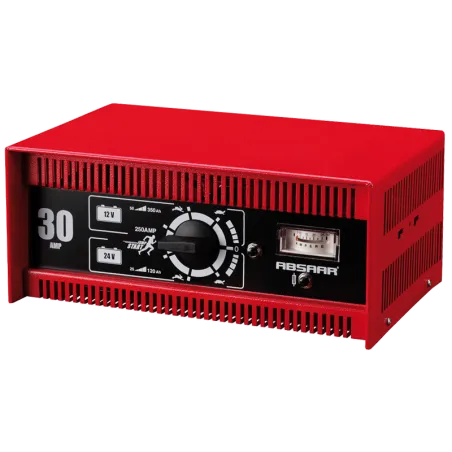

Absaar 263004110 · Professional battery charger 12/24V 30A N/E AmpM
Specifications
| Brand | ABSAAR |
|---|---|
| Part number | 2630041102020 |
| Voltage (V) | 12/24 |
| Load capacity | 30-350 Ah |
| Length | 37cm |
| Width | 17cm |
| Height | 23cm |
| Weight | 9kg |
| Current (A) | 30 |
€170.60
VAT included
The Professional 30Amp 12/24V N/E AmpM 263004110 charger will allow you to switch fast or standard charging mode, in addition to selecting between 12V or 24V charging.
Now you can buy your 12/24V fast or standard battery charger from the ABSAAR brand at the best price at baterias.com .
Features of the ABSAAR 30Amp 12/24V N/E AmpM 263004110 charger:
| VOLTAGE | AMPS | Battery Range | Load Curves |
|---|---|---|---|
| 12/24V | 30A | Standard 30-120Ah and Rapid 50-350Ah | lead/acid, AGM |
Trust baterias.com, the leading online battery sales website!
ABSAAR Professional Charger 30Amp 12/24V N/E AmpM 263004110
The Absaar Absaar 263004110 12/24V 30AMP N/E AmpM charges, maintains and diagnoses the battery with no overcharging and no risk to the vehicle electronics.
- Staged charging that protects the battery.
- Maintenance mode for long lay-ups.
- Protection against overcharge, short circuit and reverse polarity.
- Suitable for several technologies depending on the model.
Absaar: the maker behind the 263004110 12/24V 30AMP N/E AmpM
Absaar is a German brand specialising in battery chargers and maintainers with staged charging, full protections and modes for the most common technologies.
Official warranty
The Absaar 263004110 12/24V 30AMP N/E AmpM comes with the manufacturer's official warranty against manufacturing defects.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-ABSAAR-30AMP-12-24V-NE-AmpM
Data sheet
- Brand
- ABSAAR
- Reference
- 263004110 12/24V 30AMP N/E AmpM
- Voltage (V)
- 12/24
- Length
- 37cm
- Width
- 17cm
- Height
- 23cm
- Weight
- 9kg
- Load capacity
- 30-350 Ah
- Current (A)
- 30
Specific References
- EAN13
- 4002031300209
- MPN
- 2630041102020
Codes and references Absaar 2630041102020
| Brand | Absaar |
|---|---|
| Manufacturer reference (MPN) | 2630041102020 |
| EAN-13 barcode | 4002031300209 |
| Dimensions (length × width × height) | 110 × 220 × 170 mm (110x220x170) |
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 2630041102020 model?
Expected lifespan of the Absaar 2630041102020 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the 2630041102020 model?
Dimensions (length × width × height) are 110×220×170 mm — also written as 110x220x170 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Absaar 2630041102020?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
