Marine battery Varta LL100 12.8V 100Ah Li-Ion

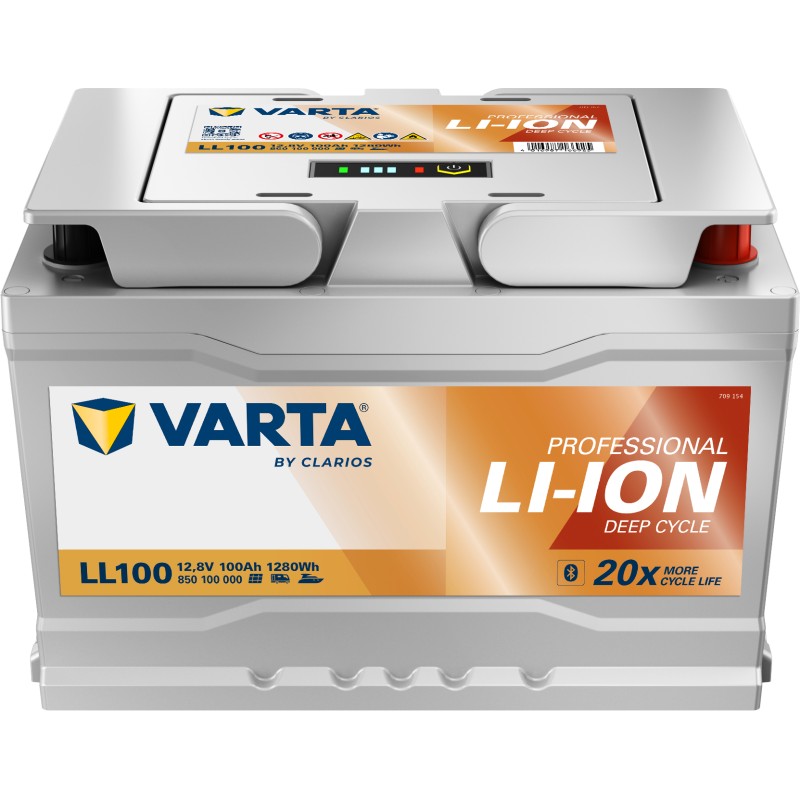

Marine battery Varta LL100 12V 100Ah LiFePO4 - front and top view
search

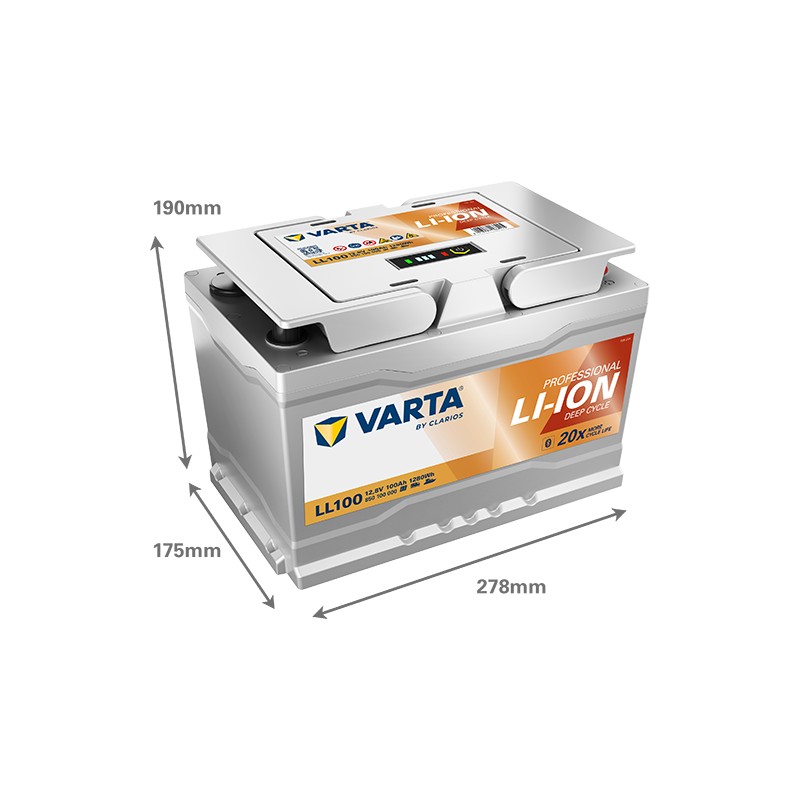

  • Marine battery Varta LL100 12V 100Ah LiFePO4 - dimensions diagram
  • Marine battery Varta LL100 12V 100Ah LiFePO4 - front and top view
  • Marine battery Varta LL100 12V 100Ah LiFePO4 - top view

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Varta LL100 12V 100Ah is a LiFePO4 lithium marine battery built as a service bank: it discharges and recharges every day without losing capacity, delivering thousands of cycles and far faster charging than lead-acid. Its built-in BMS protects it against overcharge, over-discharge and short circuit.

Why this lithium marine battery?

  • Deep-cycle service bankdaily discharges to 80 % with no capacity loss
  • 60 % less weight on boardthe same energy as lead-acid in far less space
  • Built-in BMS, maintenance freeprotects against overcharge, over-discharge and short circuit

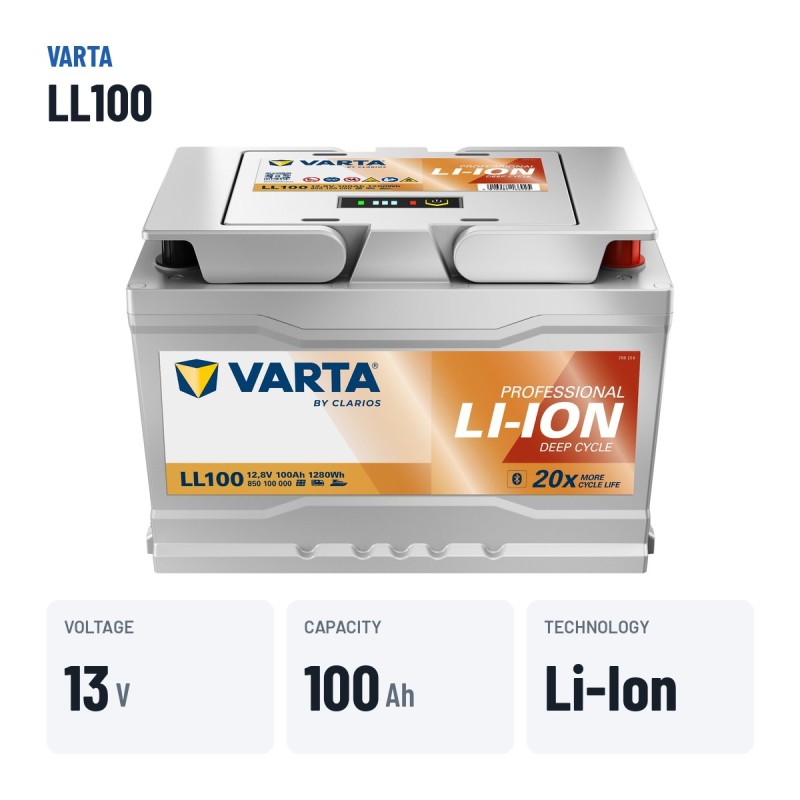

Voltage
12 V
Capacity
100 Ah C20
Dimensions
278×175×190 mm
Technology
Litio (LiFePO4)
Polarity
Positivo a la derecha
Weight
12 kg
Model
Professional Li-Ion Deep Cycle
Free quote, no obligation

Request a quote for your Marine battery Varta LL100 12.8V 100Ah Li-Ion

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Varta

Varta LL100 Professional Li-Ion Deep Cycle 100Ah 12.8V Battery

12.8VVoltage
100AhCapacity

The Varta LL100 battery is the 12.8 V, 100 Ah from the Professional Li-Ion Deep Cycle range, designed for motorhomes, boats and auxiliary power equipment. Its 278 × 175 × 190 mm dimensions and positive terminal on the right make it the exact replacement for the 100 Ah battery fitted as standard in many vehicles.

  • More endurance on board than a conventional starter battery.
  • Tolerates deep discharges and repeated recharging without degrading.
  • Ideal for motorhomes, marine use and domestic power on board.
  • Dual cycle: it both cranks the engine and powers auxiliary equipment.

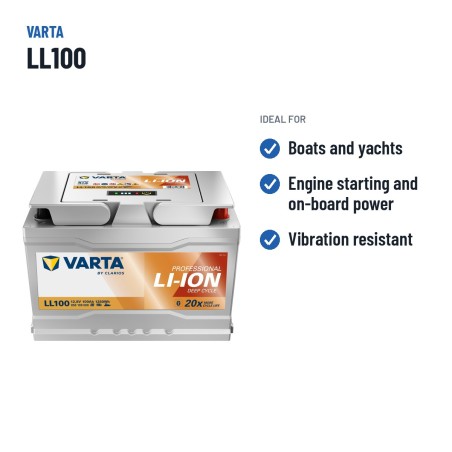

Applications of the Varta LL100 battery

With 100 Ah, the Varta LL100 is sized for motorhomes, boats and auxiliary power equipment, as a direct replacement for the original battery. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a B13 hold-down.

Size and fitting of the Varta LL100

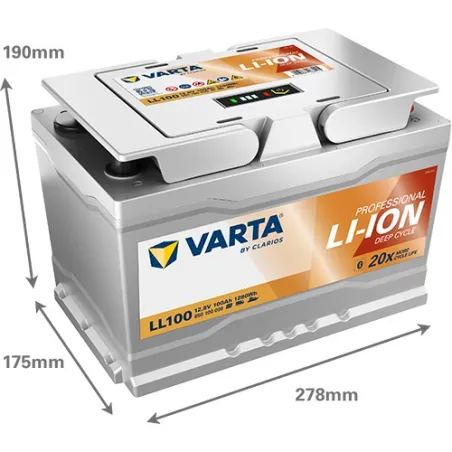

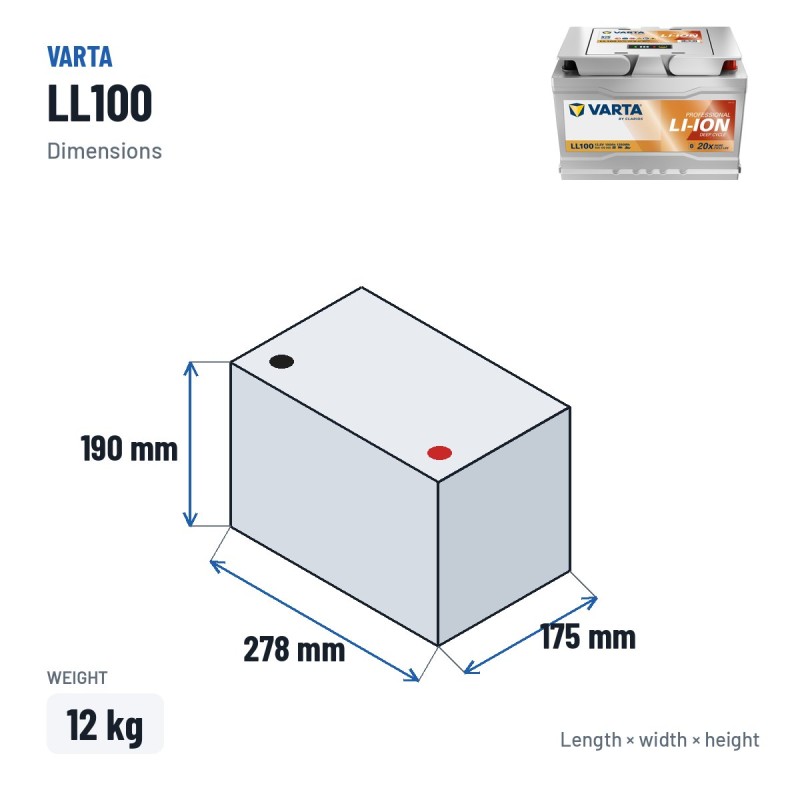

Its outer dimensions are 278 × 175 × 190 mm. The positive terminal on the right determines which side the cables run to: it is the detail that causes the most buying mistakes, so it is worth checking before ordering. It uses a B13 hold-down, the system that anchors it to the vehicle's battery tray. For the swap to be direct, the space your current battery occupies must respect those three dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will have to change.

The Varta LL100 and the Professional Li-Ion Deep Cycle range

The Professional Li-Ion Deep Cycle is Varta’s new lithium (LiFePO4) series for leisure and marine use: far lighter than lead, it withstands thousands of cycles and uses nearly all of its capacity in each discharge.

It is the premium choice for motorhomes and boats seeking maximum range and service life at minimum weight, with an integrated battery management system (BMS).

The chemistry is built for draining and recharging the battery many times over — the typical pattern in leisure and marine use — where an ordinary car battery would sulphate within weeks. It offers endurance for the on-board equipment and the cranking power to turn the engine over when the moment comes.

Why choose a Varta battery

When a workshop recommends Varta it is not down to marketing: it is one of the brands with the lowest return rates in the sector, with an application coverage spanning practically the whole European vehicle parc, from the city car to the industrial vehicle.

Varta batteries are made under the Clarios group with German technology and quality controls that make them one of the best-selling choices in Europe. As a lead-acid battery, it is 100% recyclable at any collection point.

Varta production combines automated lines with checks on more than 100 parameters per unit; that traceability is what underpins its reputation for reliable starting throughout the battery's life.

Manufacturer's warranty

The Varta LL100 battery comes with a 1-year official warranty from the manufacturer.

Care and maintenance

In leisure applications, avoiding discharges below 50% of capacity multiplies the number of cycles the battery will deliver. A suitable charger and, where possible, a solar regulator keep it healthy through the seasons when it sees less use. To extend its life, recharge it as soon as possible after each discharge and never leave it flat over the winter. A trickle charger is the best investment for getting many cycles out of it.

Technical sheet

Download the official technical sheet for this battery with all the manufacturer data.

Download technical sheet (PDF)

BCOM-VARTA-LL100

Data sheet

Brand
VARTA
Reference
LL100
Model
Varta Professional Li-Ion Deep Cycle
Volts
12.8
Length
278 mm
Width
175 mm
Height
190 mm
Technology
Li-Ion
EAN
4016987166925
Scheme
Positive terminal on the right

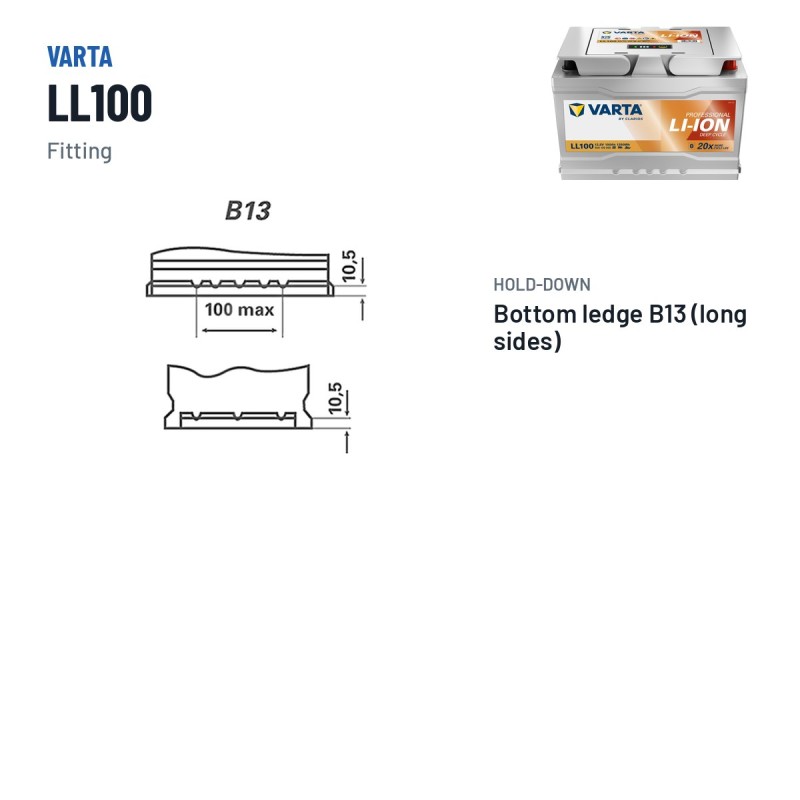

Subjection
B13
Ah (c20)
100Ah (c20)
etn_extra
850100000K31A

Specific References

EAN13
4016987166925
MPN
LL100

Codes and references Varta LL100

Brand Varta · see all batteries Varta
Manufacturer reference (MPN) LL100
EAN-13 barcode 4016987166925
European case size (EN 50342-2) L3
Dimensions (length × width × height) 278 × 175 × 190 mm (278x175x190)

Recommended accessories — complement the Varta LL100 with a charger or tester

How to change the battery

Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.

⏱ 20-30 min🛠 Tools: 10 mm or 13 mm wrench (depending on terminal) · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery compartment

    Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery

    Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify circuit + water protection

    Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.

Frequently asked questions

How do I verify this battery is the right one?

Three ways: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team for the LL100; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 9:00–18:00 CET).

How do I change this battery step by step?

In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

What warranty does the Varta LL100 battery have?

This battery includes 1 year of official manufacturer warranty against manufacturing defects. It covers cell failures, internal short-circuits and abnormal capacity drops. Damage from misuse is excluded: prolonged overcharging, unsuitable chargers or a faulty alternator. Once the defect is verified by technical inspection, we replace the LL100 at no cost.

When will I receive the LL100 model?

In mainland Spain and Portugal it arrives in 24 h if you order before 17:00 and the battery is in stock — it leaves the same day and arrives the next business day. Afternoon or weekend orders ship the next business day. For Balearics, Canaries and other EU destinations, allow 2-5 days. Shipping cost is calculated in the cart based on destination and service (standard, express, cash on delivery). Tracking number is sent by email + SMS as soon as the parcel ships.

Can I return the Varta LL100 battery if it doesn't fit or doesn't work?

Yes. You have 14 days from delivery to return it. In mainland Spain and Portugal returns are FREE — we cover the return shipping cost via prepaid label. In other EU countries the return shipping cost is the customer's. It must arrive in its original packaging with no signs of installation. If it was defective, the warranty covers replacement even after the 14-day period.

Where can I buy this battery with full warranty?

At baterias.com — authorised distributor with real stock, 24h delivery in mainland Spain and Portugal if you order before 17:00, and full manufacturer warranty. Shipping cost is calculated in the cart based on destination and chosen service (standard, express, cash on delivery). Secure payment by card, Bizum, PayPal or bank transfer. If you choose at-home installation, our technician will take the used battery and dispose of it through an authorised collection point.

What is the service life of the LL100 model?

Expected lifespan of the Varta LL100 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the dimensions of the Varta LL100 battery?

Dimensions (length × width × height) are 278×175×190 mm — also written as 278x175x190 mm and correspond to the European L3 case size — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

How much does the Varta LL100 battery weigh?

It weighs 12 kg. Most of the weight is lead. If you plan to fit it yourself, use gloves and a carrying strap (AGM batteries are slightly heavier than conventional due to the absorbent glass-mat fibre).

Will the Varta LL100 battery fit my boat?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 9:00–18:00 CET). The LL100 typically fits a wide range of European vehicles thanks to its standard DIN case format.

What are the equivalents of the LL100 model?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.

Is this battery a better choice than another equivalent?

This battery and its equivalents from Bosch, Tudor or Exide are technically comparable: same dimensions, same voltage and same capacity. The differences are warranty (Varta and Bosch: 2 years; Tudor and Exide: 2 years on the equivalent line), manufacturing plant (Varta and Bosch share origin in the Clarios Group; Tudor and Exide belong to Exide Technologies) and price. For private use any of these brands will give 4-6 years of life. Compare them in the "Equivalents" section.
