Deta DG2253 · Truck battery 12V 225Ah 1200A
Specifications
| Brand | Deta |
|---|---|
| Part number | DG2253 |
| Voltage (V) | 12 |
| Capacity (C20) | 225Ah (c20) |
| Technology | Lead-acid |
| Length | 518 mm |
| Width | 274 mm |
| Height | 240 mm |
| Weight | 54.90 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Deta DG2253 12V 225Ah 1200A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
225 Ah
Cold cranking
1200 A
Dimensions
518×274×240 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
54,9 kg
Model
DETA StartPRO
Free quote, no obligation
Request a quote for your Truck battery Deta DG2253 12V 225Ah 1200A
- Reply in under 24 working hours
- Best price guaranteed

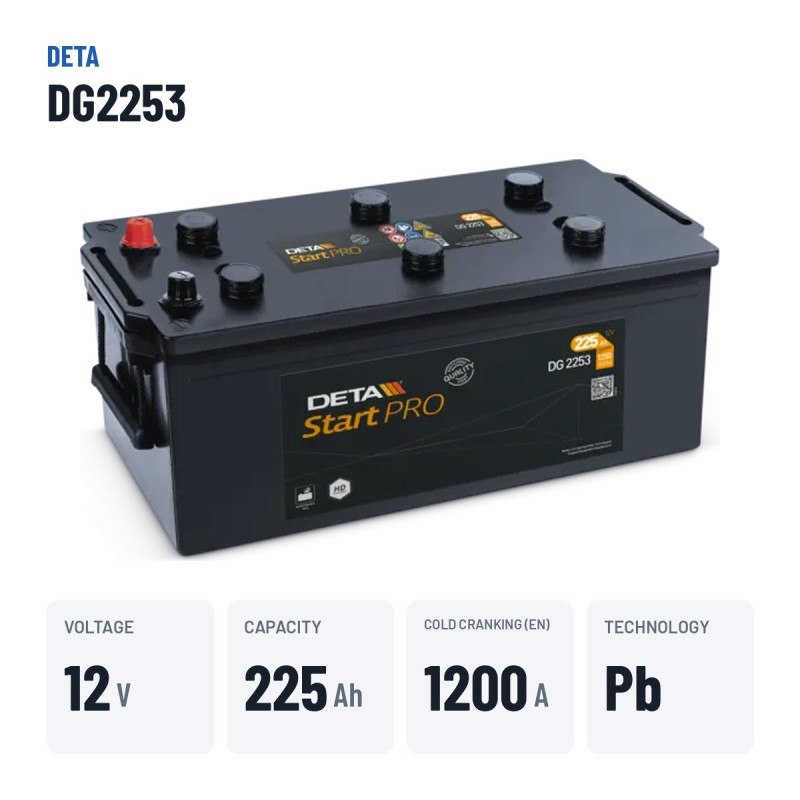

Truck battery Deta DG2253 StartPRO 225Ah 1,200A 12V
12VVoltage
225AhCapacity
1,200ACold cranking
54.90kgWeight
The Deta DG2253 with conventional lead-acid technology delivers 225 Ah at 12 V and 1,200 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. Measuring 518 × 274 × 240 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 225 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Resistant to constant chassis vibration.
- Powers tachograph, fridge and heater during rest stops.
- Better tolerance to deep discharge than a conventional starter battery.
What the Deta DG2253 is for
Designed for trucks, buses, tractors and heavy machinery, the Deta DG2253 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 54.90 kg and B00 hold-down.
Will it fit your current battery tray?

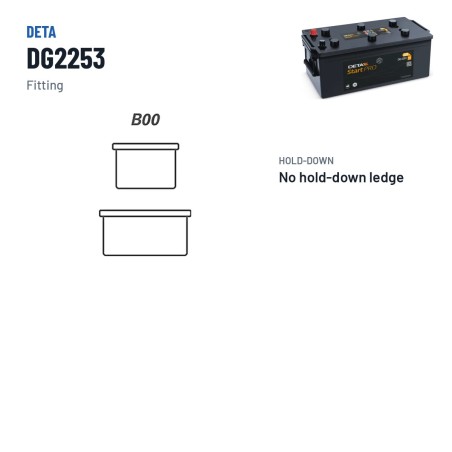

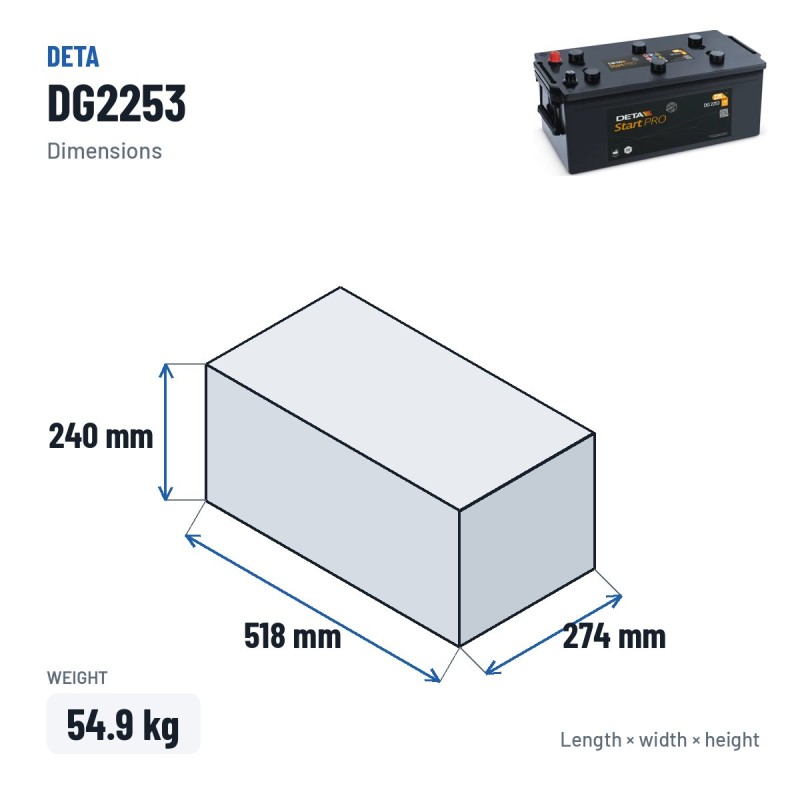

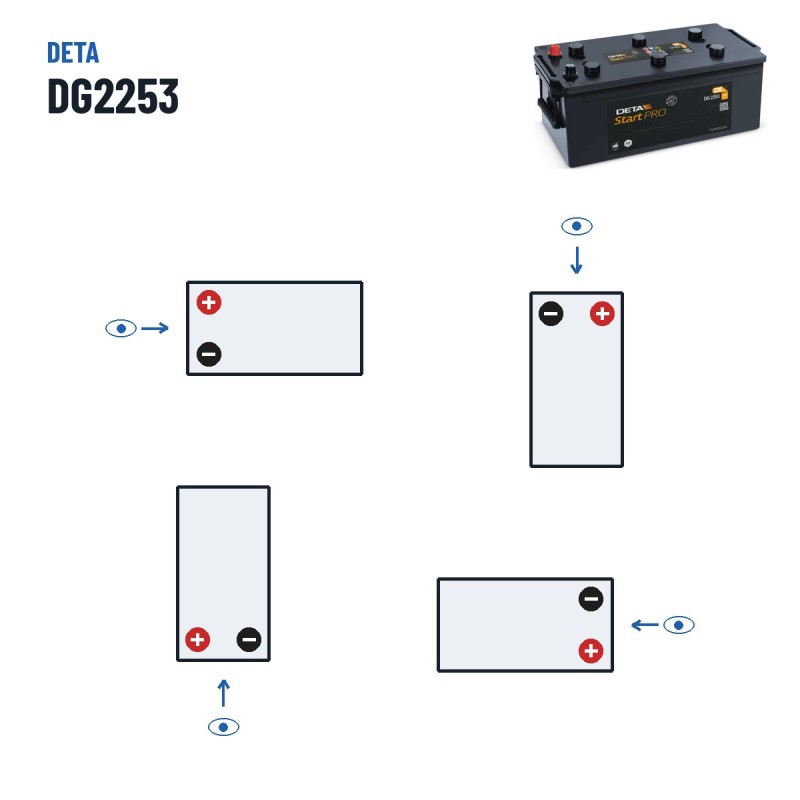

The Deta DG2253 is made in the 518 × 274 × 240 mm format and weighs 54.90 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B00 hold-down, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Deta DG2253: StartPRO range and conventional lead-acid technology
Within the Deta catalogue, the StartPRO series groups the references designed for this use. The DG2253 is the 225 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Deta: the maker behind the DG2253
Deta is the German brand of the Exide group: batteries built with original-equipment technology and a very complete range for cars, Start-Stop, trucks, motorcycles and leisure. All the Deta batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Deta DG2253 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
How to make it last longer
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-DETA-DG2253

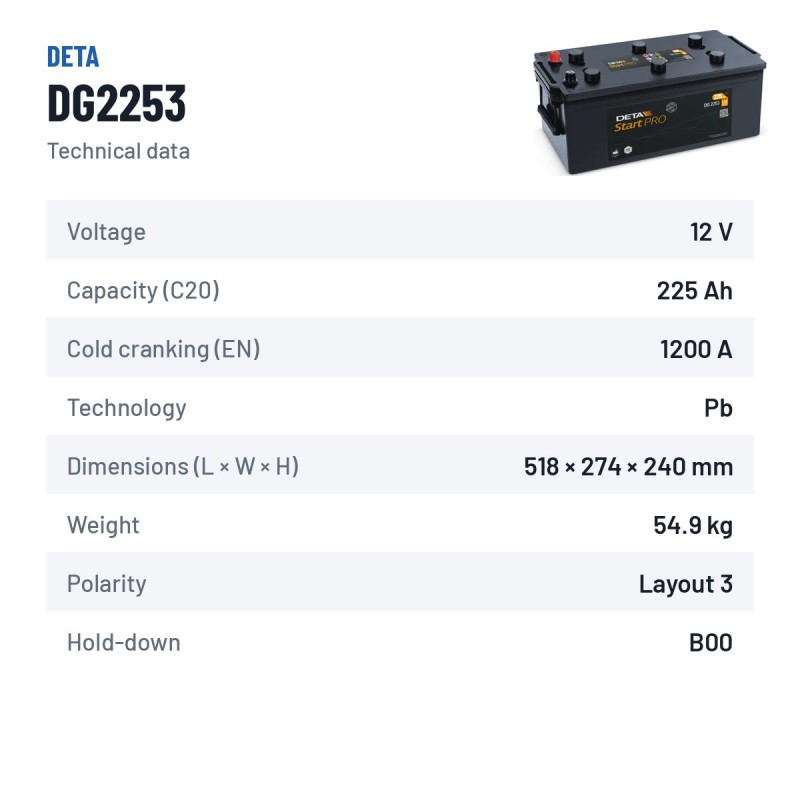

Data sheet
- Brand
- DETA
- Reference
- DG2253
- Model
- DETA StartPRO
- Voltage (V)
- 12
- Length
- 518 mm
- Width
- 274 mm
- Height
- 240 mm
- Weight
- 54.90 Kgs
- Technology
- Lead-acid
- EAN
- 3661024026963
- Terminal layout
- Positive terminal on the left
- Hold-down
- B00
- Cold cranking amps (EN)
- 1200A
- Capacity (C20)
- 225Ah (c20)
- Case type
- D06
Specific References
- EAN13
- 3661024026963
- MPN
- DG2253
Codes and references Deta DG2253
| Brand | Deta |
|---|---|
| Manufacturer range | DETA StartPRO |
| Manufacturer reference (MPN) | DG2253 |
| EAN-13 barcode | 3661024026963 |
| Dimensions (length × width × height) | 518 × 274 × 240 mm (518x274x240) |
Comparison: Deta DG2253 vs equivalents
The Deta DG2253 is interchangeable with these equivalent references: N9 (Varta), LFD230 (Varta), C40 (Varta), A1 (Varta), TX2253 (Tudor).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Deta
DG2253
This battery
|
12V 225Ah 1200A | Lead-acid | |
Varta
N9
|
12V 225Ah 1150A | Lead-acid | €231.95 |
Varta
LFD230
|
12V 230Ah 1150A | Lead-acid | €289.30 |
Varta
C40
|
12V 240Ah 1200A | EFB | €267.60 |
Varta
A1
|
12V 210Ah 1200A | AGM | €630.95 |
Tudor
TX2253
|
12V 225Ah 1150A | EFB | €326.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Deta DG2253 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Deta DG2253 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the DG2253 model?
Dimensions (length × width × height) are 518×274×240 mm — also written as 518x274x240 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Deta DG2253 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DG2253 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Deta DG2253?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
