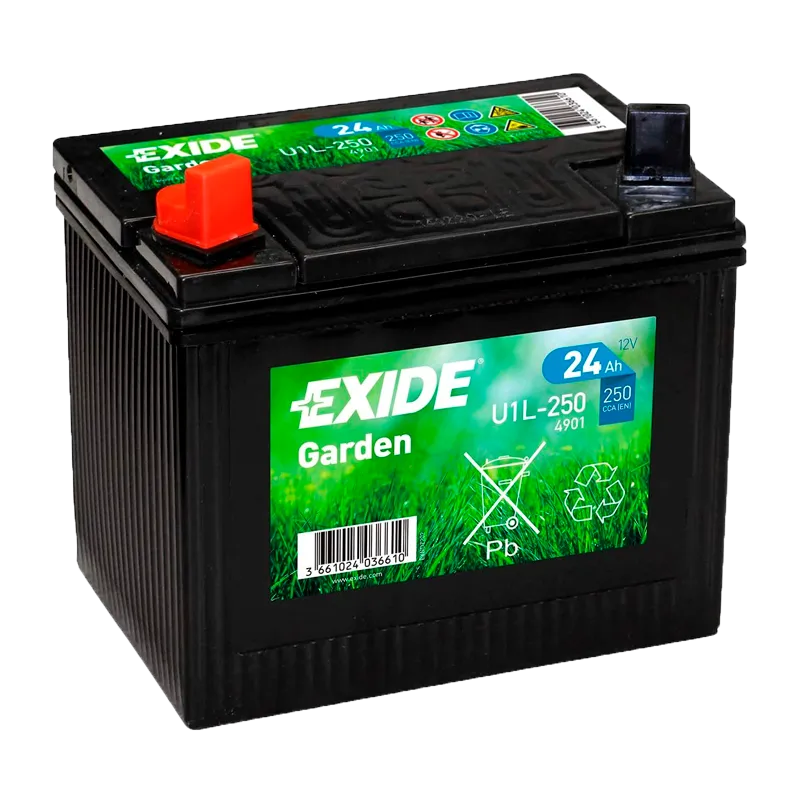

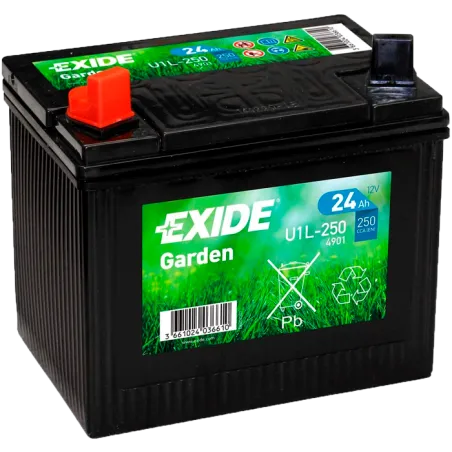

Exide 49901(U1L-250) · Lawnmower battery 12V 24Ah 250A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | 49901(U1L-250) |
| Capacity (C20) | 24Ah (c20) |
| Technology | Lead-acid |
| Length | 197.00 cm |
| Width | 132.00 cm |
| Height | 186.00 cm |
| Terminal layout | Positive terminal on the left |
| Model | EXIDE GARDEN |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you

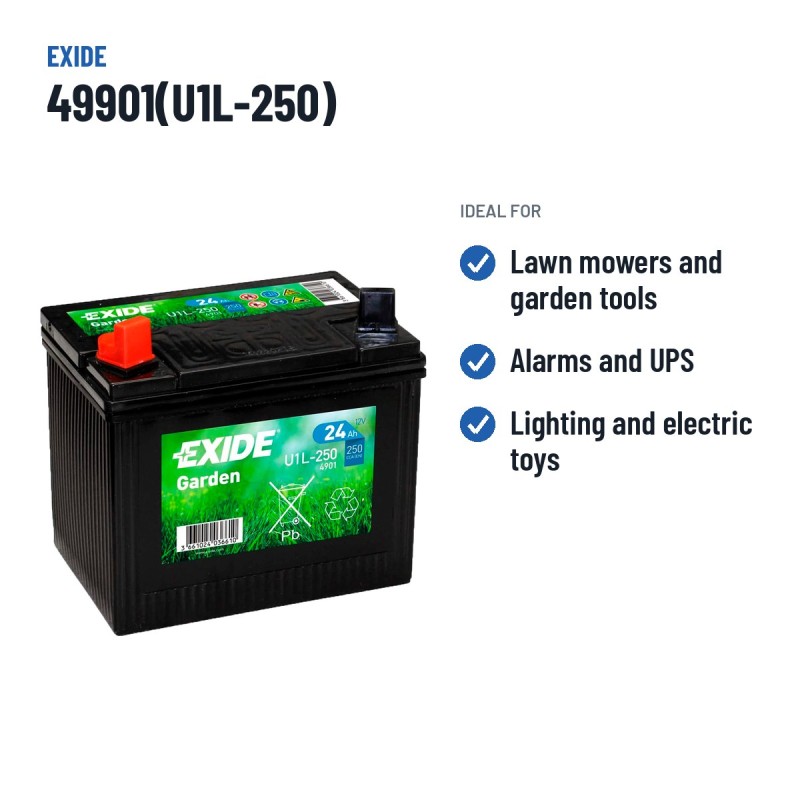

Exide 49901(U1L-250) 12V 24Ah 250A is a starter battery for lawnmowers and garden machinery, sized to crank reliably after months of storage.
Why this lawnmower battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season

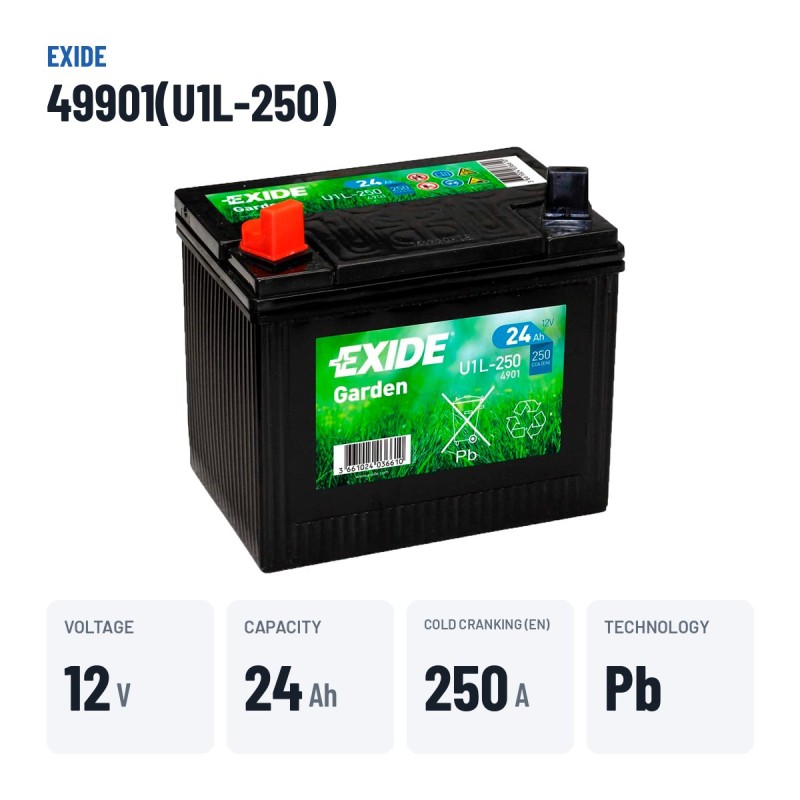

Voltage
12 V
Capacity
24 Ah
Cold cranking
250 A
Dimensions
197×132×186 mm
Technology
Lead-acid
Polarity
Positive on the left
Model
EXIDE Garden
Mfr. reference
49901(U1L-250)
Free quote, no obligation
Request a quote for your Lawnmower battery Exide 49901(U1L-250) 12V 24Ah 250A
- Reply in under 24 working hours
- Best price guaranteed
Lawn mower battery Exide 49901(U1L-250) Garden 24Ah 250A 12V
12VVoltage
24AhCapacity
250ACold cranking
7.90kgWeight
The Exide 49901(U1L-250) battery from the Garden range is rated at 12 V, 24 Ah and 250 A of cold cranking current (EN) and is designed for ride-on mowers, tillers and garden machinery. Measuring 197 × 132 × 186 mm and the positive terminal on the left, it is the direct replacement for ride-on mowers fitted from the factory with a 24 Ah battery of this format.
- Sealed and maintenance-free.
- Direct replacement for the original battery.
- Good balance of capacity, cranking power and price.
- Resistant to garden-engine vibration.
What the Exide 49901(U1L-250) is for
With 24 Ah, the Exide 49901(U1L-250) starts ride-on mowers, tillers and garden machinery and copes with garden-engine vibration. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 7.90 kg.
The Exide 49901(U1L-250): Garden range and conventional lead-acid technology
The 49901(U1L-250) is part of the Exide Garden range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Dimensions, polarity and mounting

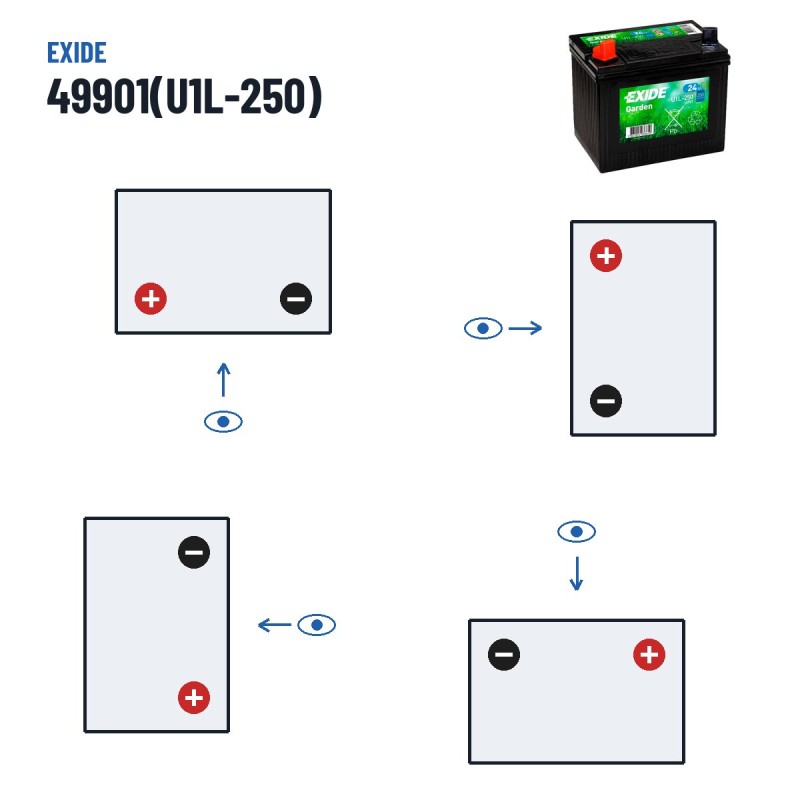

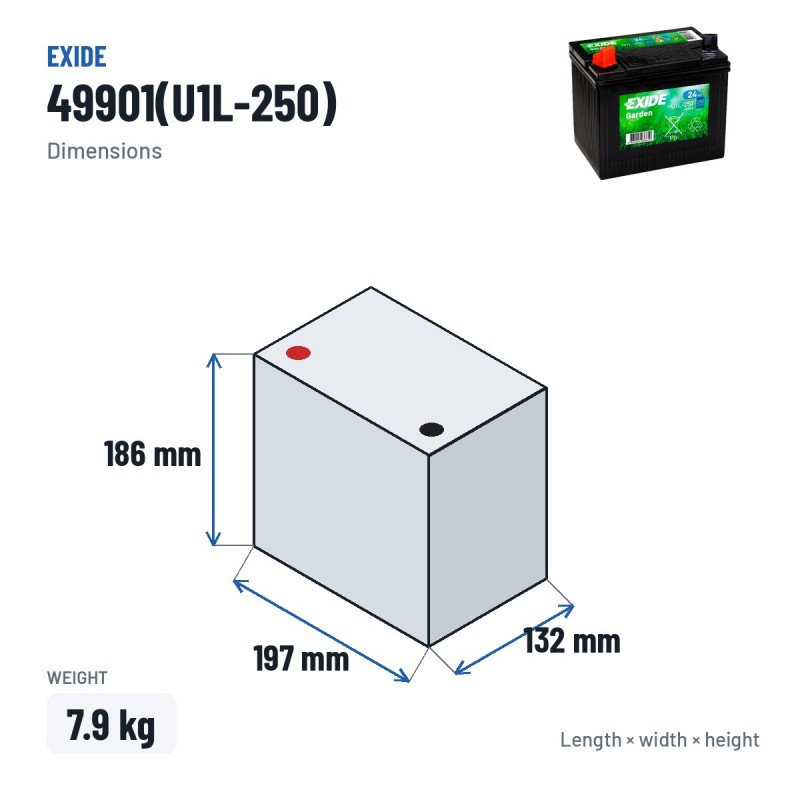

The Exide 49901(U1L-250) is made in the 197 × 132 × 186 mm format and weighs 7.90 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Usage and maintenance tips
Disconnect or remove the battery over winter and give it a maintenance charge before storing it. Check the voltage before the first start of the season and clean the terminals.
Official warranty
The Exide 49901(U1L-250) comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-49901(U1L-250)

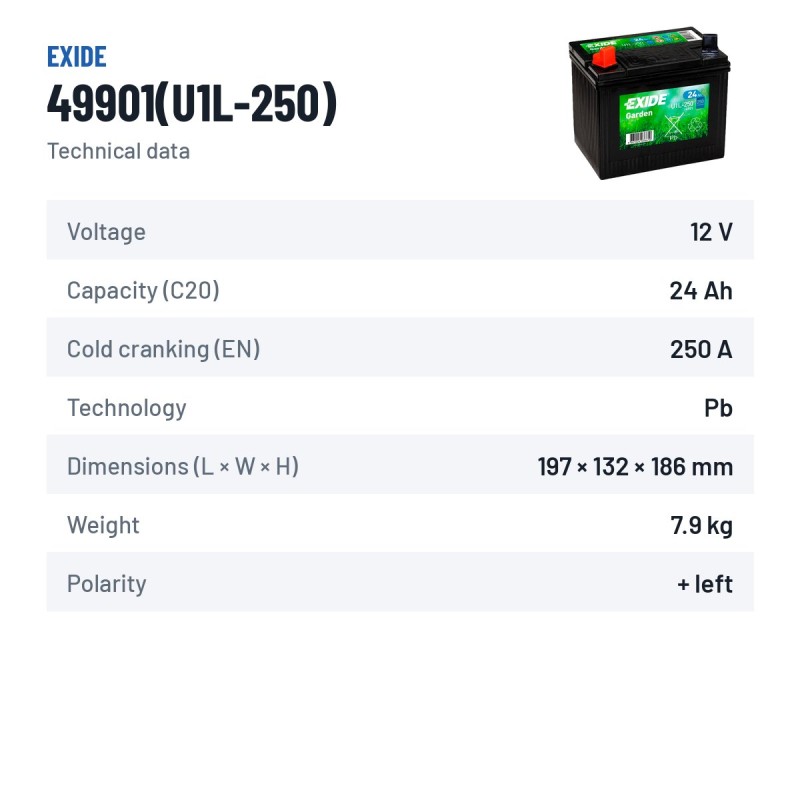

Data sheet
- Brand
- EXIDE
- Reference
- 49901(U1L-250)
- Model
- EXIDE GARDEN
- Length
- 197.00 cm
- Width
- 132.00 cm
- Height
- 186.00 cm
- Technology
- Lead-acid
- Terminal layout
- Positive terminal on the left
- Cold cranking amps (EN)
- 250A
- Capacity (C20)
- 24Ah (c20)
Specific References
- MPN
- 49901(U1L-250)
Comparison: Exide 49901(U1L-250) vs equivalents
The Exide 49901(U1L-250) is interchangeable with these equivalent references: GEL12-30 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
49901(U1L-250)
This battery
|
24Ah 250A | Lead-acid | |
Exide
GEL12-30
|
12V 30Ah 180A | Gel | €126.90 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I fit the 49901(U1L-250) model in my truck?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 49901(U1L-250) model?
Expected lifespan of the Exide 49901(U1L-250) is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide 49901(U1L-250) battery?
Dimensions (length × width × height) are 197×132×186 mm — also written as 197x132x186 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the 49901(U1L-250) valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The 49901(U1L-250) typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide 49901(U1L-250)?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
