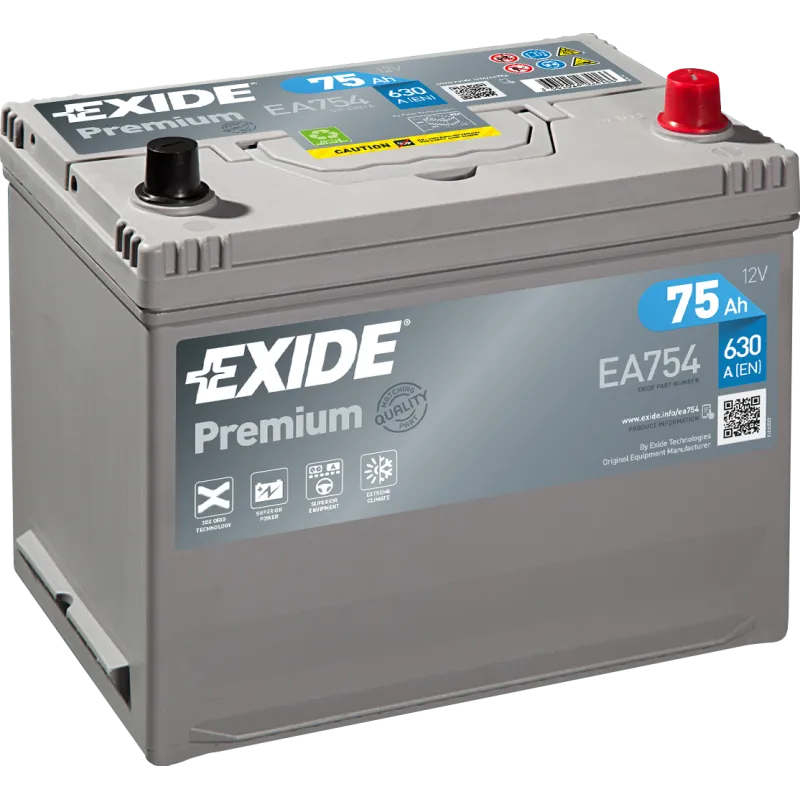

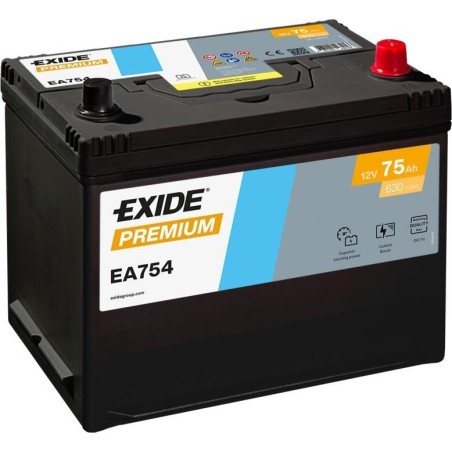

Exide EA754 · Car battery 12V 75Ah 630A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EA754 |
| Voltage (V) | 12 |
| Capacity (C20) | 75Ah (c20) |
| Technology | Lead-acid |
| Length | 270.00 cm |
| Width | 173.00 cm |
| Height | 222.00 cm |
| Weight | 18.60 Kgs |
€84.20
VAT included
Exide EA754 12V 75Ah 630A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
75 Ah
Cold cranking
630 A
Dimensions
270×173×222 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
17,4 kg
Model
EXIDE Premium

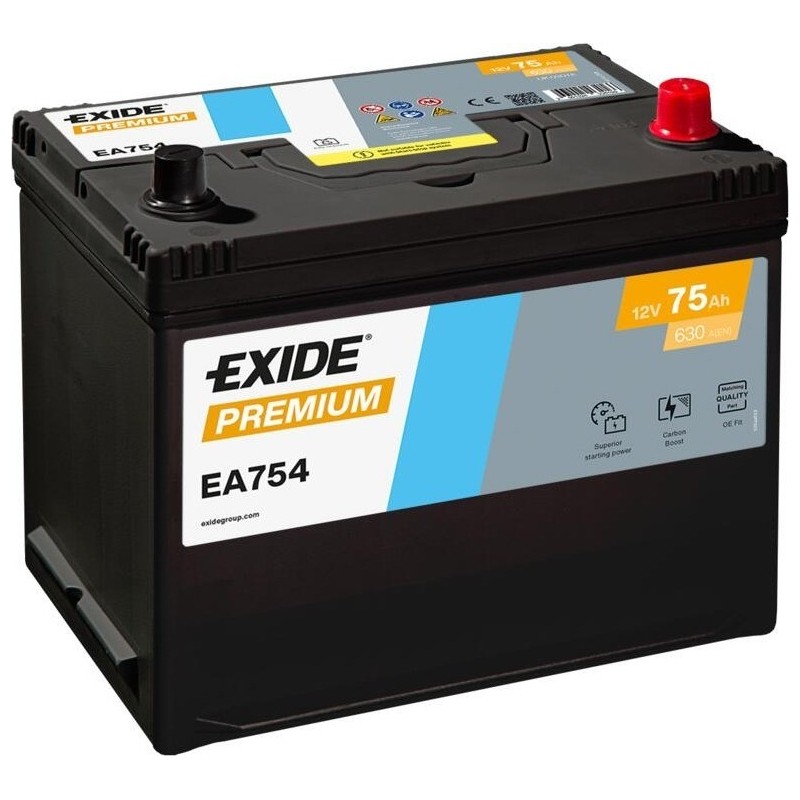

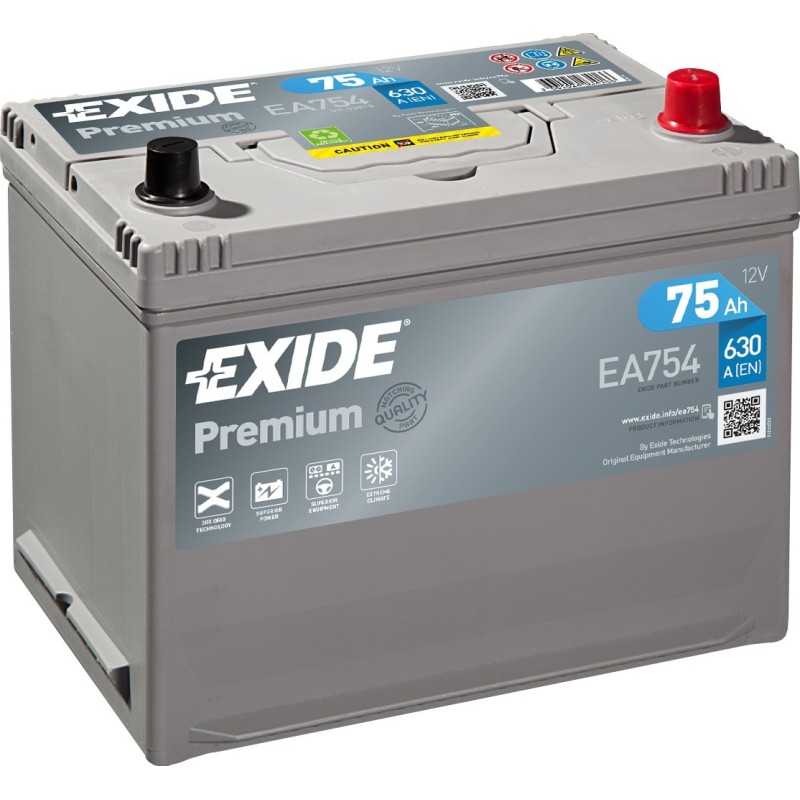

Car battery Exide EA754 Premium 75Ah 630A 12V
12VVoltage
75AhCapacity
630ACold cranking
18.60kgWeight
The Exide EA754 car battery is rated at 12 V, 75 Ah and 630 A of cold cranking current (EN) from the Premium range, and is designed for passenger cars with conventional starting, without a Start-Stop system. It measures 270 × 173 × 222 mm and the positive terminal on the right, the format sought by anyone replacing a 75 Ah battery in cars.
- Original-equipment build quality without the dealership price.
- Direct replacement for the original battery in size and terminals.
- Reliable cold starts, even after weeks without driving.
- Conventional lead-acid: the most proven and economical technology.
What the Exide EA754 is for
With 75 Ah, the Exide EA754 is sized for passenger cars with conventional starting, without a Start-Stop system. It is a direct replacement for the original battery as long as dimensions and terminals match. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 18.60 kg, 1 terminals and Korean B1+B6 hold-down.
Will it fit your current battery tray?
In terms of format, the Exide EA754 measures 270 × 173 × 222 mm (length × width × height) and weighs 18.60 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a Korean B1+B6 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Why choose Exide batteries
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
The Exide EA754: Premium range and conventional lead-acid technology
The Premium is the Exide range the EA754 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Usage and maintenance tips
In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge. Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges.
Manufacturer's warranty
The Exide EA754 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-EXIDE-EA754
Data sheet
- Brand
- EXIDE
- Reference
- EA754
- Model
- EXIDE PREMIUM
- Voltage (V)
- 12
- Length
- 270.00 cm
- Width
- 173.00 cm
- Height
- 222.00 cm
- Weight
- 18.60 Kgs
- Technology
- Lead-acid
- EAN
- 3661024034166
- Terminal layout
- Positive terminal on the right
- Terminal type
- 1
- Hold-down
- Korean B1+B6
- Cold cranking amps (EN)
- 630A
- Capacity (C20)
- 75Ah (c20)
- Case type
- D26
Specific References
- EAN13
- 3661024034166
- MPN
- EA754
Codes and references Exide EA754
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE PREMIUM |
| Manufacturer reference (MPN) | EA754 |
| EAN-13 barcode | 3661024034166 |
| Dimensions (length × width × height) | 270 × 173 × 222 mm (270x173x222) |
Comparison: Exide EA754 vs equivalents
The Exide EA754 is interchangeable with these equivalent references: TA754 (Tudor), TB704 (Tudor), EB704 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EA754
This battery
|
12V 75Ah 630A | Lead-acid | €84.20 |
Tudor
TA754
|
12V 75Ah 630A | Lead-acid | €86.60 |
Tudor
TB704
|
12V 70Ah 540A | Lead-acid | €68.40 |
Exide
EB704
|
12V 70Ah 540A | Lead-acid | €65.95 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide EA754 battery installed in the vehicle?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EA754 battery last?
Expected lifespan of the Exide EA754 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide EA754 battery?
Dimensions (length × width × height) are 270×173×222 mm — also written as 270x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EA754 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide EA754?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
