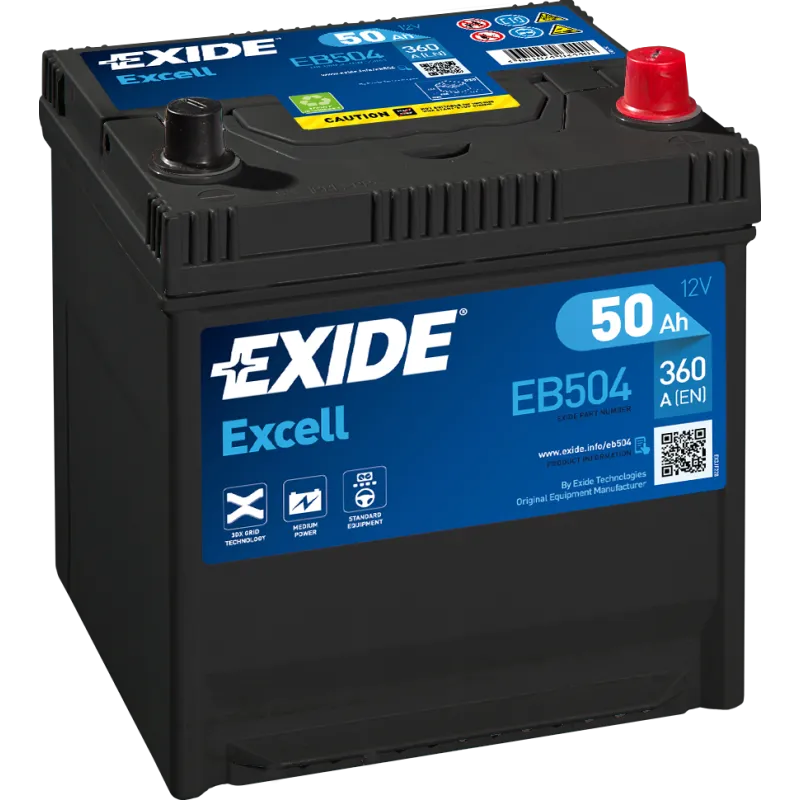

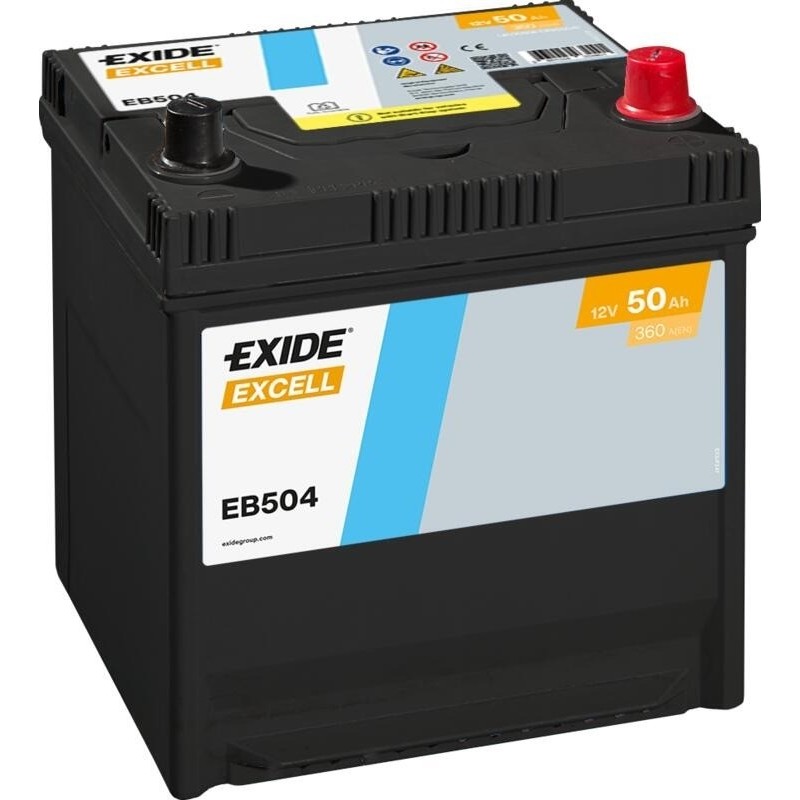

Exide EB504 · Car battery 12V 50Ah 360A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EB504 |
| Voltage (V) | 12 |
| Capacity (C20) | 50Ah (c20) |
| Cold cranking amps (EN) | 360A |
| Technology | Lead-acid |
| Length | 200.00 cm |
| Width | 173.00 cm |
| Height | 222.00 cm |
€97.10
VAT included
Exide EB504 12V 50Ah 360A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
50 Ah
Cold cranking
360 A
Dimensions
200×173×222 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
13 kg
Model
EXIDE Excell
Car battery Exide EB504 Excell 50Ah 360A 12V
12VVoltage
50AhCapacity
360ACold cranking
13kgWeight
The Exide EB504 car battery is rated at 12 V, 50 Ah and 360 A of cold cranking current (EN) from the Excell range, and is designed for passenger cars with conventional starting, without a Start-Stop system. Its 200 × 173 × 222 mm and the positive terminal on the right make it the exact replacement for the 50 Ah battery fitted as standard to many cars.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).
- Good balance of capacity, cranking power and price.
- Designed to last several years under normal daily use.
- Low self-discharge: copes with long stops without losing charge.
What the Exide EB504 is for
With 50 Ah, the Exide EB504 is sized for passenger cars with conventional starting, without a Start-Stop system. It is a direct replacement for the original battery as long as dimensions and terminals match. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 13 kg.
Size, terminals and hold-down of the Exide EB504
The Exide EB504 is made in the 200 × 173 × 222 mm format and weighs 13 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Exide EB504: Excell range and conventional lead-acid technology
The EB504 is part of the Exide Excell range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
What Exide does differently
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Exide EB504 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
Usage and maintenance tips
Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge. Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-EB504
Data sheet
- Brand
- EXIDE
- Reference
- EB504
- Model
- EXIDE EXCELL
- Voltage (V)
- 12
- Length
- 200.00 cm
- Width
- 173.00 cm
- Height
- 222.00 cm
- Weight
- 13.00 Kgs
- Technology
- Lead-acid
- EAN
- 3661024034401
- Terminal layout
- Positive terminal on the right
- Cold cranking amps (EN)
- 360A
- Capacity (C20)
- 50Ah (c20)
- Case type
- D20
Specific References
- EAN13
- 3661024034401
- MPN
- EB504
Codes and references Exide EB504
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE EXCELL |
| Manufacturer part number (MPN) | EB504 |
| EAN-13 barcode | 3661024034401 |
| Dimensions (length × width × height) | 200 × 173 × 222 mm (200x173x222) |
Comparison: Exide EB504 vs equivalents
The Exide EB504 is interchangeable with these equivalent references: TB504 (Tudor).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EB504
This battery
|
12V 50Ah 360A | Lead-acid | €97.10 |
Tudor
TB504
|
12V 50Ah 360A | Lead-acid | €103.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide EB504 battery installed in the vehicle?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EB504 battery last?
Expected lifespan of the Exide EB504 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide EB504 battery?
Dimensions (length × width × height) are 200×173×222 mm — also written as 200x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EB504 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EB504 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
