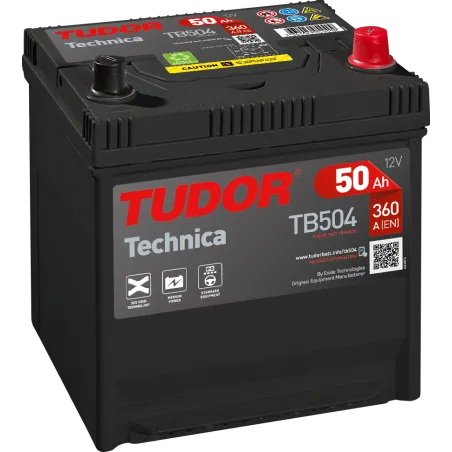

Tudor TB504 · Car battery 12V 50Ah 360A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TB504 |
| Voltage (V) | 12 |
| Capacity (C20) | 50Ah (c20) |
| Technology | Lead-acid |
| Length | 200.00 mm |
| Width | 173.00 mm |
| Height | 222.00 mm |
| Terminal layout | Positive terminal on the right |
€103.70
VAT included
4,77/5★★★★★27 reviewsVerified purchases
- ★★★★★Felipe Gallego:
Me enviaron el localizador y pude saber en todo momento dónde estaba mi bateria. Buen servicio!
- ★★★★★Oscar Duran:
Me enviaron el localizador y pude saber en todo momento dónde estaba mi batería. Buen servicio!
- ★★★★Jose Luis Castro:
Gracias por la atención. En otros sitios ni te cogen el telefono.
Tudor TB504 12V 50Ah 360A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
50 Ah
Cold cranking
360 A
Dimensions
200×173×222 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
13 kg
Model
TUDOR TECHNICA
Car battery Tudor TB504 Technica 50Ah 360A 12V
12VVoltage
50AhCapacity
360ACold cranking
13kgWeight
The Tudor TB504 from the Technica range delivers 50 Ah and 360 A of cold cranking current (EN) at 12 V: the usual specification for passenger cars with conventional starting, without a Start-Stop system. It measures 200 × 173 × 222 mm and the positive terminal on the right, the format sought by anyone replacing a 50 Ah battery in cars.
- Original-equipment build quality without the dealership price.
- Direct replacement for the original battery in size and terminals.
- Reliable cold starts, even after weeks without driving.
- Conventional lead-acid: the most proven and economical technology.
What the Tudor TB504 is for
The Tudor TB504 covers the needs of passenger cars with conventional starting, without a Start-Stop system: reliable starting, stable voltage for the electronics and a service life of several years in daily use. Check that it matches your current battery in size and terminal position. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 13 kg.
Will it fit your current battery tray?
In terms of format, the Tudor TB504 measures 200 × 173 × 222 mm (length × width × height) and weighs 13 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What Tudor does differently
Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. We guarantee that every Tudor arrives new, charged and with the manufacturer's full warranty.
The Tudor TB504: Technica range and conventional lead-acid technology
Within the Tudor catalogue, the Technica series groups the references designed for this use. The TB504 is the 50 Ah model of that family, with the same performance as its siblings in other sizes.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Usage and maintenance tips
Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Warranty and coverage
The Tudor TB504 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TUDOR-TB504
Data sheet
- Brand
- TUDOR
- Reference
- TB504
- Model
- TUDOR TECHNICA
- Voltage (V)
- 12
- Length
- 200.00 mm
- Width
- 173.00 mm
- Height
- 222.00 mm
- Technology
- Lead-acid
- EAN
- 3661024054409
- Terminal layout
- Positive terminal on the right
- Cold cranking amps (EN)
- 360A
- Capacity (C20)
- 50Ah (c20)
Specific References
- EAN13
- 3661024054409
- MPN
- TB504
4,77/5
Verified purchasesLatest verified reviews
★★★★★Felipe Gallego
23/09/2026Me llegó al día siguiente
Me enviaron el localizador y pude saber en todo momento dónde estaba mi bateria. Buen servicio!
★★★★★Oscar Duran
14/06/2026Llegó en 2 días pero todo bien
Me enviaron el localizador y pude saber en todo momento dónde estaba mi batería. Buen servicio!
★★★★★Jose Luis Castro
13/02/2026Me encanta su disposición
Gracias por la atención. En otros sitios ni te cogen el telefono.
★★★★★Miguel Rubio
19/01/2026Super bien el servicio
Te atienden fenomenal
Codes and references Tudor TB504
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR TECHNICA |
| Manufacturer reference (MPN) | TB504 |
| EAN-13 barcode | 3661024054409 |
| Dimensions (length × width × height) | 200 × 173 × 222 mm (200x173x222) |
Comparison: Tudor TB504 vs equivalents
The Tudor TB504 is interchangeable with these equivalent references: EB504 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TB504
This battery
|
12V 50Ah 360A | Lead-acid | €103.70 |
Exide
EB504
|
12V 50Ah 360A | Lead-acid | €97.10 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the TB504 model?
Expected lifespan of the Tudor TB504 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Tudor TB504 battery?
Dimensions (length × width × height) are 200×173×222 mm — also written as 200x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TB504 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TB504 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Tudor TB504?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
