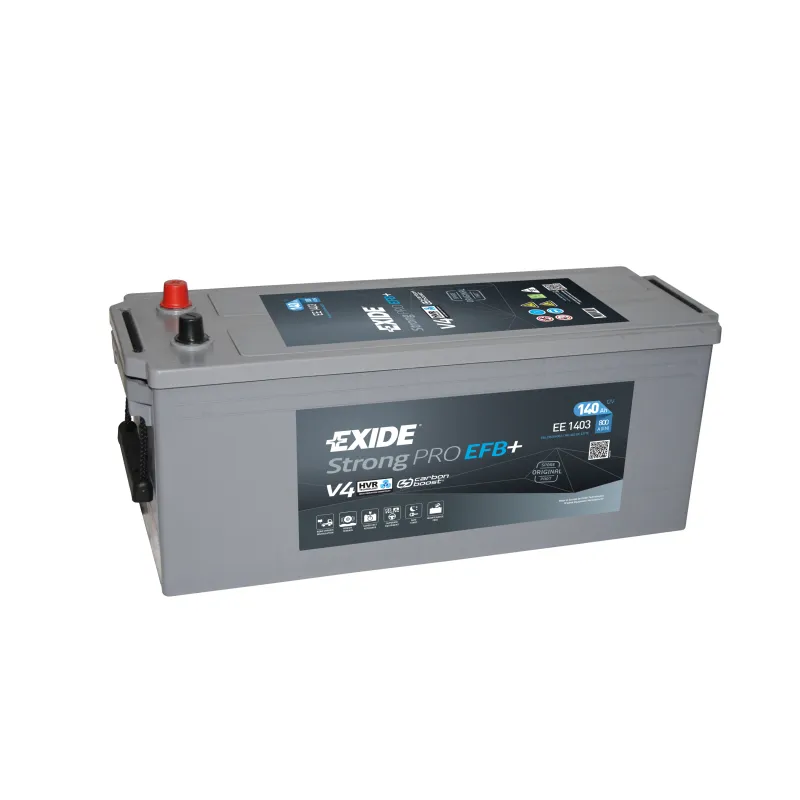

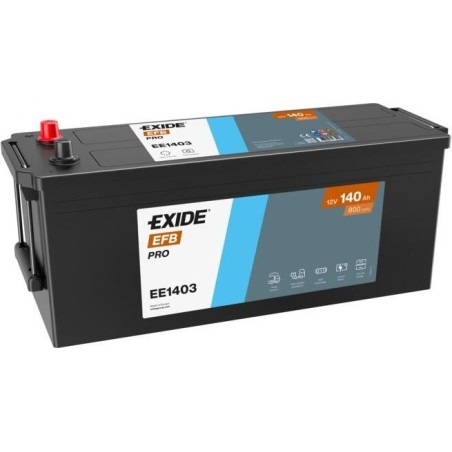

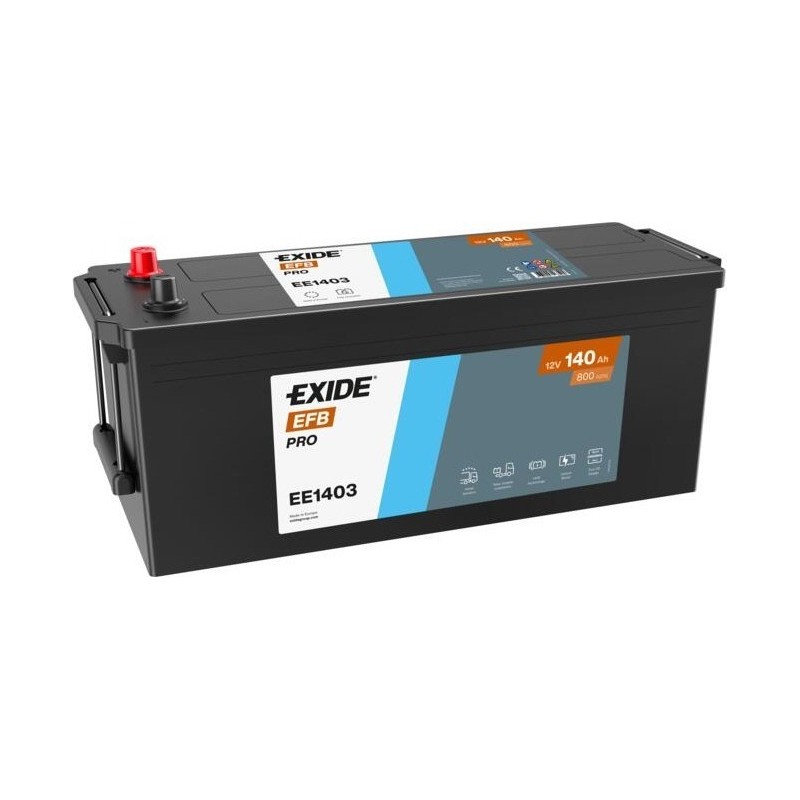

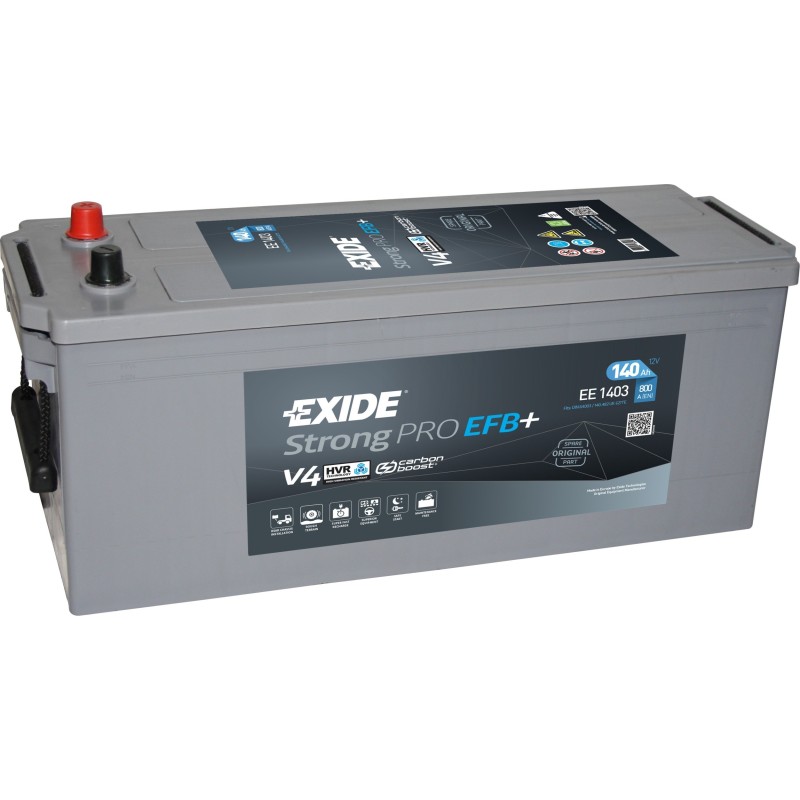

Exide EE1403 · Truck battery 12V 140Ah 800A EFB
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EE1403 |
| Voltage (V) | 12 |
| Capacity (C20) | 140Ah (c20) |
| Technology | EFB |
| Length | 513.00 cm |
| Width | 189.00 cm |
| Height | 223.00 cm |
| Weight | 38.20 Kgs |
€224.70
VAT included
Exide EE1403 12V 140Ah 800A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off

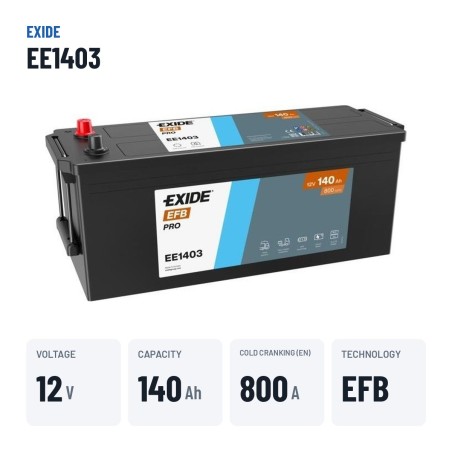

Voltage
12 V
Capacity
140 Ah
Cold cranking
800 A
Dimensions
513×189×223 mm
Technology
EFB
Polarity
Positive on the left
Weight
38,2 kg
Model
EXIDE STRONG PRO
Truck battery Exide EE1403 Strong PRO 140Ah 800A 12V
12VVoltage
140AhCapacity
800ACold cranking
38.20kgWeight
The Exide EE1403 with EFB technology delivers 140 Ah at 12 V and 800 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. It measures 513 × 189 × 223 mm and the positive terminal on the left, the format sought by anyone replacing a 140 Ah battery in trucks.
- Designed for 24 V installations with two batteries in series.
- Powerful cold cranking for large-displacement diesel engines.
- Heavy Duty construction for intensive professional use.
- EFB technology: reinforced electrolyte for many more start cycles.
What the Exide EE1403 is for
Designed for trucks, buses, tractors and heavy machinery, the Exide EE1403 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 38.20 kg, 1 terminals and B0 hold-down.
The Exide EE1403: Strong PRO range and EFB technology
The Strong PRO is the Exide range the EE1403 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
An EFB is a reinforced flooded battery: its plates retain the active material better and tolerate the cycling imposed by a simple Start-Stop system, at a lower cost than an AGM.

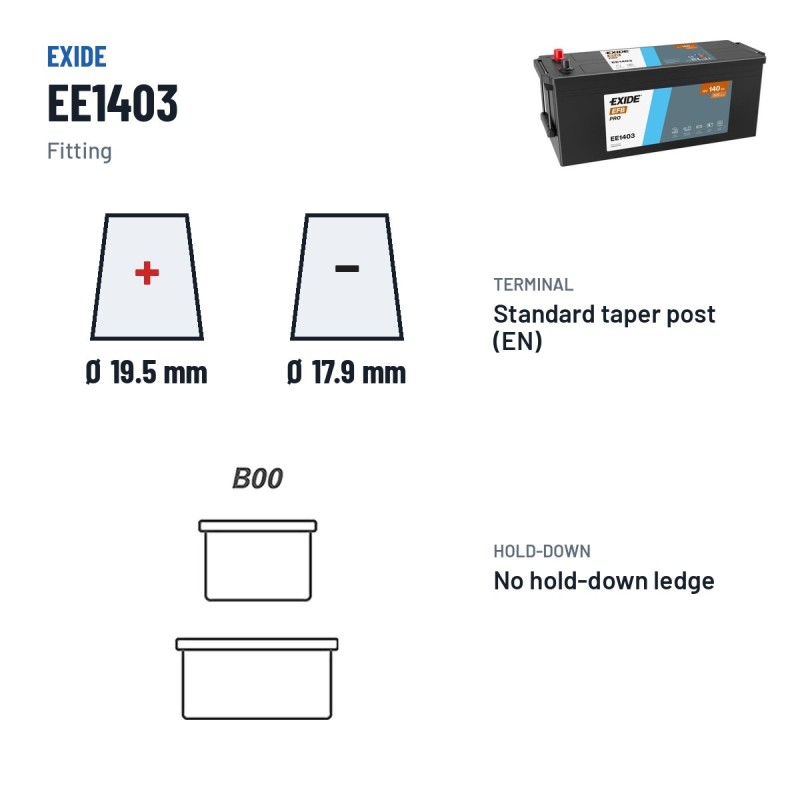

Size, terminals and hold-down of the Exide EE1403

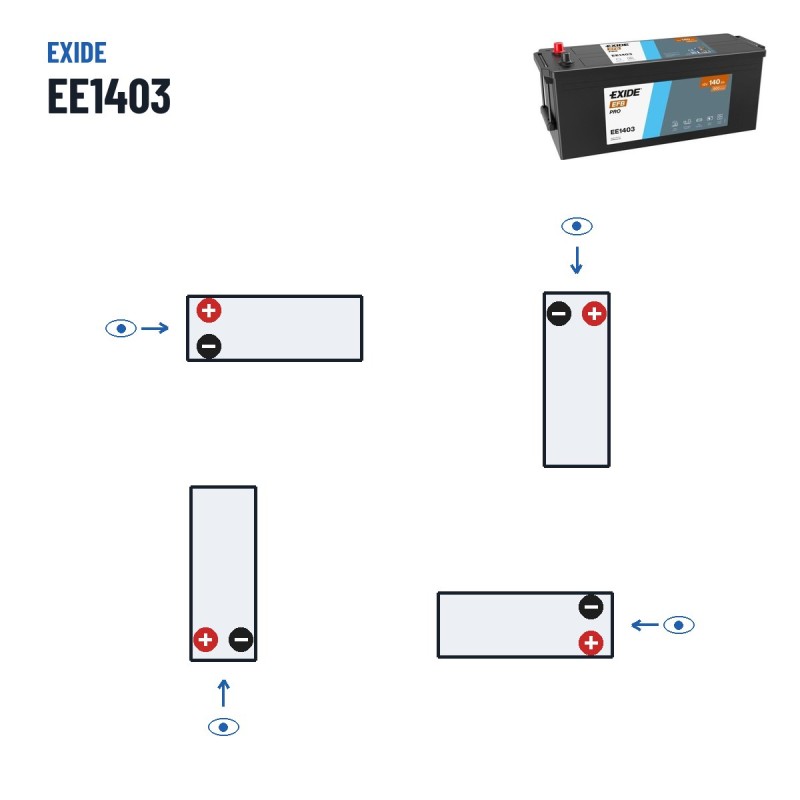

In terms of format, the Exide EE1403 measures 513 × 189 × 223 mm (length × width × height) and weighs 38.20 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Exide: the maker behind the EE1403
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
How to make it last longer
In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery.
Warranty and coverage
The Exide EE1403 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-EXIDE-EE1403
Data sheet
- Brand
- EXIDE
- Reference
- EE1403
- Model
- EXIDE STRONG PRO
- Voltage (V)
- 12
- Length
- 513.00 cm
- Width
- 189.00 cm
- Height
- 223.00 cm
- Weight
- 38.20 Kgs
- Technology
- EFB
- EAN
- 3661024035248
- Terminal layout
- Positive terminal on the left
- Terminal type
- 1
- Hold-down
- B0
- Cold cranking amps (EN)
- 800A
- Capacity (C20)
- 140Ah (c20)
- Case type
- A
Specific References
- EAN13
- 3661024035248
- MPN
- EE1403
Codes and references Exide EE1403
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE STRONG PRO |
| Manufacturer reference (MPN) | EE1403 |
| EAN-13 barcode | 3661024035248 |
| Dimensions (length × width × height) | 513 × 189 × 223 mm (513x189x223) |
Comparison: Exide EE1403 vs equivalents
The Exide EE1403 is interchangeable with these equivalent references: TE1403 (Tudor), I8 (Varta), EG1203 (Exide), EG1403 (Exide), TG1203 (Tudor).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EE1403
This battery
|
12V 140Ah 800A | EFB | €224.70 |
Tudor
TE1403
|
12V 140Ah 800A | EFB | €235.90 |
Varta
I8
|
12V 120Ah 680A | Lead-acid | €138.50 |
Exide
EG1203
|
12V 120Ah 680A | Lead-acid | €188.20 |
Exide
EG1403
|
12V 140Ah 800A | Lead-acid | €128.60 |
Tudor
TG1203
|
12V 120Ah 680A | Lead-acid | €188.20 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
Is the Exide EE1403 an EFB battery? When is EFB used?
Yes. The EE1403 is an EFB (Enhanced Flooded Battery): flooded lead-acid reinforced with plate additives. Withstands more cycles than a conventional but fewer than an AGM. Fitted to trucks with basic Start-Stop (no regenerative braking). More affordable than an equivalent AGM, lifespan 4-6 years.
Is the Exide EE1403 battery suitable for Start-Stop?
Yes. As EFB technology it is designed for Start-Stop vehicles. EFB batteries cover basic Start-Stop (no regenerative braking). EFB is recommended for basic Start-Stop; AGM is recommended when regenerative braking is also present, thanks to its higher cycle capability. It works straight out of the box — on most modern vehicles registering the battery via OBD is recommended so the alternator automatically applies the optimal charging profile.
How is the Exide EE1403 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EE1403 battery last?
Expected lifespan of the Exide EE1403 is 4 to 6 years in basic Start-Stop truck use. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide EE1403 battery?
Dimensions (length × width × height) are 513×189×223 mm — also written as 513x189x223 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EE1403 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EE1403 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide EE1403?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
What exactly is an EFB battery like the Exide EE1403?
An EFB (Enhanced Flooded Battery) is a flooded lead-acid battery reinforced with plate additives (carbon and polyethylene) and thicker grids. It withstands twice the cycles of a conventional battery and handles deep discharges better, but less than an AGM. It is the original fitment on trucks with basic Start-Stop (no regenerative braking): Renault Energy TCe, Peugeot/Citroën PureTech, Fiat MultiAir, Hyundai/Kia ISG, Ford EcoBoost. If your truck came with EFB from the factory, this is the correct battery — upgrading to AGM is optional (marginal improvement). If it came with AGM, EFB may fall short: better fit AGM. The Exide EE1403 is original and meets EN 50342-6.
Do I need to register the Exide EE1403 on the truck after installation?
On most trucks it is not strictly necessary — the alternator detects the new battery and adapts the charge automatically. It is recommended to register the battery via OBD so that the alternator applies the optimal charging profile from the first minute and extends the battery life as much as possible (especially on brands with sophisticated BMS: BMW, Mercedes, Audi, Volvo, Land Rover). Any workshop with an OBD scanner (~10-15 € labour) does it in 5 minutes. DIY apps: VCDS / Carista (VAG), Bimmercode (BMW), iCarsoft. If you do not register, the truck will still start correctly — the alternator just takes a few days to adjust the profile. The Exide EE1403 ships factory-charged at 80-90% so you can use it straight after fitting.
