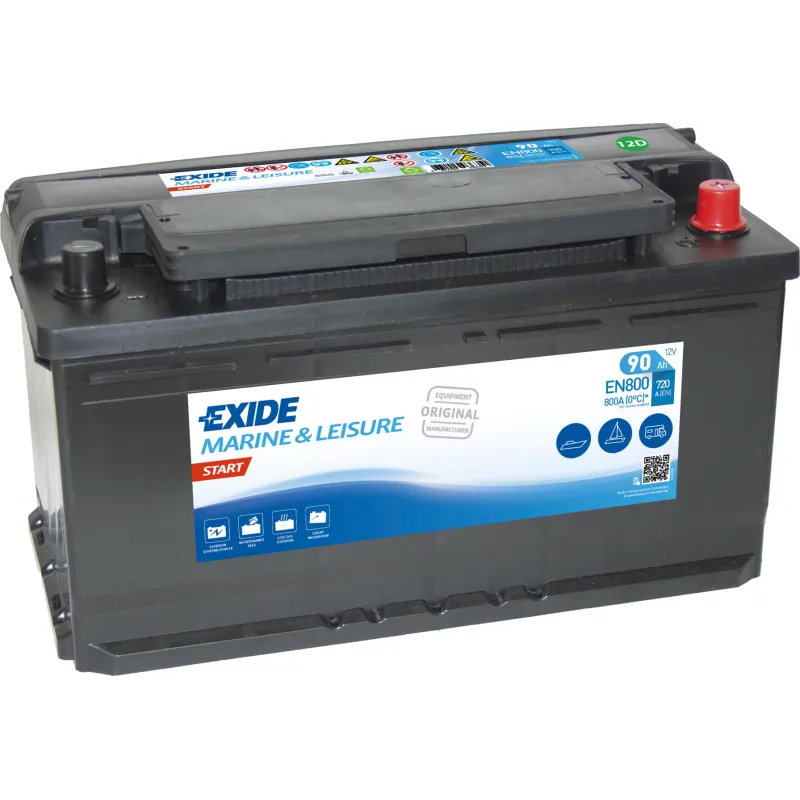

Exide EN800 · Marine battery 12V 90Ah 720A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EN800 |
| Voltage (V) | 12 |
| Capacity (C20) | 90Ah (c20) |
| Technology | Lead-acid |
| Length | 353.00 cm |
| Width | 175.00 cm |
| Height | 190.00 cm |
| Weight | 20.10 Kgs |
€137.30
VAT included
Exide EN800 12V 90Ah 720A is a marine starting battery: it delivers the cranking power the engine needs and withstands vibration and swell on board. Sealed and maintenance-free. For onboard loads (fridge, sounder, lights) you also need a service battery.

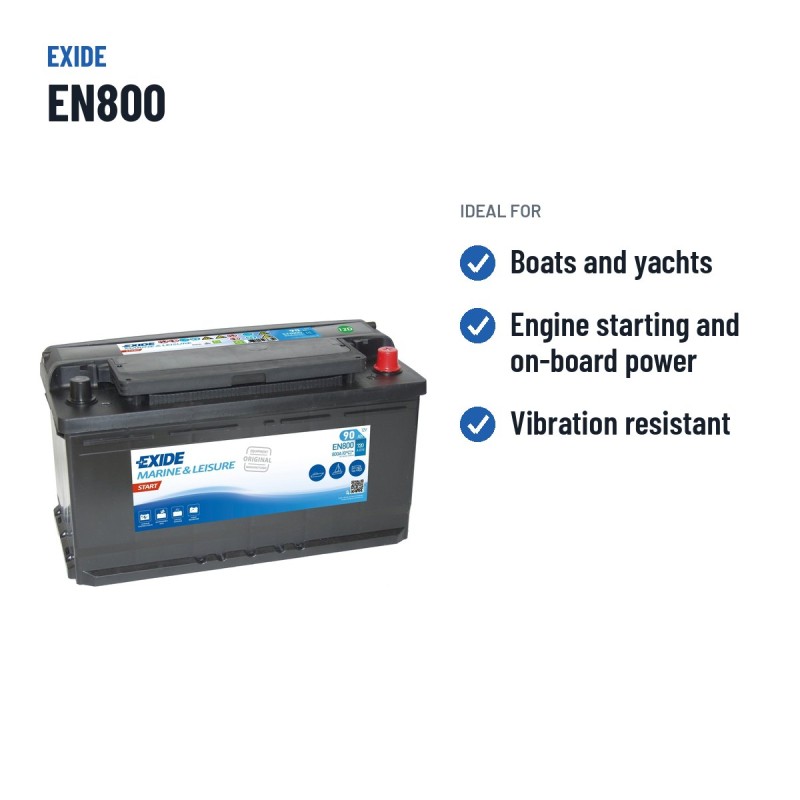

Why this marine starting battery?
- Marine designbuilt for boat swell and vibration
- Starting in demanding conditionsmaximum cranking power
- Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
90 Ah
Cold cranking
720 A
Dimensions
353×175×190 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
20,1 kg
Model
EXIDE MARINA START

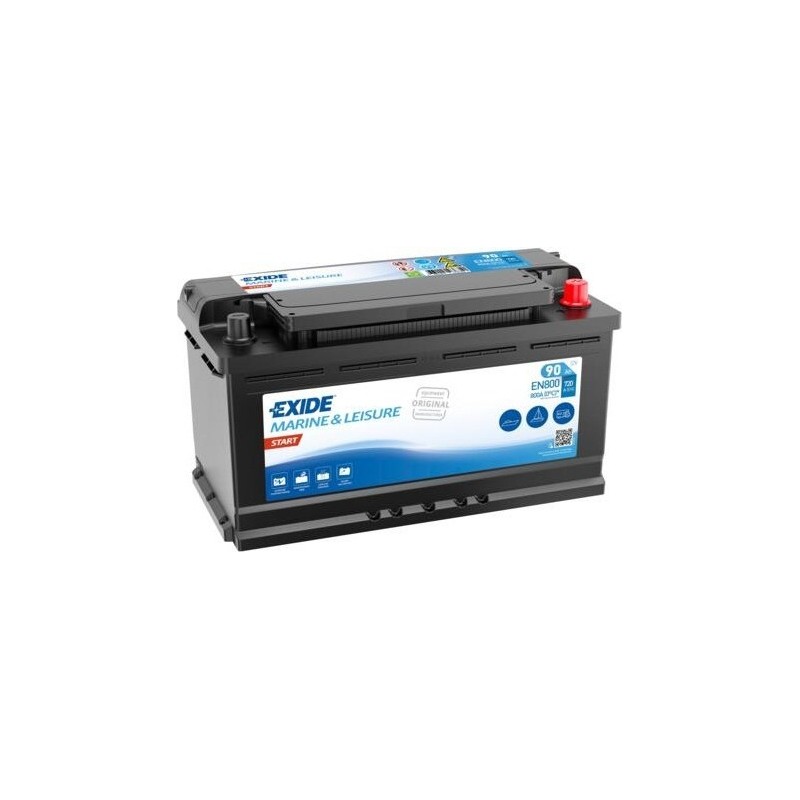

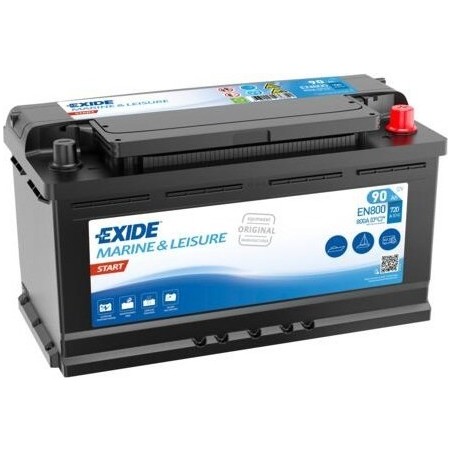

Marine battery Exide EN800 Marina Start 90Ah 720A 12V

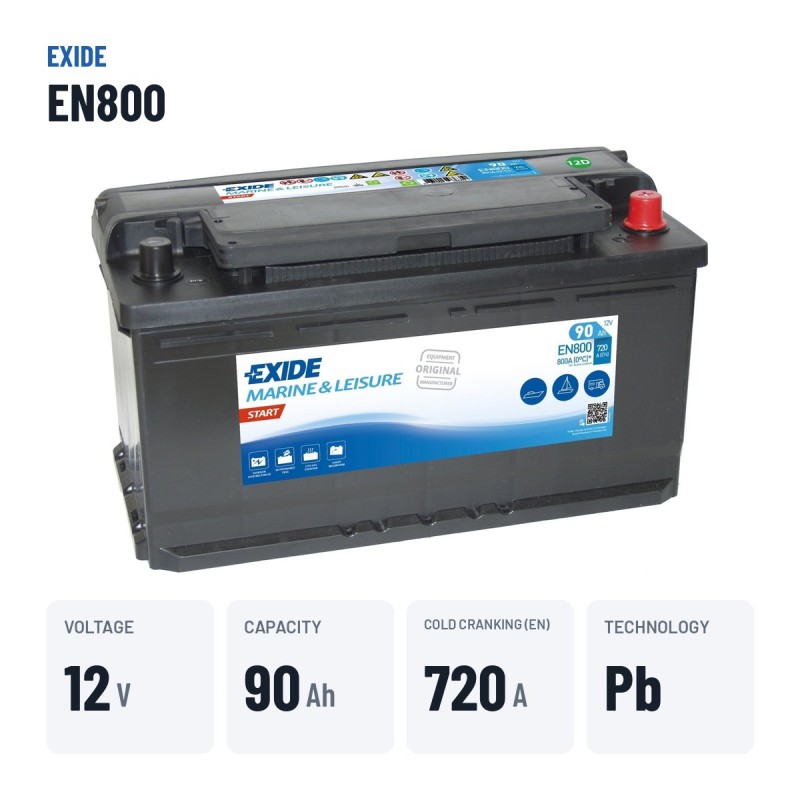

12VVoltage
90AhCapacity
720ACold cranking
20.10kgWeight
The Exide EN800 with conventional lead-acid technology is a marine battery with 90 Ah and 720 A of cold cranking current (EN) for motor and sailing boats, both for engine starting and onboard services. Measuring 353 × 175 × 190 mm and the positive terminal on the right, it is the direct replacement for boats fitted from the factory with a 90 Ah battery of this format.
- Sealed: no spills or gases in the locker.
- Resistant to humidity and salt air.
- Good balance of capacity, cranking power and price.
- Ready for starting outboard and inboard engines.
Vehicles compatible with the Exide EN800
According to our database, the Exide EN800 equips more than 12 vehicles from brands such as Elan Marine, MANtra Yachts, Dufour Yachts, Saffierjachten, Nordborg-Baanordborg and Najadvarvet Ab, among others. If you are looking for a battery for a Elan Marine or MANtra Yachts with these dimensions, the EN800 is one of the usual replacement references. The compatibility list also includes models from Slottayachts, Etap, Hallberg-Rassy, Huntermarine, Salona Yachthandel and Corby Yachts.
The Exide EN800: Marina Start range and conventional lead-acid technology
Within the Exide catalogue, the Marina Start series groups the references designed for this use. The EN800 is the 90 Ah model of that family, with the same performance as its siblings in other sizes.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

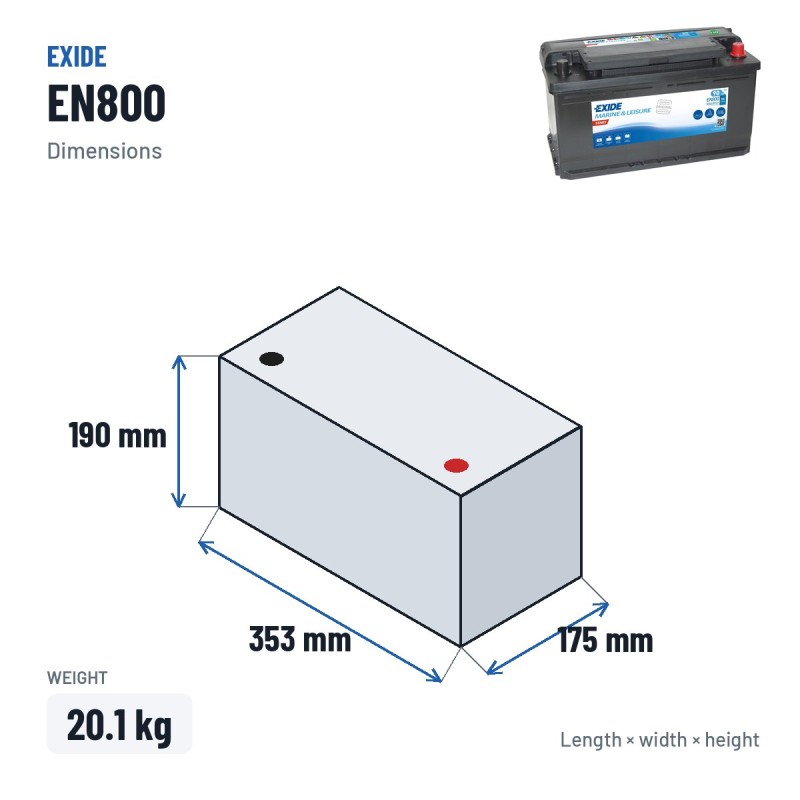

Dimensions, polarity and mounting

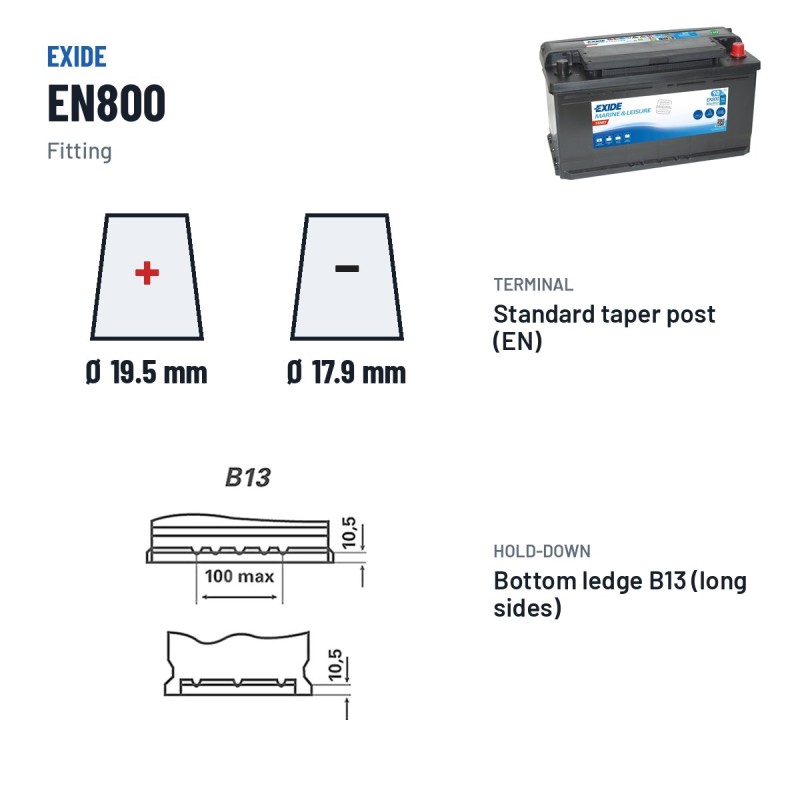

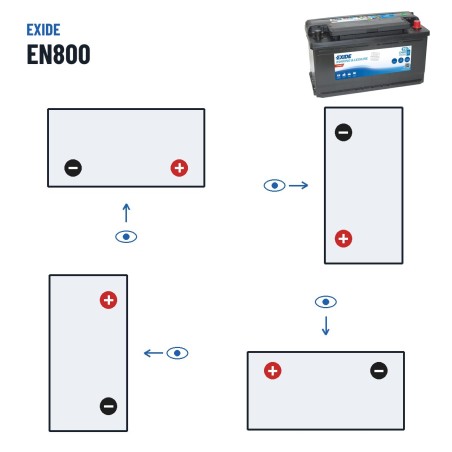

It has external dimensions of 353 × 175 × 190 mm and weighs 20.10 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
How to make it last longer
As a service battery, avoid routine discharges below 50% to extend its cycle life. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Warranty and coverage
The Exide EN800 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-EN800
Data sheet
- Brand
- EXIDE
- Reference
- EN800
- Model
- EXIDE MARINA START
- Voltage (V)
- 12
- Length
- 353.00 cm
- Width
- 175.00 cm
- Height
- 190.00 cm
- Weight
- 20.10 Kgs
- Technology
- Lead-acid
- EAN
- 3661024036351
- Terminal layout
- Positive terminal on the right
- Terminal type
- 1
- Hold-down
- B13
- Cold cranking amps (EN)
- 720A
- Capacity (C20)
- 90Ah (c20)
- Case type
- L5
Specific References
- EAN13
- 3661024036351
- MPN
- EN800
Codes and references Exide EN800
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MARINA START |
| Manufacturer reference (MPN) | EN800 |
| EAN-13 barcode | 3661024036351 |
| European case size (EN 50342-2) | L5 |
| Dimensions (length × width × height) | 353 × 175 × 190 mm (353x175x190) |
Comparison: Exide EN800 vs equivalents
The Exide EN800 is interchangeable with these equivalent references: LFD90 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EN800
This battery
|
12V 90Ah 720A | Lead-acid | €137.30 |
Varta
LFD90
|
12V 90Ah 800A | Lead-acid | €215.30 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Compatible vehicles
The Exide EN800 fits 12 vehicles. Most searched below:
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
How is the Exide EN800 battery installed in the vehicle?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EN800 battery last?
Expected lifespan of the Exide EN800 is 4 to 6 years in regular boat use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the EN800 model?
Dimensions (length × width × height) are 353×175×190 mm — also written as 353x175x190 mm and correspond to the European L5 case size — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EN800 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EN800 fits 12 verified vehicle versions in our database.
What are the equivalents of the EN800 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
