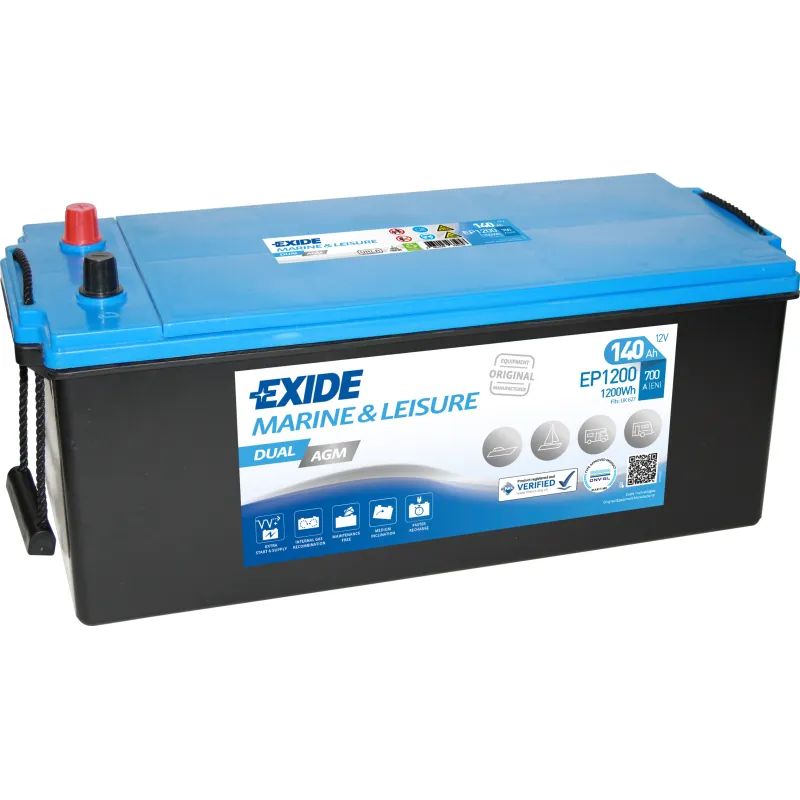

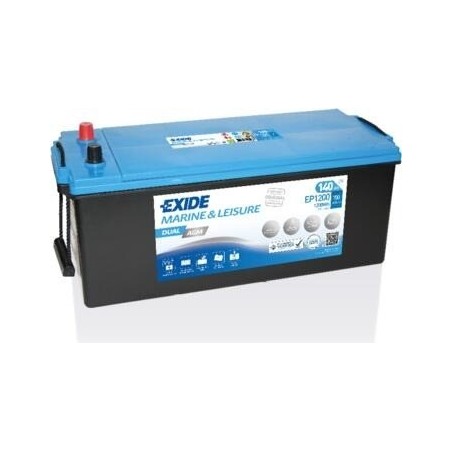

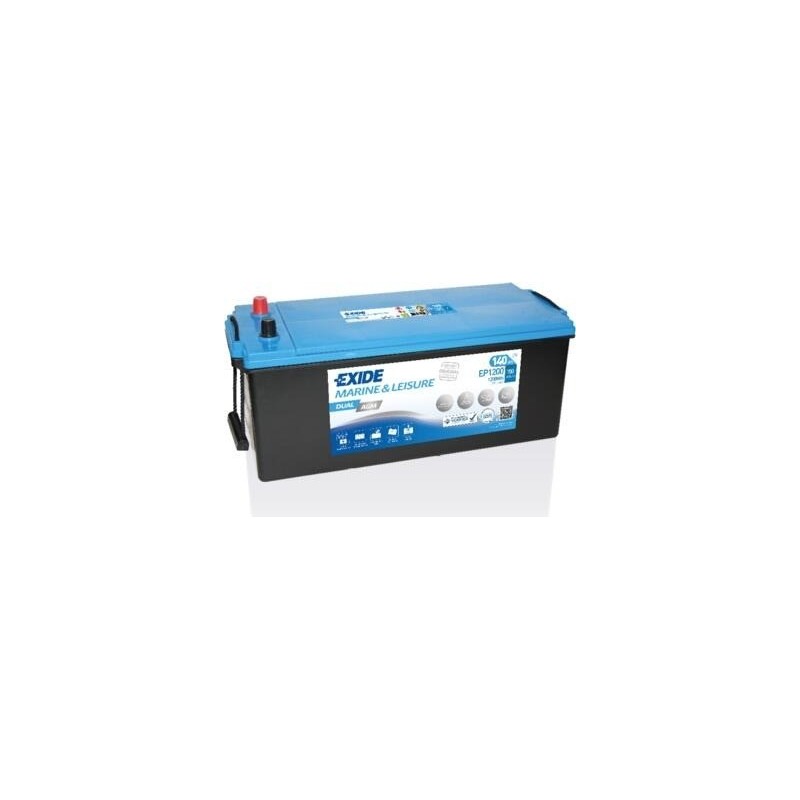

Exide EP1200 · Marine battery 12V 140Ah 700A AGM
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EP1200 |
| Voltage (V) | 12 |
| Capacity (C20) | 140Ah (c20) |
| Technology | AGM |
| Length | 513.00 cm |
| Width | 189.00 cm |
| Height | 223.00 cm |
| Weight | 40.50 Kgs |
€269.80
VAT included
Exide EP1200 12V 140Ah 700A is a marine battery, vibration- and deep-discharge resistant, suitable both for outboard engine starting and for onboard auxiliary services (navigation lights, GPS, sonar, fridge). Sealed and maintenance-free.
Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
140 Ah
Cold cranking
700 A
Dimensions
513×189×223 mm
Technology
AGM
Polarity
Positive on the left
Weight
40,5 kg
Model
EXIDE MARINA DUAL EP
Marine battery Exide EP1200 Marina Dual EP 140Ah 700A 12V
12VVoltage
140AhCapacity
700ACold cranking
40.50kgWeight
With 140 Ah at 12 V and 700 A of cold cranking current (EN), the Exide EP1200 from the Marina Dual EP range is built for motor and sailing boats, both for engine starting and onboard services. It replaces the original battery without adaptation in boats with a 513 × 189 × 223 mm format: same 140 Ah capacity and the positive terminal on the left.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Reinforced case against vibration and swell.
- Powers onboard services: lights, sounder, GPS, fridge.
- Tolerates the daily cycling of a boat in season.
What the Exide EP1200 is for
With 140 Ah, the Exide EP1200 covers motor and sailing boats, both for engine starting and onboard services. At the end of the season, charge it fully before winter storage. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 40.50 kg, 1 terminals and B0 hold-down.
The Exide EP1200: Marina Dual EP range and AGM technology
The Marina Dual EP is the Exide range the EP1200 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Will it fit your current battery tray?
In terms of format, the Exide EP1200 measures 513 × 189 × 223 mm (length × width × height) and weighs 40.50 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Why choose Exide batteries
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Protect the terminals with dielectric grease and check the fixing: vibration and swell loosen connections.
Warranty and coverage
The Exide EP1200 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-EP1200
Data sheet
- Brand
- EXIDE
- Reference
- EP1200
- Model
- EXIDE MARINA DUAL EP
- Voltage (V)
- 12
- Length
- 513.00 cm
- Width
- 189.00 cm
- Height
- 223.00 cm
- Weight
- 40.50 Kgs
- Technology
- AGM
- EAN
- 3661024035958
- Terminal layout
- Positive terminal on the left
- Terminal type
- 1
- Hold-down
- B0
- Cold cranking amps (EN)
- 700A
- Capacity (C20)
- 140Ah (c20)
Specific References
- EAN13
- 3661024035958
- MPN
- EP1200
Codes and references Exide EP1200
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MARINA DUAL EP |
| Manufacturer reference (MPN) | EP1200 |
| EAN-13 barcode | 3661024035958 |
| Dimensions (length × width × height) | 513 × 189 × 223 mm (513x189x223) |
Comparison: Exide EP1200 vs equivalents
The Exide EP1200 is interchangeable with these equivalent references: LFD140 (Varta), ET950 (Exide), ER660 (Exide), EN900 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EP1200
This battery
|
12V 140Ah 700A | AGM | €269.80 |
Varta
LFD140
|
12V 140Ah 800A | Lead-acid | €181.40 |
Exide
ET950
|
12V 135Ah 700A | Lead-acid | €208.90 |
Exide
ER660
|
12V 140Ah 750A | Lead-acid | €238.10 |
Exide
EN900
|
12V 140Ah 800A | Lead-acid | €140.30 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Compatible vehicles
The Exide EP1200 fits 6 vehicles. Most searched below:
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
Is the EP1200 model AGM? What does this technology offer?
Yes. The EP1200 from Exide uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for boats with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Exide EP1200 battery installed in the vehicle?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EP1200 battery last?
Expected lifespan of the Exide EP1200 is 5 to 8 years in mild-climate boat use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 513×189×223 mm — also written as 513x189x223 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EP1200 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EP1200 fits 6 verified vehicle versions in our database.
What are the equivalents of the EP1200 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
