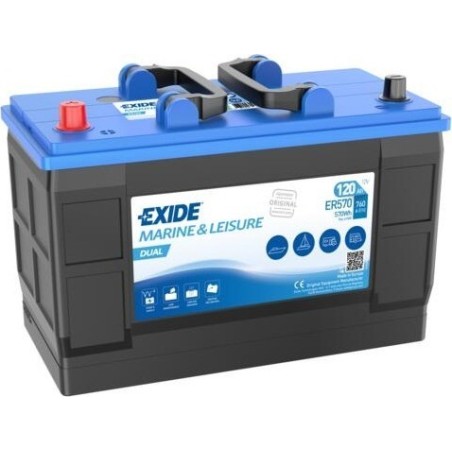

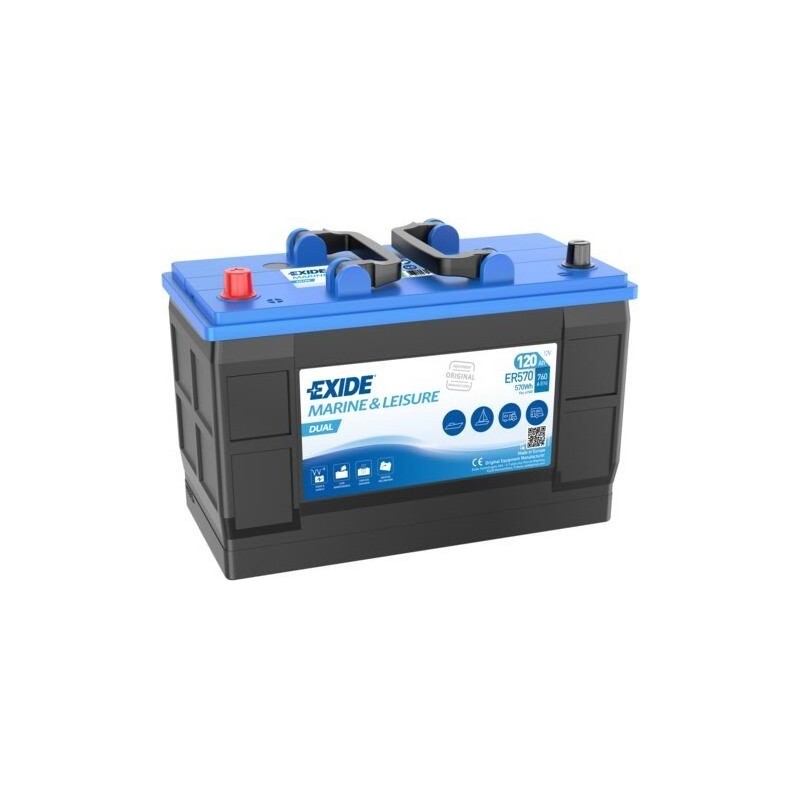

Exide ER570 · Marine battery 12V 120Ah 760A

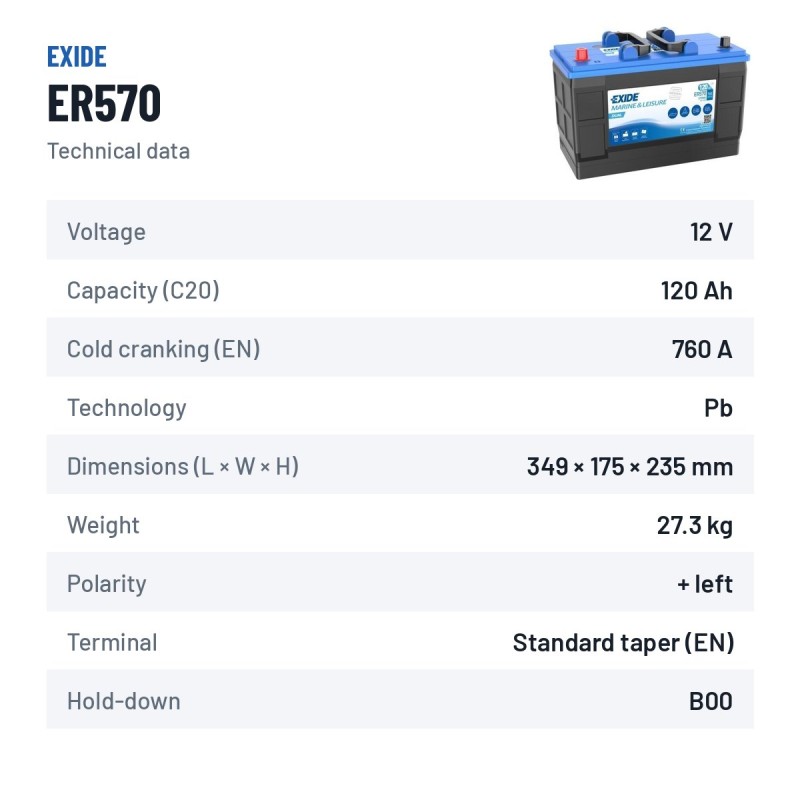

Specifications
| Brand | EXIDE |
|---|---|
| Part number | ER570 |
| Voltage (V) | 12 |
| Capacity (C20) | 120Ah (c20) |
| Technology | Lead-acid |
| Length | 349.00 cm |
| Width | 175.00 cm |
| Height | 235.00 cm |
| Weight | 27.80 Kgs |
€123.30
VAT included
Exide ER570 12V 120Ah 760A is a marine battery, vibration- and deep-discharge resistant, suitable both for outboard engine starting and for onboard auxiliary services (navigation lights, GPS, sonar, fridge). Sealed and maintenance-free.
Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
120 Ah
Cold cranking
760 A
Dimensions
349×175×235 mm
Technology
Lead-acid

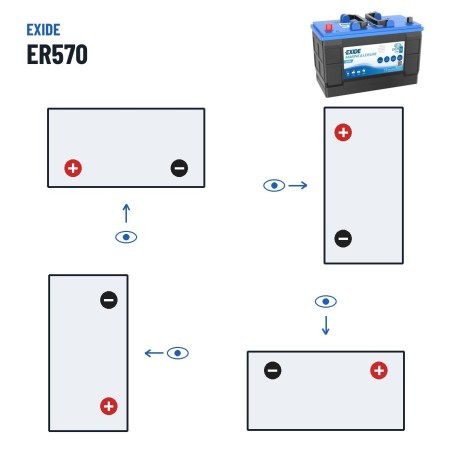

Polarity
Positive on the left
Weight
27,3 kg
Model
EXIDE MARINA DUAL ER
Marine battery Exide ER570 Marina Dual Er 120Ah 760A 12V
12VVoltage
120AhCapacity
760ACold cranking
27.80kgWeight
The Exide ER570 marine battery offers 12 V, 120 Ah and 760 A of cold cranking current (EN) from the Marina Dual Er range with conventional lead-acid technology, designed for motor and sailing boats, both for engine starting and onboard services. It measures 349 × 175 × 235 mm and the positive terminal on the left, the format sought by anyone replacing a 120 Ah battery in boats.
- Reinforced case against vibration and swell.
- Conventional lead-acid: the most proven and economical technology.
- Tolerates the daily cycling of a boat in season.
- Powers onboard services: lights, sounder, GPS, fridge.

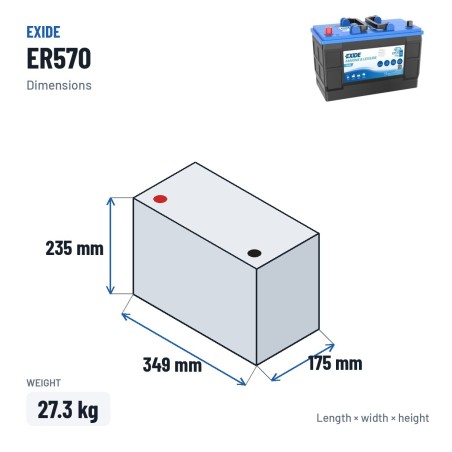

Will it fit your current battery tray?

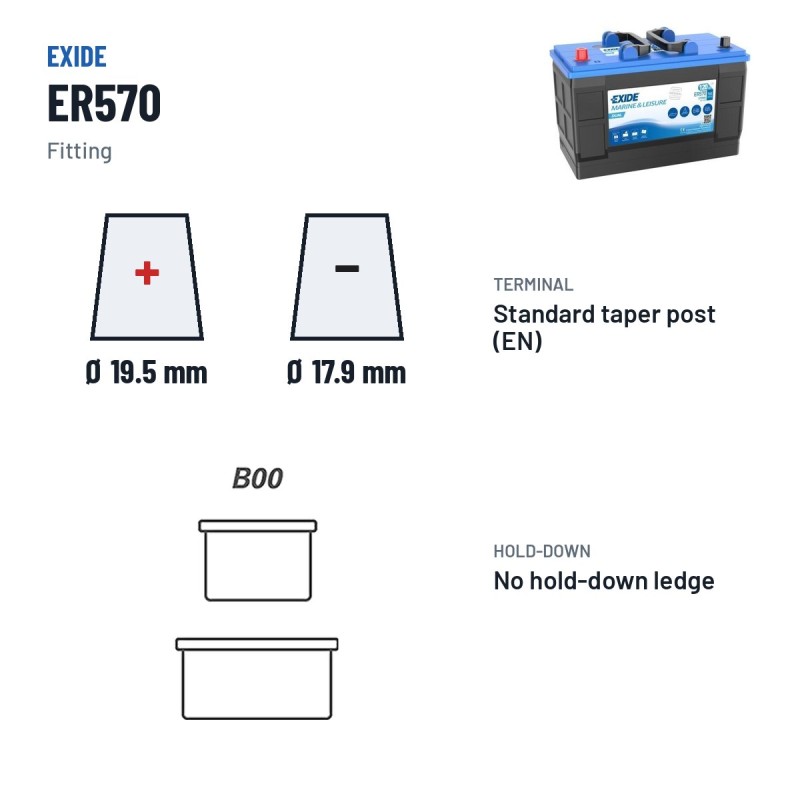

The Exide ER570 is made in the 349 × 175 × 235 mm format and weighs 27.80 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

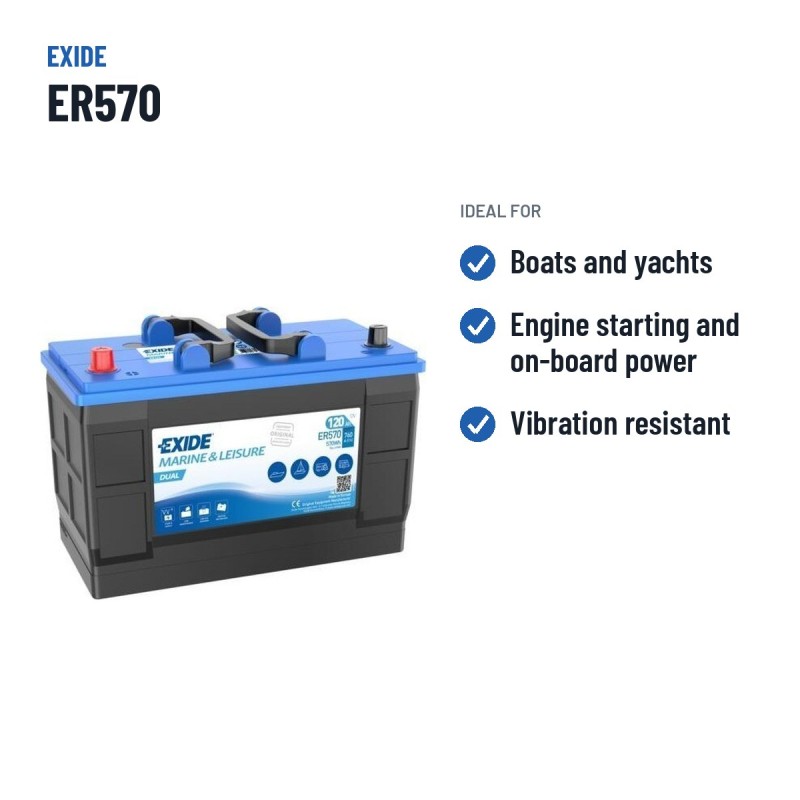

What the Exide ER570 is for
On board, the Exide ER570 provides 120 Ah with a case reinforced against vibration and swell. Keep the terminals clean and protected from salt humidity. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 27.80 kg, 1 terminals and B0 hold-down.
The Exide ER570: Marina Dual Er range and conventional lead-acid technology
The Marina Dual Er is the Exide range the ER570 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Why choose Exide batteries
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Warranty and coverage
The Exide ER570 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
Usage and maintenance tips
At the end of the season, charge the battery fully and, if possible, keep it on a charger over the winter lay-up. As a service battery, avoid routine discharges below 50% to extend its cycle life.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-EXIDE-ER570
Data sheet
- Brand
- EXIDE
- Reference
- ER570
- Model
- EXIDE MARINA DUAL ER
- Voltage (V)
- 12
- Length
- 349.00 cm
- Width
- 175.00 cm
- Height
- 235.00 cm
- Weight
- 27.80 Kgs
- Technology
- Lead-acid
- EAN
- 3661024035989
- Terminal layout
- 1
- Terminal type
- 1
- Hold-down
- B0
- Cold cranking amps (EN)
- 760A
- Capacity (C20)
- 120Ah (c20)
Specific References
- EAN13
- 3661024038232
- MPN
- ER570
Codes and references Exide ER570
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer reference (MPN) | ER570 |
| EAN-13 barcode | 3661024038232 |
| Dimensions (length × width × height) | 349 × 175 × 235 mm (349x175x235) |
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
How is the Exide ER570 battery installed in the vehicle?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Exide ER570 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the ER570 model?
Dimensions (length × width × height) are 349×175×235 mm — also written as 349x175x235 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the ER570 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ER570 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide ER570?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
