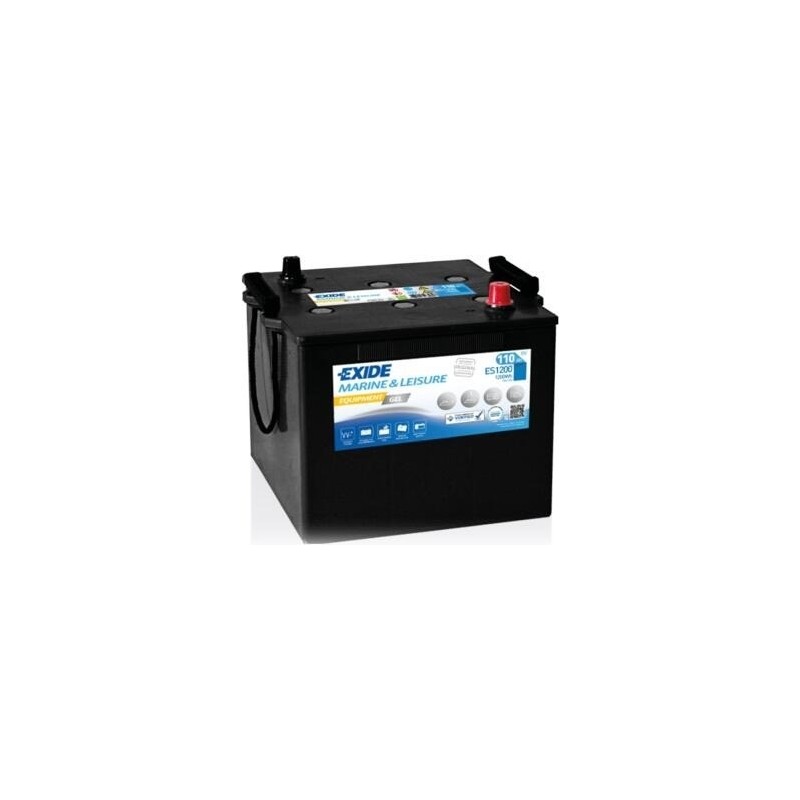

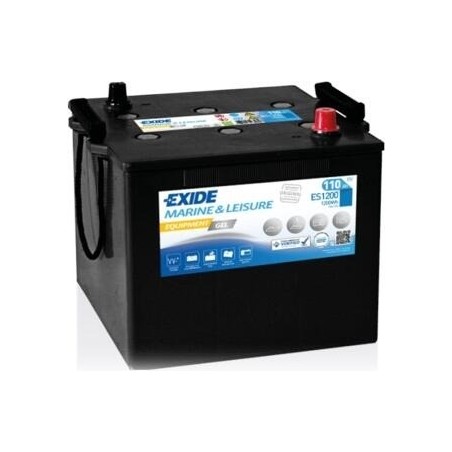

Exide ES1200 · Marine battery 12V 110Ah 760A GEL
Specifications
| Brand | EXIDE |
|---|---|
| Part number | ES1200 |
| Voltage (V) | 12 |
| Capacity (C20) | 110Ah (c20) |
| Technology | GEL |
| Length | 286.00 cm |
| Width | 269.00 cm |
| Height | 230.00 cm |
| Weight | 37.50 Kgs |
€268.80
VAT included
Exide ES1200 12V 110Ah 760A is a marine battery with reinforced anti-vibration case for moorings and offshore use. Tolerates the typical daily cycles on a boat (engine start + night-time services such as lights, sonar, fridge) and holds voltage even when the hull is rolling in open sea.

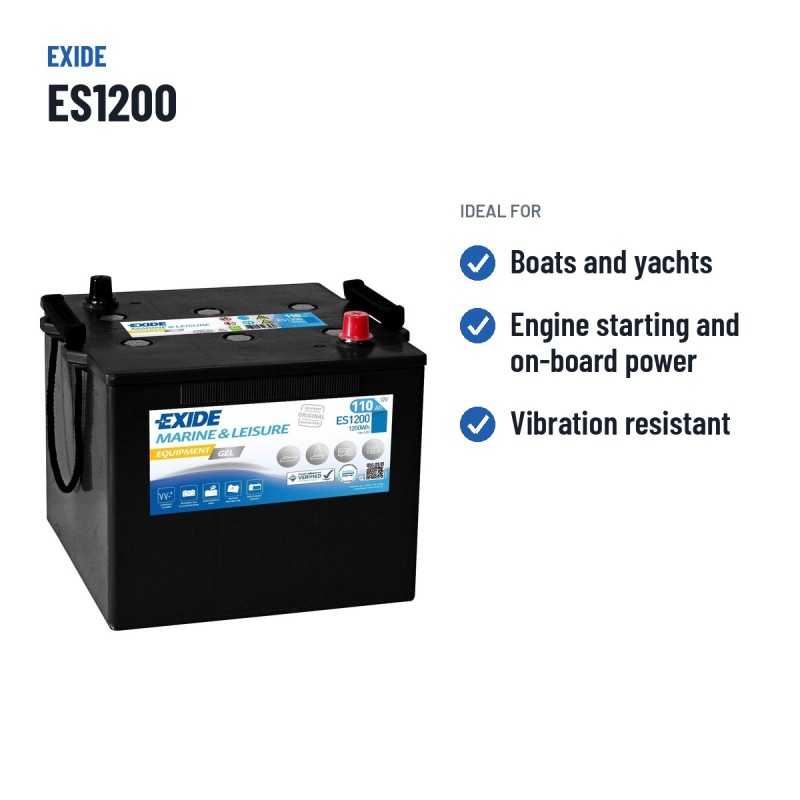

Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls

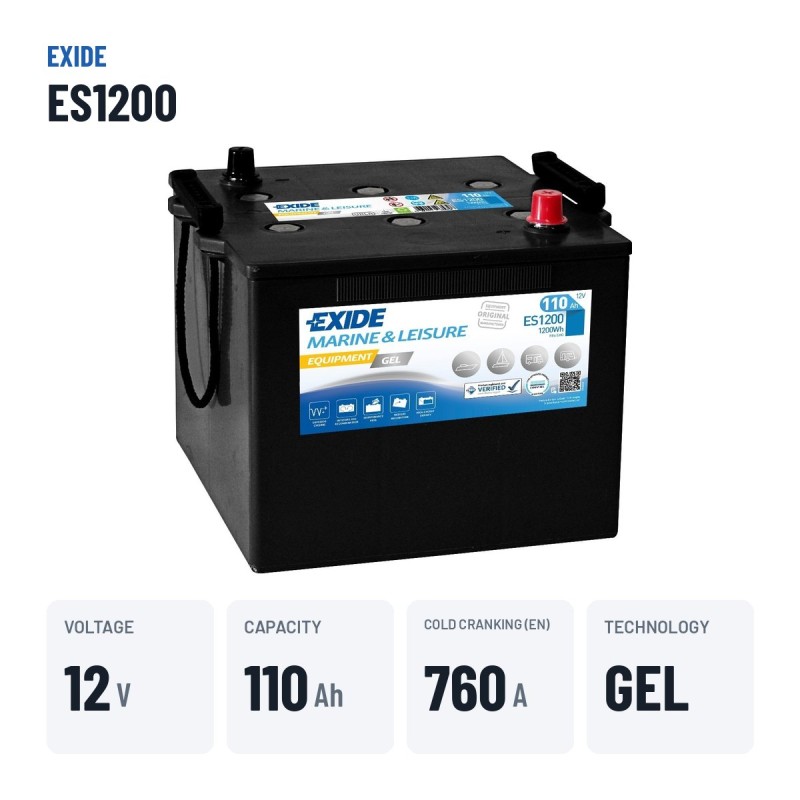

Voltage
12 V
Capacity
110 Ah
Cold cranking
760 A
Dimensions
284×267×226 mm
Technology
GEL
Weight
37,5 kg
Model
EXIDE MARINA GEL

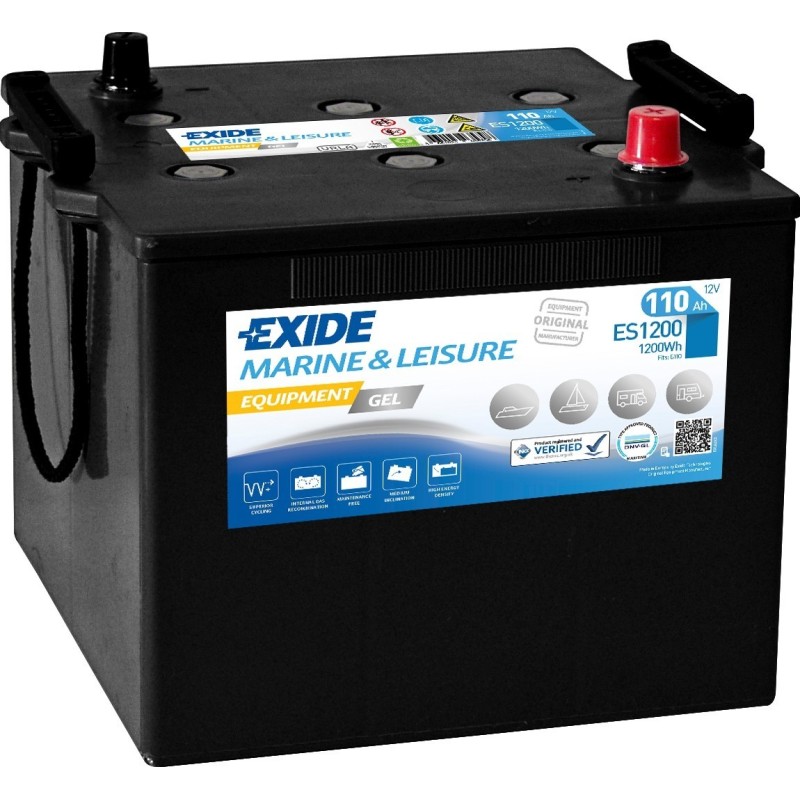

Marine battery Exide ES1200 Marina GEL 110Ah 760A 12V
12VVoltage
110AhCapacity
760ACold cranking
37.50kgWeight
The Exide ES1200 marine battery offers 12 V, 110 Ah and 760 A of cold cranking current (EN) from the Marina GEL range with GEL technology, designed for motor and sailing boats, both for engine starting and onboard services. It replaces the original battery without adaptation in boats with a 286 × 269 × 230 mm format: same 110 Ah capacity.
- Powers onboard services: lights, sounder, GPS, fridge.
- Tolerates the daily cycling of a boat in season.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Reinforced case against vibration and swell.

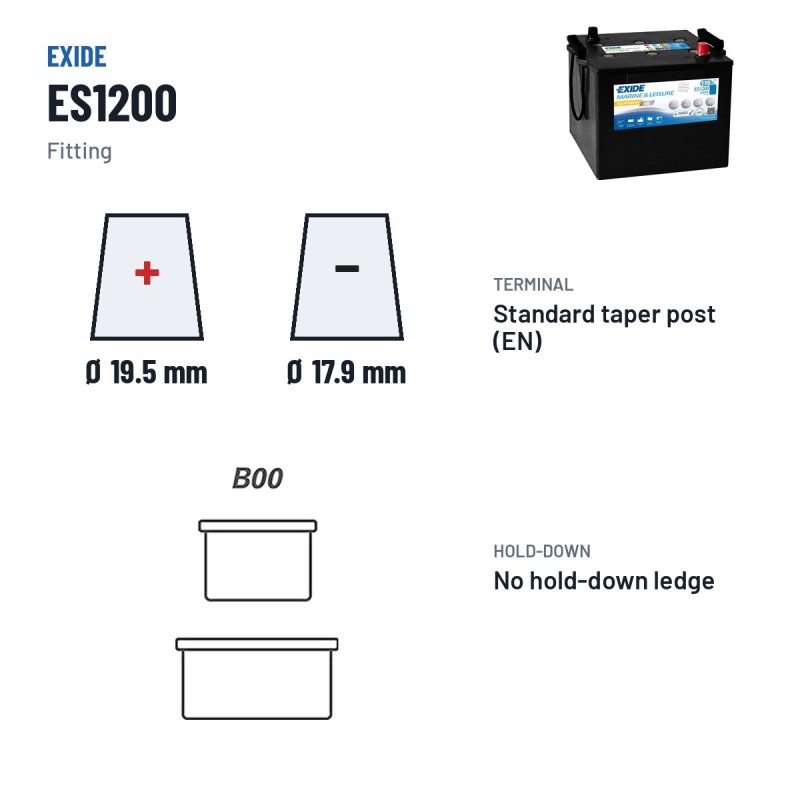

Will it fit your current battery tray?
The Exide ES1200 is made in the 286 × 269 × 230 mm format and weighs 37.50 kg. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Exide ES1200 is for
On board, the Exide ES1200 provides 110 Ah with a case reinforced against vibration and swell. Keep the terminals clean and protected from salt humidity. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 37.50 kg, 1 terminals and B0 hold-down.
The Exide ES1200: Marina GEL range and GEL technology
Within the Exide catalogue, the Marina GEL series groups the references designed for this use. The ES1200 is the 110 Ah model of that family, with the same performance as its siblings in other sizes.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.
What Exide does differently
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Exide ES1200 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
Care and maintenance
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. As a service battery, avoid routine discharges below 50% to extend its cycle life.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-ES1200

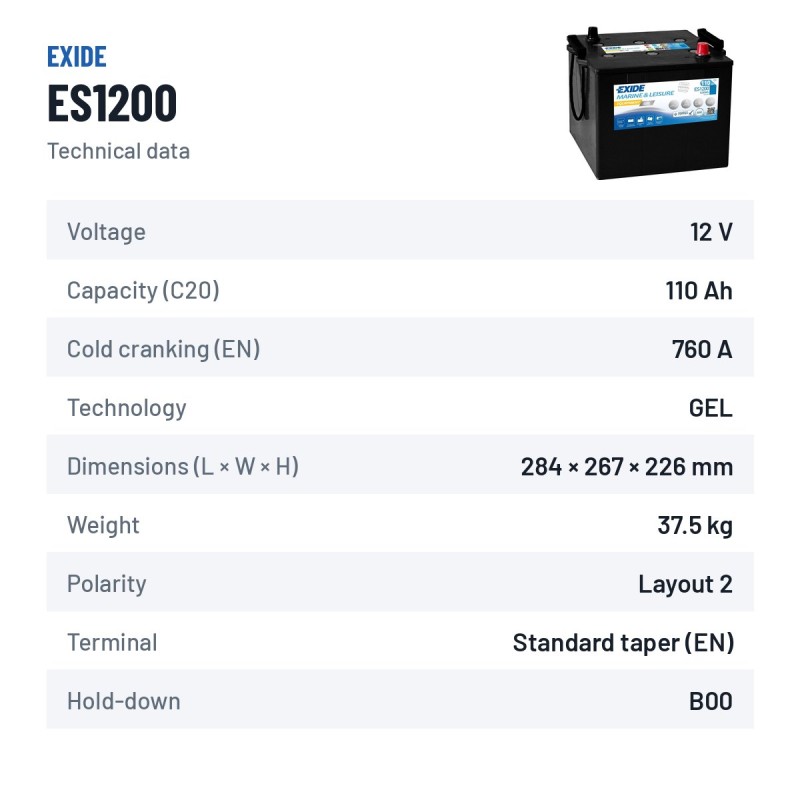

Data sheet
- Brand
- EXIDE
- Reference
- ES1200
- Model
- EXIDE MARINA GEL
- Voltage (V)
- 12
- Length
- 286.00 cm
- Width
- 269.00 cm
- Height
- 230.00 cm
- Weight
- 37.50 Kgs
- Technology
- GEL
- EAN
- 3661024035798

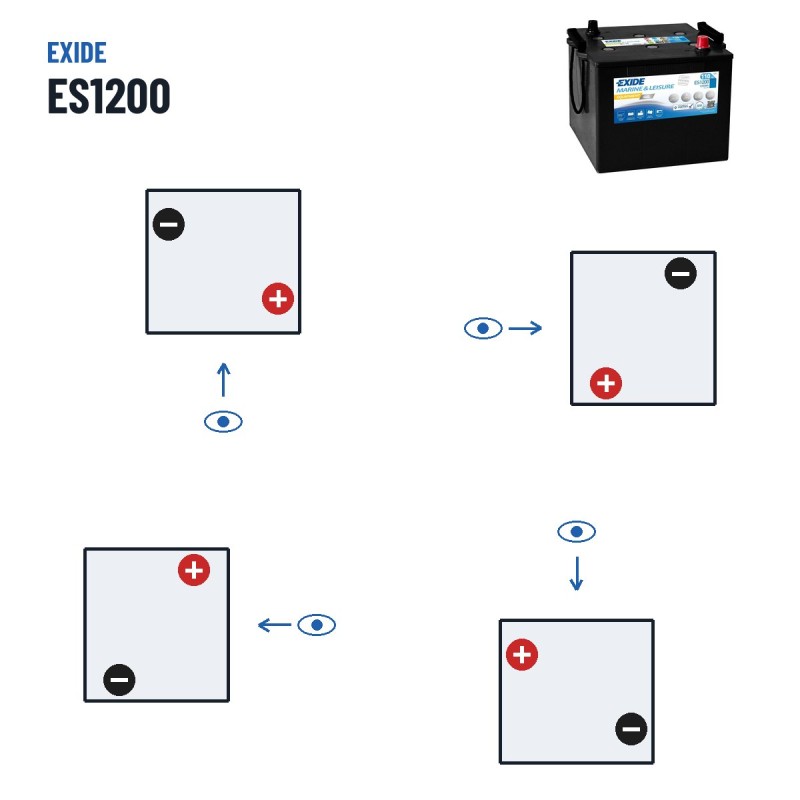

- Terminal layout
- 2
- Terminal type
- 1
- Hold-down
- B0
- Cold cranking amps (EN)
- 760A
- Capacity (C20)
- 110Ah (c20)
Specific References
- EAN13
- 3661024035798
- MPN
- ES1200
Codes and references Exide ES1200
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MARINA GEL |
| Manufacturer reference (MPN) | ES1200 |
| EAN-13 barcode | 3661024035798 |
| Dimensions (length × width × height) | 284 × 267 × 226 mm (284x267x226) |
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
Is the Exide ES1200 a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I change this battery step by step?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide ES1200 battery last?
Expected lifespan of the Exide ES1200 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

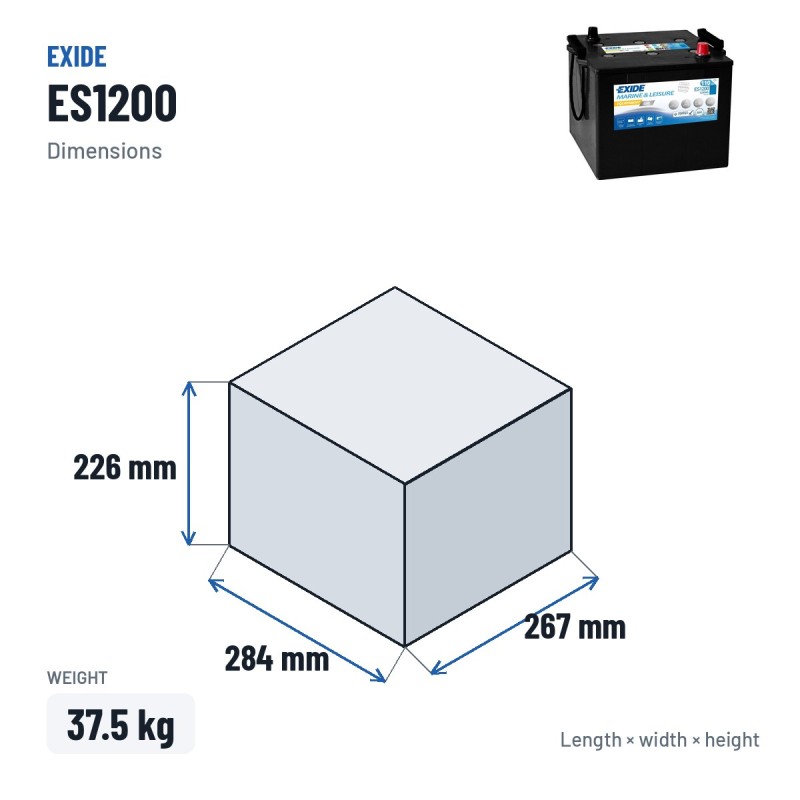

What are the dimensions of the Exide ES1200 battery?
Dimensions (length × width × height) are 284×267×226 mm — also written as 284x267x226 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the ES1200 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ES1200 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
