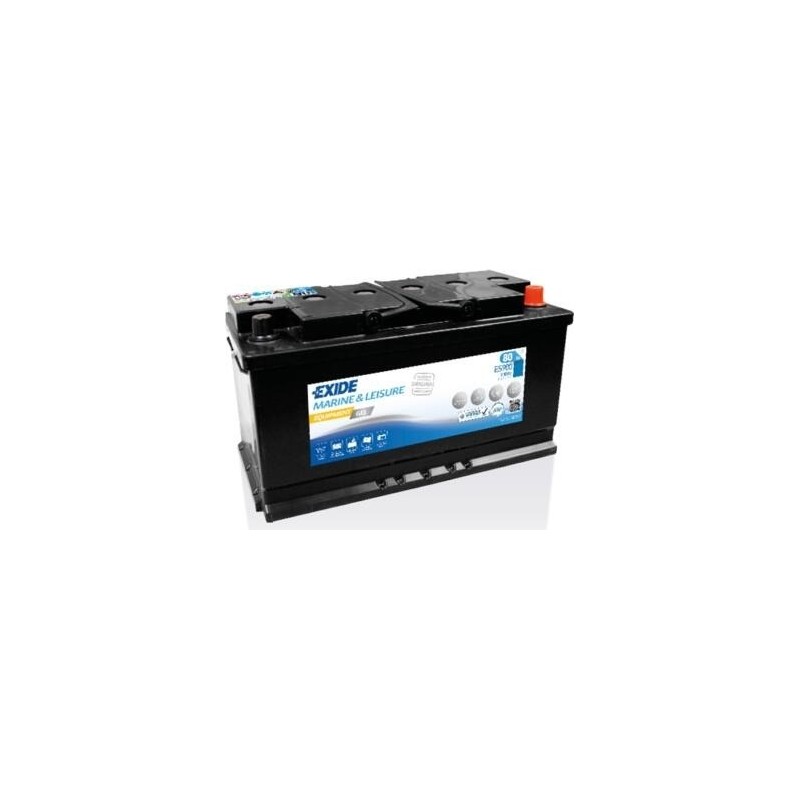

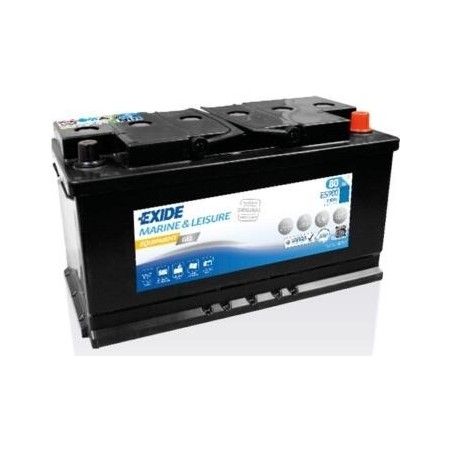

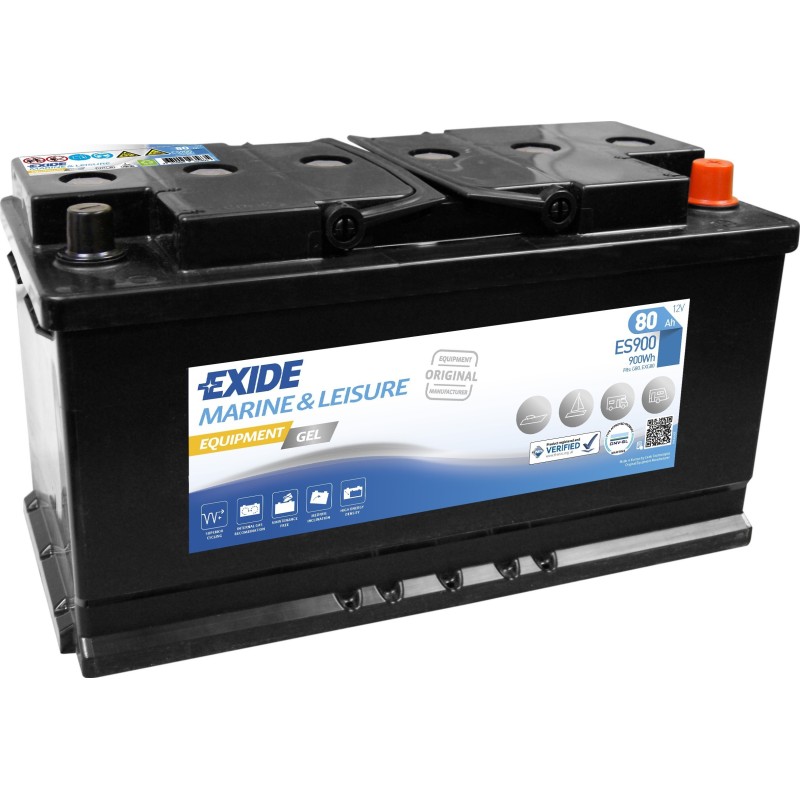

Exide ES900 · Marine battery 12V 80Ah 540A GEL
Specifications
| Brand | EXIDE |
|---|---|
| Part number | ES900 |
| Voltage (V) | 12 |
| Capacity (C20) | 80Ah (c20) |
| Technology | GEL |
| Length | 353.00 cm |
| Width | 175.00 cm |
| Height | 190.00 cm |
| Weight | 25.50 Kgs |
€176.30
VAT included
Exide ES900 12V 80Ah 540A is a marine battery, vibration- and deep-discharge resistant, suitable both for outboard engine starting and for onboard auxiliary services (navigation lights, GPS, sonar, fridge). Sealed and maintenance-free.
Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
80 Ah
Cold cranking
540 A
Dimensions
353×175×190 mm
Technology
GEL
Polarity
Positive on the right
Weight
25,5 kg
Model
EXIDE MARINA GEL
Marine battery Exide ES900 Marina GEL 80Ah 540A 12V
12VVoltage
80AhCapacity
540ACold cranking
25.50kgWeight
The Exide ES900 with GEL technology is a marine battery with 80 Ah and 540 A of cold cranking current (EN) for motor and sailing boats, both for engine starting and onboard services. It replaces the original battery without adaptation in boats with a 353 × 175 × 190 mm format: same 80 Ah capacity and the positive terminal on the right.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Reinforced case against vibration and swell.
- Powers onboard services: lights, sounder, GPS, fridge.
- Tolerates the daily cycling of a boat in season.
What the Exide ES900 is for
With 80 Ah, the Exide ES900 covers motor and sailing boats, both for engine starting and onboard services. At the end of the season, charge it fully before winter storage. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 25.50 kg, 1 terminals and B13 hold-down.
The Exide ES900: Marina GEL range and GEL technology
The Marina GEL is the Exide range the ES900 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.
Will it fit your current battery tray?

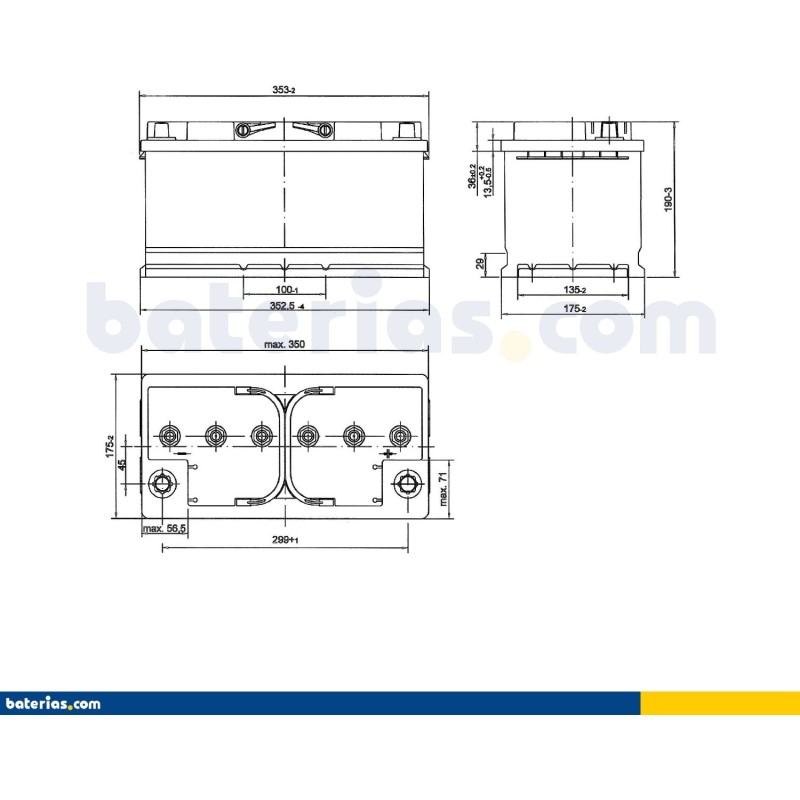

It has external dimensions of 353 × 175 × 190 mm and weighs 25.50 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
Usage and maintenance tips
As a service battery, avoid routine discharges below 50% to extend its cycle life. At the end of the season, charge the battery fully and, if possible, keep it on a charger over the winter lay-up.
Manufacturer's warranty
The Exide ES900 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-ES900
Data sheet
- Brand
- EXIDE
- Reference
- ES900
- Model
- EXIDE MARINA GEL
- Voltage (V)
- 12
- Length
- 353.00 cm
- Width
- 175.00 cm
- Height
- 190.00 cm
- Weight
- 25.50 Kgs
- Technology
- GEL
- EAN
- 3661024035835
- Terminal layout
- Positive terminal on the right
- Terminal type
- 1
- Hold-down
- B13
- Cold cranking amps (EN)
- 540A
- Capacity (C20)
- 80Ah (c20)
- Case type
- L5
Specific References
- EAN13
- 3661024035835
- MPN
- ES900
Codes and references Exide ES900
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MARINA GEL |
| Manufacturer reference (MPN) | ES900 |
| EAN-13 barcode | 3661024035835 |
| European case size (EN 50342-2) | L5 |
| Dimensions (length × width × height) | 353 × 175 × 190 mm (353x175x190) |
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
Is the ES900 model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the ES900 model in my boat?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide ES900 battery last?
Expected lifespan of the Exide ES900 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide ES900 battery?
Dimensions (length × width × height) are 353×175×190 mm — also written as 353x175x190 mm and correspond to the European L5 case size — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the ES900 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ES900 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide ES900?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
