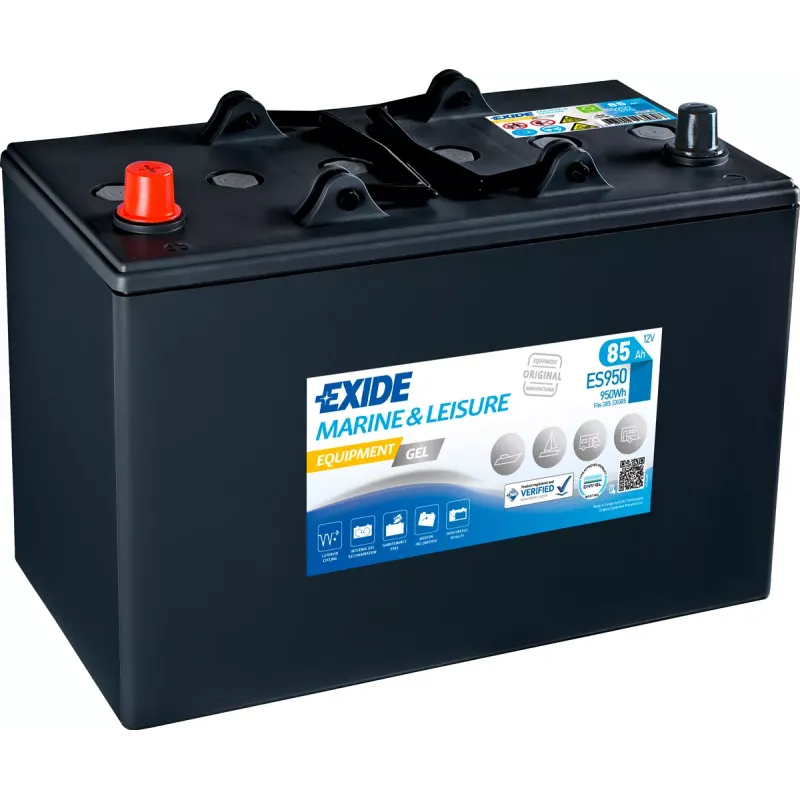

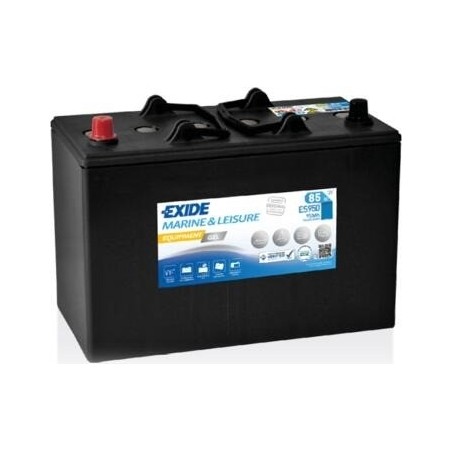

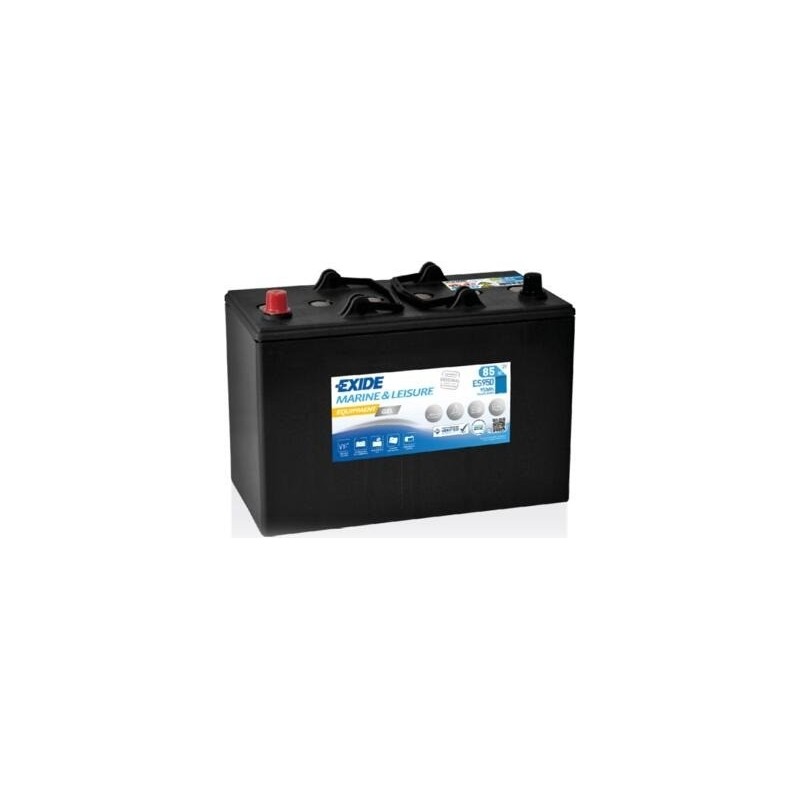

Exide ES950 · Marine battery 12V 85Ah 450A GEL
Specifications
| Brand | EXIDE |
|---|---|
| Part number | ES950 |
| Voltage (V) | 12 |
| Capacity (C20) | 85Ah (c20) |
| Technology | GEL |
| Length | 330.00 cm |
| Width | 175.00 cm |
| Height | 235.00 cm |
| Weight | 28.20 Kgs |
€184.40
VAT included
Exide ES950 12V 85Ah 450A is a marine battery with reinforced anti-vibration case for moorings and offshore use. Tolerates the typical daily cycles on a boat (engine start + night-time services such as lights, sonar, fridge) and holds voltage even when the hull is rolling in open sea.
Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
85 Ah
Cold cranking
450 A
Dimensions
330×171×235 mm
Technology
GEL
Polarity
Positive on the left
Weight
28,2 kg
Model
EXIDE MARINA GEL
Marine battery Exide ES950 Marina GEL 85Ah 450A 12V
12VVoltage
85AhCapacity
450ACold cranking
28.20kgWeight
The Exide ES950 marine battery offers 12 V, 85 Ah and 450 A of cold cranking current (EN) from the Marina GEL range with GEL technology, designed for motor and sailing boats, both for engine starting and onboard services. It measures 330 × 175 × 235 mm and the positive terminal on the left, the format sought by anyone replacing a 85 Ah battery in boats.
- Tolerates the daily cycling of a boat in season.
- Powers onboard services: lights, sounder, GPS, fridge.
- Reinforced case against vibration and swell.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
What the Exide ES950 is for
With 85 Ah, the Exide ES950 covers motor and sailing boats, both for engine starting and onboard services. At the end of the season, charge it fully before winter storage. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 28.20 kg, 1 terminals and B0 hold-down.
Will it fit your current battery tray?
It has external dimensions of 330 × 175 × 235 mm and weighs 28.20 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Exide ES950: Marina GEL range and GEL technology
The Marina GEL is the Exide range the ES950 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.
Exide: the maker behind the ES950
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
Warranty and coverage
The Exide ES950 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
How to make it last longer
At the end of the season, charge the battery fully and, if possible, keep it on a charger over the winter lay-up. As a service battery, avoid routine discharges below 50% to extend its cycle life.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-ES950
Data sheet
- Brand
- EXIDE
- Reference
- ES950
- Model
- EXIDE MARINA GEL
- Voltage (V)
- 12
- Length
- 330.00 cm
- Width
- 175.00 cm
- Height
- 235.00 cm
- Weight
- 28.20 Kgs
- Technology
- GEL
- EAN
- 3661024035828
- Terminal layout
- Positive terminal on the left
- Terminal type
- 1
- Hold-down
- B0
- Cold cranking amps (EN)
- 450A
- Capacity (C20)
- 85Ah (c20)
- Case type
- D02
Specific References
- EAN13
- 3661024035828
- MPN
- ES950
Codes and references Exide ES950
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MARINA GEL |
| Manufacturer reference (MPN) | ES950 |
| EAN-13 barcode | 3661024035828 |
| Dimensions (length × width × height) | 330 × 171 × 235 mm (330x171x235) |
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
Is this battery GEL? What is the typical use?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Exide ES950 battery installed in the vehicle?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide ES950 battery last?
Expected lifespan of the Exide ES950 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide ES950 battery?
Dimensions (length × width × height) are 330×171×235 mm — also written as 330x171x235 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my boat?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ES950 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the ES950 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
