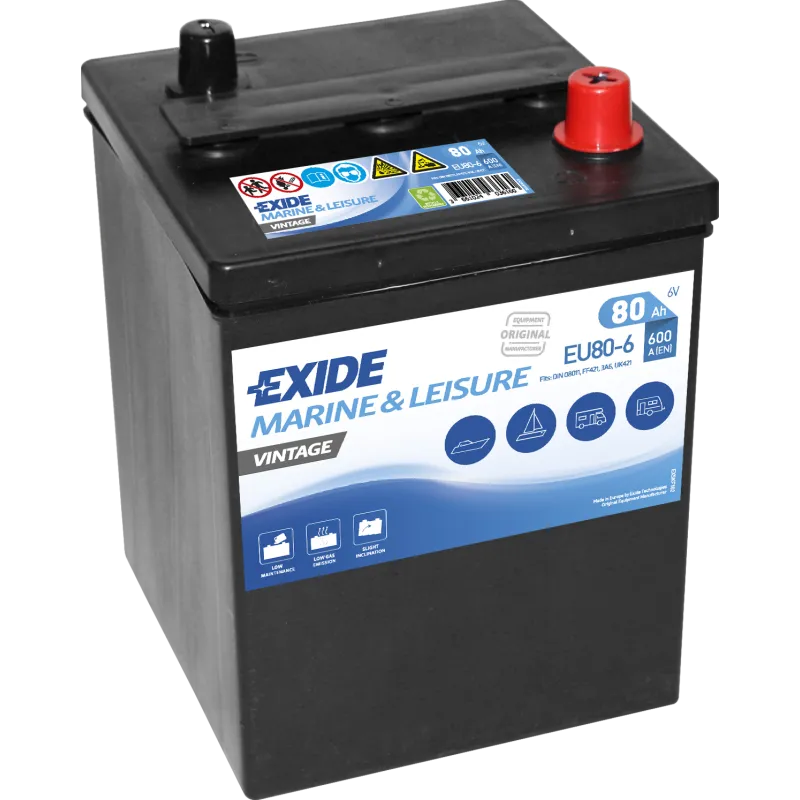

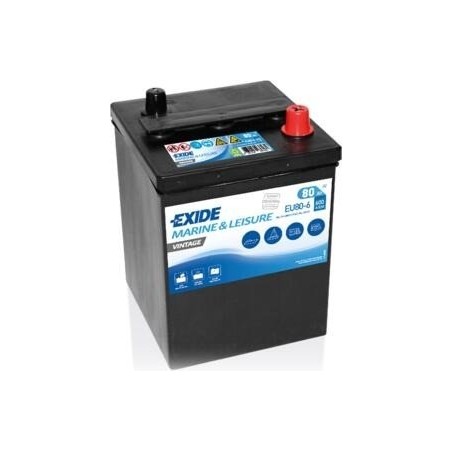

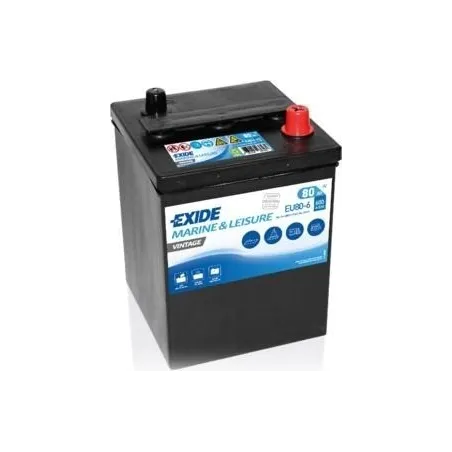

Exide EU80-6 · Marine battery 6V 80Ah 600A

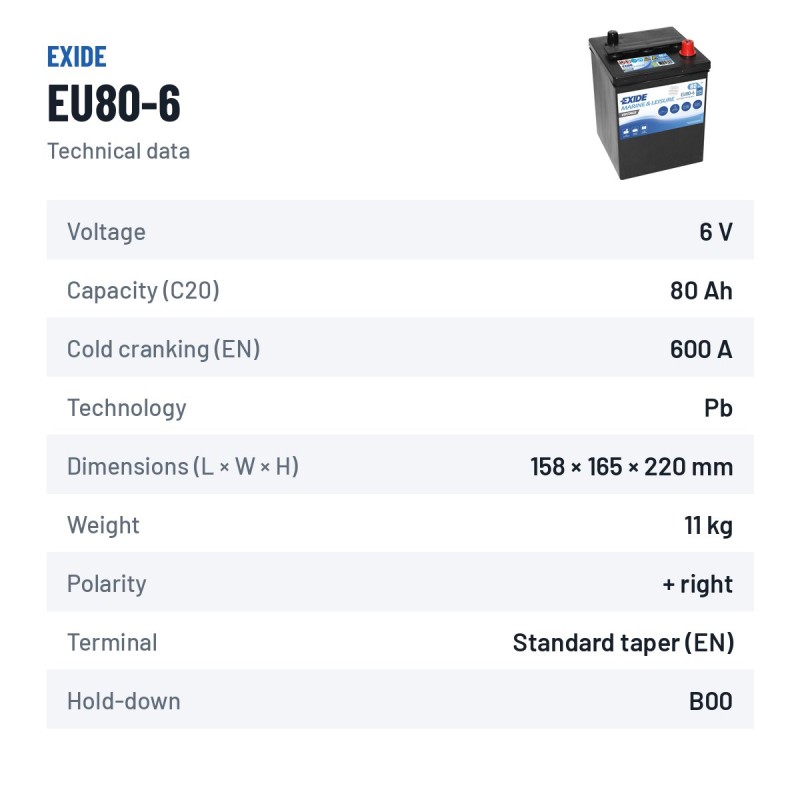

Specifications
| Brand | EXIDE |
|---|---|
| Part number | EU80-6 |
| Voltage (V) | 6 |
| Capacity (C20) | 80Ah (c20) |
| Cold cranking amps (EN) | 600A |
| Technology | Lead-acid |
| Length | 158.00 cm |
| Width | 165.00 cm |
| Height | 220.00 cm |
€102.50
VAT included
Exide EU80-6 6V 80Ah 600A is a marine battery with reinforced anti-vibration case for moorings and offshore use. Tolerates the typical daily cycles on a boat (engine start + night-time services such as lights, sonar, fridge) and holds voltage even when the hull is rolling in open sea.

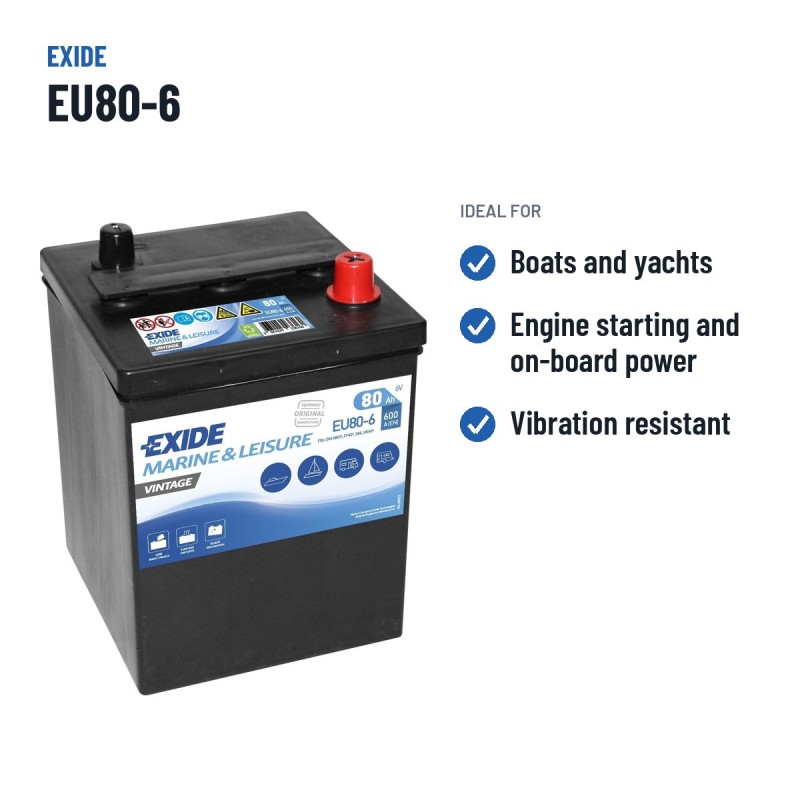

Why this marine battery?
- Marine designbuilt for boat swell and vibration
- Dual functionstarts the engine and powers onboard services
- Sealed and safemaintenance-free even when the boat rolls
Voltage
6 V
Capacity
80 Ah
Cold cranking
600 A
Dimensions
158×165×220 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
11 kg
Model
EXIDE MARINA VINTAGE
Marine battery Exide EU80-6 Marina Vintage 80Ah 600A 6V
6VVoltage
80AhCapacity
600ACold cranking
11kgWeight
The Exide EU80-6 marine battery offers 6 V, 80 Ah and 600 A of cold cranking current (EN) from the Marina Vintage range with conventional lead-acid technology, designed for motor and sailing boats, both for engine starting and onboard services. It measures 158 × 165 × 220 mm and the positive terminal on the right, the format sought by anyone replacing a 80 Ah battery in boats.
- Reinforced case against vibration and swell.
- Conventional lead-acid: the most proven and economical technology.
- Tolerates the daily cycling of a boat in season.
- Powers onboard services: lights, sounder, GPS, fridge.
What the Exide EU80-6 is for
With 80 Ah, the Exide EU80-6 covers motor and sailing boats, both for engine starting and onboard services. At the end of the season, charge it fully before winter storage. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 11 kg, 1 terminals and B0 hold-down.
Dimensions, polarity and mounting
In terms of format, the Exide EU80-6 measures 158 × 165 × 220 mm (length × width × height) and weighs 11 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Exide: the maker behind the EU80-6
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Exide EU80-6: Marina Vintage range and conventional lead-acid technology
The Marina Vintage is the Exide range the EU80-6 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Care and maintenance
Protect the terminals with dielectric grease and check the fixing: vibration and swell loosen connections. At the end of the season, charge the battery fully and, if possible, keep it on a charger over the winter lay-up.
Warranty and coverage
The Exide EU80-6 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-EU80-6
Data sheet
- Brand
- EXIDE
- Reference
- EU80-6
- Model
- EXIDE MARINA VINTAGE
- Voltage (V)
- 6
- Length
- 158.00 cm
- Width
- 165.00 cm
- Height
- 220.00 cm
- Weight
- 11.00 Kgs
- Technology
- Lead-acid
- EAN
- 3661024036160
- Terminal layout
- Positive terminal on the right
- Terminal type
- 1
- Hold-down
- B0
- Cold cranking amps (EN)
- 600A
- Capacity (C20)
- 80Ah (c20)
Specific References
- EAN13
- 3661024036160
- MPN
- EU80-6
Codes and references Exide EU80-6
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE MARINA VINTAGE |
| Manufacturer part number (MPN) | EU80-6 |
| Also known as | EU806 · EU80 6 |
| EAN-13 barcode | 3661024036160 |
| Dimensions (length × width × height) | 158 × 165 × 220 mm (158x165x220) |
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
How do I fit the EU80-6 model in my boat?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EU80-6 battery last?
Expected lifespan of the Exide EU80-6 is 4 to 6 years in regular boat use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 158×165×220 mm — also written as 158x165x220 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EU80-6 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EU80-6 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the EU80-6 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
