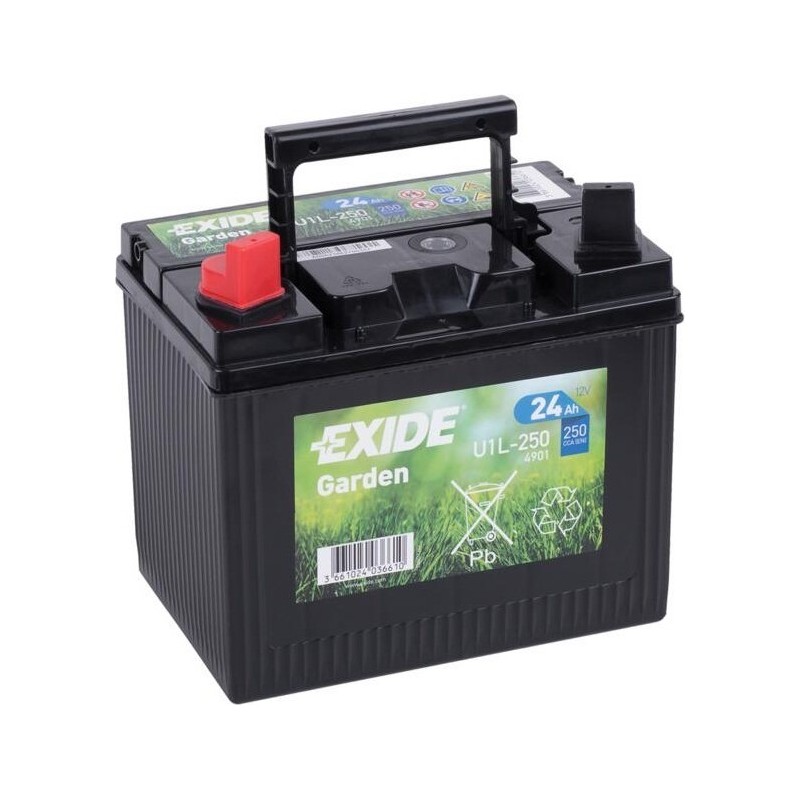

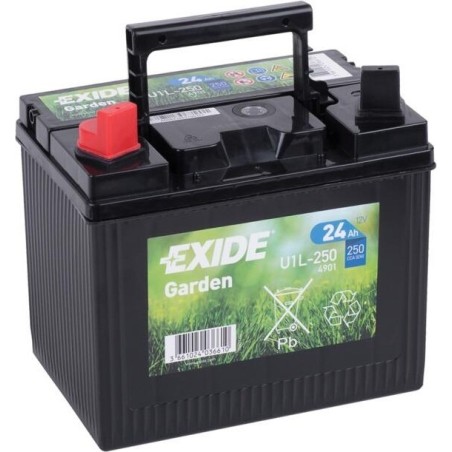

Exide U1L-250 · Lawnmower battery 12V 24Ah 250A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | U1L-250 |
| Capacity (C20) | 24Ah (c20) |
| Cold cranking amps (EN) | 250A |
| Technology | Lead-acid |
| Length | 197mm |
| Width | 132mm |
| Height | 186mm |
| Weight | 7.90 Kg |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Exide U1L-250 24Ah 250A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Capacity
24 Ah
Cold cranking
250 A
Dimensions
197×132×186 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
7,9 kg
Free quote, no obligation
Request a quote for your Lawnmower battery Exide U1L-250 12V 24Ah 250A
- Reply in under 24 working hours
- Best price guaranteed
Lawn mower battery Exide U1L-250 24Ah 250A 12V
12VVoltage
24AhCapacity
250ACold cranking
7.90kgWeight
With 24 Ah and 250 A of cold cranking current (EN), the Exide U1L-250 starts ride-on mowers, tillers and garden machinery after months of storage. Measuring 197 × 132 × 186 mm and the positive terminal on the left, it is the direct replacement for ride-on mowers fitted from the factory with a 24 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Resistant to garden-engine vibration.
- Sealed and maintenance-free.
- Direct replacement for the original battery.
What the Exide U1L-250 is for
The Exide U1L-250 is designed for ride-on mowers, tillers and garden machinery. After winter, a full charge before the first start avoids surprises. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 7.90 kg, EN small Ford lug terminals and B00 hold-down.
Technology inside the Exide U1L-250
Exide builds the U1L-250 to the same standards as the rest of its catalogue; what changes between references is capacity, format and terminal position.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Will it fit your current battery tray?
It has external dimensions of 197 × 132 × 186 mm and weighs 7.90 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B00 hold-down and EN small Ford lug terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Exide: the maker behind the U1L-250
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
Disconnect or remove the battery over winter and give it a maintenance charge before storing it. Check the voltage before the first start of the season and clean the terminals.
Warranty and coverage
The Exide U1L-250 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-U1L-250
Data sheet
- Voltage (V)
- Length
- 197mm
- Width
- 132mm
- Height
- 186mm
- Weight
- 7.90 Kg
- Technology
- Lead-acid
- EAN
- 3661024036610
- Terminal layout
- Positive left
- Terminal type
- EN small Ford lug
- Hold-down
- B00
- Cold cranking amps (EN)
- 250A
- Capacity (C20)
- 24Ah (c20)
Specific References
- EAN13
- 3661024036610
- MPN
- U1L-250
Codes and references Exide U1L-250
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer part number (MPN) | U1L-250 |
| Also known as | U1L250 · U1L 250 |
| EAN-13 barcode | 3661024036610 |
| Dimensions (length × width × height) | 197 × 132 × 186 mm (197x132x186) |
Comparison: Exide U1L-250 vs equivalents
The Exide U1L-250 is interchangeable with these equivalent references: GEL12-30 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
U1L-250
This battery
|
|||
Exide
GEL12-30
|
12V 30Ah 180A | Gel | €126.90 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide U1L-250 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the U1L-250 model?
Expected lifespan of the Exide U1L-250 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide U1L-250 battery?
Dimensions (length × width × height) are 197×132×186 mm — also written as 197x132x186 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide U1L-250 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The U1L-250 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
