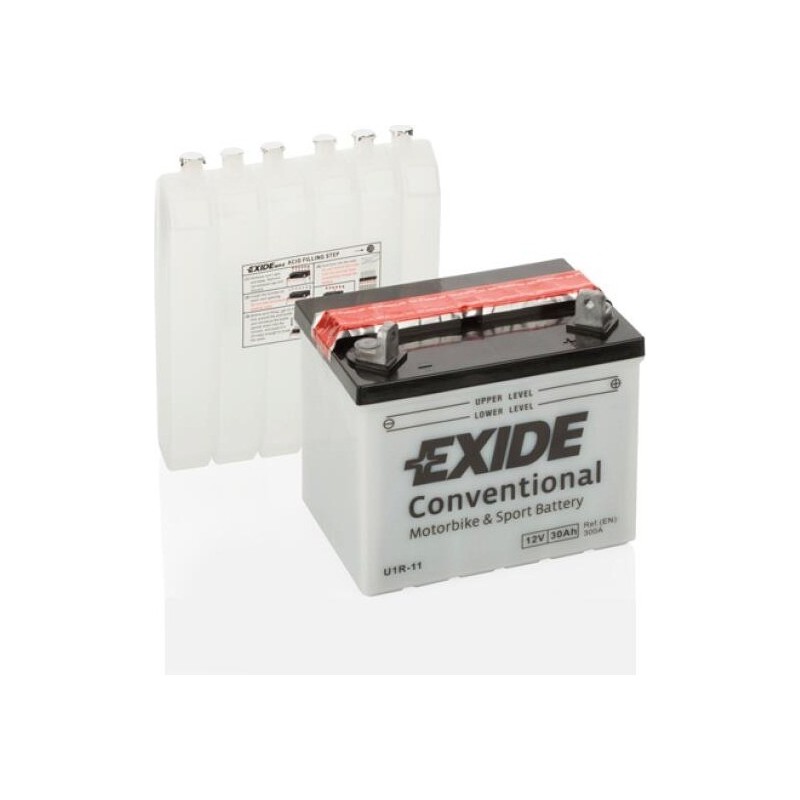

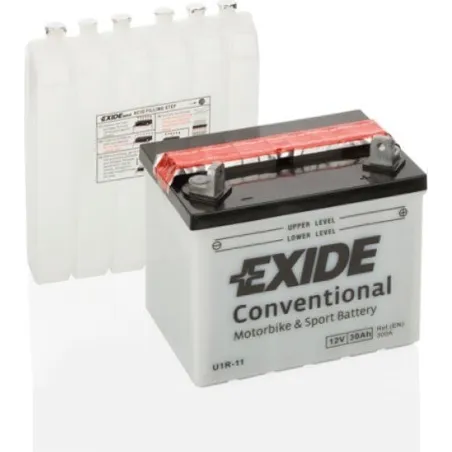

Exide U1R-11 · Lawnmower battery 12V 30Ah 300A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | U1R-11 |
| Voltage (V) | 12 |
| Capacity (C20) | 30Ah (c20) |
| Cold cranking amps (EN) | 300A |
| Technology | Lead-acid |
| Length | 196.00 cm |
| Width | 130.00 cm |
| Height | 180.00 cm |
€93.50
VAT included
Exide U1R-11 12V 30Ah 300A is a compact garden battery: strong cranking reserve and good tolerance to long idle periods between seasons.
Why this lawnmower battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
U1R-11
Voltage
12 V
Capacity
30 Ah
Cold cranking
300 A
Dimensions
195×130×180 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
9,2 kg
Model
EXIDE MOTO CONVENTIONAL 12V
Mfr. reference
U1R-11
Motorcycle battery Exide U1R-11 Moto Convencional 30Ah 300A 12V
12VVoltage
30AhCapacity
300ACold cranking
9.20kgWeight
The Exide U1R-11 motorcycle battery is rated at 12 V, 30 Ah and 300 A of cold cranking current (EN) from the Moto Convencional range, and is designed for motorcycles, scooters, quads and personal watercraft. Measuring 196 × 130 × 180 mm and the positive terminal on the right, it is the direct replacement for motorcycles fitted from the factory with a 30 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Sealed and ready to fit, no acid handling.
- Holds its charge through winter storage.
- Compact and lightweight format.
What the Exide U1R-11 is for
The Exide U1R-11 is a common replacement in motorcycles, scooters, quads and personal watercraft. If your bike spends the winter standing, a trickle charger stops it reaching spring flat. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 9.20 kg, M11 terminals and B0 hold-down.
Dimensions, polarity and mounting
The Exide U1R-11 is made in the 196 × 130 × 180 mm format and weighs 9.20 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and M11 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Exide U1R-11: Moto Convencional range and conventional lead-acid technology
Within the Exide catalogue, the Moto Convencional series groups the references designed for this use. The U1R-11 is the 30 Ah model of that family, with the same performance as its siblings in other sizes.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Exide: the maker behind the U1R-11
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Manufacturer's warranty
The Exide U1R-11 comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. If the bike spends the winter standing, connect a trickle charger: deep discharge through inactivity is the first cause of premature failure.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-U1R-11
Data sheet
- Brand
- EXIDE
- Reference
- U1R-11
- Model
- EXIDE MOTO CONVENCIONAL 12V
- Voltage (V)
- 12
- Length
- 196.00 cm
- Width
- 130.00 cm
- Height
- 180.00 cm
- Weight
- 9.20 Kgs
- Technology
- Lead-acid
- EAN
- 3661024033633
- Terminal layout
- Positive terminal on the right
- Terminal type
- M11
- Hold-down
- B0
- Cold cranking amps (EN)
- 300A
- Capacity (C20)
- 30Ah (c20)
Specific References
- EAN13
- 3661024033633
- MPN
- U1R-11
This product has no reviews yet. If you own it, tell us how it has gone: it will help whoever is looking at it now.
Codes and references Exide U1R-11
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE MOTO CONVENCIONAL 12V |
| Manufacturer part number (MPN) | U1R-11 |
| Also known as | U1R11 · U1R 11 |
| EAN-13 barcode | 3661024033633 |
| Dimensions (length × width × height) | 195 × 130 × 180 mm (195x130x180) |
Comparison: Exide U1R-11 vs equivalents
The Exide U1R-11 is interchangeable with these equivalent references: 522451034 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
U1R-11
This battery
|
12V 30Ah 300A | Lead-acid | €93.50 |
Varta
522451034
|
12V 22Ah 340A | Lead-acid | €74.20 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide U1R-11 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the U1R-11 model?
Expected lifespan of the Exide U1R-11 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the U1R-11 model?
Dimensions (length × width × height) are 195×130×180 mm — also written as 195x130x180 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the U1R-11 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The U1R-11 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
